Enlarged version

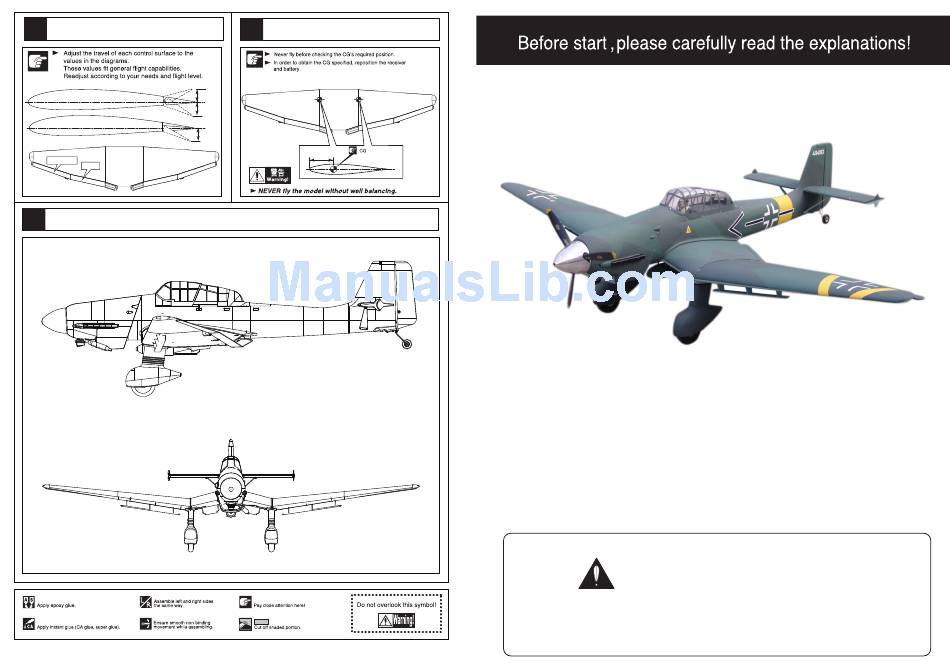

Adjustment.

Side View

AILERON

20mm

FLAP

30mm

AILERON

FLAP

Top View

The front view when the drop tank and the bombs install completion.

Centre of Gravity.

135mm

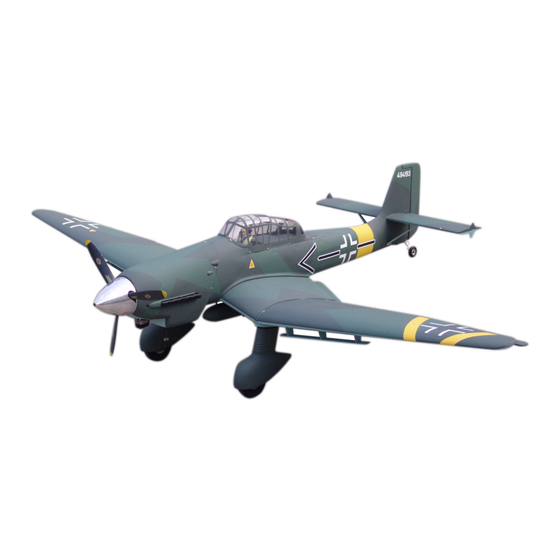

JU-87D Stuka

Specification:

Length

:1691 mm(66.6")

Wing Span

:2032 mm(80")

Wing Area

:60.3 sq. dm

6.50 sq. ft

Wing Loading :104.5 g/sq. dm

34.2 oz/sq. ft

Flying Weight :6.5 kg(14.3 lbs)

Radio

:6ch&8 servos

Engine

:108 2-cycle

120 4-cycle

This R/C airplane is not a toy!

(The people under 18 years old is forbidden from flying this model)

First-time builders should seek advice from people having building

experience.If misused or abused,it can cause serious bodily injury

and damage to property.

Fly only in open areas and preferably at a dedicated R/C flying site.

SAFETY PRECAUTIONS

We suggest having a qualified instructor carefully inspect your

airplane before its first flight.Please carefully read and follow all

instructions included with this airplane,your radio control system

and any other components purchased separately.

INSTRUCTION MANUAL

Table of Contents

Need help?

Do you have a question about the JU-87D Stuka and is the answer not in the manual?

Questions and answers

Summary of Contents for Junkers JU-87D Stuka

Page 1 Adjustment. Centre of Gravity. JU-87D Stuka Side View AILERON 20mm 20mm FLAP 30mm 135mm AILERON FLAP Top View The front view when the drop tank and the bombs install completion. Specification: Length :1691 mm(66.6") Wing Span :2032 mm(80") Wing Area :60.3 sq.
Page 2 Drill holes to appropriate in the bomb. Epoxy the bomb to the bottom wing. 6 channel radio for aiplane is highly recommended for this model. 20mm Epoxy plastic tube into the holes. Adjustment. Plastic dube (5x30mm) ELEVATOR 4-cycle .120 Top view 15mm 15mm Side View...
Page 3 Assemble the stabilizer strut by TP serew. Assemble the cowling. According to the rib template drill holes in one wing and Accessory list for the coming installation steps. epoxy wood dowel in them. TP Screw (2.3x8mm) Wood dowel (6x30mm) Ply (15x15x3mm) Rib template (2mm ply) 1.5mm Servo tray(68.5x56.5x2mm)
Page 4 Trim two holes to pull the servo extension Connect the two flaps with the bended steel wire and Accessory list for the coming installation steps. Instaill the servo in tail of fuselag. lines and fuel tube from the holes. keep about 2mm between the two flap. Please note the marked point.
Page 5 Assemble the pin hinge to the wings ,the flaps & the Accessory list for the coming installation steps. Assemble the rudder servo in the fuselage. Install the servo to the board. ailerons.Adjust them to the perfect position. Wheel pants PVC part Wheel (115mm) Collar (6mm) Ply (15x15x3mm)
Page 6 According to the back steps,epoxy the PVC part Install the engine. Assemble the servos and switch . Cut off the surplus part of pvc parts. to the appropriate place. Set screw (3x4mm) Washer (2mm) Washer (2mm) Linkage Stopper Washer (2mm) Nut (2mm) Set screw (3x4mm) Assemble the servo to fuselage.
Page 7 Drill four holes at the diameters as shown Accessory list for the coming installation steps. Accessory list for the coming installation steps. Drill holes in the fuselage to install the main wing. for engine mount. Blind Nut (4mm) Clevis Pin hinge(2.5x48mm) Retainer Screw (4x35mm) Screw (3x35mm)
Page 8 Drill hols to appropriate position in the vertical tail Epoxy the horizontal tail to fuselage.Remove paint Epoxy the fibre glass tubes to appropriate Drill two holes at the stabilizer root base on rib template and epoxy the rudder to the vertical tail steadily. and epexy the metal dowel in them.
