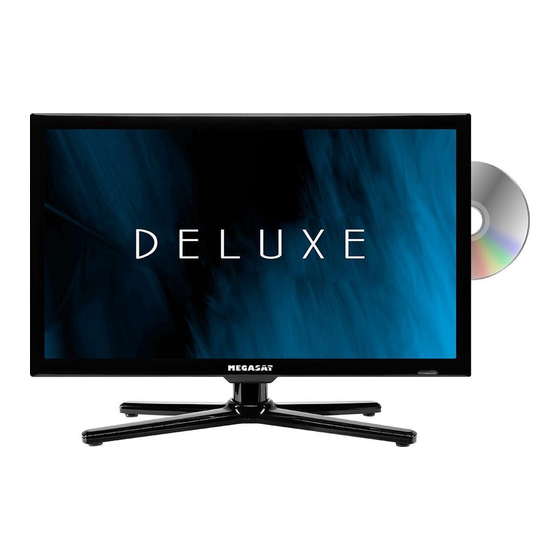

Page 1: User Manual
Royal Line Serie User manual... -
Page 2: Table Of Contents
Content Content 1. Safety instructions ........................03 2. Delivery ..............................03 3. Stand assembly..........................04 4. Designations 4.1 Front and side view ......................06 4.2 Connections ..........................07 4.3 Remote control ........................08 ....................... 5. First installation 6. Basic functions 6.1 Select input source ...................... -
Page 3: Safety Instructions
1. Safety instructions Please read the manual thoroughly before operating the equipment. In case of incorrect or improper handling, the warranty becomes void. Power supply: Before start please check the correct operation voltage of the power point. The operating voltage of this device is AC 100~240 V, 50/60Hz. -
Page 4: Stand Assembly
3. Stand assembly 1. For the assembly you need the following parts 4x Screws Television Stand Note: Before installing the stand, please check that you have all of the parts and that there is no visible damage. If a part is missing or appears damaged, please contact custo- mer service. - Page 5 3. Stand assembly Use a suitable screwdriver and attach the base with the screws provided. Make sure that the screws are properly tightened. 3. WARNING It can not be tilted to the front or back as shown below. Doing so may damage the stand.
-
Page 6: Designations
4. Designations 4.1 Fronr and side view Front view Side view Infrared sensor Receiver for the remote control signals. LED light Press the power button to switch on or off the TV. RED = Standby / Green = Power on Power switch Main switch for power supply... -
Page 7: Connections
4. Designations 4.2 Connections Bottom view POWER 12V DC Mains connection for 12/230 volt power supply or 12 V board voltage. Video input for VGA from PC PC IN Audio input for sound from PC SCART Scart port ANT IN 2 / DVB-S2 Input for Satellite antenne (13/18V max. -
Page 8: Remote Control
4. Designations 4.3 Remote control POWER Turn the TV on / off (Standby) MUTE Muting the sound PICTURE Switch to picture presets ASPECT Switch aspect ratio SLEEP Setting Automatic-shutdown SOUND Switch to Sound preferences Show favorites NUMMERIC BUTTONS Enter numbers RETURN Returns to the last channel position INFO... -
Page 9: First Installation
5. First installation 1. Connect the TV to the power supply and turn on the power switch at the bottom of the housing. The TV is now in standby mode (LED is RED). 2. Then press the Power button on the remote control (LED is GREEN). -
Page 10: Basic Functions
6. Basic Functions 6.1 Select input source Press the INPUT button on the remote control to select the input source. Use the buttons or the buttons on the TV to select a source. Press OK to confirm, or wait a few seconds. Note: Before you select the source, make sure that the source is rea- dy, otherwise no signal is transmitted. -
Page 11: The Main Menu
7. The Main Menu 7.1 Channel search In the menu Channel Search you can search for new channels, edit channels or set con- figurations at your reception mode. Note: The submenu of Channel Search differ depending on what kind of a reception mode you have set during the first installation (satellite, cable or terrestrial). - Page 12 7. The Main Menu Edit channels Delete (RED button) Use the arrow keys to choose a channel, then press to RED button to delete it. Move (YELLOW button) Use the arrow keys to choose a channel, then press the YELLOW button to high- light it.
- Page 13 7. The Main Menu Signal informations In this menu you can see various informa- tion about the respective transponder or channel. Signal quality and level can be read here. CI Informations This menu provides informa- tion about the inserted CI module, or about the smart card (if available).
- Page 14 7. The Main Menu SAT antenna configuration This menu allows you to make basic changes to your satellite system, edit transponders and satellites, add and perform a satellite scan. Use the keys to navigate between the respective columns. Satellite Delete (RED button) Deletes the selected satellite.
- Page 15 7. The Main Menu Transponder Delete (RED button) Deletes the selected transponder. Confirm the irrevocable deletion by clicking OK. Edit (GREEN button) To change the frequency, the symbol rate and the polarity of the selected transponder. Confirm with OK. New (YELLOW button) Add a new transponder.
-
Page 16: Channel Search (Cable And Terrestrial)
7. The Main Menu 7.1.2 Channel Search (Cable and Terrestrial) Antenna Select your reception mode. Cable or terrestrial TV. Automatic Channel Search Country Select the desired country Recept. mode ATV (analogue) and/or DTV (digital) Sorting by LNC LNC is an automatic channel sorting Then press OK to start the search. -
Page 17: Picture
7. The Main Menu 7.2 Picture In this menu you can set up basic settings for the TV picture. Use default settings or set your own values. Picture settings You can select a preset Picture settings Contrast Adjust the contrast value Brightness Adjust the Brightness value Color... -
Page 18: Sound
7. The Main Menu 7.3 Sound In this menu you can set up basic settings for the TV sound. Use default settings or set your own values. Sound profile Select a preset sound profile Treble Adjust the treble Bass Adjust the base Balance Adjust the balance between right and left channel... -
Page 19: Clock
7. The Main Menu 7.4 Clock In this menu you can set the time of the TV as well as various other automatic functions. Time zone Select the time zone which you are located Off time Set the time when the TV should switch off... -
Page 20: Configuration
Software update If there is a new firmware for the TV, you can this update here. You can find the latest firmware always on our homepage www.megasat.tv 1. Copy the firmware to the root directory of a formatted USB drive (without subfolders). -
Page 21: Protection
7. The Main Menu 7.6 Protection In this menu passwords can be assigned to Channel Lock, add a youth protection or configure a hotel mode. System lock Select ON to enable the password lock. The default password is: 0000 Set password Change the default password. -
Page 22: Dvd Operation
8. DVD operation In DVD menu allows you to play DVDs or Video CDs. First, press the INPUT but- ton on the remote control and select the DVD source. Now insert a disc with text side towards the screen. The DVD is au- tomatically pulled in. -
Page 23: Dvd Settings Menu
8. DVD operation 8.2 DVD Settings menu To make basic settings in the DVD menu, press the RED button (D.SET). Then open the DVD settings menu. General Settings T V display Define the appropriate image format. Choose between 4:3 PS, 4:3 LB and 16:9. Display language Select the DVD menu language. - Page 24 8. DVD operation Dolby Digital settings Dynamic This option is used to control the com- pression ratio and thus to improve the sound. User settings TV type Choose between PAL, Multi or NTSC. In Europe, PAL is the default setting. Audio Select the preferred audio language of the DVD (if available on the disc).
-
Page 25: Multimedia Operation (Usb)
9. Multimedia operation (USB) With your TV you can play back multi- media files such as. photos, music, mo- vies and eBooks. Insert a suitable USB drive or external hard drive into the USB port. Press INPUT on the remote control and switch to using the arrow keys on MEDIA. -
Page 26: Music
9. Multimedia operation (USB) 9.2 Music Change to the menu „Music“, then the music menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the music from the USB drive. Navigate with the arrow keys to a desired music file. A small preview as title or artist are displayed on the screen. -
Page 27: Movies
9. Multimedia operation (USB) 9.3 Movies Change to the menu „Movies“, then the Movie menu appears with the folder structure. Navigate with the OK button to the main folder C, then displays all the movies from the USB drive. Navigate with the arrow keys to a desired movie file. A small preview as well as informa- tion to be displayed on the screen. -
Page 28: Epg Menu (Programm Guide)
10. EPG menu (program guide) In Electronic Programme Guide, you can see a 7-day preview of all channels (where the respective stations so provides). Use the arrow keys on the remote control to navigate between programs and broadcasts. Press the INFO button on the remote control to get more information on the broadcast. Declaration of color buttons Note: Reminds a broadcast... -
Page 29: Ci+ Slot For Pay Tv Expansion
11. CI+ slot for pay-TV expansion You can receive not only free to air (Free to Air) channels on the TV, but also encrypted channels unless you are in possession of a smart card and a CI module of the respective provider. -
Page 30: Troubleshooting
12. Troubleshooting Please read the following information to find out the possible cause of a problem before contacting customer service. No power • Check if the power cord is fully plugged into the electrical outlet and the power adapter. • Check if the cable of the power adapter is properly connected to the TV unit. -
Page 31: Specifications
13. Specifications Royal Line 19 Royal Line 22 Royal Line 24 Display LED Display (Pixel class 1) Screen size 18,5 inch (47 cm) 21,5 inch (54,6 cm) 23,6 inch (59,9 cm) Resolution 1366 x 768 1920 x 1080 1920 x 1080... -
Page 32: Declaration Of Conformity
Declaration of Conformity Hereby declare the company Megasat Werke GmbH that the following devices is in compliance with the essential requirements and other relevant provisions of Directive Council 2014/30/EU and 2014/35/EU: Megasat Royal Line 19 (Art.-Nr. 240034) Megasat Royal Line 22 (Art.-Nr. 240035) Megasat Royal Line 24 (Art.-Nr. - Page 33 Notes ENGLISH...
- Page 34 Version 3.1 (July 2016) // Technical changes, misprints and errors reserved. Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | info@megasat.tv...
