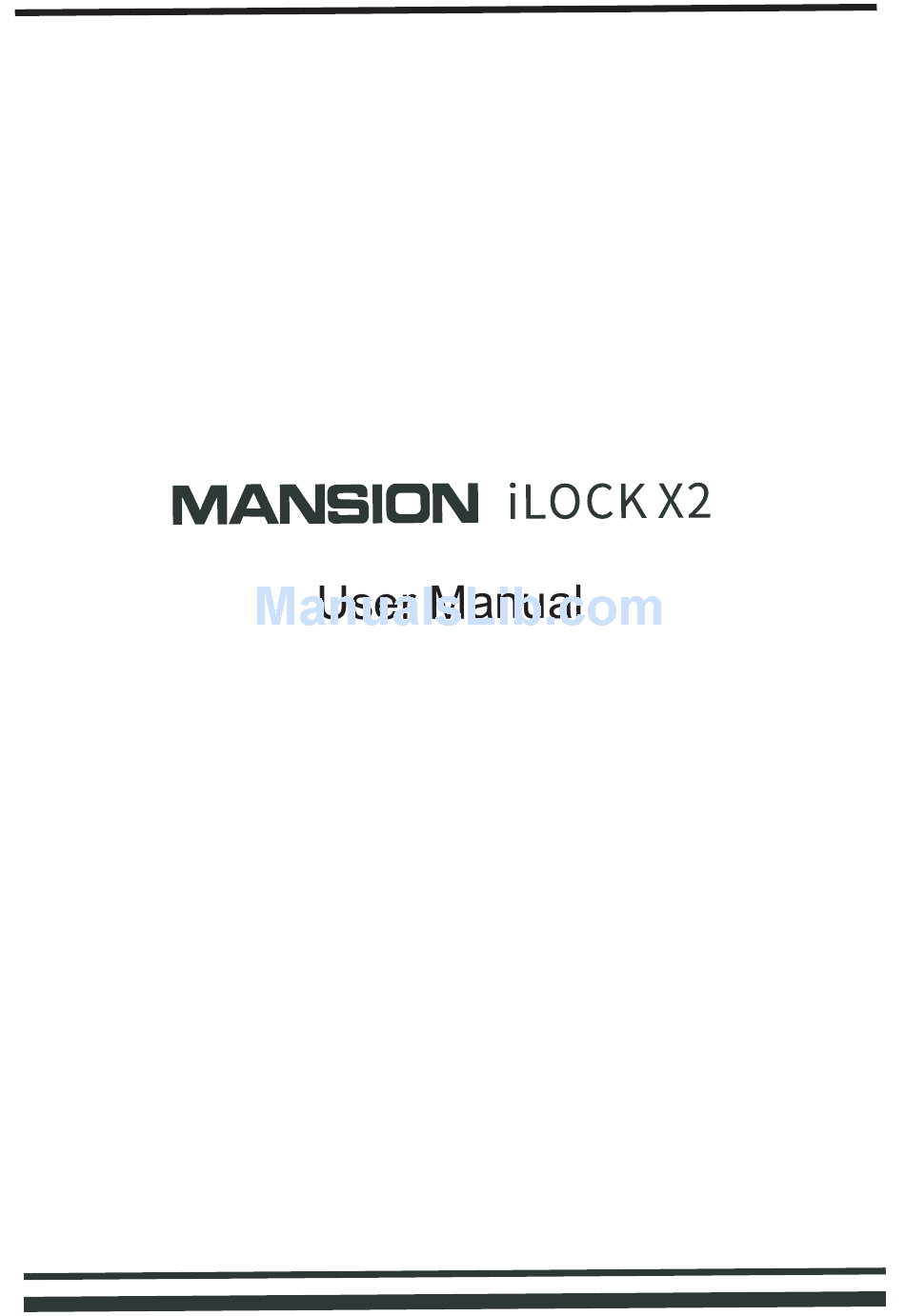

Oji Mansion iLock X2 User Manual

Retrofit digital door lock

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Table of Contents

Need help?

Do you have a question about the Mansion iLock X2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Oji Mansion iLock X2

Page 2 Thank you for choosing Mansion iLock X2 Please read the instructions before use in order to understand the correct operation of the product. CONTENTS: 1 x Mansion iLock X2 2 x Lock Case 4 x AAA Batteries 1 x Screwdriver...
Page 3 Spindle Inner Semi-Conductor Knob Fingerprint Collector Outer Knob Password Keyboard Emergency Power Supply Interface Back Cover Of Inner Knob Adjusting Hole Inner Knob Case Triangle Mark Regulating Screw Fixing Screw Hole Outer Knob Touch Points...
Page 4 Recovery Network Key Adjusting Hole Screw x 4 (in lock body) Battery Cover...
Page 5: Tamper Alarm Function
Part1: Functions 1. Lock and Unlock Function a. To Unlock: At the door, enter the correct fingerprint or password, then turn the outer knob to open the door lock until you hear “Welcome home” after a successful verifi- cation. Five seconds later, the outer knob automatically recovers to idle state so that the door can't be unlocked.
Page 6: Touch Function
4. Touch Function A touch sensor on the password keyboard and fingerprint contact offer a more comfortable user experience. 5. Pseudo Password Function a. When a wrong password is input continuously five times, the keypad will be automatically locked for three minutes.
Page 7: Voice Prompt
7. Voice Prompt Voice prompts “Welcome home” and “Bon Voyage” can be heard every time the door unlocks. These can be turned off in the setting menu. 8. Low-Voltage Alarm When the batteries are running down, it gives off a warning prompt “low-voltage, please replace the battery in time”.
Page 8: Part2: Installation
Part2: Installation 1: Remove the Original Lock Cylinder Using the screw driver, unfasten the screws from the inside of the door and remove the panel and accessories. Outer Panel Inner Plate Lock Cylinder Screw...
Page 9 2. Unfasten the screws to remove the lock cylinder from the side of the door. Screw Note: Insert the key into the lock cylinder and rotate to an appropriate angle, then the lock cylinder can be removed.
Page 10: Installing The Lock
Installing the lock 1. Fix on the original panel and install the lock cylinder of iLock X2 from inside the door. Outer Panel Inner Panel Lock Lock Case Case OUTSIDE INSIDE THE DOOR THE DOOR...
Page 11 2. Fix on the lock cylinder and fasten screws. Screw INSIDE THE DOOR...
Page 12 3. Insert the outer knob into the lock cylinder from the outside of the door. OUTSIDE THE DOOR INSIDE THE DOOR Outer Panel Mounting Groove Convex Key Note: Align the convex key on the outer knob with the mounting groove in the lock cylinder.
Page 13 4. Fix on outer knob a. Rotate the triangle mark on the inner knob case to the north. b. Do not move the inner knob case, rotate the outer knob to align the battery box with the adjusting hole on the case (as is shown in figure) c.
Page 14 Put four AAA batteries in the battery box (pay attention to the positive and negative electrode), then fasten the cover of the battery box. AAA Batteries x 4 Screw x 4 Cover Of Battery Box Cover Of Inner Knob Hardware of Mansion iLock X2 has been installed completely. Congratulations!
Page 15: Part3: Lock Settings
Part3: Lock Settings 1. First Login Any fingerprint or password cannot open the door in the factory state, so please follow the following procedures to log in for the first time: a. Touch the keyboard and press “#” key for three times to enter into the setting state.
Page 16: Add Fingerprint
2. Add Fingerprint 1.Press the “#” key three times, input the administrator fingerprint or password to enter into the main menu, follow the voice prompt “press 1, add fingerprint sub menu”, and then “press 1, add administrator; press 2, add ordinary user”.
Page 17: Add Password
3. Add Password 1.Press the “#” key three times, input the administrator fingerprint or password to enter into the main menu, follow the voice prompt “press 2, add password sub menu”, and then “press 1, add administrator; press 2, add ordinary user”.
Page 18: Voice Settings
5. Voice Settings Press the “#” key three times, “input the administrator fingerprint or password to enter into the main menu”, follow the voice prompt to press 4, “press 1, voice setting sub menu / turn the voice prompt on; press 2, turn the voice prompt off”.
Page 19 1. What if the batteries run down? iLock is powered by four AAA batteries, so if the batteries are running down, it would give off an alarm to replace the battery, but if you forget, a portable battery can be used temporarily.
Page 20 For Technical Support Call: +971-4-3929312 Email: info@eachgraincounts.com ® Proteck Electronic Trading LLC. Oﬃce # 705, Apricot Towers Dubai Silicon Oasis - Dubai, UAE +971-4-3929312 info@proteckglobal.com...
