Summary of Contents for Diamond Multimedia TAB360W

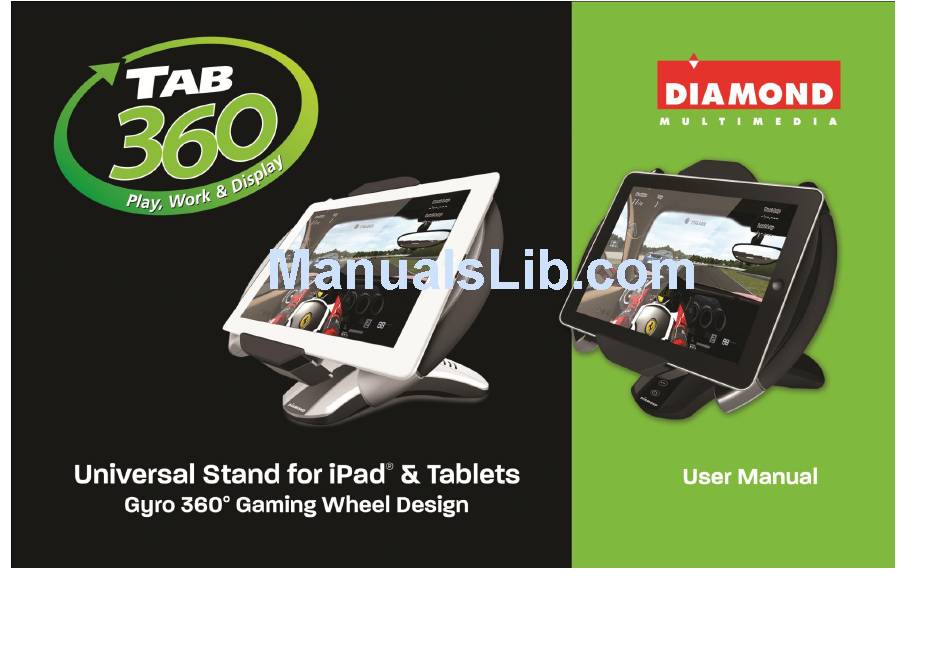

- Page 1 TAB360W TAB360B...
-
Page 2: Important Safety Instructions
Important Safety Instructions 1. Read and keep this manual Safety Information 1. Do not use this product near water or moisture. 2. This product is NOT weatherproof. 3. Clean only with a dry lint-free cloth. Do not use any chemicals or cleaners. 4. -
Page 3: Installation
Installation Assemble TAB360 wheel to base 1. Align the gear to assemble TAB360 wheel onto Base. 2. Press the button in the back to assemble TAB360 wheel and Base. 3. Release the button to complete assembly. 2. Attach Tablet to TAB360 1. - Page 4 3. Loosen the knob according to different thickness of Tablet. 4. Press the clips by hands to accommodate Tablets with different dimensions ( 7”~ 10.1”) 5. Adjust clip height by fastening the knob to accommodate Tablets with different thickness ( 9mm~18.5mm) Note: Please ensure that you have fully secured your tablet by tightening the knobs...
- Page 5 3. Remove Tablet from TAB360 1. Adjust the loaded TAB360 Wheel horizontally. 2. Loose the knob to adjust clip height to maximum. Note: When removing your tablet from the stand please secure your tablet with your other hand ensuring that the tablet does not fall from the holder onto a hard surface.
- Page 7 3. Changing the 3D rod tension spring on your TAB360 Note: For extreme tablet gamers and those whom use the TAB360 primarily as a stand, we have included a tighter 3D tension rod spring. Follow the steps below on how to replace the tension spring. 1.
- Page 8 3. Separate the spring from the spring base. 4. Attached the shorter spring to the spring base and re assemble the 3D rod ball joint back to the base. 5. Attached the steering wheel back onto the base.
- Page 9 Technical Support Diamond Technical Support staff is here to help resolve any issues that you may be experiencing with the installation of the Diamond product. Prior to contacting technical support please make sure you have the following information available. 1. Model #: (Printed on the bar code, located on the box) 2.
- Page 10 One Year Limited Warranty The warranty described below is extended only to the original buyer and is not transferable. PLEASE NOTE THAT THE PRODUCT YOU HAVE PURCHASED IS DISTRIBUTED AND WARRANTED BY DIAMOND MULTIMEDIA ("DIAMOND") AS DESCRIBED BELOW. QUESTIONS REGARDING THIS WARRANTY AND WARRANTY CLAIMS SHOULD BE MADE TO DIAMOND.
- Page 11 EXPRESSLY DISCLAIMED. DIAMOND WILL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT OR MALFUNCTION IN THE PRODUCT OR SOFTWARE DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PARTY’S MISUSE, NEGLECT, IMPROPER INSTALLATION OR TESTING, UNAUTHORIZED ATTEMPTS TO OPEN, REPAIR OR MODIFY THE PRODUCT OR SOFTWARE, OR ANY OTHER CAUSE BEYOND THE RANGE OF THE INTENDED USE, OR BY ACCIDENT, FIRE, LIGHTNING, OTHER HAZARDS, OR ACTS OF GOD.
