Summary of Contents for Hauswirt HO-301510S

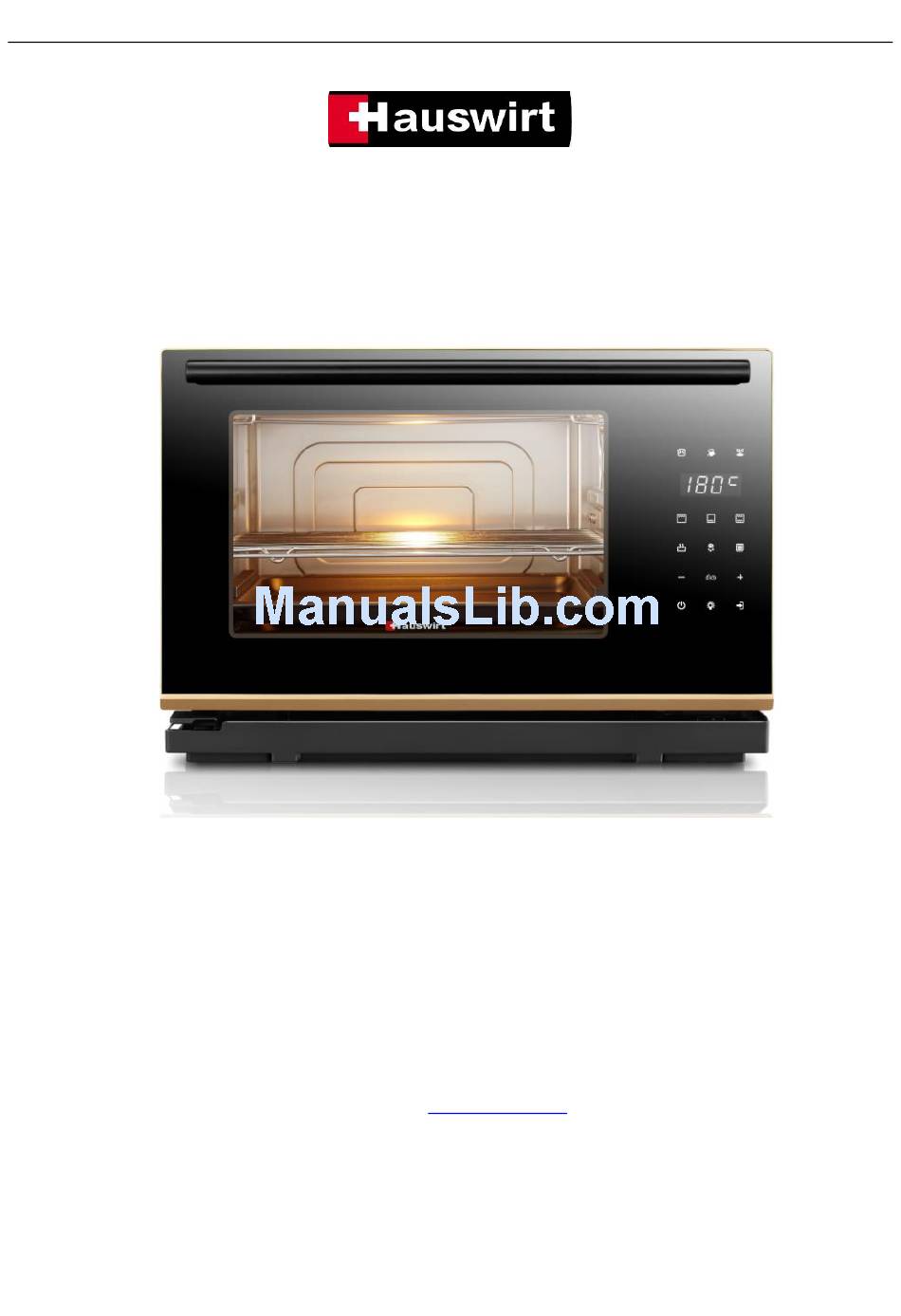

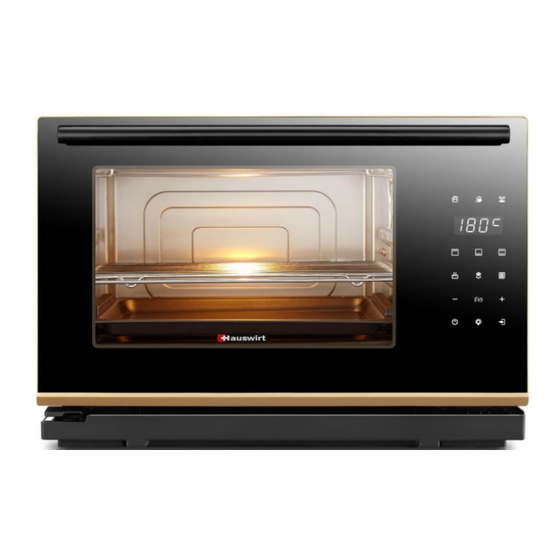

- Page 1 STEAM OVEN User Manual Model NO: HO-301510S Free line: 400-800-0387 www.hauswirt.com This manual contains important information regarding safety, the use and maintenance of your steam oven. Read and keep it in an easily accessible place for future consultation...
-
Page 2: Table Of Contents
INDEX P. 2 Specification P. 2 Installation P. 3 Important safety information P. 4-5 Construction of appliance and accessories P. 6 Control Panel P. 7 Default Settings P. 8-10 How to Use Control Panel ON/OFF General Steam Mode Steam grill combination ... -
Page 3: Specification
SPECIFICATION Model BSQ-26L15 Voltage and Frequency 230V～240V/50Hz Input Power 2100W Dimension（W×H×D） 505mm×415mm×349mm Cavity size（W×H×D） 350mm×320mm×230mm Cavity capacity Net Weight Appx. 13.5 Kg PRECAUTIONS FOR FIRST TIME USE Check to confirm the voltage on the rating plate corresponds to the voltage in your home ... -
Page 4: Important Safety Information
Place the appliance in a dry place, without corrosive gas. Stay away from high temperate and steam. Caution – make sure the appliance is connected with power supply correctly and safely. Manufacturer is not responsible for any problems arising from incorrect use of the oven. ... - Page 5 The temperature in oven cavity is still high even when cooking has finished. Always use the protection glove when you take the food or containers immediately after cooking stops. Do not use the oven as storage. If the oven is used to reheat milk or any baby food, please shake the food well and check the ...
- Page 6 PRODUCT PARTS AND ACCESSORIES...
- Page 7 Parts name Function Air outlet To exhaust excess steam from the cavity Door safety switch To disable the appliance from operating when the door is opened. Water tank To hold water for steam generation Shelves To support the food trays or rack for cooking Upper heating tube To produce heating for food cooking/reheating from top Lower heating tube...
-
Page 8: Control Panel
CONTROL PANEL 備註：按鍵不亮燈時表示該狀態下不可操作，選中的按鍵會加亮。 ICON FUNCTION ℃ Steam mode Lack of water Super steam mode Cooking time/temperature display Upper grill mode Lower grill mode Full grill mode Ferment mode Defrost mode Disinfect mode Lamp ON/OFF Adjust to“-“ Decrease time/temperature scale Temperature/time display To switch the display between time/temperature Adjust “+”... - Page 9 Confirm/Start Confirm after temperature setting, start after time setting Cooking time symbol Appear when cooking time is displayed Temperature symbol Appear when temperature is displayed. When the temperature rising meet pre-set temperature, the symbol will blink. When the cavity temperature reach the target, it will keep lighting on...
-
Page 10: Default Settings
DEFAULT SETTINGS Mode Preset time Preset Time scale Temperate scal temperature 100 ℃ Steam 5min 100℃ 5-180min (3hrs) 80-115℃ mode Grill mode 5min 180℃ 5-180min (3hrs) 40-250℃ Super steam 5 min 180℃ 5-180min (3hrs) 40-250℃ Disinfect 20 min 100℃ Preset Preset Ferment 20 min... -
Page 11: How To Use
HOW TO USE ON/OFF of Control Panel Steps： 1. Turn on the Main power switch 2. Press the button for 1 sec，control panel will be activated 3. Press button for 1 sec again to turn off the control panel。 ON/OFF of Lamp Steps：... - Page 12 Super steam mode Example: 20minutes of steaming at 90℃ 1. Make sure the water tank is filled with distilled water 2. In Standby mode, press 3. Preset Temperature of 180℃ is displayed，press to adjust temperature at 90℃， press to confirm 4.
- Page 13 Tips: when cooking process started, it will take a few minutes to reach your target temperature, you can press to switch between time /temperature display. When temperature is displayed, symbol blinks, it means that the oven temperature is rising, when the temperature reaches your target, the symbol will light on and a beep sound will follow.
-
Page 14: Tips For Using The Oven
Disinfect 1. In Standby mode. press 2. Temperature is preset at 100℃，preset time displayed is 20 minutes 3. Press to start TIPS FOR USING THE OVEN The following circumstances are regarded as normal： Circumstances Reason Water came out from steam Sometime there will be water coming out from the steam outlet, outlet this is normal. -
Page 15: Cleaning And Maintenance Guide
The fuse at home is normal； 2. If the appliance start working when it is not supposed to： Immediately open the oven door to stop it from working. CLEANING AND MAINTENANCE GUIDE NOTE: DO NOT USENEVER USE METAL SCOURING PADS, ABRASIVE CLEANERS, STEEL WOOL PADS, and GRITTY WASHCLOTHS to clean any part of the oven Please make sure that the appliance is turned off, and disconnected with power supply before any cleaning and maintenance... - Page 16 If the appliance will not be used for long time, please disconnect it from the power supply. Keep the oven cavity, water tank and water drip tray clean and dry. Put it in a dry environment without corrosive gas. Disconnect the appliance for lamp replacement. Only use parts supplied by manufacturer. 10.
-
Page 17: Trouble Shooting
TROUBLE SHOOTING Problem Cause Solution Connect the appliance to power Nothing appears on the display Oven is not connected to power supply Power cord fails to work Contact after-sale service Display is not working normally Display screen is damaged Contact after-sale service Parts in circuit board are damaged Power supply is not connected The appliance fails to work... -
Page 18: Error Code
ERROR CODE Code Explanation Possible reason Oven cavity high temperature Temperature in oven cavity exceeds the limit of protection safety setting Steam plate high temperature Temperature of steam plate exceeds the limit of protection safety setting Oven cavity low temperature Continued working for 3 minutes but temperature protection of oven cavity is lower than 30℃...
