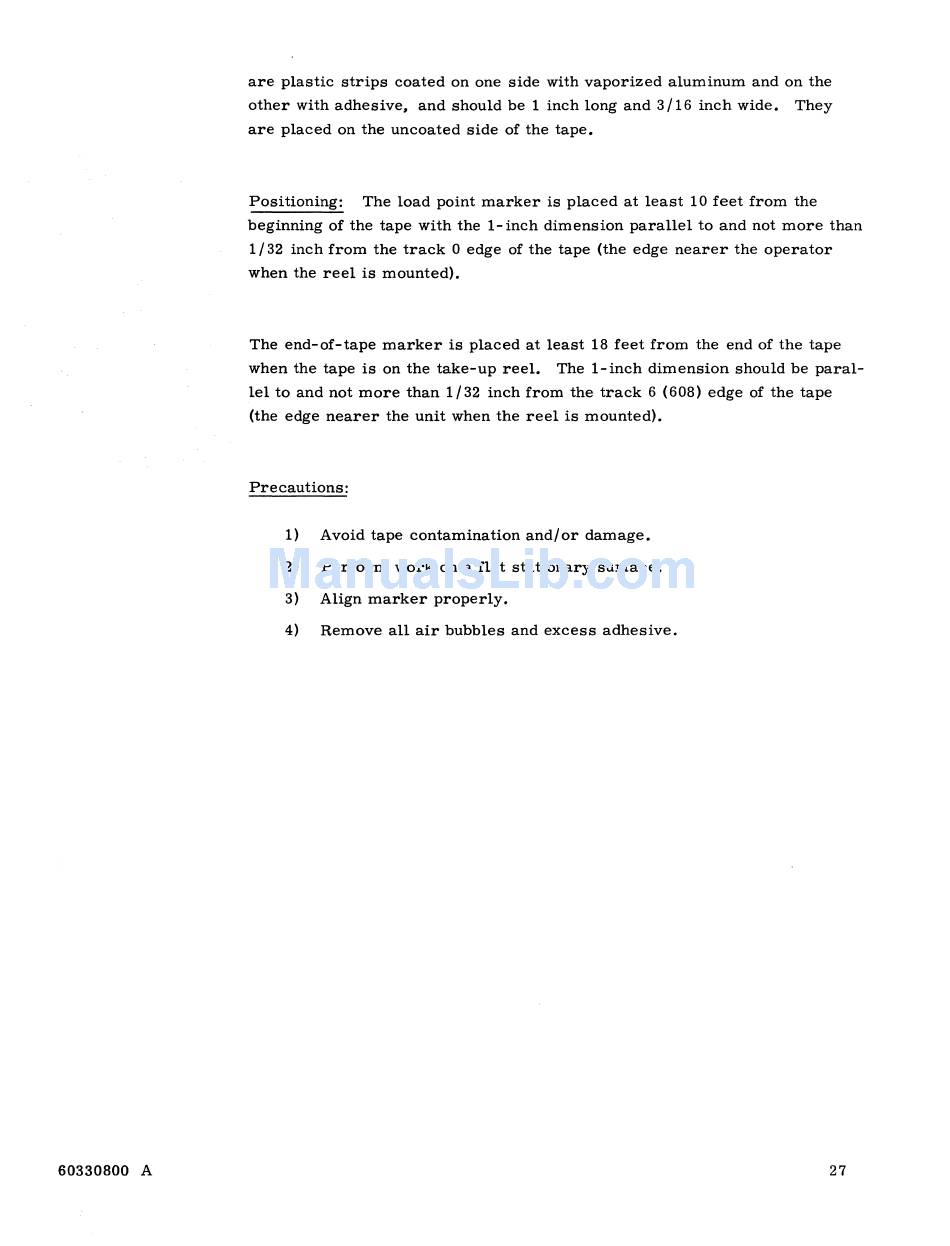

are plastic strips coated on one side with vaporized aluminum and on the
other with adhesive, and should be 1 inch long and 3/16 inch wide. They
are placed on the uncoated side of the tape.
Positioning: The load point marker is placed at least 10 feet from the
beginning of the tape with the 1-inch dimension parallel to and not more than
1/32 inch from the track 0 edge of the tape (the edge nearer the operator
when the reel is mounted).
The end-of-tape marker is placed at least 18 feet from the end of the tape
when the tape is on the take-up reel. The 1-inch dimension should be paral-
lel to and not more than 1/32 inch from the track 6 (608) edge of the tape
(the edge nearer the unit when the reel is mounted).
Precautions:
1) Avoid tape contamination and/or damage.
2) Perform work on a flat stationary surface.
3) Align marker properly.
4) Remove all air bubbles and excess adhesive.
60330800 A 27
