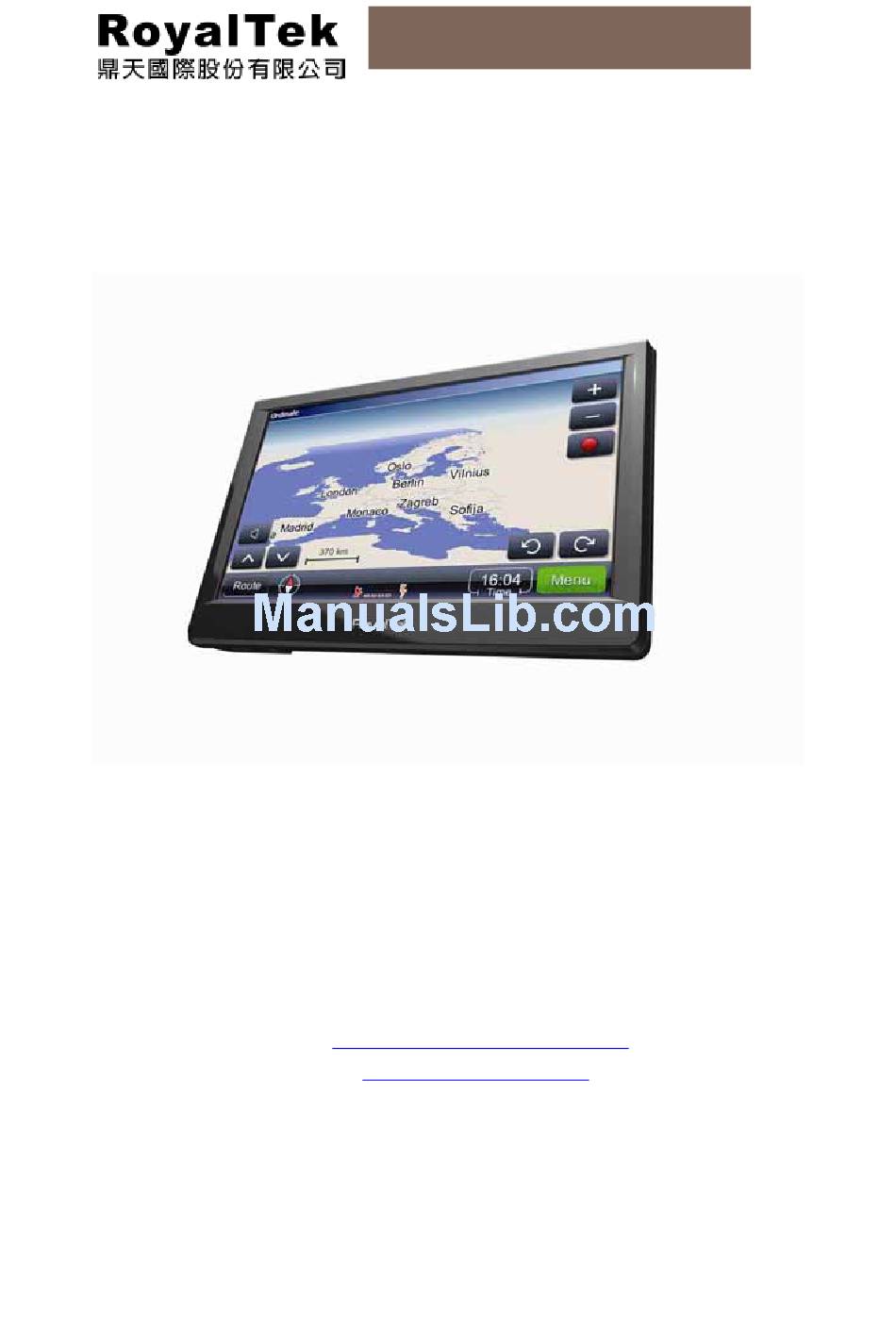

RN6 Users Manual
RN6 Portable Navigation Device
Prepared by RoyalTek Company LTD.
4F., No.188, Wen Hwa 2nd Rd., Kuei Shan,
Tao Yuan 333, Taiwan
TEL: 886-3-3960001
FAX: 886-3-3960065
Email:
http://www.royaltek.com/contact
Web:
Http://www.royaltek.com
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RN6 and is the answer not in the manual?

Questions and answers

Related Manuals for RoyalTek RN6

Summary of Contents for RoyalTek RN6

  • Page 1 RN6 Users Manual RN6 Portable Navigation Device Prepared by RoyalTek Company LTD. 4F., No.188, Wen Hwa 2nd Rd., Kuei Shan, Tao Yuan 333, Taiwan TEL: 886-3-3960001 FAX: 886-3-3960065 Email: http://www.royaltek.com/contact Web: Http://www.royaltek.com...

  • Page 2: Legal Notices

    RoyalTek and its subsidiaries assume no responsibility for any damage or loss resulting from the use of this RoyalTek RN6 Portable Navigation Device.
  • Page 3 RN6 Users Manual WARNINGS and NOTICES For your safety, do not operate the controls of the product while driving. GPS satellite signals cannot typically pass through solid materials (except glass). GPS location information is not typically available inside buildings, tunnels, or underground parking lots.
  • Page 4 RN6 Users Manual FCC WARNING Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. 15.105(b) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC rules.
  • Page 5 RN6 Users Manual for satisfying RF exposure compliance. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION.

  • Page 6: Table Of Contents

    How to Use Mounting Bracket............14 2.5. How to Charge RN6 ..............16 2.6. How to Start RN6 .................16 2.7. How to Turn off RN6 ..............16 2.8. How to Reset RN6 ...............17 Chapter 3 Start to Use RN6 .................18 3.1. Operating Basics................18 3.2.
  • Page 7 RN6 Users Manual 4.3.1 Use Photo Album ..............32 4.3.2 View Photos in Slide Show Mode ..........33 4.4. Video Player (Optional) ..............34 4.4.1 Use Video Player ..............34 4.5. FM Transmitter (Optional) ............37 4.5.1 Turn on FM Transmitter Frequency ........37 4.5.2 Set FM Transmitter Frequency..........38 Chapter 5 Communications ................39...

  • Page 8: Chapter 1 Features And Specifications

    RN6 Users Manual Chapter 1 Features and Specifications 1.1. RoyalTek RN6 PND Features RoyalTek RN6 Portable Navigation Device is a powerful multifunction GPS/multimedia navigation and entertainment device. ▪ Compact size and lightweight ▪ Integrated GPS receiver for GPS navigation ▪...
  • Page 9 RN6 Users Manual Category Item Battery General 1,250mAh, Li-Polymer Battery Wake-up Mode (Default setting after factory reset) ▪ From empty to full by AC adapter: 6 hrs Recharge Time Power Suspend Mode ▪ From empty to full by AC adapter: 4 hrs...

  • Page 10: Chapter 2 Getting Started

    This chapter describes the hardware interface of the RoyalTek RN6 and its peripherals. Instructions for setting up the device and some basic system operations are also discussed. NOTE: Although RN6 battery comes approximately 25% capacity, it is advised to fully charge the battery before using.
  • Page 11 RN6 Users Manual Car charger USB cable (Optional Accessory) Earphone (Optional Accessory) AC adaptor (Optional Accessory) Dashboard (Optional Accessory) Application Software CD Quick Start Guide & Warranty statement...

  • Page 12: Features

    RN6 Users Manual 2.2. Features 2.2.1 Front and Rear Views Front View Rear View Function Description Touch Screen Displays the applications, data, and map images. Speaker Emits system sounds. Hook Point Fixed point for car holder Car Kit Connector Connector for power car holder (Option) 2.2.2 Left and Right Views...

  • Page 13: Top And Bottom Views

    RN6 Users Manual 2.2.3 Top and Bottom Views Top View Bottom View Function Description ▪ Click button to witch suspend/wake-up mode ▪ Short press (2 seconds) for turn on Power Button ▪ Long press (5 seconds) for turn off when PND is...

  • Page 14: How To Use Car Holder

    2.4. How to Use Mounting Bracket RN6 comes with a car mount kit and a car charger to help install your device in your vehicle. The car mount kit uses a suction cup on the windshield to offer flexible mounting options for RN6.
  • Page 15 Figure 2-4-1 Mounting the device holder with your RN6. a. Fit RN6 down in the device holder first, and then lock it using the plugs on the bottom of the device holder. (See Figure2-4-2) b. Firmly lock RN6 with device holder on the car mount which has been mounted to your windscreen.

  • Page 16: How To Charge Rn6

    Please read the User’s Guide of Navigation software for the detail setting information. Please be noted, the first time turning on RN6 may take some time to obtain a valid GPS fix. 2.7. How to Turn off RN6 a. To disconnect all power supply or connecting cables first, including USB device cable, car charger or AC adapter, from your device.

  • Page 17: How To Reset Rn6

    RN6 Users Manual 2.8. How to Hard Reset RN6 In the normal situation, it is unnecessary to reset your RN6. If a problem cannot be corrected, you can reset RN6 by either of the following ways: a. When RN6 is...

  • Page 18: Chapter 3 Start To Use Rn6

    Chapter 3 Start to Use RN6 3.1. Operating Basics After fully charging RN6 it is ready to be used. You can now turn it on and proceed to system settings configuration. 3.2. Turn on the device Long pressing (5 seconds) power button or plugging by car charger or AC adaptor can boot system.
  • Page 19 RN6 Users Manual b. Tap “Language” on the System page. c. It will display the current language in central column. d. To scroll wheel for language tags. e. To set the system time zone, tap “Time Zone” in System Menu.

  • Page 20: How To Use System Settings

    RN6 Users Manual Tap the icon to set up the function of daylight saving time. ▪ To enable the function of daylight savings time. ▪ To disable the function of daylight savings time. g. Drag the Map to adjust the time zone.

  • Page 21: Reset

    RN6 Users Manual 3.5. Resetting GPS Reset: Users can check if GPS receiver performs properly or not. (ex. Change regions) Factory Reset: The factory reset function not only resets the operating system settings to default factory values, but also reset the GPS settings.
  • Page 22 RN6 Users Manual d. Tap the “Factory Reset” icon in the Reset Menu. e. Tap the “YES” to do the Factory Reset. Tap the “Calibration” icon in the Reset Menu.

  • Page 23: System Information

    RN6 Users Manual g. Tap on the center of the target. Repeat as the target moves around the screen. 3.6. System Information a. Tap “About” icon in the System Menu. b. You can view the OS, AP, GPS firmware version and other system information.

  • Page 24: Volume

    RN6 Users Manual 3.7. Volume a. Tap the Volume icon in the System Menu. b. Adjust the volume by dragging the wheel. c. Dragging to left will become mute, and opposite will become larger. 3.8. Backlight a. Tap the Backlight icon in the System Menu.

  • Page 25: Set Favorite Application Category

    RN6 Users Manual b. Adjust the Backlight brightness by dragging triangle icon. c. Dragging to left will become darker; dragging to right will become lighter. 3.9. Set Favorite Application Category You can drag-and-drop to organize your own favorite application category, but the maximum number of favorite application shortcut is six.

  • Page 26: Delete Icon To Favorite Page

    Confirm dialog will pop up, just tap “YES” to delete. 3.10. Power Supply RN6 has a completive power management system. It can make you more convenient to carry it for entertainment purpose, not only using in cars but also at home or outdoor activities. 3.10.1 Charging Please use our standard car charger or AC adapter to charge RN6, the main screen would remind you the charging status.

  • Page 27: Discharge

    When a car charger or AC adapter is taken off from the device, the main screen would remind if you would like to have RN6 suspend or not. Suspend mode still slightly consumes power. If you want to cut off power output, please turn off the device.

  • Page 28: Chapter 4 Entertainment

    RN6 is capable of optional multimedia applications that can enhance your portable entertainment. In addition to its navigating function, RN6 is also a mobile entertainment tool to enjoy digital music, view photos or videos. These functions make RN6 as a true multimedia device.
  • Page 29 RN6 Users Manual a. Tap “Music” icon of the Main Menu or multimedia icon of the right category bar. ○ 1 ○ 2 ○ 3 ○ 4 ○ Icons Functions Description Return Return to list page Songs List all song by alphabet Album List all albums by alphabet.
  • Page 30 RN6 Users Manual b. Tap a song or scroll upward or downwards to view songs on the music list. c. Bottom information bar will show song’s name and play time d. Taping the screen will switch to song’s progress status.

  • Page 31: Photo Viewer

    Return Return to list page. 4.3. Photo Viewer RN6 has a great photo viewer option that makes it easy to share and view digital photos anywhere you like. The program features: ▪ Support for JPEG files (Support Max. 500 photos) ▪...

  • Page 32: Use Photo Album

    RN6 Users Manual 4.3.1 Use Photo Album a. Tap “Photo” icon in the Main Menu or multimedia icon of the right category bar. b. List photos of thumbnail viewing mode. c. Dragging upward or downwards will make photos move to next or previous page.

  • Page 33: View Photos In Slide Show Mode

    RN6 Users Manual e. Tapping the screen will display the control bar. ○ 5 ○ 1 ○ 2 ○ 3 ○ 4 Function Description Return Return to thumbnail page Previous page Display previous photo. Slide show mode Automatically play all photos.

  • Page 34: Video Player (Optional)

    RN6 Users Manual 4.4. Video Player (Optional) Video Player is an unique function in RN6, which can make you enjoy your favorite videos and have fun. The program features: ▪ Support WMV files (Maximum 500 files) ▪ Auto-scanning of supported files in the device’s Micro SD card and Flash memory ▪...
  • Page 35 RN6 Users Manual c. Tap “File Manager” to view files by browser mode. d. The screen shows “Browser Mode”. e. Tap a file which you would like to play. The screen switches to “Normal Mode” and shows function icons. g. Tap “Play”.
  • Page 36 RN6 Users Manual h. Tapping screen will switch to “Play Mode”. Tap screen at Play Mode. Function icons will pop up. Then tap “Mode Switch. The screen will switch back to “Normal Mode”. Icon Function Description Play Play a video file...

  • Page 37: Fm Transmitter (Optional)

    Switch mode. 4.5. FM Transmitter (Optional) RN6 has a great music-player-supported function to output sounds via your car audio/stereo. FM frequency can be varied from 88.2 to 107.8 Mhz. 4.5.1 Turn on FM Transmitter Frequency a. Tap “Volume” icon in the System Menu.

  • Page 38: Set Fm Transmitter Frequency

    Set the number as same as the frequency of your car radio, and tap “Enter” d. Set the same frequency number to make your car radio receive audio from RN6. e. Go back to Main menu. Play “Music Player”, “Video player” or “Navigation”.

  • Page 39: Chapter 5 Communications

    Once your Bluetooth-enabled mobile phone is paired with your RN6, you can make hands-free phone calls through your RN6 integrated microphone and speaker. RN6 makes it easy to make and receive phones calls with ease while you drive a car. Hands-free calling keeps things safe, letting you keep your eyes on the road, while RN6 integrates seamlessly with your mobile phone.
  • Page 40 RN6 Users Manual b. Turn on Bluetooth function a. Turn on “Automatic Answer” too if you also prefer to automatically receive calls when the mobile phone is ringing. b. Choose automatic answering time: 3 seconds, 10seconds, or 30 seconds. NOTE：There will be icon on the main menu to remind you if Bluetooth is operating.
  • Page 41 If the connected mobile phone has the Bluetooth auto-accept function, please turn on this function. (For more detailed information, see your phone’s manual.) ▪ Bluetooth function has distance limitation. When the mobile phone is away, and makes Bluetooth function disconnected, RN6 would try to re-connect within 10 seconds.

  • Page 42: Calling Out

    RN6 Users Manual 5.3. Calling Out a. Tap “Call-out” icon. b. Set the phone number you would like to call out and tap “Dial” icon. ○ 1 ○ ○ c. If you would like to end a call, please tap “Hang up” icon.

  • Page 43: Receiving A Call

    RN6 Users Manual Icon Function Description Dial Make a call. Incoming/ receiving call logs. Call History You can tap a phone number directly to call out. Entering to phone book page. (pl. refer to 5.5) Phone Book You can tap a phone number directly to call out.
  • Page 44 RN6 Users Manual e. If you have set “Automatic Answer” function, the incoming call will be picked up automatically. And the screen will switch to the communication main menu. If you would like to end a call, please tap “Hang up” icon.

  • Page 45: Phone Book (Import Phonebooks)

    RN6 Users Manual 5.5. Phone Book (Import Phonebooks) a. Tap “Contacts” icon. b. Tap “Import” icon. c. The contact information will be imported from the connected mobile phone.

  • Page 46: Chapter 6 Troubleshooting And Maintenance

    Reset your device before connecting the cable. Always disconnect your device before you restart your computer. 6.1.6 No GPS connection a. Make sure RN6 is put near car windshield or no obstacle on its top. b. Note that the GPS reception can be affected by: ▪...

  • Page 47: No Sound Coming From The Device

    RN6 Users Manual ▪ Dense overhead obstacles (e.g. trees and tall buildings) ▪ Other wireless devices in the car 6.1.7 No sound coming from the device a. Make sure mute is not selected for Volume in system settings. The built-in speaker turns off when the headphone jack is being used.

  • Page 48: Storage Precautions

    RN6 Users Manual ▪ Use a soft, clean, lint-free cloth to clean the display screen. Moistened LCD screen wipes could also be used as required. ▪ Never attempt to disassemble, repair or make any modifications to your device. Disassembly, modification or any attempt at repair could cause damage to your device and even bodily injury or property damage and will void any warranty.
