Summary of Contents for Zoombak Pet Locator

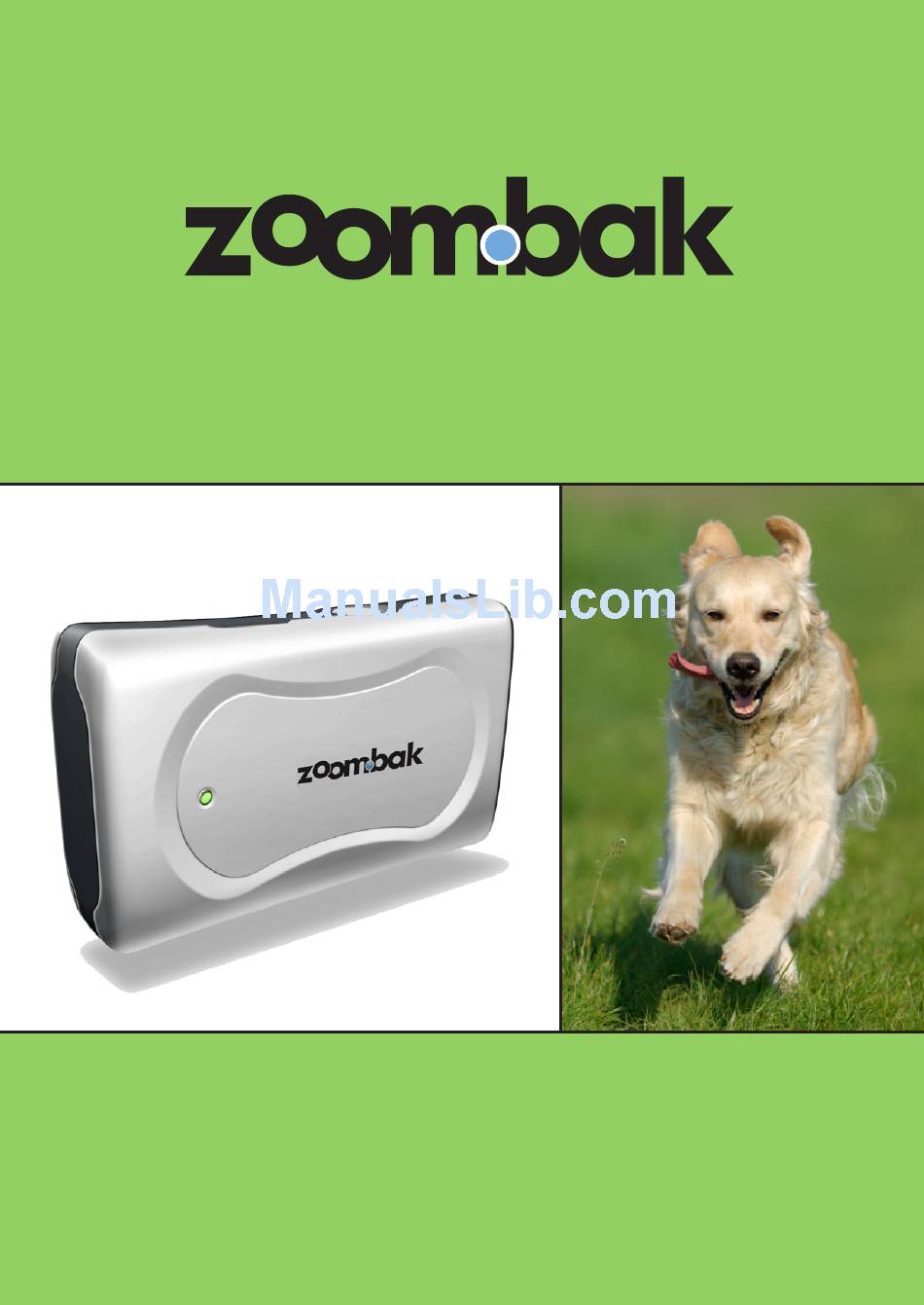

- Page 1 Pet Locator User Guide...
- Page 2 NOTICES This document neither grants any license not conveys any rights with respect to the subject matter hereof or otherwise. Zoombak expressly retains all intellectual and other property rights with respect to this document and all matters set forth herein. This document is neither an offer nor an acceptance.
-
Page 3: Table Of Contents
Table of Contents Introduction ................1 Getting Started ................2 Zoombak Pet Device Features ..........2 2.1.1 Front/Aerial View of Device ............2 2.1.2 Key Functions ................3 2.1.3 Device Orientation ..............3 Pet Device Package Contents ..........4 Using the Pet Device ...............5 Charging the Battery ...............6 Turning the Pet Device ON/OFF ..........7... -
Page 4: Introduction
Section : Using the Zoombak Pet Device. • Section 4: Safety and Warranty Information. • Section 5: Contacting Customer Care. • Section 6: Device Specifications. Please note that the features and usage of the Zoombak Pet data service will be addressed in a separate manual. -
Page 5: Getting Started
. Getting Started This section addresses two primary areas: • Zoombak Pet Device Features. • Pet Device Package Contents. . Zoombak Pet Device Features .. Front/Aerial View of Device Charger Jack On/Off Button Device LED Indicator... -
Page 6: Key Functions
.. Key Functions • Charger Jack – Connects the Zoombak Pet device to the AC wall charger (included). • Device Status LED Indicator – Allows you to monitor (at a glance) the status of your Zoombak Pet device. .. Device Orientation... -
Page 7: Pet Device Package Contents
When you purchase the Zoombak Pet device, the package should contain, at minimum, the following: • Zoombak Pet Device • Zoombak Pet Pouch (to attach the device to the pet’s collar) • AC Wall Charger • Zoombak Pet Quick Start Guide •... -
Page 8: Using The Pet Device
. Using the Pet Device This section addresses four primary areas: • Charging the Battery. • Turning the Device On/Off. • Monitoring Device Status. • Placing the Device on the Pet. -
Page 9: Charging The Battery
Zoombak Pet package. 2. Plug the AC wall charger into a wall outlet. 3. Attach the Zoombak Pet device to the AC wall charger via the Charger Jack on the Zoombak Pet device. 4. The LED Status Indicator will glow solid amber (yellow), indicating that the Zoombak Pet device is charging. -
Page 10: Turning The Pet Device On/Off
. Turning the Pet Device ON/OFF In order to power the Zoombak Pet device on or off, follow these simple instructions: 1. Press the ON/OFF button on the Zoombak Pet device for two (2) seconds to power up the device. The LED Status Indicator will blink GREEN, indicating that the Zoombak Pet device is ON. -
Page 11: Placing The Device On Your Pet
.4 Placing the Device on Your Pet In order for the Zoombak Pet device to locate your pet, the device must be attached to your pet’s collar. It is important to note that the Zoombak Pet device is not recommended for pets under 15 lbs. - Page 12 5. Once the Zoombak Pet device is in the pouch, place the Zoombak Pet pouch on your pet’s collar, as indicated in the following figure. Please note that the pouch will attach to any type, form or size of collar.
-
Page 13: Safety And Warranty Information
4. Safety and Warranty Information This section addresses three primary areas: • Safety Information • Specific Absorption Rate (SAR) • Warranty Information... -
Page 14: Safety Information
Leakage of ingredients contained within battery pack or the combustion of products of the ingredients can cause personal injury as well as damage to your Zoombak device. If battery leakage occurs avoid contact with skin. If contact occurs, immediately wash thoroughly with soap and water. -
Page 15: Sars
4. Specific Absorption Rate (SAR) Your Zoombak device is a radio transmitter and receiver. It is designed and measured not to exceed exposure to radio frequency (RF) energy set by the Federal Communications Commission (FCC) and international guidelines established by the independent scientific organization ICNIRP. -
Page 16: Warranty Information
Assistance hotline at XXX-XXX-XXXX for troubleshooting information and repair or replacement options. In some instances it may be necessary to ship the completed product to Zoombak. Please do not send any products to Zoombak without first contacting our Customer Assistance hotline. -
Page 17: Warranty Limitations
UNREASONABLE USE OR OTHER CAUSES UNRELATED TO DEFECT IN MATERIAL OR WORKMANSHIP. 4.4 Water Resistance The Zoombak Pet Device has a water resistance rating of IPX6. This means the device can not be immersed in water and continue to function, but the device can withstand “strong water jets”. -
Page 18: Contacting Customer Care
5. Contacting Customer Care Need help with operating your Zoombak device? Contact Zoombak Customer Service: www.zoombak.com or call: X-XXX-XXX-XXXX, Monday – Sunday 24 hours a day (Times subject to change). -
Page 19: Device Specifications
6. Device Specifications This section provides the following detailed device specifications: • Device • Certification • AC Wall Charger... -
Page 20: Device
6. Device Feature Specification Size 72.9 x 43.1 x (19.07 ~ 20.07) mm Weight 73 grams GSM 900 GSM 850 880– 915 MHz (Tx) 824 – 849 MHz (Tx) 925– 960 MHz (Rx) 869 – 894 MHz (Rx) GSM 1800 GSM 1800 1710–1785 MHz (Tx) 1710–85 MHz (Tx) Frequency... -
Page 21: Certifications
6. Certifications PTCRB CTIA ETSI UL, UK (battery and charger) 6. AC Wall Charger Input: 90 - 264 VAC, 47- 63 Hz Output: 5.4 VDC @ 1.2A, short-circuit protected Operating Temperature: -5° to +45° C... - Page 22 FCC Regulations: This mobile device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
