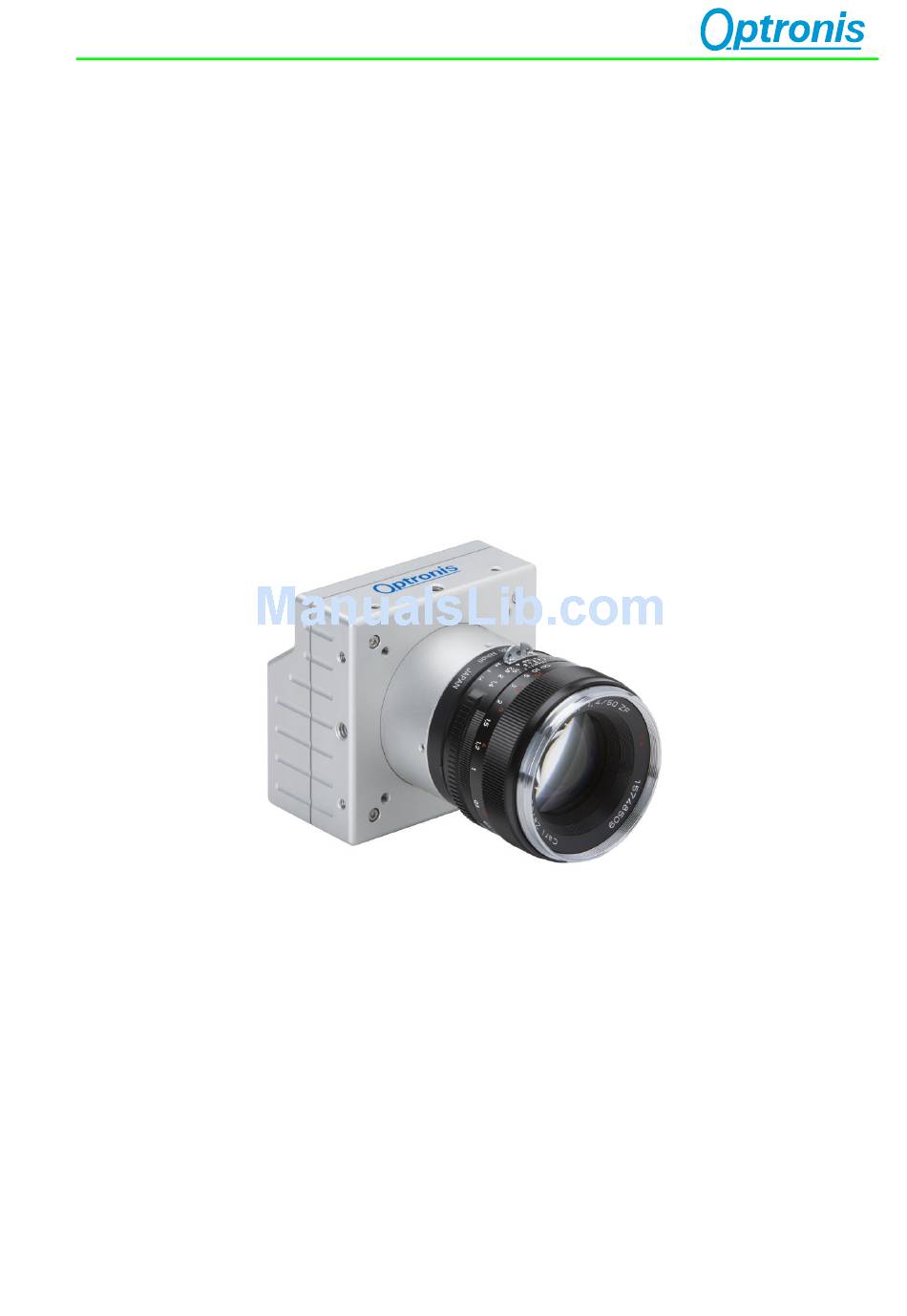

CamPerform CP70-1HS-M/C-1900 CoaXPress Camera User Manual Ref. 1872-SU-01-B... -
Page 3: Table Of Contents
Contents Revision General Declaration of conformity RoHS compliance Scope of delivery Optronis customer service Remark, Attention Precautions Camera Power Environmental Conditions General Precautions Camera Electrical Interface Auxiliary (Aux.) connector pinout Camera Power Indicator Lamp (LED) CoaxPress Data Channels Lens mount and handling... - Page 4 CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 2...
-
Page 5: Revision
Revision Firmware Date Description v.1.0.A June 17 CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 3... -
Page 6: General
EMC Directive 2014/30/EU, based on the following specifications applied: Specifications : EN 61000-6-3 Emission EN 61000-6-1 Immunity Kehl, 18.08.2016 Optronis GmbH Dr. Patrick Summ Managing Director RoHS compliance CamPerform CP70-1HS-M/C-1900 cameras are Pb free manufactured. CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 4... -
Page 7: Scope Of Delivery
Scope of delivery CP70-1HS-M/C-1900 CoaXPress camera Options: /C: Color sensor (Bayer Pattern) (IR Cut-off Filter, Specification: 1830-SS-10) /M: Monochrome sensor Lens mount: /CM: CMount /FM: FMount /FMG: FMount for Nikon G-Lens series CoaXPress: 6,25GBit/channel, 4 channels Synchronisation Adapter cable Programming cable (USB2) for firmware update (Option) -
Page 8: Remark, Attention
The following signs are used in the user manual Remarks and additional information Attention Precautions Camera Power Please use Power over CoaxPress or as an option the CP70-1HS-M/C-1900 camera power supply (not included in shipment). Environmental Conditions Temperature range during operation: < + 40°C (ambient temperature) >... -
Page 9: General Precautions
General Precautions Read the user manual carefully before using the camera. Do not orientate the optical input of the camera to direct sunlight. Keep the camera free protected from dirt, dust, grease and water. Make sure that all the connecting cables are in good condition. Defective cables have to be replaced. -
Page 10: Camera
Camera 1: Camera housing 2: Mounting holes 2x M4x6mm 1x ¼ ``x6mm 3: Lens mount (Nikon-F) 4: lens (Nikon-F compatible, Option) 5: electrical interface (back side) 6: Mounting holes 4x M4x6mm CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 8... -
Page 11: Electrical Interface
1: CoaxPress Channels 2: Power Connector 3: Auxiliary Connector 4: Indicator Lamp (LED) Electrical Interface Camera (Aux.) connector type: Hirose HR10A-7R-6S Cable Connector: Hirose HR10A-7P-6P CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 9... -
Page 12: Auxiliary (Aux.) Connector Pinout
Auxiliary (Aux.) connector pinout Auxiliary (Aux.) connector pinout Description External Synchronisation Input Sync. In TTL level: <0,8Volt (low) > 2 Volt (high) reserved External Synchronisation Output Sync. Out (TTL level @ high impedance, 0 to 2 Volt @ 50 Ohms) 4+5+6 Sync. - Page 13 SyncOut has a built in 50 Ohm driver. At 50 Ohm termination, the driver voltage is in between 0 (low level) to ~2 Volts (high level). At high impedance termination, the driver voltage is in between 0 (low level) to ~4 Volts (high level). SyncOut voltage limit ranges from 0 Volt to + 5 Volts.
-
Page 14: Camera Power
Camera Power Figure: CP70-1HS-M/C-1900 back view Camera (Pwr.) connector type: Hirose HR10A-7R-4S Cable Connector: Hirose HR10A-7P-4P Power (Pwr.) connector pinout Description DC Power +24Volt +/-5% (Ripple < 200mV) Inrush Current ~0,6A Power Ground Alternatively, Power over CoaXPress(PoCXP) should be used. -
Page 15: Indicator Lamp (Led)
Indicator Lamp (LED) State Indication No power System booting Solid orange Powered, but nothing connected Slow pulse red (only for power over power connector) Link detection in progress, Fast flash green PoCXP active Link detection in progress, Fast flash orange PoCXP not in use Camera / Grabber incompatible, Slow flash alternate red / green... -
Page 16: Lens Mount And Handling
Lens mount and handling Nikon F-Mount adapter Camera housing lens-holder silver clip Nikon F-Mount adapter Figure: Camera with Nikon F-Mount adapter To mount the lens, it has to be positioned on the lens-holder in a way, that the back surface of the lens is completely attached to the surface of the lens- holder. - Page 17 lens-holder reference lens-reference lens-reference lens-holder reference lens unlocked lens locked To unmount the lens, pull back first the silver clip in order to unlock the lens as shown below. Then (the silver clip has still to be pulled back) turn the lens clockwise until the lens is unmounted completely.
-
Page 18: C-Mount Adapter
To unmount the lens, unscrew the C-Mount lens anti-clockwise. Important features The CamPerform CP70-1HS-M/C-1900 CoaXPress cameras are high frame rate CMOS area scan camera that are designed for industrial use. The image sensor and the camera offer exceptional high performance: •... -
Page 19: Maximum Frame Rate (@ Internal Synchronisation)
Maximum Frame rate (@ internal synchronisation) Max. Frame Rate Examples (8bit): Pixel resolution x Pixel resolution y Max. Frame Rate CoaXPress labelling (Pixel) (Pixel) (fps) CXP6, BNC 4x 1280 1981 CXP6, BNC 4x 6168 CXP6, BNC 4x 11175 (Max. Frame Rate values are rounded values) Calculation of Exposure Time in 8 bits mode Exposure Time Max. -
Page 20: Frame Rate (@ External Synchronisation)
Frame Rate (@ external synchronisation) For external synchronisation please apply a TTL signal to the SyncIn and Sync Out BNC adapter of the adapter cable (scope of delivery). External synchronisation may be operated in level detection mode. Please see the external synchronisation timing for more information about resulting frame rates and exposure times. -
Page 21: Technical Data
Technical Data General Power Source PoCXP Alternatively: + 24 Volt +/. 5% DC < 200mV ripple Power approx. 11 Watt Pixel Number 1280x860 Pixel size 13,7 µm x 13,7 µm Active area 17,536 mm x 11,782 mm Sensor responsitivity 25 Volt/lux.s @550nm Shutter Global Minimum Ambient... -
Page 22: Spectral Response / Transmittance
Spectral Response / Transmittance Spectral response (Monochrome Sensor) CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 20... -
Page 23: Mechanical Dimensions
Mechanical Dimensions F-Mount Lens (/FM) CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 21... - Page 24 Figure: Side View (all dimensions in mm) Screw threads in socket: M4 min. 6 mm depth 1 x ¼ `` min. 6 mm depth (in the middle) CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 22...
-
Page 25: Synchronisation Input Schematics
Synchronisation Input schematics Figure: SyncIn Schematics (for illustration only) Synchronisation Output schematics Figure: SyncOut Schematics (for illustration only) CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 23... -
Page 26: Internal Synchronisation Timing
Internal Synchronisation Timing Internal Sync Exposure T1: Exposure time, selected by software T2: Frame Interval (1/Frame Rate), selected by software Synchronisation Output Logic 1 during Exposure Time (T1) CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 24... -
Page 27: External Synchronisation Timing
External Synchronisation Timing Synchronisation Input “level detection” positive level: Sync In Exposure Sync In rising level to Exposure Delay: ~ 2.4usec +/- 1000 nsec typical T1: Exposure time T2: 1/Frame Rate T3: 1/Maximum Frame Rate (limited by readout of the sensor) depends on frame format 1/T2 has to be larger than 20 fps Synchronisation Output “level detection”... -
Page 28: Camera Firmware Update
Camera firmware update Camera firmware update is available through the USB programming cable and the UCXP_Flash software (located in the CXPFlash_Setup folder) delivered with the camera. Please go through the following steps: 1) Switch OFF camera 2) Connect USB cable to PC and camera Aux. input. 3) Install USB driver on PC if it is not already done. - Page 29 Wait until finished. 6) Click on Exit. 7) Switch OFF camera and switch ON camera. CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 27...
-
Page 30: Camera Mapping
Camera mapping This part is an extract of the GenICam xml file. DeviceVendorName Name of the manufacturer of the device. DeviceModelName This feature provides the model of the device DeviceManufacturerInfo This feature provides extended manufacturer information about the device DeviceVersion This feature provides the version of the device DeviceFirmwareVersion Version of the firmware in the device... - Page 31 Height This feature represents the actual image height expelled by the camera (in pixels). OffsetX Horizontal offset from the origin to the area of interest (in pixels) OffsetY Vertical offset from the origin to the area of interest (in pixels) PixelFormat This feature indicates the format of the pixel to use during the acquisition AcquisitionMode...
- Page 32 SubSampling Activates horizontal subsampling SubSamplingEvenFirst If set to ‘Yes’, only even pixels are sent if SubSampling mode is activated SubSamplingWidth Frame width used for the subsampling. For example, to transfer every 2 pixels for a 1024 pixels width frame, you will get a 512 pixels width frame. Parameter ‘Width’...
- Page 33 CamPerformCP70-1HS-M/C-1900 Ref. 1872-SU-01-B Page 31...
-
Page 34: GenCam
Optronis ships together with the CP70-1-M/C-1000 camera a XML file that is Gen<i>Cam compatible. The XML file follows the SNFC (Standard Features Naming Convention). Please ask, if needed, the Optronis customer service for the availability of this XML file. CamPerformCP70-1HS-M/C-1900 Ref.
