Quick Installation Guide
ML600
Release 1.00
Revision No. A
Document No. 520R50153E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ML600 and is the answer not in the manual?

Questions and answers

Summary of Contents for Actelis ML600

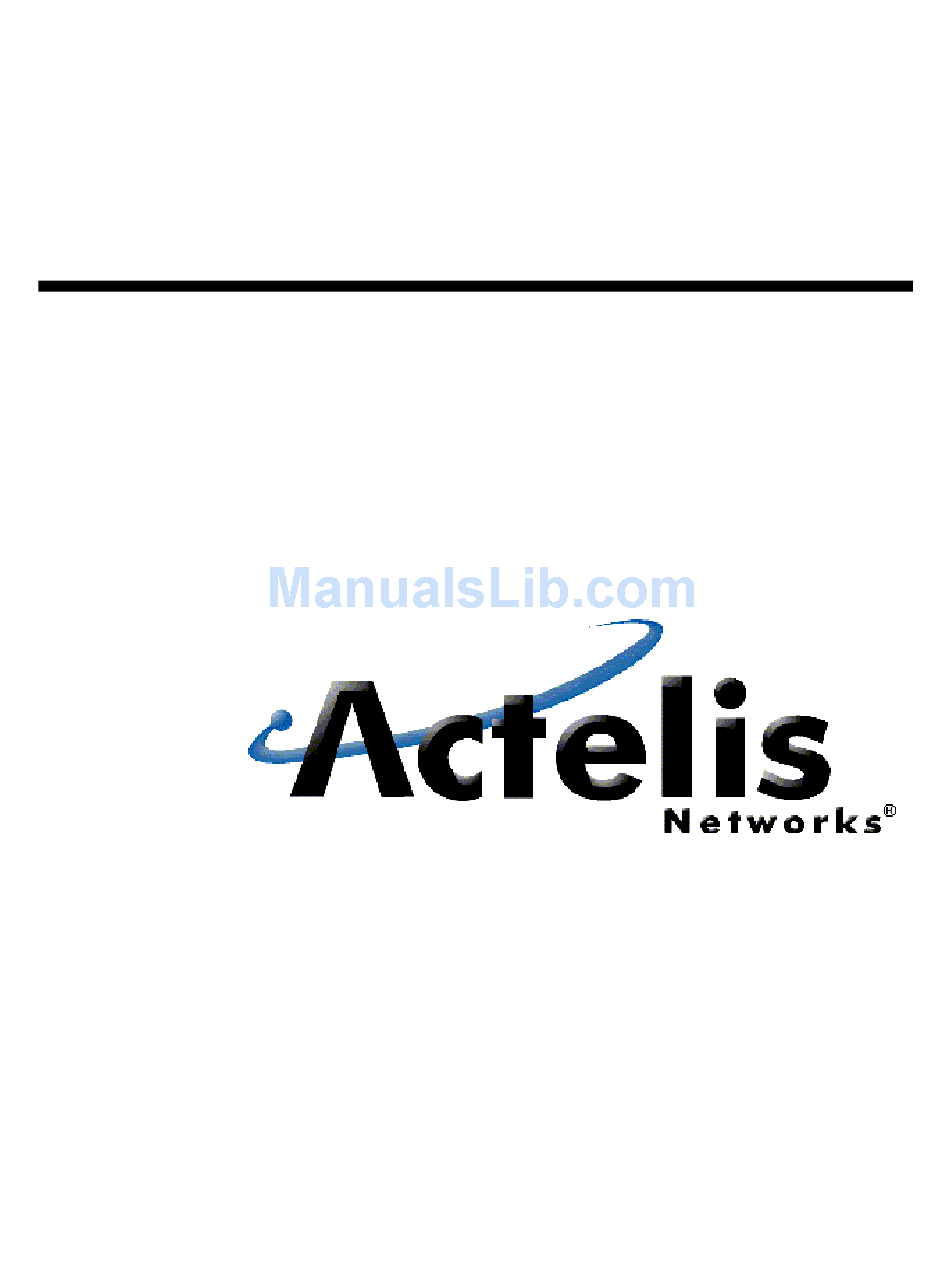

  • Page 1 Quick Installation Guide ML600 Release 1.00 Revision No. A Document No. 520R50153E...
  • Page 2 ML 600 series, cards and modules, accessories kits, this manual or any related materials. Actelis Networks reserves the right to revise this publication from time to time and to make changes in the content hereof without obligation to notify any person of such revisions or changes.
  • Page 3 Date: May 2006 ML600 Series FCC Compliance The ML600 series complies with the limits for a Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment notwithstanding use in commercial, business and industrial environments.
  • Page 4 Before making connections to the product, consult the appropriate chapters of this manual for further ratings information. 10. Many of the cables for this product are supplied by Actelis Networks. Cables that are supplied by the customer must comply with the regulatory inspection authorities and are the responsibility of the customer.
  • Page 5: Table Of Contents

    Electrical Requirements ................3 Clearance and Ventilation Requirements ..........3 Installation Overview ..................4 Dipswitch Configuration ...............5 Mounting the ML600 ................8 Wiring Information and Procedures ...............12 Cabling Information and Procedures...........15 Powering Up the ML600 ................20 Disposal ......................21 ML600 Release 5.0a Quick Installation Guide 1...
  • Page 6: Installing The System

    After opening the shipping package Remove and save the packing materials. Then check the packing slip and the shipment contents to ensure that you have received all of the listed items. The ML600 product package includes the following items: ML600 product. The ML600 series support the following models: ML621, ML622, ML624, ML628, ML638 and ML688;...
  • Page 7: System Requirements

    3.75 lb (1.7 Kg) Electrical Requirements The ML600 requires an external DC power source of -48/-60 VDC nominal (maximum range -40 VDC to -72 VDC), rated at 24 Watts maximum. For ordering AC supply, see “Appendix B, Parts List” in the ML600 User Manual.
  • Page 8: Installation Overview

    Installation Overview Installation Overview The flowchart in the following figure provides an overview of the tasks you need to perform when installing the ML600. For configuration without MetaASSIST View, remove the dipswitch cover and set the dipswitches. See Dipswitch Configuration (on page 5).
  • Page 9: Dipswitch Configuration

    DS#2 is used to apply HSL mode (-O -Office), different from factory (-R -Customer). DS#2 is in effect only when DS#1 is On. DS#2 must be set differently on 2 linked ML600 connected by copper pairs. ML600 installed on Central Office site should be set to -O (Office) DS#2 is On.
  • Page 10 On Remote NE ML600 (Customer side), set Dipswitch #1 to On (Down) and Dipswitches #2, #3 and #4 to Off (Up); On Central Office NE ML600, set Dipswitches #1 and #2 to On (Down) and Dipswitches #3 and #4 to Off (Up).
  • Page 11 Installation Overview Installing the System On 2 Remote NE ML600 (Customer side), set Dipswitch #1 to On (Down) and Dipswitches #2, #3 and #4 to Off (Up); Note: The dipswitches are very small in size. Use a small device such as a paper clip or small pointed object and gently adjust the switch.
  • Page 12: Mounting The Ml600

    Rack Mounting For 19”/23”/ETSI racks: For rack mount use the rack mount sleeve. See “Appendix B - Parts List” in the ML600 User Manual for list of parts. The following figure presents the installation of brackets for mount option. The mounting brackets for 19” and 23” racks can be positioned so that their flanges are flush with the front of the unit or offset by 5”...
  • Page 13 Make sure rack mount sleeve is leveled. Securing the ML600 to the Rack Mount Sleeve Insert the ML600 into the rack mount sleeve and secure the two captive screws with a Phillips #1 screwdriver. See the following figure. Figure 3: Securing the ML600 to the rack mount sleeve...
  • Page 14: Horizontal Surface Mounting

    Horizontal Surface Mounting Place the ML600 on a table or other horizontal surface. The ML600 comes with rubber feet in the accessory kit that can be used to help keep the ML600 from sliding on the surface or scratching it.
  • Page 15: Wall Mounting

    Installing the System Wall Mounting You can mount the ML600 on a wall using the wall mount bracket, see “Appendix B - Parts List” in the ML600 User Manual, as shown in the following figure. Figure 5: Securing the ML600 to the wall bracket Attaching the ML600 to a wall.
  • Page 16: Wiring Information And Procedures

    VDC RTN. Power Source The ML600 requires an external DC power source of -48/-60 VDC nominal (-40 VDC to -72 VDC), rated at 24 Watts maximum. For AC supply, an AC power adapter is available, see the ML600 User Manual.
  • Page 17 Caution: A readily accessible Listed branch circuit overcurrent protective device rated at 5A Slow Blow is recommended to be incorporated in the building wiring. A 5A circuit over current protective device may feed 2 ML600 units in rack mount sleeve. ML600 Release 5.0a Quick Installation Guide 13...
  • Page 18: Connecting The Power

    1. Remove 3/8" (10mm) of insulation from the end of the black and red 20-18 AWG wires. 2. Crimp the two Ring Terminals to the wires. 3. On the ML600 rear panel, remove the screws from the Barrier Terminal Block using a Phillips #1 screwdriver.
  • Page 19: Cabling Information And Procedures

    Installing the System Cabling Information and Procedures Cabling information for the front and rear panel connectors of the ML600 is presented in the following figures and the following table. Note: All intrabuilding interfaces are to be used with shielded and grounded cables at both ends.
  • Page 20 Local management interface connects the ML600 to a Craft terminal, such as a laptop computer, over RS-232. Copper Loops: RJ-45 Connects the ML600 unit to the MDF (using RJ-45 to open wire cable) or PFU-8 (using 8xRJ-45 to DB-25 cable). For each connector:...
  • Page 21 5 and verify that it is mechanically locked in place. 3. Connect LC duplex fiber optic cable assembly to the LC port on the ML600 front panel. 4. Connect the other cable side to the Ethernet equipment.
  • Page 22 The following procedure is optional for future use with PFU-8 unit. Not supported in R5.00. The RJ-45 plug connector of the cable to the Aux port on the ML600 rear panel and the other end to the designated port on the PFU-8.
  • Page 23 6. Repeat steps 2 to 5 for the other wire on the other side of the "Out" terminal block. 7. Attach and secure the exposed end of the wires to the external alarm device(s), per your requirements. Caution: Make sure there are no exposed wires. ML600 Release 5.0a Quick Installation Guide 19...
  • Page 24: Powering Up The Ml600

    When software loading/initialization is successfully completed, all system LEDs are green except for the Alarm LED which can be red for a ML600 that is with factory setup and not configured by dipswitches. Facility LEDs (ETH, HSL, MLP) depending on cable availability (plugged-in) and port configuration, can be turned On or Off.
  • Page 25: Disposal

    Disposal Installing the System If the LED indications are as described in “Front and Rear Panel LEDs” in the ML600 User Manual, continue to “Configuring the System Using MetaASSIST View” in the ML600 User Manual. Otherwise, go to “Troubleshooting LED Fault Indications” in the ML600 User Manual.
