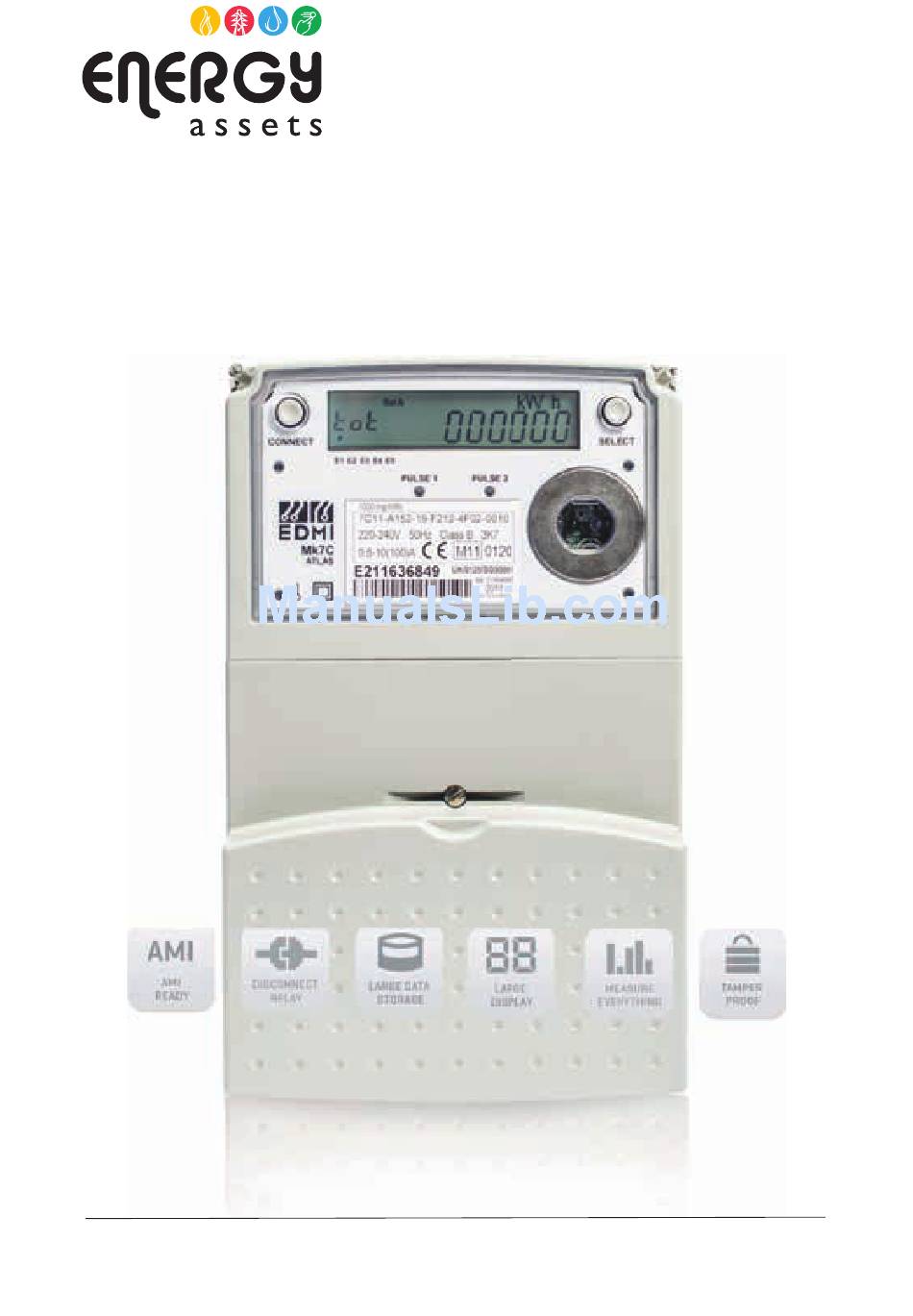

EDMI Mk 10
Electricity Meter
User Guide to LCD
Atlas Series Class 1 and Class 2
The Mk10A is a member of our Atlas series.
Screen Displays
Apolyphase meter with CT connected or
Whole Current measurement options, it
includes power quality indication, advanced
commissioning functionality and a large
memory storage
Tel: 01506 405 405
Energy Assets
bringing meters to life...
energyassets.co.uk
Advertisement
Table of Contents
Summary of Contents for Energy Asse EDMI Mk 10
- Page 1 EDMI Mk 10 Electricity Meter User Guide to LCD Atlas Series Class 1 and Class 2 The Mk10A is a member of our Atlas series. Screen Displays Apolyphase meter with CT connected or Whole Current measurement options, it includes power quality indication, advanced...
- Page 2 EDMI Mk 7C Electricity Meter 1.0 INTRODUCTION 2.0 ACCESS TO DISPLAY SCREENS The EDMI Mk10 meter is a new development of ‘Smart’ metering Access to all the features of the meter used to measure Electricity consumption. It is a unique product only requires the pushing of a single which enables energy usage to be continually measured and ‘display’...
- Page 3 EDMI Mk 7C Electricity Meter 3.1 SET A - METER READING INFORMATION Please note that the display will normally cycle around each item in turn automatically every 10 seconds (for reading purposes) Current Time (GMT) Current Date (26th May 2009 Shown) Rate 1 (Meter Reading) Please note that for multi-tariff meters the meter register will be the only one displayed...
- Page 4 EDMI Mk 7C Electricity Meter 3.1 SET A - METER READING INFORMATION Please note that the display will normally cycle around each item in turn automatically every 10 seconds Previous MD in kVA Billing Reset (Count of Resets) Billing Reset (Date) Please note that for multi-tariff meters the meter register will be the only one displayed Billing Reset...
- Page 5 EDMI Mk 7C Electricity Meter 3.2 SET B - TEST / SUPPLEMENTARY INFORMATION Signal Strength Alarm Status Flags Indicates the start of the Alarm Codes which scroll across the LCD FLAG LETTERS ALARM NAME ANALOG REFERENCE FAILURE VOLTAGE TOLERANCE ERROR CLOCK FAILURE REVERSE POWER CALIBRATION DATA LOST...
- Page 6 EDMI Mk 7C Electricity Meter 3.2 SET B - TEST/SUPPLEMENTARY INFORMATION Power Factor (PF) (-ve for Lag +ve for Lead) Total Active Power kW (+P for Import -P for Export) Total Reactive Power kVAr (+Q for Import -Q for Export) Total Apparent Power kVA (+P for Import -P for Export) Manufactures Serial Number...
Need help?
Do you have a question about the EDMI Mk 10 and is the answer not in the manual?
Questions and answers
Why Did EDMI MK10A meter did not dsisplay the export reading for the gid connected 250 kw solar
The EDMI Mk 10 meter may not display the export reading for a grid-connected 250 kW solar system if the user is on a non-MD (Maximum Demand) tariff, as some display registers, including export readings, may not be applicable and therefore not displayed.
This answer is automatically generated
