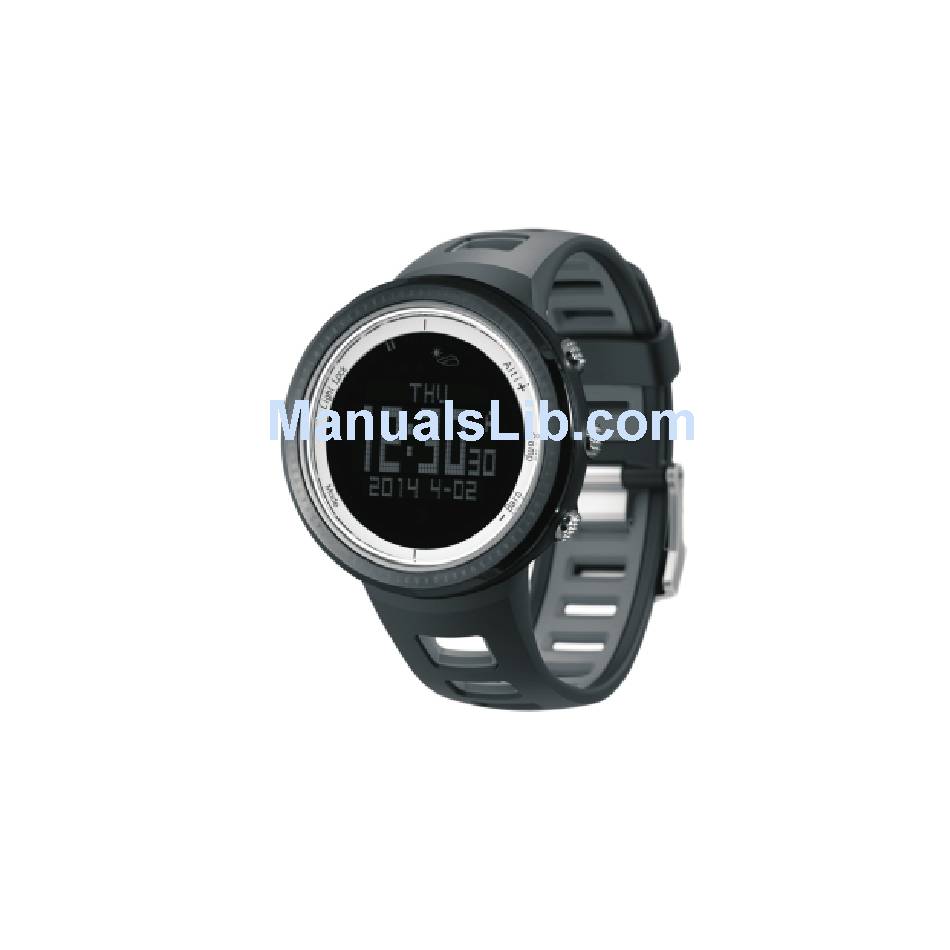

- Page 1 Smart Watch USER GUIDE...
-
Page 2: Table Of Contents
Contents 1. Introduction..................1 2. Features ..................1 3. Start ....................1 4. LCD display of function mode............2 5. General setting................3 5.1 Setting item................4 5.2 Adjust data................4 5.3 Changing units................4 5.4 Changing general setting............5 5.5 Backlight ..................5 6. -
Page 3: Introduction
1. Introduction This sports watch incorporates bluetooth,altimeter, barometer, compass, pedometer,sunrise and sunset times, thermometer, log recorder, time, stopwatch, dual time and calendar etc. This user guide describes main functions, operation method and some application living example. Every chapter describes one mode with LCD display drawing. -
Page 4: Lcd Display Of Function Mode
Light/bluetooth Alti/+ Button operation Altitude/Up/Start/Stop Comp Barometer/Down/Reset Compass/Confirm/History Baro/- Mode Time/Setting Backlight/bluetooth Figure 1 4. LCD display of function mode Press[M] Stopwatch Pedometer Time [M] to Under time mode,press button nter Pedometer, Stopwatch, Countdown timer in turn. Countdown Timer... -
Page 5: General Setting
Under time mode, press [A], [B] or [C] Time can enter into altimeter, barometer, compass mode separately. Press [M] return back to time mode. Press A Press C Press B Altitude Barometer Compass Press Figure 3 5.General setting Before you start to use your sports watch, it’s better to set the measurement units and general setting according to your preference. -
Page 6: Setting Item
5.1 Setting items [A] or [B] After enter setting, press to switch setting items. [M] to return back to last Press to enter setting item. Press menu. Press [L] to exit setting.Detail setting is as below, ●Time-date: set time,date,countdown timer,alarm,world time,DST ●Sunrise: city selection, latitude, longtitude, time zone setting ●Units: set time format, date format, temperature unit, barometer unit, altitude unit, weight unit, stride unit... -
Page 7: Changing General Setting
Method to change unit: 1) Under time mode, long press [M]enter MENU 2) Press [A] two times to UNITS, press [C] to enter Units setting. 3) Press [A] or [B] to select setting items, press [C] to enter selected items. Press [A] or [B] to select unit. 4) Press [L] to save and exit setting or press [M] to return back to last menu. -
Page 8: Time Setting
6.1 Time setting 6.1.1 Time & Date setting 1) Under time mode, long press [M] to enter setting mode 2) Press [C] to enter into time-date 3) Press [C] to enter into time 4) Press [C] to switch setting items: hour, minute, second 5) Press [A] or [B] to adjust data 6) Press [M] to return back to last menu, press [A] to switch to date setting, press [C] to enter into date setting mode... -
Page 9: Alarm Clock Setting
6.1.4 Sunrise and sunset setting Select one city which you locate, 1) Under time mode, long press [M] to enter setting mode 2) Press [A] to switch to SUNRISE 3) Press [C] to enter into Sunrise setting 4) Press [C] to enter city selection 5) Press [A] or [B] to select city 6) Press [L] to save and exit setting If the city which you located is not listed in unit, please set longitude,... -
Page 10: Stopwatch
when turn alarm clock, the symbol will display on LCD. Press any button to turn off alarm. Or keeping 30 seconds, it will stop alarm automatically. 6.3 Stopwatch 1) Under time mode, press button [M] twice to enter stopwatch. 2) Press [A] to start, stop or restart stopwatch 3) Press [B] to record each lap, total 10 group 4) Press [C] to review data when stopwatch stop to record 5) Press [A] or [B] to switch each lap... -
Page 11: Pedometer
6.5 Pedometer Under time mode, press [M] to enter pedometer mode. LCD display, - Upper: STEP - Middle: steps - Below: Press [B] to switch among current time, sports time, step speed, calorie and distance ●Current time（00：00） ●Sports time(Lap00:00:00) ●Step speed(0.0Km/h or Mi/h) ●Calorie(0 KCAL) ●Mileage(0.00 Km Mile) -
Page 12: Altimeter & Barometer Mode
at 0:00 everyday. Please turn on it if you need. Under below situations, pedometer may not measure so accuracy, 1) In bag with irregular shaking 2) Hanging on waist or backpack vertically 3) Walking unnatural Wearing sandals, slippers, clogs etc 5) Walking irregular at crowded place Walking very slowly 7) C... -
Page 13: Sea Level Altitude & Sea Level Air Pressure Setting
weather change high frequency, it’s better to calibrate sea level altitude or sea level air pressure. Especially calibrate when start to climbing. 7.1.2 Why the result is not accuracy If keeping altimeter mode long time at same place and the weather changes, the altitude will be not accuracy. -
Page 14: Weather Forecast
7.3 Weather forecast Under time mode, weather forecast will display on top of LCD. Weather forecast have four style: sunny - partly cloudy - cloudy - raining. The accuracy of weather forecast is 70%. When climbing or under altimeter mode, the accuracy of weather forecast will be influenced. - Page 15 Altitude record Total altitude gain and loss Total altitude gain and total altitude loss Under altimeter mode, press [B] to switch to climbing time Press [A] to start climbing time record, unit will count altitude gain and altitude loss automatically. Press [A] to stop climbing time record.
-
Page 16: Barometer
7.5 Barometer Under time mode, press [B] to barometer mode. LCD display, - Upper: Sea level air pressure - Middle: 24 hours air pressure trend chart - Below: Press [B] to switch among current air pressure, time and temperature. Air pressure record Unit will record air pressure every half hour and display as an air pressure trend chart. - Page 17 B. How to enter into compass calibration? Using first time or replacing battery, press [C] , it will enter into compass calibration. To get more accuracy data, under compass mode, long press [C] , it will enter into compass calibration. C.How to calibrate compass? When enter into calibration, circle on LCD display will rotate, splay on the top.
-
Page 18: Using Compass
magnetic north. The declination is positive when the magnetic north is east of true north. The declination is negative when the magnetic north is west of true north. To determine the declination for your location, visit: http://www.ngdc.noaa.gov /geomagmodels/Declination.jsp For example, Phoenix, AZ produces the following result: Declination = 10 degrees 59 minutes changing 6 minutes per year). -
Page 19: Replacing Battery
to current position ) - Below: Time - Outer ring: Three black points (Always indicating North) 9. Battery replacing This unit adopts 3v lithium battery. Model no. is CR2032. NOTE: To reduce the risk of fire or burns, do not crush, puncture or dispose of used batteries in fire or water. -
Page 20: Bluetooth On/Off
10.Bluetooth ON/OFF under the time surface Long press button“L”such as Figure 4 the screen will show the icon that is bluetooth(the arrow show the position)this icon will blink, it mean bluetooth on. after that long press again to off it. Bluetooth connect (the code on last page ), 1.First scan two-dimension code... -
Page 21: App Introduction
11.APP Introduce The APPS have four surface”Basic””Walk””Altimeter”“Barometer” 11. 1 Basic surface(Figure 7) 中国移动 ４Ｇ ９６％ ０ ９ ： ３ ５ 1) Climber: you can set your basic data, such as Birthday,Gender, Height ect. Climber 2) Device: connect the Smart watch Device 3) Sync time: can sync the smart phone Sync Time... -
Page 22: Pedometer Surface
11.2 Walk the main surface for“Walk”. please reference Figure 8,press top left icon to enter “basic”.you can see your step at present and percent of the goal of each day in the circle. you also can check the distance, the caloire and exercise time at present. your present position will show on the below of the surface. -
Page 23: Altimeter Surface
11.3 Altimeter under the "Walk" slide your smart phone enter to “Altimeter” .please reference Figure 10 press top left to enter the “basic”.you can see the altitude at present in the circle. you also can check the sea surface height, caloire and exercise time at present. -
Page 24: Barometer Surface
11.4 Barometer under the "Altimeter" slide your smart phone enter to “Barometer”. please reference Figure 12, press top left to enter the “basic”.you can see the Pressure at present in the circle. you also can check the sea surface pressure, temperature and weather at present. -
Page 25: Specifications
12. Specifications ● Operating temperature：-20℃ -- +60℃ / -4℉ -- +140℉ ● Storage temperature：-30℃ -- +60℃ / -22℉ -- +140℉ ● Water-resistant：50m / 160ft ● Battery: CR2032 ● Battery life-time: about 1 year in normal use Altimeter ● Display range：-500m -- 9000m / -1640ft -- 32760ft ●... - Page 26 APP download android...
