Summary of Contents for TUV i.Tech Clip D

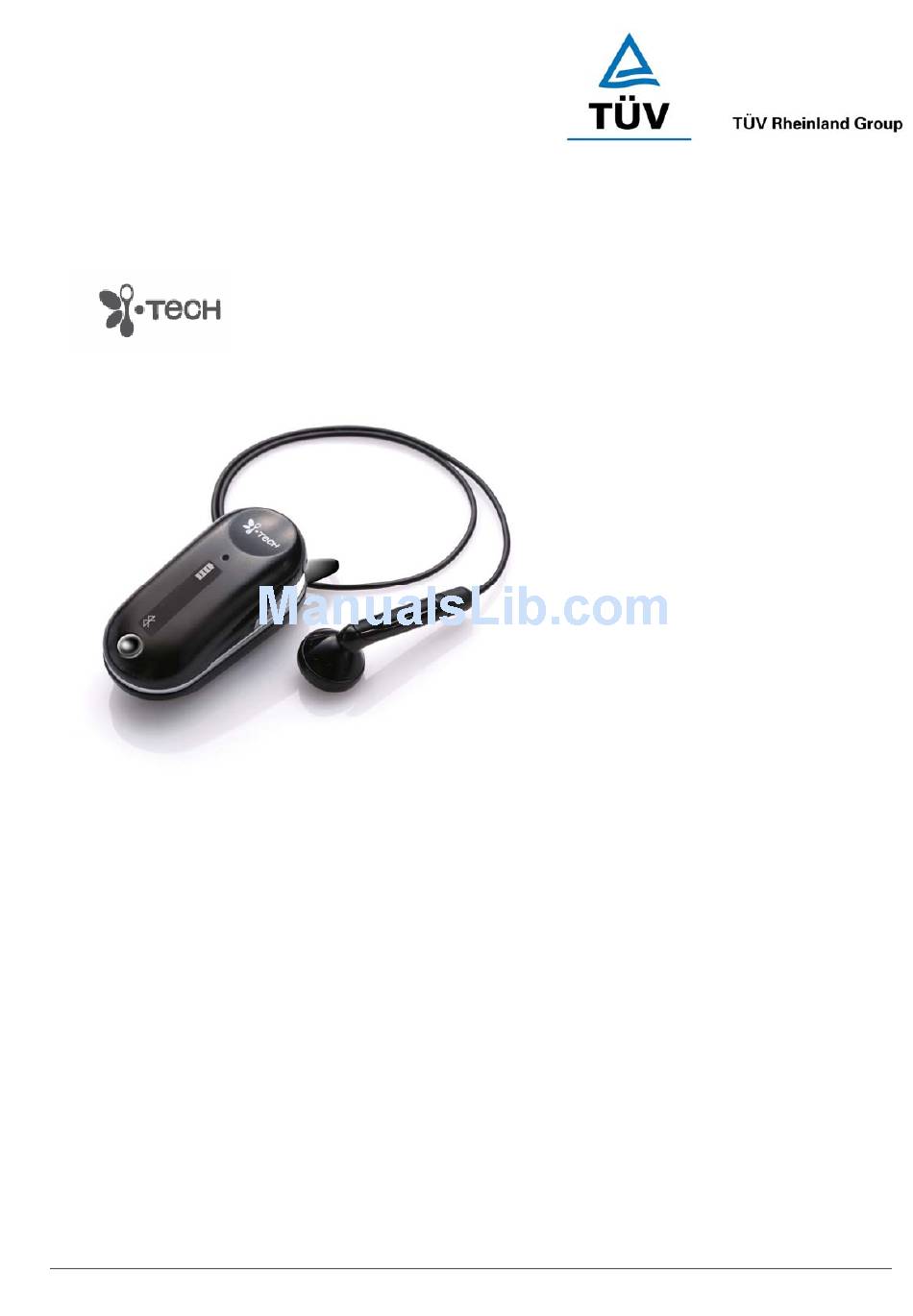

- Page 1 1.6 User Manual (Cover) i.Tech Clip D User Guide Version 1 14-Aug-2006 Project No. : C51-A06059-XX Test Report No.: 14014459 001 Appendix 4 page 15 of 41...
- Page 2 [Inside Cover] i.Tech Clip D Bluetooth Headset gives you more freedom on the move. Pair with compatible Bluetooth mobile phones and this headset makes it easier for you to carry on with your tasks whilst making or taking a call.
- Page 3 (Page 0) Contents Title Page i.Tech Clip D Bluetooth Headset Overview Display information Setting Function Getting Started Charging Your Headset Normal Charging Time Talk and Standby Time Battery Low Indication Turning Your Headset On and Off Pairing Your Headset...
- Page 4 (Page 1) i.Tech Clip D Bluetooth Headset Overview Figure 1 1. Built-in Buzzer 5. Built-in Microphone 2. Display with backlight 6. Built-in Rechargeable Battery 3. Charging Socket 7. Earpiece 4. Volume / Setting Button 8. Multi-function Button (MFB) Test Report No.: 14014459 001...
- Page 5 (Page 2) Display Information Battery Icon (Full Capacity) Battery Icon (Half Capacity) Battery Icon (Empty / Low Battery) Bluetooth Status (Switched on and Paired) Bluetooth Status (Switched on and Un- paired) Bluetooth pairing Bluetooth Successful Paired Unsuccessful pairing of Bluetooth...
- Page 6 (Page 3) Setting Function You may set your headset in your profile anytime. To do this, you need to turn off the headset first and then press and hold the Volume button and MFB button for 2 seconds. You can then select between different functions by pressing the Volume button.
- Page 7 (Page 4) Getting Started To use your i.Tech Clip D Bluetooth Headset (“the headset”), please follow the steps below: 1. Ensure your headset is fully charged 2. Pair your charged headset with a Bluetooth-enabled mobile phone Figure 2 Test Report No.: 14014459 001...
- Page 8 (Page 5) Charging Your Headset Figure 3 The headset comes with a built-in rechargeable battery. Prior to using the headset for the first time, it is recommended to fully charge the battery first. Test Report No.: 14014459 001 Appendix 4...
- Page 9 (Page 6) Insert the charger plug into the headset’s charging socket (refer to Figure 3) and plug the mains charger to an AC wall outlet. The battery icon showed on the headset will be displayed during charging. IMPORTANT: Charging indication will be delayed for a few seconds if the headset has not been used for a long time or the battery is drained.
- Page 10 (Page 7) Turning Your Headset On and Off Turning On the Headset Press and hold the MFB (see Figure 1) for two seconds until you hear a short beep. The display will prompt “i.Tech Dynamic”.. IMPORTANT: Press the MFB again when you want to turn on the headset to re-activate pairing and ensure the connection between the headset and the mobile phone is resumed.
- Page 11 (Page 8) Pairing Your Headset Figure 4 The headset works with Bluetooth-enabled mobile phones only. Prior to using and pairing your headset for the first time, please check if your mobile phone is Bluetooth-enabled. This information will normally feature on the packaging or user guide that is provided with your mobile phone.
- Page 12 5. Set the mobile phone to search for Bluetooth devices within the one meter range, as instructed in the mobile phone user guide, and select “i.Tech Clip D” from the list. 6. Enter the pre-programmed passkey “0000” and press “OK” to pair your headset and mobile phone. When the pairing is completed, the headset’s display will show “Paired”...
- Page 13 (Page 10) Using Your Headset Answering a Call When there is an incoming call, you will hear the ring through the earphone. Press the MFB once to accept the call or answer the call via your mobile phone in the normal way.
- Page 14 (Page 11) Using Your Headset Call Muting During Conversation During conversation, press and hold the Volume Key for 2 seconds to mute the built in microphone. When the mute function is activated, you will hear a short beep every 5 seconds accompanied by the headset’s status indicator flashing every 5 seconds.
- Page 15 (Page 12) Using Your Headset Last Number Redialing from Your Headset Press the MFB on your headset twice. IMPORTANT: The above functions are only applicable to mobile phones with Bluetooth Handsfree Profile. Functionality varies depending on the mobile phone model you have. Please refer to your mobile phone user guide for additional information.
- Page 16 (Page 13) Resetting or Removing Pairing You may reset the headset to its original settings anytime. To do this you also clear all current pairing settings. 1. Switch off your headset 2. Press and hold the volume key and MFB together for 2 seconds to enter the setup mode.
- Page 17 (Page 14) Care and Maintenance Headset Turn off your headset before placing it in your pocket or bag. If the MFB is accidentally depressed, your mobile phone may place an unintended call. Do not expose the headset to liquid, moisture or humidity as it is not waterproof.
- Page 18 (Page 15) Built-in Battery Do not attempt to replace the headset’s battery as it is in-built and is not changeable. Charge the battery in accordance with the instructions supplied with this user guide. Use only the charger supplied by the headset’s original manufacturer to charge the battery..
- Page 19 (Page 16) Safety Information Check and observe local laws regarding the use of a mobile phone and headset while driving. If you use the headset while driving, ensure your full attention and focus. It is your responsibility to drive safely.
-
Page 20: Troubleshooting
If the above suggestions do not solve your problem, please recharge the headset and remove your mobile phone battery for a while. Then start pairing again. The i.Tech Clip D Bluetooth Headset is compliant with and adopts the Bluetooth Specification Version 2.0 Class 2. However, interoperability between the headset and other Bluetooth-enabled products is not guaranteed because it depends on compatibility. - Page 21 Test Report No.: 14014459 001 Appendix 4 page 35 of 41...
- Page 22 Test Report No.: 14014459 001 Appendix 4 page 36 of 41...
- Page 23 (page 18) Test Report No.: 14014459 001 Appendix 4 page 37 of 41...
-
Page 24: Declaration Of Conformity (Doc)
Declaration of Conformity (DoC) We, i.Tech Dynamic Ltd., declare that the following product: Product Name: i.Tech Clip D Model No.: C51-A06059-XX Is in conformity with the following essential requirements of Council Directive 1999/5/EC (referred to as R&TTE Directive): Article 3.1a, 3.1.b and 3.2. and the product is manufactured in accordance with Annex II of the above directive. - Page 25 (Page 19) Product Specifications Bluetooth Specification: Version 2.0 Class 2 Bluetooth Profile Supported: Headset and Handsfree Profiles Range of Frequency: 2.4GHz spectrum Nominal Charging Time: Within 3 hours Talk Time*: Up to 6.5 hours Standby Time*: Up to 150 hours Dimensions: 53.5mm (L) x 25.5mm (W) x 23.8mm (H)
- Page 26 (Back Cover) © 2005 Hutchison Harbour Ring Enterprises Limited All rights in this publication are reserved and no part may be quoted or reproduced without the prior written permission of the company. The contents of this publication are believed to be correct at the time of going to print, but any information, specifications, products or services mentioned may be modified, supplemented or withdrawn without further notice.
- Page 27 Dispose of the packaging and this product in accordance with the latest provisions. Notes on Environmental Protection After the implementation of the European Directive 2002/96/EU in the national legal system, the following applies: Electrical and electronic devices must not be disposed of with domestic waste. Consumers are obliged by law to return electrical and electronic devices at the end of their service lives to the public collection points that are set up for this purpose or designated points of sale.
