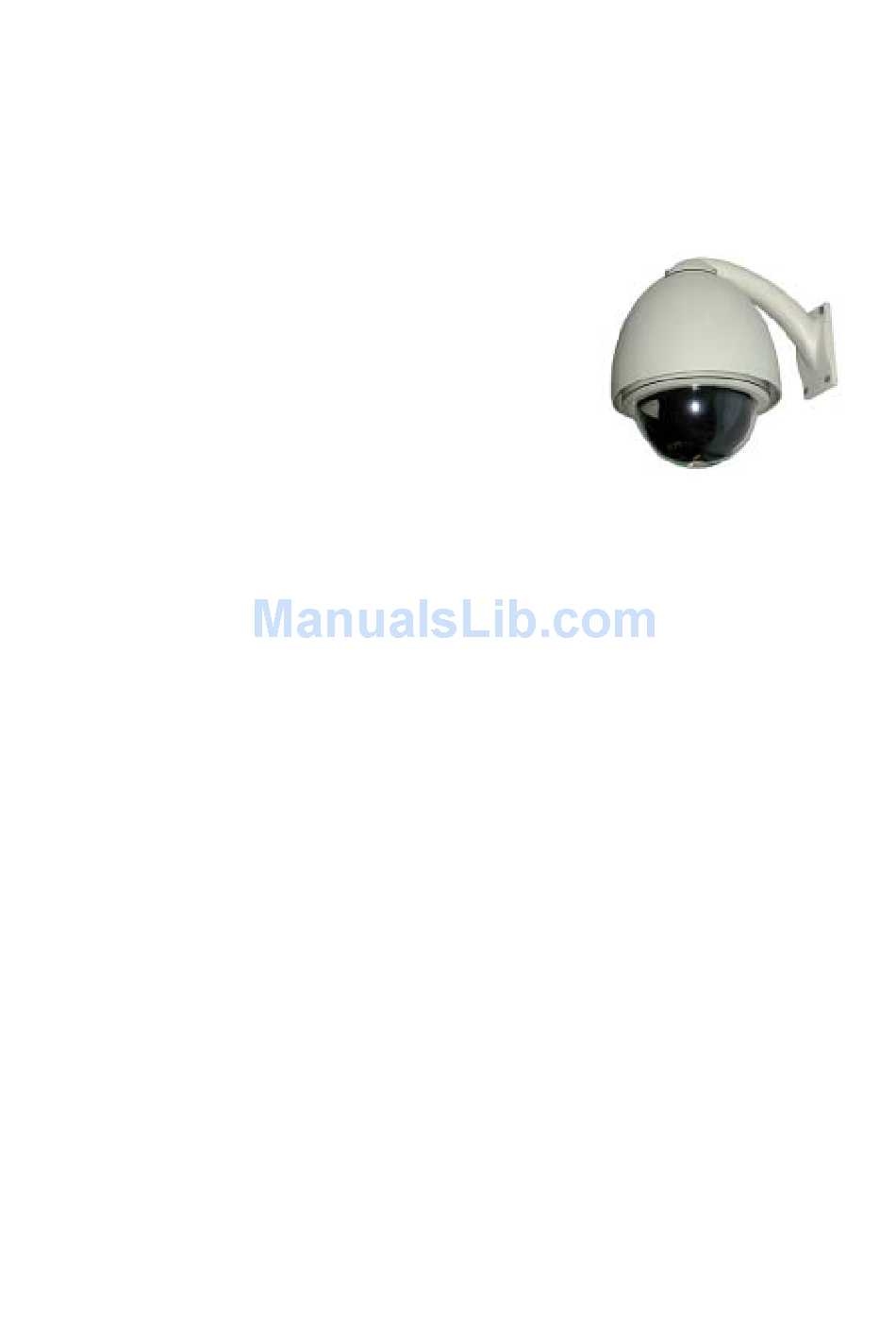

HD-IPAC series
High-speed IP dome camera with Intelligent
Auto-Tracking
The IPAC series Intelligent Auto-Tracking IP
Dome Camera is a high-performance camera
designed for professional video surveillance,
offering the choice of either a wireless or a
wired connection to the IP network. For
demanding
security
surveillance
and
remote
monitoring
applications,the IPAC series Intelligent Auto-Tracking IP Dome Camera
provides exceptional features such as Intelligent Auto-Tracking ,
relay-tracking, optical zoom including 18x
26x or 30x, autofocus lens.
Superb performance and image quality, and fast and precise pan/tilt
mechanics. the IPAC series Intelligent Auto-Tracking IP Dome Camera
deliver superior quality MPEG-4 video in all light conditions over IP
networks. the IPAC series Intelligent Auto-Tracking IP Dome Camera
As with all true High-speed domes, the IPAC series Intelligent
Auto-Tracking IP Dome Camera enable a continuous 360-degree pan
operation and support 128 preset positions and guard tour. For
demanding security surveillance and remote monitoring applications,
fast, high precision PTZ control using Intelligent Auto-Tracking system
makes it easy to track moving objects of dome monitoring conditions.
____________________________________________________________________________________________
- 1 -

Advertisement

loading
Need help?

Need help?

Do you have a question about the HDIPAC-0081 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blunet HDIPAC-0081

  • Page 1 HD-IPAC series High-speed IP dome camera with Intelligent Auto-Tracking The IPAC series Intelligent Auto-Tracking IP Dome Camera is a high-performance camera designed for professional video surveillance, offering the choice of either a wireless or a wired connection to the IP network. For demanding security surveillance...
  • Page 2 The IPAC series Intelligent Auto-Tracking IP Dome Camera can capture color video in light conditions, with its automatic or manually removable IR-cut filter, is able to capture black and white video in dark conditions. The IPAC series Intelligent Auto-Tracking IP Dome Camera provides high performing wireless transmission with a wide coverage range according to the IEEE 802.11g standard, as well as backward compatibility with IEEE 802.11b.
  • Page 3: Main Features

    Main features ◆Real-time monitor via Internet Explorer without extra software ◆ High performance MPEG-4 hardware video compression and ADPCM audio compression ◆Resolutions including:D1(720 ×576),FIELD(720 ×288),CIF(352 ×288) ,QCIF(176 ×144) ◆Full frame rate: up to 30/25 frames per second for all resolutions ◆High precision auto-tracking moving objects with combined Intelligent tracking surveillance software ◆Support realy-tracking...
  • Page 4 ◆Auto recording or capuring when auto-tracking start ◆Free muti-channel Intelligent tracking surveillance software ◆Free muti-channel PC surveillance software ◆Support video and audio synchronous compression and playback ◆Support ADSL (PPPoE) dialup function ◆Support TCP, UTP, RTP,DHCP, DDNS,etc ◆Support variable bit rate and variable frame rate ◆5-channel alarm input ,2-channel control output ◆Support AV,AVI record formats ◆...
  • Page 5: Technical Specifications

    AT-IPAC Intelligent Auto-Tracking IP Dome Camera IP Dome Camera Indoor dome Outdoor dome Indoor dome Outdoor dome Models HDIPAC-0081 HDIPAC-0082 HDIPAC-00F691 HDIPAC-00CF692 1/4” Sony EXview HAD CCD Image Sensor (Automatic day/night) F1.4-3.0, f=4.1 mm wide to 73.8 mm tele, autofocus...
  • Page 6 Min 160x120 (NTSC) 176x144 (PAL) Frame rate(NTSC/PAL) MPEG-4: Up to 30/25 fps in all resolutions Configurable brightness, sharpness, white balance, exposure control, backlight compensation Image settings Overlay capabilities: time, date, text, custom logo or image Controllable frame rate and bandwidth Video streaming Constant and variable bit rate Audio...
  • Page 7 Events triggered by video motion detection, PTZ preset position external inputs or according to a Alarm and event schedule, management General Ethernet 10BaseT/100BaseTX, RJ-45 Connectors 5 alarm inputs, 2 contral outputs Consumption Power 24VAC 2A 60Hz/50Hz Operating Temperature 0 - 50 ºC –22℃~60℃...
  • Page 8 ____________________________________________________________________________________________ - 8 -...

This manual is also suitable for:

Hdipac-0082Hdipac-00f691Hdipac-00cf692
