lightMoods MNFLSC-24V-72 User Manual

MINI Flat LED Neon Ribbon Light
(Green/Blue/Warm White/White/Cool White/Daylight White)
PLEASE READ THESE INSTRUCTIONS CAREFULLY BEFORE INSTALLATION AND LEAVE A COPY FOR THE END
FEATURES
1. Model: MNFLSC-24V-72
2. Rated input voltage: DC 24V
3. Rated Power: 5W/m
4. Dimension: 9*18mm
5. LED quantity: 72LEDs/mtr
6. LED Spacing: 13.88mm
7. Min. cutting length: 83.3mm( 6LEDs)
8. Max. running length: 15 mtrs for single end feed or 30mtrs
for double ends feed.
9. Light color: Single Color
(Green/Blue/Warm White/White/Cool White/Daylight White)
10. Min. bent diameter: 90mm; Do not twist the light .
11.Protection rate: IP68
12.Protection rate for IP68: Protected against dust and submersion
in water (1meter above).
NOTE: All connector joints must be connected correctly to achieve
IP68 rating
13.Can be cut and extended
14.Long lifetime: 5 years
15.Working ambient temperature: -4°~113°F (-20°~45°C)
16.Operating (bending) ambient temperature: 32°~113°F (0°~45°C)
ACCESSORIES (SOLD SEPARATELY)
Single End Connection Application Accessories Kit
Front Connector Accessories Kit
01 (or 02) Front Connector
Silicon Gasket
U Steel Plate
Anti-skidding Clip
End Cap Accessories Kit
The Tail Plug
U Steel Plate
Anti-skidding Clip
Silicon Gasket
DO-160G
tested
Palm Coast, Florida, USA / Los Angeles, California, USA / Pribram, Czech Republic / Birmingham, U.K. / Kuala Lumpur, Malaysia / Mumbai, India
Email: christian@aveoengineering.com / Web: www.aveoengineering.com
LightMoods
USER MANUAL
MNFLSC-24V-72
USER/MAINTENANCE ENGINEER FOR FUTURE REFERENCE
1 pc
1 pc
1 pc
1 pc
1pc
1pc
1pc
1pc
TM
WARNING AND CAUTION
WARNING
1. Before making any cuts,installation,maintenance or connection, be sure
the mains is disconnected!
2. NOTE: ALL CONNECTOR JOINTS MUST BE CONNECTED CORRECTLY TO
ACHIEVE IP68 RATING.
3. Please operate this ex light according to the instructions, and con rm
the work voltage, it must be matched with product requirements.
4. Please con rm the polarity of connector before insertion front connection cable.
5. Connect and cut this product correctly. Any wrong operation will damage this
product.
6. No pressing on this product during storage, long term pressing may lead to damage.
7. Using quali ed DC power supply.
8. Min. bent diameter 90mm, see Fig.1.
9. Do not twist the light as Fig.2 and follow the correct bending direction as Fig.3.
10. Do not hang this light in the air as Fig.4.
11. Cutting at the wrong location will result in a failure of the light! See Fig.5.
CAUTION
1. Suitable for mounting on normally ammable surfaces..
2. Use only factory-recommended connectors and accessories.
3. To ensure its long life span, operate the light properly in accordance with the
instructions.
4. Do not operate in more than 113°F (45°C) ambient temperature.
5. Assemble the DIY Connector correctly as in Fig.6.
6. Max. running length depends on the energizing way as Fig.7 shown.
7. Warm White,Cool White and Daylight color reference ANSI STANDARD.
8. Do not operate light when ambient temperature is below 32°F (0°C) thais may injure
the light .
ASSEMBLY AND INSTALLATION
1. Turn o the electricity before operation.
2. Cut the light at correct location (if need).
3. Assemble the light according to Fig.8.
4. Install U channel and light according to Fig.9 (Only applicable to DIY accessories) .
5. Wire all connectors to the power line and check wiring of the whole circuit.
Cable color coding basics Refer to Fig.10.
FIGURES

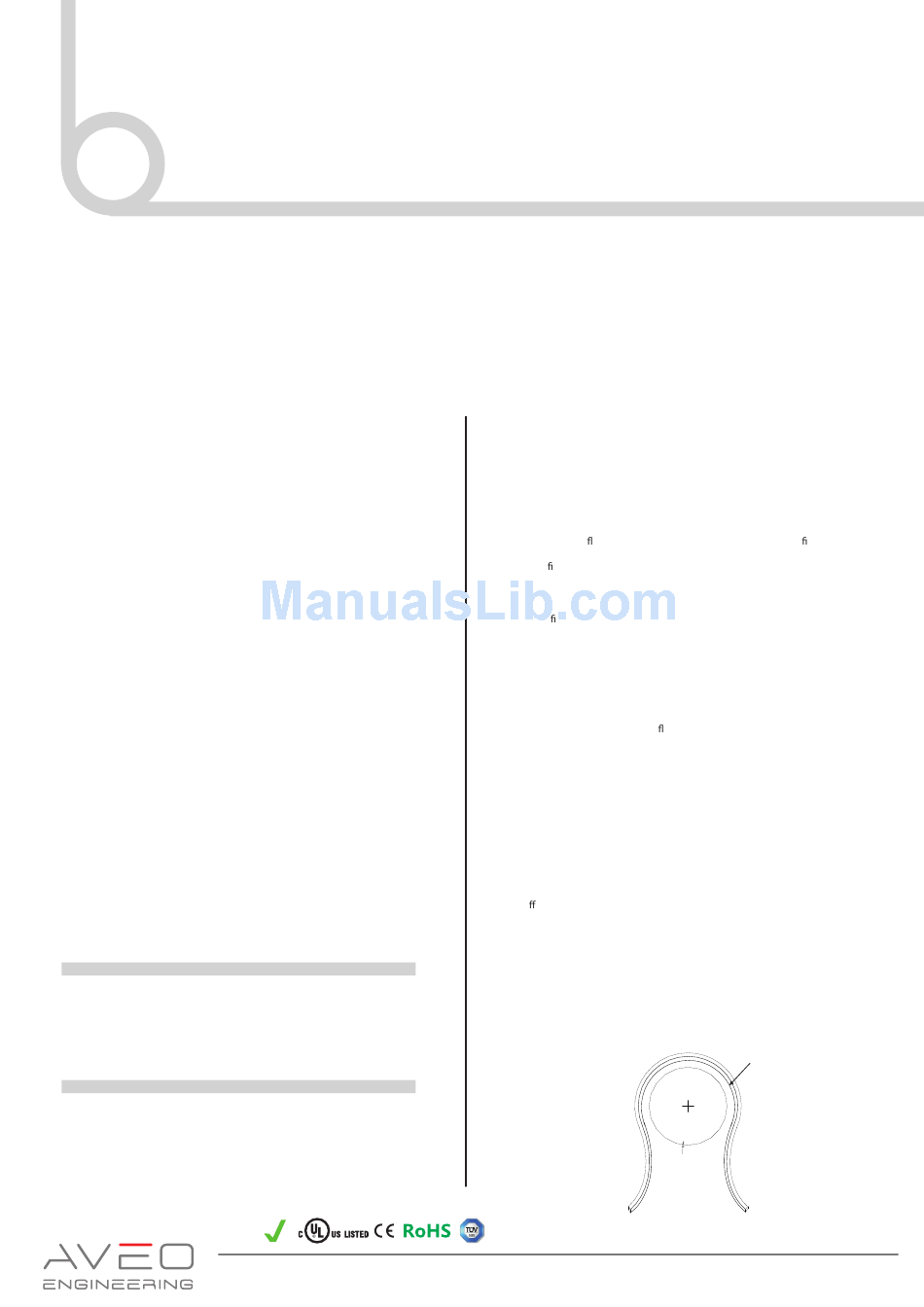

Fig 1 Minimum bent diameter 90mm
.
Light Surface
Φ90mm
