Jizhuo
Technology
SHENZHEN JIZHUO TECHNOLOGY CO., LTD

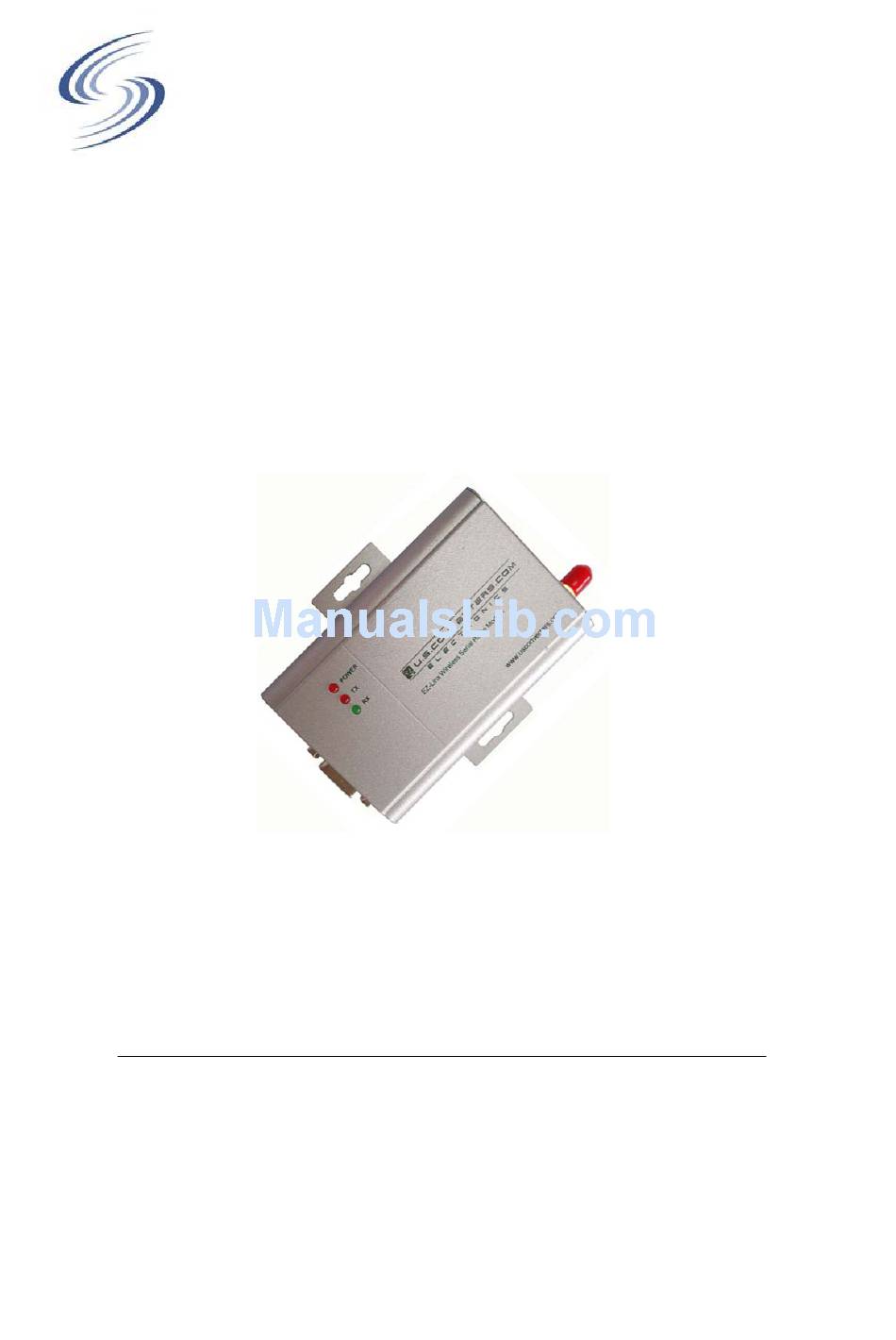

EZ50 Wireless Serial Radio Modem
SHENZHEN JIZHUO TECHNOLOGY CO., LTD
TEL:+86-755-83304518-805
FAX: +86-755-83302824
Email:sale@jizhuo.com
MSN:shenzhen_jizhuo@hotmail.com
Address: NO.813,212BLD,Tairan Tech Park, Futian District Shenzhen China
Post Code：518040
User's Manual
DVER 2.0
Website：http://www. jizhuo.com
Mobile:86+13692285161
Advertisement
Summary of Contents for Jizhuo Technology EZ50
- Page 1 Jizhuo Technology SHENZHEN JIZHUO TECHNOLOGY CO., LTD EZ50 Wireless Serial Radio Modem User’s Manual DVER 2.0 SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL:+86-755-83304518-805 Mobile:86+13692285161 FAX: +86-755-83302824 Website：http://www. jizhuo.com Email:sale@jizhuo.com MSN:shenzhen_jizhuo@hotmail.com Address: NO.813,212BLD,Tairan Tech Park, Futian District Shenzhen China Post Code：518040...
- Page 2 JiZhuo Technology EZ50 Wireless Serial Radio Modem EZ50 Wireless Serial Radio Modem EZ50 data transmission module is highly integrated micro-power half-duplex wireless data transmission module, which use "TI" high-performance chips high-speed microcontroller. Module provides eight channels, equipped with professional set-up software for the user to...
- Page 3 EZ50 using the serial port setting parameters easy and quick, easy set refers to the chip embedded in the user program and operating software in the background.
-
Page 4: Module Pin Definition
TTL, RS232, RS485 three kinds of interfaces. Choice for users. In the work on, EZ50 There are two ways of working, first for the conventional model, which module is powered On, is in receive mode; you also can be sending data. The second is sleep mode, that is, through the power module in a dormant state, it must be user-controlled mode wake-up pin block, the module can send and receive data. - Page 5 JiZhuo Technology EZ50 Wireless Serial Radio Modem Appearance : Installation Dimensions SHENZHEN JIZHUO TECHNOLOGY CO., LTD TEL：0755-83304518 83308451 Tech:0755-61319411 61319410 WEB: http://www.jizhuo.com - 4-...
- Page 6 EZ50 Wireless Serial Radio Modem Module with user equipment connection Note: EZ50 did not have sleep in the state, the module of the SLE feet must be vacant. In the sleep state when the module must be low, the module can send and receive data.
- Page 7 JiZhuo Technology EZ50 Wireless Serial Radio Modem Note: As EZ50 mode TTL interface module, so the PC must be added to connect the TTL to RS232 converter, and converter must supply DC 5V of electricity. software testing and parameters A、EZ50 module connected to the PC and plug in the power, select the serial port used.
-
Page 8: Sleeping Mode
10uA. EZ50 hibernation wake-up mode for the hardware. Wake is the fifth through the interface hardware input pin high to sleep, wake-up input low. If the user has a sleep function EZ50, but do not want to use the hibernate feature, available through J2 pin 9 to ground,then achieve. - Page 9 JiZhuo Technology EZ50 Wireless Serial Radio Modem Transform on transceiver and receiver User devices receiving the data sent by the module, and then transferred to the data center must have sent more than 1ms delay. From Module A(transmit) to Module B(receive)
- Page 10 JiZhuo Technology EZ50 Wireless Serial Radio Modem EZ50 default parameter Channel: First channel; Serial port speed: 9600BPS Serial port verification: Null Airborne speed: 9600BPS Technical specification of EZ50 Technical specification GFSK Modulation： 912.2000MHz -916.6940MHz Frequency： 10mW(10dBm) Transmit Power： -121dBm Receiver sensitivity：...
-
Page 11: Optional Antenna
JiZhuo Technology EZ50 Wireless Serial Radio Modem Optional Antenna: Trouble and solve ways: Trouble and solve ways: Troubles Cause and Remedy Communication at both ends of the air rate, parity inconsistency Between Frequency inconsistency devices not Without power communicate Module has destroyed... - Page 12 JiZhuo Technology EZ50 Wireless Serial Radio Modem RF Exposure Information and Statement This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
