ChefMaster HEB643 Instruction Manual

1800watt microwave
Hide thumbs

Advertisement

Quick Links

Download this manual
Chefmaster 1800watt Microwave

Instruction Manual

Models
HEB643 –1800watt Microwave oven

Advertisement

loading
Need help?

Need help?

Do you have a question about the HEB643 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ChefMaster HEB643

Summary of Contents for ChefMaster HEB643

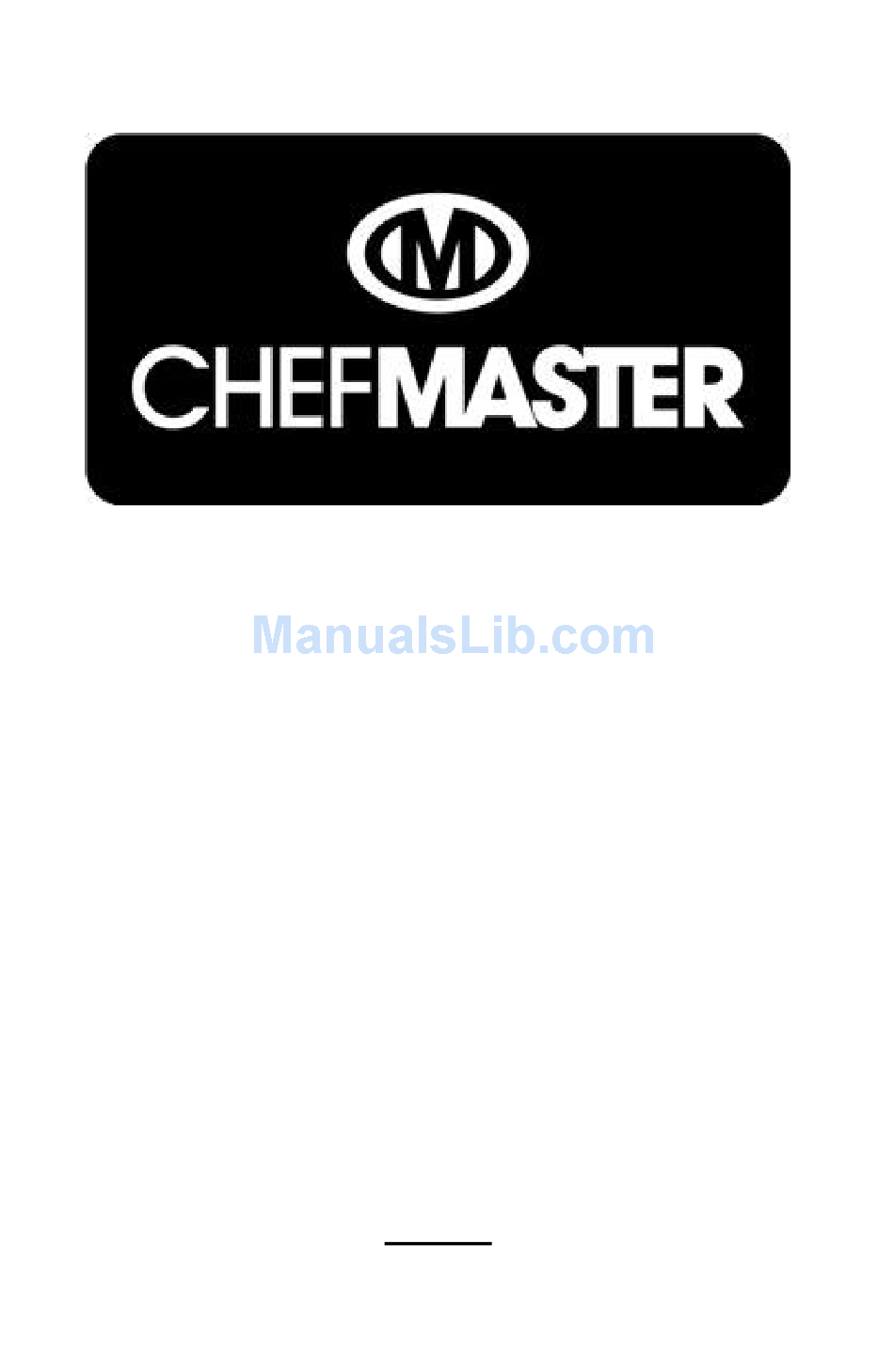

  • Page 1: Instruction Manual

    Chefmaster 1800watt Microwave Instruction Manual Models HEB643 –1800watt Microwave oven...
  • Page 2 Thank you for purchasing your Chefmaster Microwave. To make full use of the product please read this manual carefully before using the product and keep it safe for future reference. Safety Tips  If you find any damage when the product is unpacked, contact your Chefmaster supplier within 24 hours of receipt of goods.
  • Page 3 Chefmaster Microwave  Position on a flat, stable surface  Clean with warm water and a soft cloth  Plug your Chefmaster Microwave into the mains  The microwave will now be ready to turn on Cookware  Heat resistant glass – Yes ...
  • Page 4 Oven Parts and Controls Names of Oven Parts and Accessories Remove the oven and all materials from the carton and oven cavity. Your oven comes with the following accessories: (A) Control panel (B) Observation window (C) Door assembly (D) Safety interlock system (E) Ceramic board...
  • Page 5 Control Panel and Features (1) Power Buttons (2) Time cook Button (3) X2 Button (4) Stop/Cancel Button (5) Start Button (6) Number Button...
  • Page 6 Countertop Installation Remove all packing material and accessories. Examine the oven for any damage such as dents or broken door. Do not install if oven is damaged. Cabinet: Remove any protective film found on the microwave oven cabinet surface. Installation ...
  • Page 7  Blocking the intake and/or outlet openings can damage the oven.  Place the oven as far away from radios and TV as possible. Operation of microwave oven may cause interference to your radio or TV reception.  Plug your oven into a standard household outlet. Be sure the voltage and the frequency is the same as the voltage and the frequency on the rating label.

  • Page 8: Operation Instruction

    Operation Instruction Five power levels are available Level High M. High Defrost Hold Med. Power 100% PL10 Display User Options Items bolded below are the default values Option Discription Setting OP:10 3 seconds beep OP:11 Continuous beep EOC Tone OP:12 5 quick beeps,Repeating OP:20 Beeper Off...
  • Page 9 Default Cook Times The oven is delivered with the following Preset Cook Times unless otherwise noted in the product specification Button Cook Factors Display (Time) Power 0:10 100% 0:20 100% 0:30 100% 0:45 100% 1:00 100% 1:30 100% 2:00 100% 2:30 100% 3:00...
  • Page 10 3. Ready Mode  Opening and closing the door while the oven is in Idle Mode will put the oven into Ready Mode.  During Ready Mode, "READY" displays.  From the Ready Mode, the oven can go to almost all of the other modes.
  • Page 11 " button is pressed, the oven shall Additionally, if the " immediately enter Ready Mode. OR if press " " button, the oven will go into working mode. 6. Manual Cook Entry Mode  While the oven is in the Ready Mode, pressing the “...
  • Page 12 8. End of Cook Cycle Mode  After the time has expired in a Manual Cook Mode, or a Preset Program Cook Mode, the oven shall go into The End of Cook Cycle Mode.  During this mode, "DONE" displays. ...
  • Page 13 10. On the Fly Cooking  While the oven is cooking or under Pause Mode, if User Option OP:51 is selected, press number buttons, the preset cooking program will start automatically.  THE SCREEN displays the remaining cooking time.  When cooking program finish, the oven will enter End of Cook Cycle Mode.
  • Page 14  To change the cooking factors: If press "X2", the screen will display "CF:XX". The default factor is 80%. "CF:80" displays. If you need to change the cooking factor, just press one of the number buttons to set.  After setting the time and power, press " ", the cooking program will be saved.
  • Page 15 Step 2: Press number button "3", the program will be saved in "3" & the screen displays “P:03”. After two seconds, the screen will display the related time “:30”. Step 3: Press number buttons "1", "2" and "5" to input the cooking time.
  • Page 16  Press "X2", "DOUBLE" displays. When press number buttons, the screen will display the quantity preset time. For example, press number button "5" and its preset time is 1 minute. Then press "X2", then time will change to 1:00*(1+0.8)=1:48 (1 minute and 48 seconds).
  • Page 17 Example: In programming mode, press number button “3” to set two stages cooking. The first stage is PL7 and time is 1 minute 25 seconds, and the second stage is PL5 and 5 minutes and 40 seconds. The steps are: (a) Open the door, press number button "1"...
  • Page 18 14. User Option Mode This allows user to choose between various ways to operate the oven.  Open the oven door and press "2" for 5 seconds. The buzzers sound once and enter this mode.  The screen displays "OP: - -". ...
  • Page 19 15. Service Mode  Open the oven door and press "3" for 5 seconds to enter service mode.  THE SCREEN displays "SERVICE".  To check how many times of closing / opening of the oven door, press number button "3” and the screen will display.
  • Page 20  Once the unit has cooled completely, wipe with a damp & soapy cloth.  DO NOT submerge the Microwave in water or use water sprays to clean it  Always clean your Chefmaster Microwave daily  Use a vacuum cleaner to clean the air intake & exhaust vents...
  • Page 21 How to remove and install the filter Turn the metal nail left to loosen them Take off the fil er . To restall,align the base plate mounting holes, clockwise the metal nails to tighten .
  • Page 22 How to remove and install the blockage Warning:Before remove and install the oil blockage, be sure to unplug the appliance from the power supply,and avoid high temperature scald. thumb pressed here 1 hands with oil blockage ,pressed on 1.Hands to take the oil blockage ,after alignment arrow shown,pushed back slamly, then...

  • Page 23: Troubleshooting

    Power: 1800watt Weight : 32.3Kg Dimensions : 574x528x368mm  Chefmaster Microwave are supplied with a 3 pin plug and lead with a 13 amp fuse  Appliance must be earthed  If in doubt contact a qualified electrician or your...
  • Page 24 Chefmaster distributor or local authority responsible for waste disposal. Compliance All Chefmaster parts and products have under gone a stringent testing process to ensure that comply with all European standards and specifications. All Chefmaster products carry the CE approval symbol.
