Model SRV947IFS 24 X 48 Remote Display Platform Scale
Operating and Service Manual
Part No.: MAN947IFS_160129
S
Operating and Service
SInstruments, Inc.
Tel: 716-693-5977
email:
by SR Instruments, Inc.
SRV947IFS
REMOTE DISPLAY
PLATFORM SCALE
Manual
,
600 Young Street, Tonawanda, NY 14150
Fax: 716-693-5854 URL:
sri@srinstruments.com
www.srscales.com
Copyright 2016 SInstruments, Inc.
Page 1 of 12
Advertisement
Table of Contents
Summary of Contents for SR Scales SRV947IFS

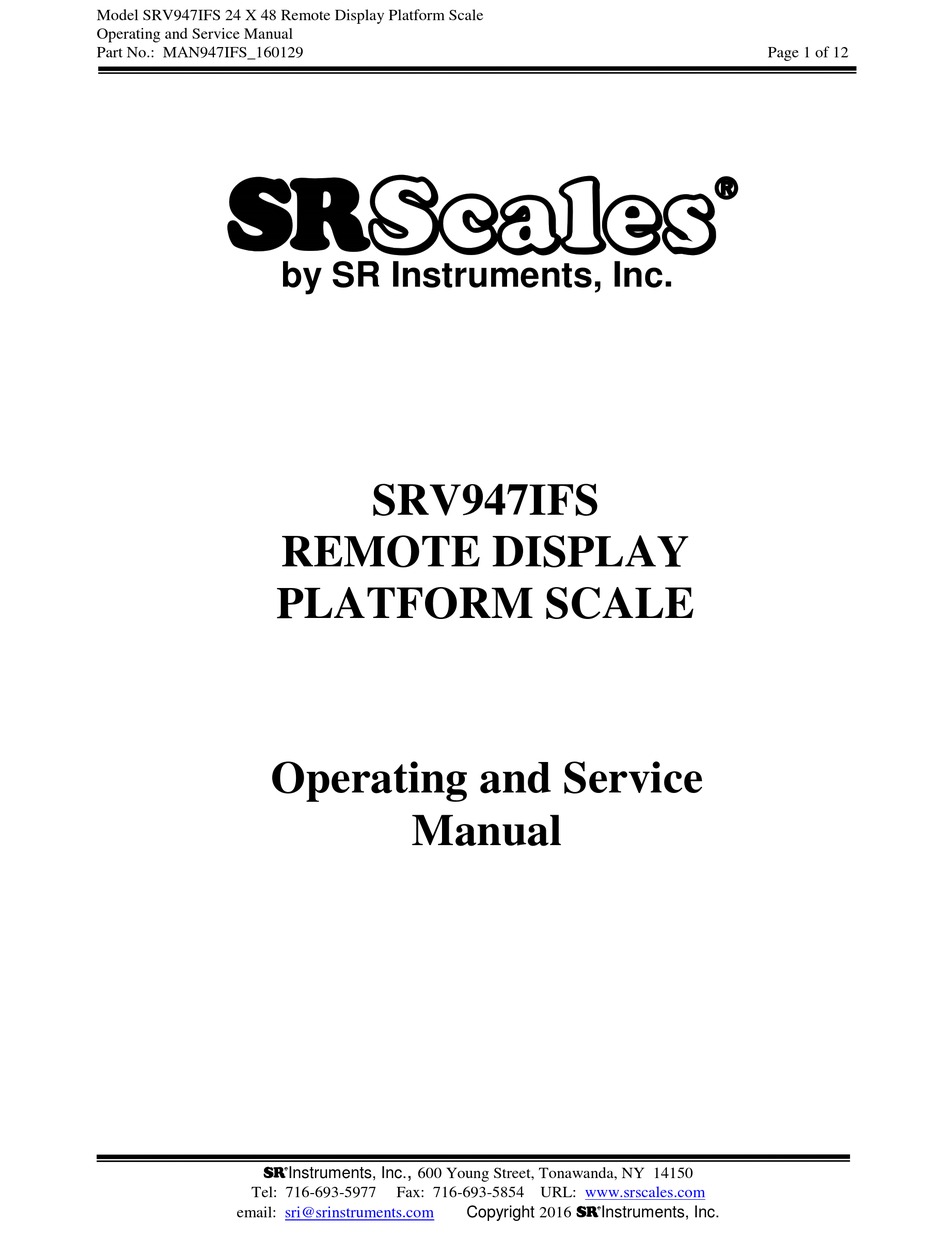

- Page 1 Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 1 of 12 by SR Instruments, Inc. SRV947IFS REMOTE DISPLAY PLATFORM SCALE Operating and Service Manual SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150...
-
Page 2: Table Of Contents
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 2 of 12 TABLE OF CONTENTS TABLE OF FIGURES ........................2 PACKING CHECKLIST – MODEL SRV947IFS ................3 ASSEMBLY............................4 REPLACEMENT PARTS AND ACCESSORIES ................5 SYSTEM DESCRIPTION AND INTENDED USE ...............5 MAINTENANCE AND CLEANING ....................6... -
Page 3: Packing Checklist - Model Srv947Ifs
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 3 of 12 PACKING CHECKLIST – Model SRV947IFS Portable Platform Scale DESCRIPTION QUANTITY PLATFORM PIT FRAME ASSEMBLY 1 ea FRONT PANEL/WALL BOX ASSEMBLY... -
Page 4: Assembly
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 4 of 12 ASSEMBLY STEP 1: Unpack the scale system and check parts against the PACKING CHECKLIST. If there are any missing or damaged parts, please call the Service Hotline at: 1-800-654-6360. -
Page 5: Replacement Parts And Accessories
SYSTEM DESCRIPTION AND INTENDED USE SYSTEM DESCRIPTION The SRV947IFS Portable Platform Scale is a low profile design which allows the animal easy access. The SRV947IFS Scale employs the latest in microprocessor and load cell technology to provide accurate and repeatable weight data. -
Page 6: Maintenance And Cleaning
122F (-10C to +50C). TRANSPORTATION The SRV947IFS Portable Platform Scale has four (4) recessed handles on the underside of the scale for easy portability and a pull tab on the platform surface for ease of removal from the pit frame. -
Page 7: Specifications
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 7 of 12 SPECIFICATIONS MAXIMUM WEIGHT CAPACITY 400 lb / 182 kg 24 in x 48 in x 2 in PLATFORM SIZE (61 cm x 122 cm x 5 cm) 1”... -
Page 8: Button Functions
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 8 of 12 BUTTON FUNCTIONS Figure 3: Button Display The “ZERO/WEIGH” button is used to clear the Recall memory and start a new ZERO weighing cycle. -
Page 9: Basic System Operation
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 9 of 12 BASIC SYSTEM OPERATION TURNING SYSTEM ON Make sure the scale is free and clear of any obstructions and all six feet are touching a level surface. -
Page 10: Calibration
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 10 of 12 CALIBRATION NOTE: Ensure that nothing is in contact with the scale system during this procedure. Remove hands from the system when noting the displayed calibration results. -
Page 11: Warranty
Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 11 of 12 WARRANTY TWO (2) YEAR LIMITED WARRANTY Each S system is manufactured with high quality components. SR Instruments, Inc. warrants that all new equipment will be free from defects in material or workmanship, under normal use and service, for a period of two (2) years from the date of purchase by the original purchaser. - Page 12 Model SRV947IFS 24 X 48 Remote Display Platform Scale Operating and Service Manual Part No.: MAN947IFS_160129 Page 12 of 12 By SInstruments, Inc. Precision & Technology in Perfect Balance ® SInstruments, Inc. 600 Young Street, Tonawanda, NY 14150 Tel: 716-693-5977 Fax: 716-693-5854 URL: www.srscales.com...
