Summary of Contents for Manhattan 176873

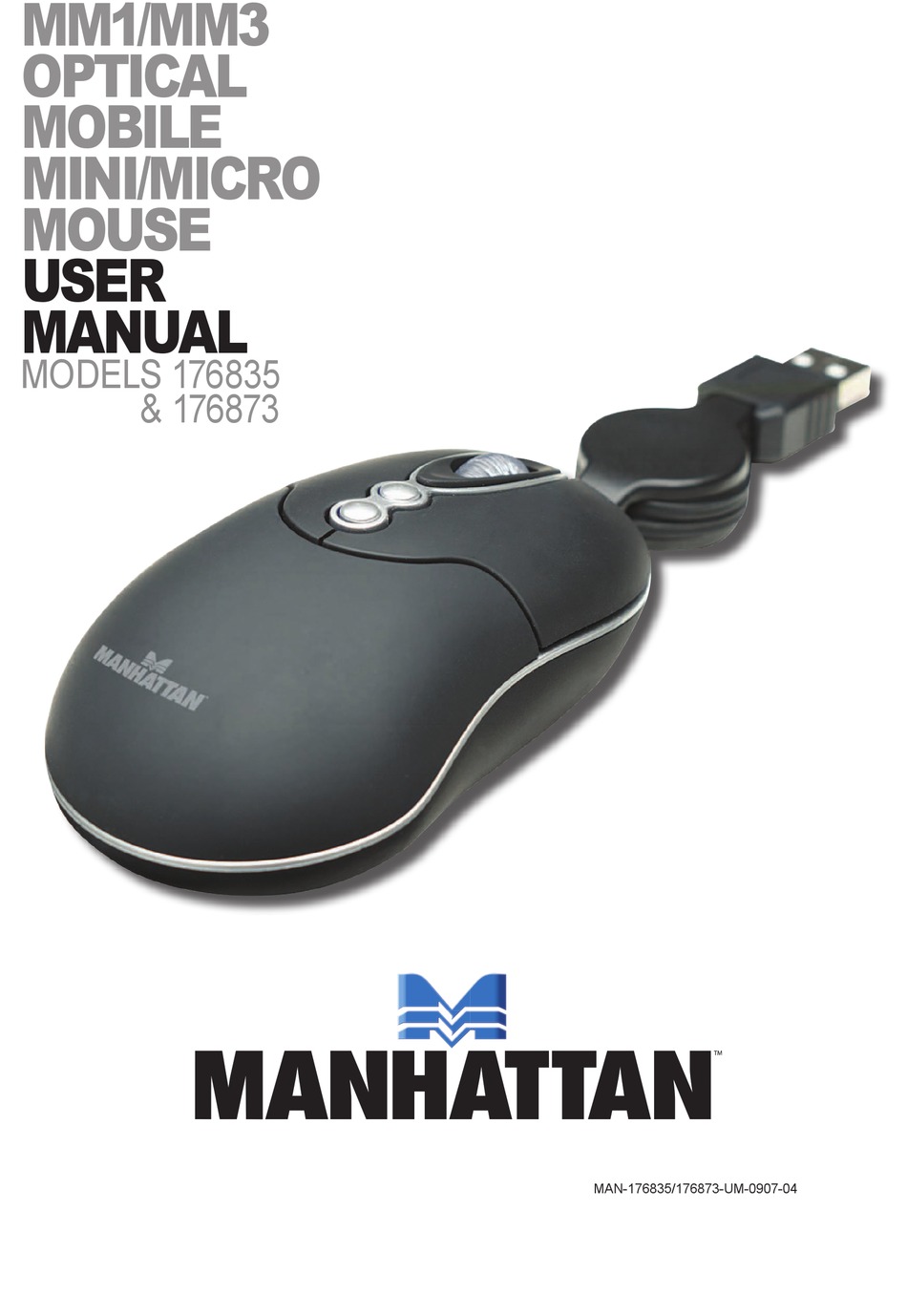

- Page 1 MM1/MM3 Optical MObile Mini/MicrO MOuse user Manual Models 176835 & 176873 MAN-176835/176873-UM-0907-04...

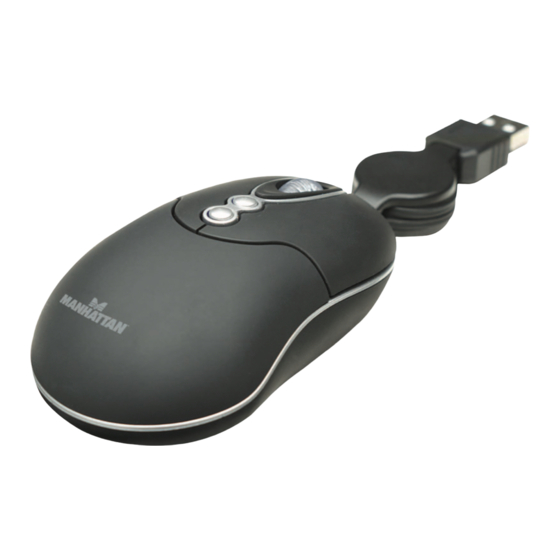

- Page 2 Thank you for purchasing the MANHATTAN MM1 optical Mobile Mini Mouse, ® Model 176835 or MM3 optical Mobile Micro Mouse, Model 176873. With a sleek, modern, all-black design that complements most notebook computers, flat-screen displays and other peripherals, these reliable mice also feature an ambidextrous shape and five-button configuration with scroll wheel that provide direct access to essential commands with minimal wrist movement.
-
Page 3: Quick Installation
quick installatiOn Simply plug the mouse into an available USB port. The computer operating system will automatically detect the new device and install the proper driver(s). NOTE: To install the software to configure the customizable Page Forward and Page Back buttons, refer to the Software Installation section. Retractable reel maintains desired length, reduces... -
Page 4: Software Installation
sOftware installatiOn If no drivers are installed on the computer, this device will come up as an HID- compliant mouse and will function as a normal scroll mouse. To install the driver and configure the customizable mouse buttons, insert the enclosed driver CD in the CD-ROM drive of the computer, then proceed with the rest of the installation procedure below. - Page 5 4. With the Select Device Type screen displayed, select “5 Button Mouse, then click “Next.” 5. When the select destination directory displays, the default install path is recommended. Click “Next.”...
- Page 6 6. When the Select Program Folder screen displays, it’s recommended that the defaults be used. Click “Next.” 7. When the Start Copying Files screen displays, click “Back” to review or change any settings; otherwise, if the settings are okay, click “Next”...
- Page 7 8. When the Setup Completed screen displays, select “Yes, I want to restart my computer now.” NOTE: Make sure that all applications are closed. Click “Finish.”...
- Page 8 9. After the restart, the driver appears in the program files. Launch the application. 10. Launching Browser Mouse 1.1initially displays the Wheel screen. • Wheel Mode allows a system default for wheel behavior (if the wheel is clicked). • Wheel Speed controls how many lines a single turn of the wheel the mouse will scroll.
- Page 9 11. The Button screen displays for selecting the settings of the right mouse button and the two top buttons. • “3” is the right mouse button. • “4” is the Page Forward button. • “5” is the Page Back button. Click “OK”...
-
Page 10: Operating Suggestions
Operating suggestiOns • Avoid using in extreme heat or humidity, or near dust or dirt. • The mouse will not work freely on a smooth desk, glass or any reflective surface or 3d mouse pad. • If the computer doesn’t detect the mouse, check the USB connection and the USB compatibility of your operating system (Windows 2000/XP/Vista/7 or Mac OS 10.2 and higher). -
Page 11: Specifications
- Model 176835: 9.8 x 5.6 x 3.6 cm (3.8 x 2.2 x 1.4 in.); 68 g (2.4 oz.) - Model 176873: 8.3 x 4.8 x 2.9 cm (3.2 x 1.9 x 1.1 in.); 51 g (1.8 oz.) • USB retractable cable, 70 cm (28 in.) Environmental •... -
Page 12: Waste Electrical And Electronic Equipment
WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste. - Page 13 ITALIANO Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEEI), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.
-
Page 14: Warranty Information
ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. eN MéXICO: Poliza de Garantia MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •... - Page 15 FEDERAL COMMUNICATIONS COMMISSION REGULATORY STATEMENT FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 16 Wszystkie nazwy handlowe i towarów są nazwami i znakami towarowymi zastrzeżonymi odpowiednich firm odnośnych właścicieli. MANHATTAN® offre una linea completa di componenti per PC, periferiche, cavi e accessori. Chiedi maggiori informazioni al tuo rivenditore di computer o visita il sito www.manhattan-products.com.
