Alto mobile DRIVE 20 User Manual

2-way digital crossover/speaker management system
Hide thumbs
Table of Contents

Advertisement

Quick Links

TM
LTO
LTO
DRIVE 20
User's Manual
Version 1.3
---English---

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DRIVE 20 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alto mobile DRIVE 20

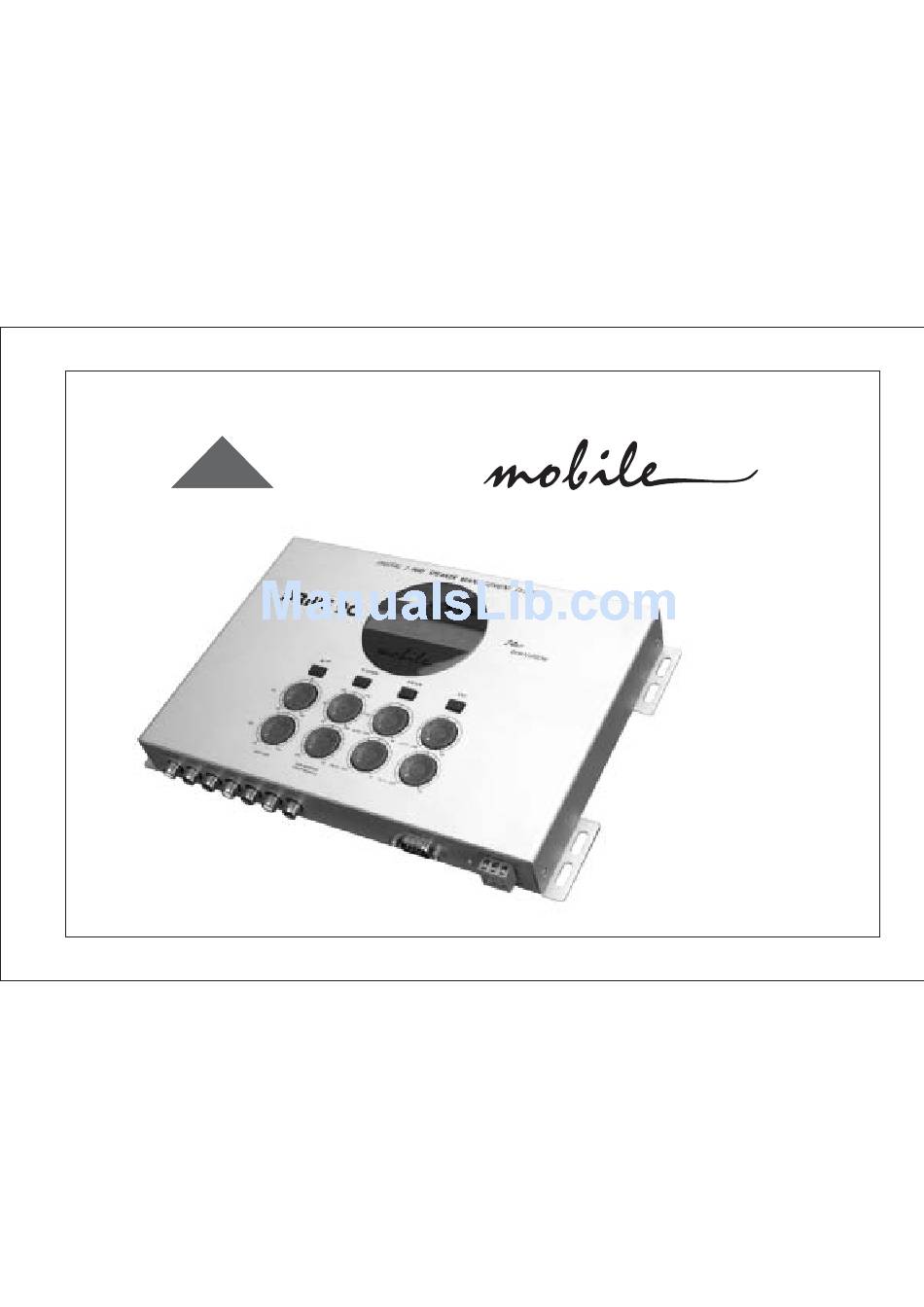

  • Page 1 DRIVE 20 User's Manual Version 1.3 ---English---...

  • Page 2: Safety Instructions

    All safety and operating instructions should be read before the equipment is installed and operated. We recommend that installation be carried out by an authorised mobile electronics installation company. Please contact your local ALTO Mobile distributor for a list of authorised installers in your country.
  • Page 3 Preface Dear Customer, Thank you for choosing the ALTO Mobile DRIVE20 2-way digital crossover/speaker management system. We hope you'll love the results you get from your new digital sound processor and enjoy using it as much as we enjoyed developing it.
  • Page 4 Preface Digital / Analog Interface Amplitude Response: 20 Hz - 20KHz 0.2 / 1.5 dB Signal to Noise Ratio 90 dB THD N 0.005 % @ 1KHz 3 dB Conversion input 20 bits Sigma - Delta Conversion output 24 bits Sigma - Delta Remote Control -RS 232 for PC Connection (user interface on PC screen with MS 9X-OS) Power Supply...
  • Page 5 We're convinced you are an important member of our team and we listen to what you say and take on board your suggestions. It's this feedback that helps us create the products you want. Thank you. ALTO MOBILE TEAM Block Diagram: DRIVE20...
  • Page 6 If you have not had the product installed in your vehicle yet, that's obviously the first thing you'll need to do. We strongly recommend that you have the unit professionally installed by a specialist company authorised by the ALTO Mobile distributor in your country. The installation instructions in this manual are for guidance only and are not intended to be a thorough explanation of all the steps involved in correctly fitting this unit.

  • Page 7: User Interface

    User Interface Input Gain Controls: Use these controls to match the pre-amp output level from your car audio source unit. DRIVE20 MAX Input level: 8 VRMS (18 dBV) Subwoofer Gain/Frequency: These two controls adjust the level of the signal sent to the separate SUBWOOFER OUTPUT terminal, and also adjust the Low-Pass filter point.
  • Page 8 User Interface Output Gain Controls: Each frequency band has a pair of Output Gain controls. Use these controls to match the optimum pre-amp input level of your amplifier. DRIVE20 MAX Output level (DSP@ 0 dB): 3 VRMS (9.6 dBV) Generally speaking you should set DRIVE20's output level controls at about 8/10 and your amplifier's gain control at its lowest possible sensitivity setting, taking care not to run the sound into distortion.
  • Page 9 This manual only covers setup and adjustment using the panel buttons. Setup Introduction Of all the ALTO Mobile sound processors, DRIVE20 (and sister model DRIVE30) is potentially the one most likely to cause damage to your speakers if it is not setup correctly. You must take great care when setting the crossover points for the mid and high bands.
  • Page 10 Parameter Menus & Setup will be in the LOCK State. New Password is the function used to change the default value of Real Password in order to create a custom password. The initial default value is 000000. The selection of the New Password follows a similar procedure as with the...
  • Page 11 Parameter Menus & Setup Preset Load 65 presets are available, one factory preset and 64 user-definable presets. Preset 0 is the default factory preset used as a start point when configuring the system. Attempting to load an empty user preset will produce a warning message on the display.
  • Page 12 Parameter Menus & Setup Input L/R Setup 12dB step 0.5dB Gain Equalizer 15dB step 0.5dB PEQ 1 Gain Setup Frequency 20Hz-20KHz step 1/2oct 0.05-3oct step 0.05oct Band Width 15dB step 0.5dB PEQ 2 Gain Frequency 20Hz-20KHz step 1/2oct 0.05-3oct step 0.05oct Band Width...
  • Page 13 Parameter Menus & Setup Equalizer Setup 15dB step 0.5dB PEQ 3 Gain Frequency 20Hz-20KHz step 1/2oct 0.05-3oct step 0.05oct Band Width 15dB step 0.5dB PEQ 4 Gain Frequency 20Hz-20KHz step 1/2oct 0.05-3oct step 0.05oct Band Width 15dB step 0.5dB PEQ 5 Gain Frequency 20Hz-20KHz step 1/2oct...
  • Page 14 Parameter Menus & Setup Delay Delay Adj 0 - 99 ms step 1 ms Delay Fine 0 - 978 us step 21us Routing Setup Allows setting of the crossover channel routing configuration. For each of the 4 Output Channels you can choose to send just the Left Input signal, the Right Input signal, a combination of both Left and Right Input signals (usually for feeding subwoofers) or no input (OFF).
  • Page 15 Parameter Menus & Setup Gain (cut/boost), Frequency (the centre frequency of the filter), and Band Width (the extent to which frequencies around the centre frequency will also be adjusted). Delay: This allows a delay to be set on each channel. May be useful in certain circumstances. Also, setting a delay on one side while leaving the other with no delay can produce a very interesting effect of added width and spatial depth.
  • Page 16 Parameter Menus & Setup Equalizer Setup 15dB step 0.5dB PEQ 3 Gain Frequency 20Hz-20KHz step 1/12oct 0.05-3oct step 0.05oct Band Width 15dB step 0.5dB PEQ 4 Gain Frequency 20Hz-20KHz step 1/12oct 0.05-3oct step 0.05oct Band Width 15dB step 0.5dB PEQ 5 Gain Frequency 20Hz-20KHz step 1/12oct...
  • Page 17 Parameter Menus & Setup Output Setup (1/2/3/4) Band Pass High Pass Frequency 20Hz-20KHz step 1/12oct Setup Bypass, 1 2 3 4 ord Order Frequency 20Hz-20KHz step 1/12oct Low Pass Bypass, 1 2 3 4 ord Order Polarity Direct/Invers Compressor 29dB/0dB step 1dB Threshold 0.4, 0.5, 0.7, 1.4 sec Release...
  • Page 18 Parameter Menus & Setup Delay Delay Adj 0 - 99 ms step 1 ms Delay Fine 0 - 978 us step 21us Output Channel Setup (OUTPUT 1~4) Although the Output channels are labelled in pairs as High and Low band, each channel is capable of being set to operate anywhere in the audible frequency spectrum.
  • Page 19 Parameter Menus & Setup Equalizer setup: From here you can select each of the 5 parametric filters. For each filter you can adjust Gain (cut/boost), Frequency (the centre frequency of the filter), and Band Width (the extent to which frequencies around the centre frequency will also be adjusted). Band Pass setup: Here is where you setup the crossover point and slope for each of the output channels.
  • Page 20 Parameter Menus & Setup apparent stage position, height, depth and the location and focus of the performers on the imaginary stage (usually across the dashboard). More information is available via our web site.

  • Page 21: Installation Instructions

    Installation Instructions Mounting the Unit DRIVE20 has two fixing 'ears' at each side, allowing it to be firmly screwed to a suitable surface. It may be mounted vertically or horizontally. Take care not to mount the unit where it may become wet or subject to damage from items placed in the trunk area.
  • Page 22 Installation Instructions At the far right of the side panel is a POWER INPUT terminal block with three screw terminals. The terminal marked 12V should be connected to a permanent 12 Volt supply from the vehicle battery. The terminal marked GND (Ground) should be connected to a cable which is terminated to the vehicle chassis.

  • Page 23: Rs232 Computer Interface

    RS232 Computer Interface A standard RS232 computer serial interface socket allows connection of DRIVE20 to a computer capable of running Windows compatible software. A dedicated software package is available to setup DRIVE20 more easily using a computer. DRIVE20 should be connected to a suitable computer using a ' null modem ' type serial interface cable (not supplied).

  • Page 24: Further Information

    Further Information Because of the nature of our digital sound processors and the variety of effects that can be achieved with them, there are operational details, tips and advice too numerous to include in an instruction manual such as this. For additional information, please visit our website at www.altomobile.com , which includes a technical discussion forum where users can exchange ideas.
  • Page 25 Data Input section for each channel: EQ Filters: Biquadratic Bell Filters type III additive Gain: 15dB step 0.5dB Frequency: 20Hz to 20KHz minimum step 1/12oct Bandwidth: 0.05oct to 3oct step 0.05oct Delay line: 0 - 99 ms step 1 ms ( fine step 21 us ) Output section for each channel: Delay line: 0 - 99 ms step 1 ms ( fine step 21 us )

  • Page 26: Warranty

    Your ALTO Warranty To be protected by this warranty, the buyer must be able to produce a numbered, machine printed sales receipt (original only accepted, not a copy) from his supplying dealer that clearly shows the dealer's name and address, the buyer's name and address, purchase date, model name/number and serial number of the product.
  • Page 27 SEKAKU ELECTRON INDUSTRY CO., LTD NO.1, LANE 17, SEC. 2 HAN SHI WEST ROAD TAICHUNG 401, TAIWAN P.O. BOX: 1982 TAICHUNG, TAIWAN, R.O.C TEL: 886-4-2231 3737 FAX: 886-4-2234 6757 E-Mail: info@altomobile.com Web: http://www.altomobile.com...
