GXCAM HiChrome-S HDMI Camera
User Guide
Chapter 1: Introduction
Advanced Design
We have released our new generation of scientific color cameras, the GXCAM HiChrome-S. With amazing
color reproduction, the GXCAM HiChrome-S provides a perfect solution for high definition scientific
photography. To meet your individual requirements, the flexible parameter settings allow you to get
superb quality live images simply and freeze the screen when required to observe the details.
To realise the camera's maximum potential, please read this document completely.
Chapter 2: System Standard Items
Included in the kit should be:
One GXCAM HiChrome-S camera
One 12V2A power adapter
One HDMI cable (2-meters length)
One SD card ( 8G capacity, class 10)
One mouse (with 1.5-meters cable)
One USB2.0 cable (gold plated connector)

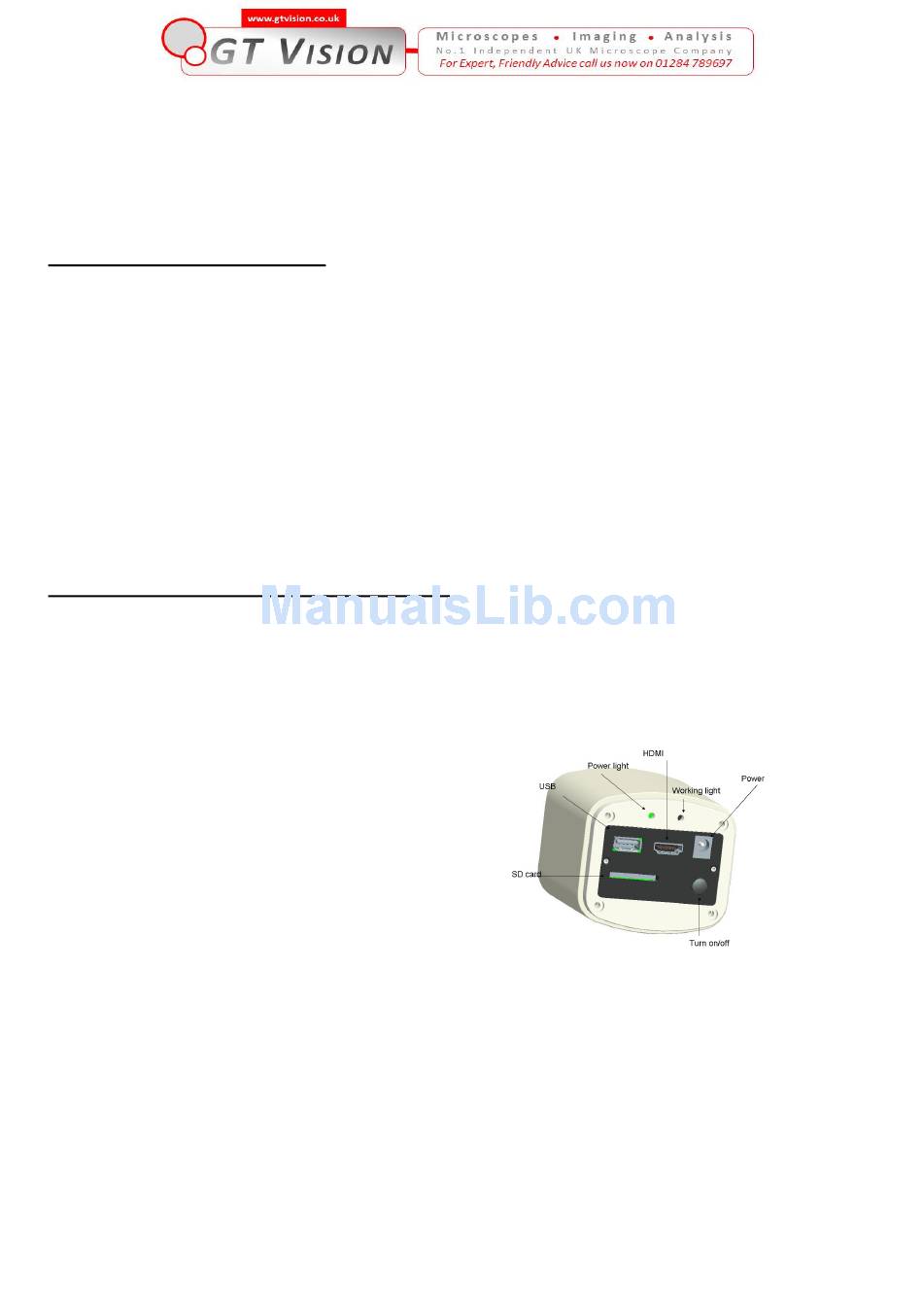

1. USB interface：
A: Connect a mouse to the USB port. Use the mouse to control the camera directly.
B: Connect the USB port to PC to make the camera work as a
Driver-Free
camera. Use GXCAPTURE 8
software to control it.
Note: No driver installation is needed when connecting the GXCAM HiChrome-S to a PC via USB port.
1
Advertisement
Table of Contents
Summary of Contents for GT-Vision GXCAM HiChrome-S
-
Page 1: User Guide
B: Connect the USB port to PC to make the camera work as a Driver-Free camera. Use GXCAPTURE 8 software to control it. Note: No driver installation is needed when connecting the GXCAM HiChrome-S to a PC via USB port. - Page 2 2. HDMI interface： Use the HDMI cable to connect the GXCAM HiChrome-S to the monitor. Image data is transferred and displayed on the monitor according to the HDMI protocol. 3. Power interface： Please use the provided 12V2A power supply. When the power is plugged in, the red light should glow.
- Page 3 2. Connect the mouse to the USB port. Move the cursor to get the settings on the screen. 3. Insert the SD card. Capture images or videos to the SD card. Step 2. Move the cursor to the left of the screen. When you move the cursor to the left of the screen, the ‘Capture’...
- Page 4 Step 4. Check the photo album and videos 1. Check the album and delete the pictures. Picture 1 Picture 1 Picture 2 Picture 2 2. Check the video and delete the video. To delete the video successfully, be sure this video is not in use. Picture 1 Picture 1 Picture 2...
- Page 5 Chapter 4 Connecting the GXCAM HiChrome-S to a PC （1） Use the USB cable to connect the GXCAM HiChrome-S to the PC. （2） Plug in the 12V2A power supply. Press and hold the ON/OFF key until blue light is on to turn on the camera.
- Page 6 Normal mode, the image quality is better than High mode. To get faster frame rate, please select High mode. （3） Functions ‘Fluorescence’, ‘Temperature Control’ and ‘Fluorescence Color’ are not available for GXCAM HiChrome-S. These functions are greyed out when GXCAM HiChrome-S camera is attached. Fig.4-2. Function shortcuts on the right side of GXCAPTURE 8...
- Page 7 Fig.4-3. Captured image thumbnails （1） Users can double click on one image thumbnail to display it. Click on the arrow button to get more captured image thumbnails. （1） Further more, you also can select one or more images and delete them. Fig.4-4.
