Summary of Contents for Miweba Home Track HT2500

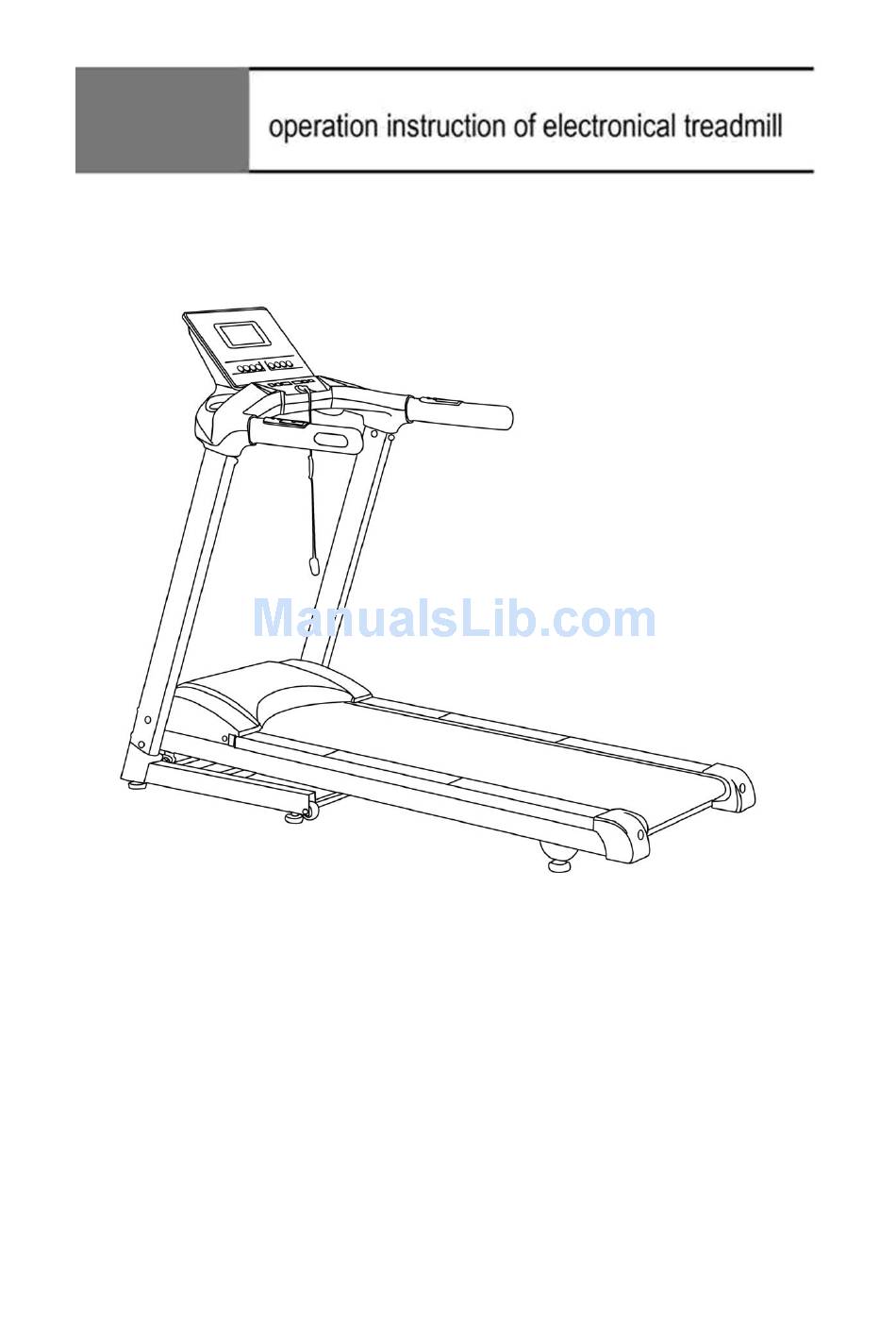

- Page 1 M300 Thank you for choosing our electrical treadmill! This manual includes how to operate treadmill and safety precautions. Please read this manual carefully before using the machine! Incorrect using may get damage to your health.
-
Page 2: Table Of Contents
Contents Important safety precautions……………………………………………………………………………………………2 Main technical parameter……………………………… ………………………………………………………………3 Diagram …………………………………………………………………………………………………………………..4 Assembly instruction…………………………………………………………………………………………………….4 Description of display……………………………………………………………………………………………………6 Adjustment……………………………………………………………………… ……………………………………….8 Operation guidance……………………………………………………………………………………………………...8 Daily maintenance……………………………………………………… …………… ……………………………… 10 Common failure and maintenance ……………………………………………………………………… …… …….12 Foldable operation……………………………………………………………………………………………………. .13 Chart of safety area…………………………………………………………………………………………………….14 - 1 -... -
Page 3: Important Safety Precautions
Important safety precautions Warning: in order to avoid any injury before using this electrical treadmill please read all instructions and warnings carefully! We won’t take the responsibility if the user operates the machine Incorrect. Please consult your doctor first before exercising especially for the people whose age is above 35. Everyone who uses this machine has the responsibility to read all warnings and precautions. -
Page 4: Main Technical Parameter
Main technical parameter Input voltage: AC220V±15% (50Hz or 60Hz) Continuous power: 3.0HP Peak power: 4.5HP Working temperature: 5℃-40℃ Speed range: 0.3-16km/h Incline range: 0-20% Time display range: 00:00-99:59 Distance range: 0.000-9.999km Calorie display range: 000-999K cal Pulse display range: 50-230 per/min Running area: 1270mmx420mm packing size:... -
Page 5: Diagram
Diagram - 4 -... - Page 6 1、Install the side screw on the bottom of the pole. 2、 Connect the monitor control lines with the pole control cable. 3、Put the monitor in place. 4、Tighten the monitor with the pole by screw, the installation is complete！ NOTE: Install all the screws in place and tighten them one by one! - 5 -...
-
Page 7: Description Of Display
Description of display 1、LCD Display 2、Key board 1* 3、Cup holder 4、Stop button ease 5、Safety key 6、Set button 7、Key board 2* 8、USB audio interface 9、Speaker 10. Audio input - 6 -... - Page 8 Notice: About Keypad1& Keypad2, please check the key functions excel. Key functions excel Key icon Key functions description Program key：In the stopped state while the safety switch is not be pressed, press the program key, the heat display window will show P01---P30. Set key：In the stopped state while the safety switch is not be pressed, press the Set key, six windows will twinkle individually and change, press fast &...
-
Page 9: Adjustment
Start key：Press this button to start the treadmill. Stop key：Press this button to stop the treadmill. Incline up button：can increase the incline. Incline down button：can decrease the incline. Speed reduce button：can reduce the speed. Speed increase button：can increase the speed. USB interface: You can insert the U disk with music files into this interface to play music, support MP1 Layer3, MP2 Layer3, MP3 Layer3 version of songs. -
Page 10: Operation Guidance
+/Next" key, also you could adjust the volume through press the "Sound-/Last" key and "Sound +/Next" key for a long time. Operation guidance Switch on the power Insert three-core plug into socket (note: it must have a credible earthing); and put the safety key into the monitor ,then switch on the power, the monitor will emit a sound like beep, and all numbers in window will become to zero, then the treadmill will be in standby mode (hereinafter referred to as standby mode ). - Page 11 There are totaI 4 buttons which are located in choice speed area of monitor, the 4 buttons from 5.6.8 are easy speed choice buttons, start the machine and press any this button under easy choice of speed, the speed will be up automaticly to chosen speed. Automatic speed Treadmill in the standby state, according to the procedure set key, LCD display P01 ---- P30 heat automatically varied pace program table window.
-
Page 12: Daily Maintenance
Daily maintenance Running belt and running board Brief instruction Running belt is made by composite cotton-terylene fiber and special technology with a lower friction coefficient and higher tensile strength. The running board is with double shock-absorb system, the surface of running board is with high glaze and abrasion strength, it makes the sport more comfortable and smooth. -
Page 13: Common Failure And Maintenance
Loose belt adjustment After use for a period of time, the user could feel a pause during running; it is due to the loose belt. The method to solve this problem is to tighten adjustable bolt which is respective in the left and right end of treadmill till you have no pause feeling. -
Page 14: Foldable Operation
were damaged or the signal cable is not in good connection. Solution: change the monitor. The digital transistor can’t display or only display half-baked number, the digital transistor was damaged but treadmill can work normally. Solution: change the monitor. Press start key, the treadmill works at an initial speed, but stop after 5 seconds. Solution: change the monitor. - Page 15 - 14 -...
- Page 16 - 15 -...
