LOVATO ELECTRIC S.P.A.
24020 GORLE (BERGAMO) ITALIA
VIA DON E. MAZZA, 12
TEL. 035 4282111
TELEFAX (Nazionale): 035 4282200
TELEFAX (International): +39 035 4282400
L
E
E-mail info@
ovato
lectric.com
L
E
Web www.
ovato
lectric.com
WARNING!
– Carefully read the manual before the installation or use.
– This equipment is to be installed by qualified personnel, complying to current standards, to avoid
damages or safety hazards.
– Before any maintenance operation on the device, remove all the voltages from measuring and supply inputs and short-
circuit the CT input terminals.
– The manufacturer cannot be held responsible for electrical safety in case of improper use of the equipment.
– Products illustrated herein are subject to alteration and changes without prior notice. Technical data and descriptions
in the documentation are accurate, to the best of our knowledge, but no liabilities for errors, omissions or
contingencies arising there from are accepted.
– A circuit breaker must be included in the electrical installation of the building. It must be installed close by the
equipment and within easy reach of the operator. It must be marked as the disconnecting device of the equipment:
IEC /EN 61010-1 § 6.11.2.
– Clean the device with a soft dry cloth; do not use abrasives, liquid detergents or solvents.
ATTENTION !
– Lire attentivement le manuel avant toute utilisation et installation.
– Ces appareils doivent être installés par un personnel qualifié, conformément aux normes en vigueur en
matière d'installations, afin d'éviter de causer des dommages à des personnes ou choses.
– Avant toute intervention sur l'instrument, mettre les entrées de mesure et d'alimentation hors tension et court-circuiter
les transformateurs de courant.
– Le constructeur n'assume aucune responsabilité quant à la sécurité électrique en cas d'utilisation impropre du
dispositif.
– Les produits décrits dans ce document sont susceptibles d'évoluer ou de subir des modifications à n'importe quel
moment. Les descriptions et caractéristiques techniques du catalogue ne peuvent donc avoir aucune valeur
contractuelle.
– Un interrupteur ou disjoncteur doit être inclus dans l'installation électrique du bâtiment. Celui-ci doit se trouver tout
près de l'appareil et l'opérateur doit pouvoir y accéder facilement. Il doit être marqué comme le dispositif
d'interruption de l'appareil : IEC/ EN 61010-1 § 6.11.2.
– Nettoyer l'appareil avec un chiffon doux, ne pas utiliser de produits abrasifs, détergents liquides ou solvants.
ACHTUNG!
– Dieses Handbuch vor Gebrauch und Installation aufmerksam lesen.
– Zur Vermeidung von Personen- und Sachschäden dürfen diese Geräte nur von qualifiziertem
Fachpersonal und unter Befolgung der einschlägigen Vorschriften installiert werden.
– Vor jedem Eingriff am Instrument die Spannungszufuhr zu den Messeingängen trennen und die Stromwandler
kurzschlieβen.
– Bei zweckwidrigem Gebrauch der Vorrichtung übernimmt der Hersteller keine Haftung für die elektrische Sicherheit.
– Die in dieser Broschüre beschriebenen Produkte können jederzeit weiterentwickelt und geändert werden. Die im
Katalog enthaltenen Beschreibungen und Daten sind daher unverbindlich und ohne Gewähr.
– In die elektrische Anlage des Gebäudes ist ein Ausschalter oder Trennschalter einzubauen. Dieser muss sich in
unmittelbarer Nähe des Geräts befinden und vom Bediener leicht zugänglich sein. Er muss als Trennvorrichtung für das
Gerät gekennzeichnet sein: IEC/ EN 61010-1 § 6.11.2.
– Das Gerät mit einem weichen Tuch reinigen, keine Scheuermittel, Flüssigreiniger oder Lösungsmittel verwenden.
ADVERTENCIA
– Leer atentamente el manual antes de instalar y utilizar el regulador.
– Este dispositivo debe ser instalado por personal cualificado conforme a la normativa de instalación
vigente a fin de evitar daños personales o materiales.
– Antes de realizar cualquier operación en el dispositivo, desconectar la corriente de las entradas de alimentación y
medida, y cortocircuitar los transformadores de corriente.
– El fabricante no se responsabilizará de la seguridad eléctrica en caso de que el dispositivo no se utilice de forma
adecuada.
– Los productos descritos en este documento se pueden actualizar o modificar en cualquier momento. Por consiguiente,
las descripciones y los datos técnicos aquí contenidos no tienen valor contractual.
– La instalación eléctrica del edificio debe disponer de un interruptor o disyuntor. Éste debe encontrarse cerca del
dispositivo, en un lugar al que el usuario pueda acceder con facilidad. Además, debe llevar el mismo marcado que el
interruptor del dispositivo (IEC/ EN 61010-1 § 6.11.2).
– Limpiar el dispositivo con un trapo suave; no utilizar productos abrasivos, detergentes líquidos ni disolventes.
UPOZORNĚNÍ
– Návod se pozorně pročtěte, než začnete regulátor instalovat a používat.
– Tato zařízení smí instalovat kvalifikovaní pracovníci v souladu s platnými předpisy a normami pro předcházení
úrazů osob či poškození věcí.
– Před jakýmkoli zásahem do přístroje odpojte měřicí a napájecí vstupy od napětí a zkratujte transformátory proudu.
– Výrobce nenese odpovědnost za elektrickou bezpečnost v případě nevhodného používání regulátoru.
– Výrobky popsané v tomto dokumentu mohou kdykoli projít úpravami či dalším vývojem. Popisy a údaje uvedené v katalogu
nemají proto žádnou smluvní hodnotu.
– Spínač či odpojovač je nutno zabudovat do elektrického rozvodu v budově. Musejí být nainstalované v těsné blízkosti přístroje a
snadno dostupné pracovníku obsluhy. Je nutno ho označit jako vypínací zařízení přístroje: IEC/ EN 61010-1 § 6.11.2.
– Přístroj čistěte měkkou utěrkou, nepoužívejte abrazivní produkty, tekutá čistidla či rozpouštědla.
AVERTIZARE!
– Citiţi cu atenţie manualul înainte de instalare sau utilizare.
– Acest echipament va fi instalat de personal calificat, în conformitate cu standardele actuale, pentru a evita
deteriorări sau pericolele.
– Înainte de efectuarea oricărei operaţiuni de întreţinere asupra dispozitivului, îndepărtaţi toate tensiunile de la intrările de
măsurare şi de alimentare şi scurtcircuitaţi bornele de intrare CT.
– Producătorul nu poate fi considerat responsabil pentru siguranţa electrică în caz de utilizare incorectă a echipamentului.
– Produsele ilustrate în prezentul sunt supuse modificărilor şi schimbărilor fără notificare anterioară. Datele tehnice şi descrierile
din documentaţie sunt precise, în măsura cunoştinţelor noastre, dar nu se acceptă nicio răspundere pentru erorile, omiterile sau
evenimentele neprevăzute care apar ca urmare a acestora.
– Trebuie inclus un disjunctor în instalaţia electrică a clădirii. Acesta trebuie instalat aproape de echipament şi într-o zonă uşor
accesibilă operatorului. Acesta trebuie marcat ca fiind dispozitivul de deconectare al echipamentului: IEC/EN 61010-1 § 6.11.2.
– Curăţaţi instrumentul cu un material textil moale şi uscat; nu utilizaţi substanţe abrazive, detergenţi lichizi sau solvenţi.

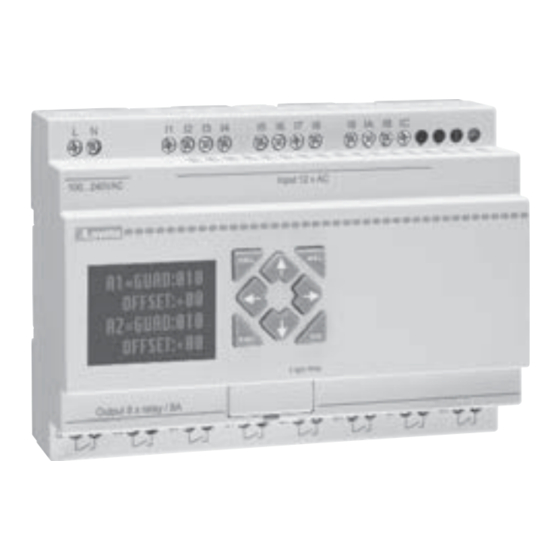

GB USER'S MANUAL OF MICRO PLC LRD...
LRX D01
ATTENZIONE!
– Leggere attentamente il manuale prima dell'utilizzo e l'installazione.
– Questi apparecchi devono essere installati da personale qualificato, nel rispetto delle vigenti normative
impiantistiche, allo scopo di evitare danni a persone o cose.
– Prima di qualsiasi intervento sullo strumento, togliere tensione dagli ingressi di misura e di alimentazione e
cortocircuitare i trasformatori di corrente.
– Il costruttore non si assume responsabilità in merito alla sicurezza elettrica in caso di utilizzo improprio del dispositivo.
– I prodotti descritti in questo documento sono suscettibili in qualsiasi momento di evoluzioni o di modifiche. Le
descrizioni ed i dati a catalogo non possono pertanto avere alcun valore contrattuale.
– Un interruttore o disgiuntore va compreso nell'impianto elettrico dell'edificio. Esso deve trovarsi in stretta vicinanza
dell'apparecchio ed essere facilmente raggiungibile da parte dell'operatore. Deve essere marchiato come il dispositivo
di interruzione dell'apparecchio: IEC/ EN 61010-1 § 6.11.2.
– Pulire l'apparecchio con panno morbido, non usare prodotti abrasivi, detergenti liquidi o solventi.
UWAGA!
– Przed użyciem i instalacją urządzenia należy uważnie przeczytać niniejszą instrukcję.
– W celu uniknięcia obrażeń osób lub uszkodzenia mienia tego typu urządzenia muszą być instalowane przez
wykwalifikowany personel, zgodnie z obowiązującymi przepisami.
– Przed rozpoczęciem jakichkolwiek prac na urządzeniu należy odłączyć napięcie od wejść pomiarowych i zasilania oraz zewrzeć
zaciski przekładnika prądowego.
– Producent nie przyjmuje na siebie odpowiedzialności za bezpieczeństwo elektryczne w przypadku niewłaściwego użytkowania
urządzenia.
– Produkty opisane w niniejszym dokumencie mogą być w każdej chwili udoskonalone lub zmodyfikowane. Opisy oraz dane
katalogowe nie mogą mieć w związku z tym żadnej wartości umownej.
– W instalacji elektrycznej budynku należy uwzględnić przełącznik lub wyłącznik automatyczny. Powinien on znajdować się w
bliskim sąsiedztwie urządzenia i być łatwo osiągalny przez operatora. Musi być oznaczony jako urządzenie służące do
wyłączania urządzenia: IEC/ EN 61010-1 § 6.11.2.
– Urządzenie należy czyścić miękką szmatką, nie stosować środkow ściernych, płynnych detergentow lub rozpuszczalnikow.
ПРЕДУПРЕЖДЕНИЕ!
– Прежде чем приступать к монтажу или эксплуатации устройства, внимательно ознакомьтесь с одержанием
настоящего руководства.
– Во избежание травм или материального ущерба монтаж должен существляться только квалифицированным персоналом
в соответствии с действующими нормативами.
– Перед проведением любых работ по техническому обслуживанию устройства необходимо обесточить все
измерительные и питающие входные контакты, а также замкнуть накоротко входные контакты трансформатора тока (ТТ).
– Производитель не несет ответственность за обеспечение электробезопасности в случае ненадлежащего использования
устройства.
– Изделия, описанные в настоящем документе, в любой момент могут подвергнуться изменениям или
усовершенствованиям. Поэтому каталожные данные и описания не могут рассматриваться как действительные с точки
зрения контрактов
– Электрическая сеть здания должна быть оснащена автоматическим выключателем, который должен быть расположен
вблизи оборудования в пределах доступа оператора. Автоматический выключатель должен быть промаркирован как
отключающее устройство оборудования: IEC /EN 61010-1 § 6.11.2.
– Очистку устройства производить с помощью мягкой сухой ткани, без применения абразивных материалов, жидких
моющих средств или растворителей.
DİKKAT!
– Montaj ve kullanımdan önce bu el kitabını dikkatlice okuyunuz.
– Bu aparatlar kişilere veya nesnelere zarar verme ihtimaline karşı yürürlükte olan sistem kurma normlarına göre
kalifiye personel tarafından monte edilmelidirler
– Aparata (cihaz) herhangi bir müdahalede bulunmadan önce ölçüm girişlerindeki gerilimi kesip akım transformatörlerinede kısa
devre yaptırınız.
– Üretici aparatın hatalı kullanımından kaynaklanan elektriksel güvenliğe ait sorumluluk kabul etmez.
– Bu dokümanda tarif edilen ürünler her an evrimlere veya değişimlere açıktır. Bu sebeple katalogdaki tarif ve değerler herhangi bir
bağlayıcı değeri haiz değildir.
– Binanın elektrik sisteminde bir anahtar veya şalter bulunmalıdır. Bu anahtar veya şalter operatörün kolaylıkla ulaşabileceği yakın
bir yerde olmalıdır. Aparatı (cihaz) devreden çıkartma görevi yapan bu anahtar veya şalterin markası: IEC/ EN 61010-1 § 6.11.2.
– Aparatı (cihaz) sıvı deterjan veya solvent kullanarak yumuşak bir bez ile siliniz aşındırıcı temizlik ürünleri kullanmayınız.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LRX D01 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for LOVATO ELECTRIC LRX D01

  • Page 1 GB USER'S MANUAL OF MICRO PLC LRD... LOVATO ELECTRIC S.P.A. 24020 GORLE (BERGAMO) ITALIA VIA DON E. MAZZA, 12 TEL. 035 4282111 TELEFAX (Nazionale): 035 4282200 TELEFAX (International): +39 035 4282400 E-mail info@ ovato lectric.com LRX D01 Web www. ovato lectric.com...
  • Page 2: Table Of Contents

    Contents Summary of changes Chapter 1: Getting Started Precaution for Installation Precaution for Wiring Precaution for Operation Examination before Installation Environmental Precautions Disclaim of Liability LRD - Model Identification Quick Start Set-up Install LRXSW Software Connect Power to LRD micro PLC Connect Programming Cable (LRXC00 for PC RS232 or LRXC03 for PC USB) Establish Communication Write simple program...
  • Page 3 Comparator Instructions Comparator Mode 0 (Internal Coil) Analog comparator Mode 1~7 HMI Display Instructions HMI function instruction PWM Output Instruction (DC Transistor Output Model LRD12TD024 Only) PWM mode PLSY mode SHIFT (shift output) AQ (Analog Output) AQ display AS (Add-Subtract) MD (MUL-DIV) PID (Proportion- Integral- Differential) MX (Multiplexer)
  • Page 4: Summary Of Changes

    Communication module Appendix: Keypad Programming Appendix A: Keypad programming in Ladder mode Appendix B: Keypad programming in Ladder function block WIRING This user’s manual has been modified to include the description, wiring and programming of base module LRD20R D012 and PC USB - LRD connection cable LRX C03.
  • Page 5: Chapter 1: Getting Started

    CHAPTER 1: GETTING STARTED The LRD micro PLC is an electronic device. For safety reasons, carefully read and follow the paragraphs with "WARNING" or "CAUTION" symbols. They are important safety precautions to be aware of while transporting, installing, operating, or examining the LRD controller. WARNING: Personal injury may result from improper operation.
  • Page 6: Lrd - Model Identification

    LRD - MODEL IDENTIFICATION a. LR Programmable relay series LR... d. A Analog type of inputs or outputs PT100 sensor inputs b. D Base module with display Digital relay outputs Expansion module Digital transistor outputs c. 10 Base module, 6 digital inputs + 4 digital outputs e.
  • Page 7: Connect Power To Lrd Micro Plc

    CONNECT POWER TO LRD MICRO PLC Connect power to the LRD using the below wiring diagrams for AC or DC supply for the applicable modules. See “Chapter 2: Installation” for complete wiring and installation instructions. 12VDC 24VDC 24VAC 100...240VAC 50/60Hz CONNECT PROGRAMMING CABLE LRXC00/LRXC03 Remove the plastic connector cover from the LRD using a flathead screwdriver as shown in the figure below.
  • Page 8: Write Simple Program

    b. Select “Operation/Link Com Port…” as shown below. c. Select the correct Com Port number where the programming cable is connected to the computer then press the “Link” button. d. The LRXSW will then begin to detect the connected LRD micro PLC to complete its connection. WRITE SIMPLE PROGRAM a.
  • Page 9 b. Use the “A” key on your keyboard (or the “A” icon on the ladder toolbar) to draw the horizontal circuit line from the M contact to the right most cell, as shown below. c. Select the “Q” coil icon from the ladder toolbar and drop it on the right most cells. Select Q01 from the dialog and press OK as shown below. See Chapter 4: Ladder Programming instructions for complete instruction set definitions.
  • Page 10 e. Select the RUN icon from the toolbar, and select “No” when the pop-up message asks “Do you want to read program from module?”, as shown below. f. On the Input Status dialog, click on M01 to activate the contact M01 which will turn ON the Output Q01 as shown below. The highlighted circuit will show active and the first Output (Q01) on the connected LRD will be ON.
  • Page 11: Chapter 2: Installation

    CHAPTER 2: INSTALLATION GENERAL SPECIFICATIONS LRD is a micro PLC with a maximum of 44 I/O points and can be programmed in Relay Ladder Logic or FBD (Function Block Diagram) program. The LRD can expand to its maximum I/O count by adding 3 groups of 4-input and 4-output modules. POWER SUPPLY Input Power Voltage Range LRD...D012 models: 10.4-14.4VDC;...
  • Page 12: Product Specifications

    ANALOG INPUTS Resolution Base unit: 12 bit Voltage Range acceptable Base unit: Analog input: 0-10VDC voltage, 12VDC/24VDC when used as discrete input Input Signal ”OFF” Threshold <2.5VDC (as 12VDC discrete input); <5VDC (as 24VDC discrete input) Input Signal ”ON” Threshold >7.5VDC (as 12VDC discrete input);...
  • Page 13: Mounting

    MOUNTING 35mm DIN-rail mounting The LRD must always be mounted vertically. Place the upper end of the LRD inserting the slot on the DIN rail. Slightly press the relay downwards and fasten its lower end on the rail. Check that the LRD is firmly fitted. Insert the connector in the expansion module and fit the module on the DIN rail as previously described.
  • Page 14: Wiring

    Screw Fixing Use M4x20 screws to directly mount the LRD as shown. For direct installation of the expansion module, slide the expansion module and connect with the LRD after it is fixed. M4x20 (#8x32) Input 4 ° ¡ A C M4x20 (#8x32) AC 100~240V DC 24V...
  • Page 15 Sensor Connection 24VDC Input 100~240VAC/24VAC 24VAC 100...240VAC 50/60Hz INPU T Input Output (Relay) Output 4 x Relay / 8A Output 8 x Relay / 8A 12...240VAC 50/60Hz or 12...30VDC 12...30VDC 12...240VAC 50/60Hz Output (Transistor) OUTPUT 4 x TR / 0.5A OUTPUT 8 x TR / 0.5A 24VDC 24VDC...
  • Page 16: Chapter 3: Program Tools

    CHAPTER 3: PROGRAM TOOLS PC PROGRAMMING SOFTWARE “LRXSW” The LRXSW programming software provides two edit modes, Ladder Logic and Function Block Diagram (FBD). The LRXSW software includes the following features: 1. Easy and convenient program creation and editing. 2. Programs can be saved on a computer for archiving and reuse. Programs can also be uploaded directly from a LRD and saved or edited. 3.
  • Page 17: Start Screen

    START SCREEN Run the LRXSW software and the below Start screen will be displayed. From this screen, you can perform the following functions: NEW LADDER PROGRAM Select File —>New —>New LAD to enter the development environment for a new Ladder program. NEW FBD PROGRAM Select File —>New —>New FDB to enter the development environment for a new FBD (Function Block Diagram) program.
  • Page 18: Menus, Icons And Status Displays

    MENUS, ICONS AND STATUS DISPLAYS The Ladder programming environment includes the following Menus, Icons and Status Displays 1. MENU BAR - Five menu selections for program development and retrieval, editing, communication to connected controllers, configuration of special functions and viewing preference selections. 2.
  • Page 19: Simulation Mode

    The “A” and “L” keys or icons are used to complete parallel and serial circuits. The right column is for output coils. SIMULATION MODE The LRXSW software includes a built-in simulator to test and debug programs easily without the need for downloading to a controller. To activate simulation mode, simply press the red RUN icon.
  • Page 20: Establish Communication

    ESTABLISH COMMUNICATION The following is the simple procedure for establishing communication between PC and the LRD. a. Select “Operation/Link Com Port…” as shown below. b. Select the correct Com Port number where the programming cable LRXC00 for PC RS232 or LRXC03 for PC USB is connected to the computer then press the “Link”...
  • Page 21: Operation Menu

    OPERATION MENU The Operation menu, includes several system configuration functions for both online and offline setup. The following explains the details of each function. Monitor - Online function for runtime monitor and editing when connected to a controller Simulator - Offline function for testing and debugging a program. Simulator Control - Self-motion simulator control Run-Stop-Quit - Mode change selections for both runtime editing and simulation mode.
  • Page 22: Online Monitoring/Editing

    ONLINE MONITORING/EDITING The LRXSW software allows for online monitoring of the currently running program during runtime. Additional online functions include, I/O forcing, and Mode changes (Run/Stop/Quit). – The LRXSW software does not support runtime logic editing changes. All logic edits to contacts, coils, Timers/Counters, and circuit connecting lines must be written to the connected LRD while in Stop mode.
  • Page 23 HMI/TEXT setting: Enter H01 coil. Into HMI/TEXT edit frame. 3.-4. Choose the letters “T E S T” from Text Input. Choose T01 current. Choose T01 current (unit). Choose T01 present (unit). The user can modify T01 preset value when H coil enable and display on LCD. Download to LRD, and I01 turn ON, or press “SEL”...
  • Page 24 HMI/TEXT Example: Power ON and RUN (initial display) Press “ ” (Z01) and display H03 coil – Press “SEL” to display cursor. – Press “ ”, “ ”, “ ”, “ ” to move cursor. – Press “SEL” again to select modified position. –...
  • Page 25: Program Documentation

    Press “ ” to disable H03 coil, and the LCD display changes to initial frame. Press “ ” to reset Timer (T01°¢T02°¢T03) as program designed. PROGRAM DOCUMENTATION The LRDSW software includes the ability to document a program using Symbols and Line Comments. Symbols are used to label each I/O address up to a length of 12 characters.
  • Page 26: Aq Set

    AQ SET The AQ editing environment can be access through the menu using the Edit>> AQ Set… selection shown below. The range of AQ is 0~1000 if the output mode of AQ is voltage mode. And the range is 0~500 if the output mode is current mode. The preset value of AQ can be set as either a constant or a code of other data.
  • Page 27: Program Backup Memory (Lrxm00 - Accessory)

    DR is set as signed shown below. PROGRAM BACKUP MEMORY (LRXM00) LRMX00 can be used with all LRD versions. There is an icon on LRD micro PLC, V3.0, and on LRMX00 memory, version 3. Regarding the use of previous LRXM00 versions to 3 with the LRD rev. V2.0 or V3.0, see next figure: The optional LRXM00 memory is used to easily transfer programs from one LRD to another.
  • Page 28: Lcd Display And Keypad

    LCD DISPLAY AND KEYPAD KEYPAD Most LRD CPU units include the built-in LCD Display and Keypad. The keypad and display are most often used for changing timer/counter set points, controller mode changes (Run/Stop), uploading/downloading to the LRXM00 memory cartridge, and updating the RTC (Real Time Clock/Calendar).
  • Page 29: Lcd Display Main Menu

    – Expansion module setting: refer to Main Menu “SET” – Other Display State Ladder edit mode: Coil I, Z, X, Q, Y, M, N, T, C, R, G, D, Analog input A01~A04, Expansion Analog input A05~A08, temperature analog input AT01~AT04, analog output AQ01~AQ04; FBD edit mode: Coil I, Z, X, Q, Y, M, N, Analog input A01~A04, Expansion Analog input A05~A08, temperature analog input AT01~AT04, analog output AQ01~AQ04;...
  • Page 30 Press the button Move the Cursor to select Main Menu Confirm the selected Function Skip to Initial Screen – LRD can be modified, edited, cleared and read user program only when it is under STOP Mode. – As the program is modified, LRD will automatically backup it to FLASH. –...
  • Page 31 – PARAMETER Under Ladder mode, press “SEL” key, function block display in sequence: T C R G AS MD PI MX AR MU T... Under FBD mode, Press “SEL” key, Block displays in sequence. – RUN or STOP (1) RUN Mode (2) STOP Mode Move the cursor Execute the instruction, then back to main menu...
  • Page 32 (1) - (3) Now press Move the cursor Execute the instruction Back to main menu (4) SET (system setting) ID SET content default REMOTE I/O ID SET ID setting (00~99) BACKLIGHT REMOTE I/O Remote I/O Mode (N: none M: Master S: Slave) M KEEP BACK LIGHT Back light mode...
  • Page 33: Rtc Summer/Winter Setting

    RTC SUMMER/WINTER SETTING There are 2 fixed Summer/Winter, EUROPE and USA, 1 edit Summer/Winter in LRD. Edit rule: 1. The last Sunday is defined as 0; 2. Hour range: 1~22; 3. Summer hour and Winter hour are the same. Summer/Winter can be set through the two methods as shown below. 1) PC Client 2) Keypad Then pressing “...
  • Page 34 7. PASSWORD (setting password) Now press 1. Begin to input numeral 2. When the password is ON, it will not display 0000, but ****. ‘SEL’ then ‘ / ‘ Move the cursor ‘SEL’ then ‘ / ‘ Data changed 0~F Save the input data, not 0000 or FFFF, as the PASSWORD is ON.
  • Page 35: Chapter 4: Relay Ladder Logic Programming

    CHAPTER 4: RELAY LADDER LOGIC PROGRAMMING COMMON MEMORY TYPES General RESET PULSE Number output output output output contact contact Symbol (NO/NC) Input contact 12 (I01-I0C / i01-i0C) Keypad input 4 (Z01-Z04 / z01-z04) Output coil 8 (Q01-Q08 / q01-q08) Auxiliary relay 63 (M01-M3F / m01-m3F) Auxiliary relay 63 (N01-N3F / n01-n3F)
  • Page 36 – The state of auxiliary relays “M01~M3F” will be kept when the LRD powers down if “M Keep” is active. “M Keep” can be set by the two ways below. SPECIAL AUXILIARY RELAYS: M31~M3F Code Meaning Description User program upstart flag Outputting ON during the first scanning period;...
  • Page 37: Specialty Memory Types

    COUNTERS AND COUNTER STATUS BITS (C MEMORY TYPE) Counter status bits provide the relationship between the current value and the preset value of a selected counter. The counter status bit will be on when the current value is equal or greater than the preset value of a selected counter. In this example, each time the input contact I04 transitions from off to on, the counter (C01) increments by one.
  • Page 38: Output Instructions

    OUTPUT INSTRUCTIONS SET OUTPUT INSTRUCTION (LATCH) ( A set output instruction, or Latch, turns ON an output coil (Q) or an auxiliary contact (M) when the preceding input contact transitions from OFF to ON. Once the output is ON or set, it will remain ON until it is reset using the Reset output instruction. It is not necessary for the preceding input contact controlling the Set output instruction to remain ON.
  • Page 39: Timer Instruction

    TIMER INSTRUCTION The LRD includes a total of 31 separate Timers that can be used throughout a program. T0E and T0F keep their current value after a loss of power to the LRD if “M Keep” is active, but the other Timers' current value is non-retentive. Each Timer has a choice of 8 operation modes, 1 for a pulse Timer and 7 for general purpose Timer.
  • Page 40: Timer Mode 1 (On-Delay)

    TIMER MODE 1 (ON-DELAY) Mode 1 Timer (ON-Delay) will time up to a fixed value and stop timing when the current time is equal to the preset value. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below, the timer will stop timing when it reaches the preset value of 5 seconds.
  • Page 41: Timer Mode 2 (On-Delay With Reset)

    TIMER MODE 2 (ON-DELAY WITH RESET) Mode 2 Timer is an ON-Delay with reset that will time up to a fixed preset value and stop timing when the current time is equal to the preset value. Additionally, the Timer current value will be kept when Timer is disabled. In the example below, the Timer will stop timing when it reaches its preset value of 5 seconds.
  • Page 42: Timer Mode 3 (Off-Delay)

    TIMER MODE 3 (OFF-DELAY) Mode 3 Timer is an OFF-Delay with reset that will time up to a fixed preset value and stop timing when the current time is equal to the preset value. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below, the timer reset input is Input I01.Timer status bit T01 will be ON immediately when its rung is true.
  • Page 43: Timer Mode 4 (Off-Delay)

    TIMER MODE 4 (OFF-DELAY) Mode 4 Timer is an OFF-Delay with reset that will time up to a fixed preset value and stop timing when the current time is equal to the preset value. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below, the timer reset input is Input I01. The timer status bit T01 will turn ON only after its rung true to false transition.
  • Page 44: Timer Mode 5 (Flash Without Reset)

    TIMER MODE 5 (FLASH WITHOUT RESET) Mode 5 Timer is a Flash timer without reset that will time up to a fixed preset value and then change the state of its status bit. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below, timer status bit T01 will be ON immediately when its rung is true and begins its timing sequence.
  • Page 45: Timer Mode 6 (Flash With Reset)

    TIMER MODE 6 (FLASH WITH RESET) Mode 6 Timer is a Flash timer with reset that will time up to a fixed preset value and then change the state of its status bit. Additionally, the Timer current value will reset to zero when Timer is disabled. In the example below, the timer reset input is Input I01. Timer status bit T01 will be ON immediately when its rung is true and begins its timing sequence.
  • Page 46: Timer Mode 7 (Flash Cascade Without Reset)

    TIMER MODE 7 (FLASH CASCADE WITHOUT RESET) Mode 7 Timer is a Flash Timer which using two Timers in a cascade configuration without reset. The second Timer number follows the first Timer. The cascade configuration connects the timer status bit of first timer to enable the second timer. The second timer will time up to its preset value then flash and its timer status bit will enable the first timer.
  • Page 47: Counter Instructions

    COUNTER INSTRUCTIONS The LRD includes a total 31 separate counters that can be used throughout a program. Each counter has a choice of 9 operation modes, 1 for pulse counter, 6 for general purpose counting and 2 for high speed counting. Additionally, each counter has 6 parameters for proper configuration.
  • Page 48: Counter Mode 0 (Internal Coil)

    COUNTER MODE 0 (INTERNAL COIL) Mode 0 Counter (Internal Coil) used as internal auxiliary coils. No counter preset value. The example below shows the relationship among the numbered block diagram for a mode 0 counter, the ladder diagram view, and the software Edit Contact/Coil dialog box.
  • Page 49: Counter Mode 1 (Fixed Count, Non-Retentive)

    COUNTER MODE 1 (FIXED COUNT, NON-RETENTIVE) Mode 1 Counter will count up to a fixed preset value and stop counting when the current count is equal to the preset value, or count down to 0 and stop counting when the current count is equal to 0. Additionally, the current count value is non-retentive and will reset to init value on a powering up to the LRD.
  • Page 50: Counter Mode 2 (Continuous Count, Non-Retentive)

    COUNTER MODE 2 (CONTINUOUS COUNT, NON-RETENTIVE) Mode 2 Counter will count up to a fixed preset value and continue counting after the preset value, but it will not count when the current value equals 0 if it is configured as down Counter. Additionally, the current count value is non-retentive and will reset to init value on a powering up to the LRD or switching between RUN and STOP.
  • Page 51: Counter Mode 3 (Fixed Count, Retentive)

    COUNTER MODE 3 (FIXED COUNT, RETENTIVE) Mode 3 Counter operation is similar to Mode 1 except its current count value is retentive when Counter powers down. So, the current value will not be init value when Counter powers up, but be the value when it is powering down. Mode 3 Counter will count up to a fixed preset value and stop counting at that value, or stop counting when its current value is 0 if it is configured as down counter.
  • Page 52: Counter Mode 5 (Continuous Count, Up-Down Count, Non-Retentive)

    COUNTER MODE 5 (CONTINUOUS COUNT, UP-DOWN COUNT, NON-RETENTIVE) Mode 5 Counter operation is similar to Mode 2 except its current count value is continuous and non-retentive. The status bit is fixed to the non- zero preset value regardless of the state of the direction bit. Its status bit will be ON when the counter current value is not less than its preset value, and will be OFF when the current value is less than its preset value.
  • Page 53: Counter Mode 6 (Continuous Count, Up-Down Count, Retentive)

    COUNTER MODE 6 (CONTINUOUS COUNT, UP-DOWN COUNT, RETENTIVE) Mode 6 Counter operation is similar to Mode 4 except its current count value is continuous and retentive. The status bit is fixed to the non-zero preset value regardless of the state of the direction bit. Its status bit will be ON when the counter current value is not less than its preset value, and will be OFF when the current value is less than its preset value.
  • Page 54: High Speed Counters (Dc Version Only)

    HIGH SPEED COUNTERS (DC VERSION ONLY) The DC powered version LRD includes two 1 kHz high speed inputs on terminal I01 and I02. These can be used as general purpose DC inputs or can be wired to a high speed input device (encoder, etc.) when configured for high speed counting. They are often used for counting something moving very fast (>40Hz) or used as a speed reference on a machine.
  • Page 55: High Speed Counter Mode 8 (Dc Powered Versions Only)

    HIGH SPEED COUNTER MODE 8 (DC VERSION ONLY) The Mode 8 High Speed Counter can use either input terminals I01 or I02 for forward up-counting to 1 kHz maximum at 12VDC or 24VDC high speed input signal. The selected Counter Coil (C01-C1F) will turn ON when the pulse count reaches the target “Preset ON” value and remain ON until the pulse count reaches the target “Preset OFF”...
  • Page 56: Real Time Clock (Rtc) Instructions

    REAL TIME CLOCK (RTC) INSTRUCTIONS The LRD includes a total of 31 separate RTC instructions that can be used throughout a program. Each RTC instruction has a choice of 5 operation modes, and has 10 parameters for proper configuration. The initial clock/calendar setting for each connected LRD is set using the Operation»RTC Set menu selection from the LRXSW software.
  • Page 57: Rtc Mode 1 (Daily)

    RTC MODE 1 (DAILY) The Daily Mode 1 allows the Rxx coil to active based on a fixed time across a defined set of days per week. The configuration dialog below (example 1) allows for selection of the number of days per week (i.e. Mon-Fri) and the Day and Time for the Rxx coil to activate ON, and the Day and Time for the Rxx coil to deactivate OFF.
  • Page 58 Example 4: FR-MO 17:00 8:00 Week Monday Tuesday ..Friday Saturday Sunday Time 8:00 17:00 8:00 17:00 8:00 17:00 8:00 17:00 8:00 17:00 ENABLE Rn Output Example 5: SU-SU 08:00 17:00 Week Monday Tuesday ..Friday Saturday Sunday Time 8:00 17:00...
  • Page 59: Rtc Mode 2 (Interval Weekly)

    RTC MODE 2 (WEEKLY INTERVAL) The Interval Time Mode 2 allows the Rxx coil to activate based on time and day per week. The configuration dialog below (example 1) allows for selection of Day and Time for the Rxx coil to activate ON, and Day and Time for the Rxx coil to deactivate OFF. Example 1: Week Monday...
  • Page 60: Rtc Mode 3 (Year-Month-Day)

    Example 4 TU-TU 08:00 17:00 Week Monday Tuesday ..Saturday Sunday Time 8:00 17:00 8:00 17:00 8:00 17:00 8:00 17:00 ENABLE Rn Output RTC MODE 3 (YEAR-MONTH-DAY) The Year-Month-Day Mode 3 allows the Rxx coil to activate based on Year, Month, and Date. The configuration dialog below (example 1) allows for selection of Year and Date for the Rxx coil to activate ON, and Year and Date for the Rxx coil to deactivate OFF.
  • Page 61: Rtc Mode 4 (30-Second Adjustment)

    Example 2: 2010/11/11 2009/02/17 Year-Month-Day 2009/02/17 2010/11/11 Time 0:00 0:00 ENABLE RTC Output Example 3: 2010/11/11 2010/11/11 Year-Month-Day 2010/11/11 Time 0:00 ENABLE RTC Output RTC MODE 4 (30-SECOND ADJUSTMENT) The 30-second adjustment Mode 4 allows the Rxx coil to activate based on week, hour, minute and second. The configuration dialog below shows for selection of week, hour, minute and second for the Rxx coil to activate ON, and 30-second adjustment then Rxx OFF.
  • Page 62 Example 1: preset second < 30s Time 8:00 8:00:20 ENABLE RTC Output The present time will be 8:00:00 when it achieves 8:00:20 at first time, and RTC status bit R01 will be ON. RTC status bit R01 will be OFF when the present time achieves 8:00:20 at second time.
  • Page 63: Comparator Instructions

    COMPARATOR INSTRUCTIONS The LRD includes a total of 31 separate comparator instructions that can be used throughout a program. Each comparator has a choice of 8 operation modes. Additionally, each comparator has 5 parameters for proper configuration. The table below describes each configuration parameter, and lists each compatible memory type for configuring Comparators.
  • Page 64: Analog Comparator Mode 1~7

    ANALOG COMPARATOR MODE 1~7 ≤ Ax ≤ Ay ≤ + (1) Analog Comparator mode 1: Ay – (2) Analog Comparator mode 2: Ax ≤ Ay, (3) Analog Comparator mode 3: Ax ≤ Ay, ≥ Ax (4) Analog Comparator mode 4: ≥...
  • Page 65: Hmi Display Instructions

    Example 2: Timer/Counter present value Compare The Comparator instruction can be used to compare Timer, Counter, or other function values to a constant value or each other. In this example below, Mode 5 is the selected function that compares the value of Counter (C01) with the value of Timer (T01). Status coil G01 turns ON if present value of C01 is not less than present value of T01.
  • Page 66: Hmi Function Instruction

    The Chinese (fixed) and Chinese (edit) are shown below. The total number of Chinese (edit) is 60. HMI FUNCTION INSTRUCTION 1. HMI can display character, built-in Chinese, user-defined Chinese and GSM telephone number. This information cannot be edited through keypad. 2.
  • Page 67 HMI STATUS 1. HMI scanning state, press SEL into at IO interface 2. HMI running state, HMI is enabled at IO interface 3. HMI edit preparing state, press SEL when HMI is scanning or running state, flicker cursor will show if there is edited content. 4.
  • Page 68: Pwm Output Instruction (Dc Transistor Output Model Lrd12Td024 Only)

    PWM OUTPUT INSTRUCTION (DC TRANSISTOR OUTPUT MODEL LRD12TD024 ONLY) The transistor output model LRD includes the capability to provide a PWM (Pulse Width Modulation) output on terminal Q01 and Q02. The PWM instruction is able to output up to an 8-stage PWM waveform. It also provides a PLSY (Pulse output) output on terminal Q01, whose pulse number and frequency can be changed.
  • Page 69: Plsy Mode

    PLSY MODE Only P01 can work under this mode, and the output is Q01. PLSY has 6 parameters for proper configuration. The table below describes the information of PLSY parameters. Symbol Description PLSY mode (2) Total number of pulse (storing in DRC9) Preset frequency of PLSY (1~1000Hz) Preset pulse number of PLSY(0~32767) Output port (Q01)
  • Page 70: Shift (Shift Output)

    SHIFT (SHIFT OUTPUT) The LRD includes only one SHIFT instruction that can be used throughout a program. This function outputs a series of pulses on selection points depending on SHIFT input pulse. It has 4 parameters for proper configuration. The table below describes each configuration parameter, and lists each compatible memory type for configuring SHIFT.
  • Page 71: Aq (Analog Output)

    AQ (ANALOG OUTPUT) The default output mode of AQ is 0-10V voltage; the corresponding value of AQ is 0~1000. It also can be set as 0-20mA current; the corresponding value of AQ is 0~500. The output mode of AQ is set by the current value of DRD0~DRD3 as shown below. Number Meaning Mode...
  • Page 72: As (Add-Subtract)

    AS (ADD-SUBTRACT) The LRD includes a total of 31 AS instructions that can be used throughout a program. The ADD-SUB Addition and/or Subtraction function enables simple operations to be carried out on integers. There are 6 parameters for proper configuration. The table below describes each configuration parameter, and lists each compatible memory type for configuring AS.
  • Page 73: Md (Mul-Div)

    MD (MUL-DIV) The LRD includes a total of 31 MD instructions that can be used throughout a program. The MUL-DIV Multiplication and Division function enables simple operations to be carried out on integers. There are 6 parameters for proper configuration. The table below describes each configuration parameter, and lists each compatible memory type for configuring MD.
  • Page 74: Mx (Multiplexer)

    The example below shows how to configure PID function. MX (MULTIPLEXER) The LRD includes a total of 15 MX instructions that can be used throughout a program. This special function transmits 0 or one of 4 preset values to MX current value memory. The MX function enables simple operations to be carried out on integers. There are 7 parameters for proper configuration.
  • Page 75: Ar (Analog-Ramp)

    AR (ANALOG-RAMP) The LRD includes a total of 15 AR instructions that can be used throughout a program. The AR function enables simple operations to be carried out on integers. Analog Ramp instruction allows AR current level to be changed by step from starting level to target level at a specified rate. There are 12 parameters for proper configuration.
  • Page 76 The example below shows how to configure AR function.
  • Page 77: Dr (Data Register)

    DR (DATA REGISTER) The LRD includes a total of 240 DR instructions that can be used throughout a program. The DR function is transferring data. DR is a temp register. DR sends data from prevention registers to current register when it is enabled. The data can be signed or unsigned by setting DR_SET bit through operation>>module system set menu selection from the LRDSW.
  • Page 78: Chapter 5: Function Block Diagram Programming

    CHAPTER 5: FUNCTION BLOCK DIAGRAM PROGRAMMING FBD INSTRUCTIONS Input Output coil Range Input 12 (I01~I0C) Keypad input (Digital LRD) 4 (Z01~Z04) Expansion input (LRE) 12 (X01~X0C) Output (Digital LRD) 8 (Q01~Q08) Expansion output (LRE) 12 (Y01~Y0C) Auxiliary coil 63(M01~M3F) Auxiliary coil 63(N01~N3F) 31 (H01~H1F) 2 (P01~P02)
  • Page 79: Pwm Mode

    PWM function block (transistor output version LRD...TD024 only) PWM MODE The PWM output terminal Q01 or Q02 can output 8 PWM waveforms. PWM01 Mode: 1 SET 1 Out: 1 TP1=00000 TT1=00001 PLSY MODE The PLSY output terminal Q01 can output preset number of pulse whose frequency is variable from 1 to 1000 Hz. PWM01 Mode: 2 PF=00100...
  • Page 80: Data Link Function Block

    Data Link function block I/O Link01 Mode:1 Num:8 I01 W09 I02 W16 SHIFT function block Shift01 Type:Q01–Q05 Num:5 Timing diagram LOGIC BLOCK INSTRUCTIONS Logic type Input Logic block number terminal Connect with next Funcion block...
  • Page 81: And Logic Diagram

    Logic function block source: block Number (byte) Total block 6000 AND(EDGE) NAND NAND(EDGE) PLUSE BOOLEAN AND Logic Diagram LADDER I01 And I02 And I03 Note: The input terminal is NOP which is equivalent to 'High'. AND (EDGE) Logic Diagram LADDER I01 And I02 And I03 And D Note: The input terminal is NOP which is equivalent to 'High'.
  • Page 82: Or Logic Diagram

    OR Logic Diagram LADDER I01 or I02 or I03 Note: The input terminal is NOP which is equivalent to ''Low'. NOR Logic Diagram LADDER Not ( I01 or I02 or I03 ) Note: The input terminal is NOP which is equivalent to ''Low'. XOR Logic Diagram LADDER I01 XOR I02...
  • Page 83: Pulse Logic Diagram

    PULSE Logic Diagram LADDER Note: The input terminal is NOP which is equivalent to ''Low'. BOOLEAN Logic Diagram LADDER B 0 0 Note: The input terminal is NOP which is equivalent to ''Low”. Description: Input 1 Block code Input 2 Input 3 Real table;...
  • Page 84: Function Block

    FUNCTION BLOCK Function Block includes three types of function: special function, adjust-controlling function and communication function. Function type and number are shown in the table below. Function type number Timer Counter special function Analog Comparator adjust-controlling function The capability of each block is alterable; it depends on the type of function. There are a total of 260 blocks and the total capability of block area is 6000 bytes.
  • Page 85: Timer Function Block

    TIMER FUNCTION BLOCK T0E and T0F keep their current value after a loss of power to the LRD if “M Keep” is active. But the other Timers current value is 0. (1) Timer mode 0 (Internal coil Mode) FBD display Parameter display B 0 0 5 Enable Input...
  • Page 86 (4) Timer mode 3 (OFF-Delay A Mode) FBD display Parameter display B 0 0 1 B001 Enable Input I 0 4 Reset N 0 1 M 0 1 T = 01.00Sec Timing Parameter P a r Program display (5) Timer mode 4 (OFF-Delay B Mode) FBD display Parameter display B 0 0 1...
  • Page 87: Common Counter Function Block

    (7) Timer mode 6 (FLASH B Mode) FBD display Parameter display B 0 0 1 B001 Enable Input I 0 1 Reset N o p M 0 1 T = 01.00Sec Timing Parameter P a r Program display (8) Timer mode 7 (FLASH C Mode) FBD display Parameter display B 0 0 1...
  • Page 88 (2) Counter Mode 1 FBD display Parameter display Counting Input I 0 1 B 0 0 1 B001 Up/Down Counting N 0 1 Reset I 0 2 M 0 1 C = 555555 Counting Parameter P a r Program display (3) Counter Mode 2 FBD display Parameter display...
  • Page 89 (5) Counter Mode 4 FBD display Parameter display Counting Input I 0 1 B 0 0 1 B001 Up/Down Counting N 0 1 Reset I 0 2 M 0 1 C = 555555 Counting Parameter P a r > PD Nota: The “>”means the current value appeared will be greater than present value;...
  • Page 90: High Speed Counter Function Block

    HIGH SPEED COUNTER FUNCTION BLOCK (1) Counter Mode 7 FBD display Parameter display High counting input I 0 1 B 0 0 1 B001 Enable Input N 0 1 Reset M 0 2 M 0 1 C = 555555 Counter Parameter P a r 1/HZ Note: High speed input terminal I01,I02.
  • Page 91 (2) RTC Mode 1 (Daily) FBD display Parameter display B 0 0 1 B001 Enable Input I 0 1 Q 0 1 ON MO 08:00 RTC Parameter P a r OFF FR 17:00 Program display (3) RTC Mode 2 (Continuous) FBD display Parameter display B 0 0 1...
  • Page 92: Analog Comparator Function Block

    (5) RTC Mode 4 (30-second adjustment) FBD display Parameter display B 0 0 1 B001 Enable Input I 0 1 Q 0 1 RTC Parameter P a r SU 08:20:20 Program display ANALOG COMPARATOR FUNCTION BLOCK (1) Analog Comparison Mode 0 (Internal coil) FBD display Parameter display Enable Input...
  • Page 93 (3) Analog Comparison Mode 2 FBD display Parameter display Enable Input M 0 1 B 0 0 1 B001 Analog Input Ax = B002 V ≤Ay Analog Input Q 0 1 Ay = B003 V Reference P a r G = B004 V Program display (4) Analog Comparison Mode 3 FBD display...
  • Page 94 (6) Analog Comparison Mode 5 FBD display Parameter display Enable Input M 0 1 B 0 0 1 B001 Ax = B002 V ≤Ax Analog Input Q 0 1 Reference P a r G = B003 V Program display (7) Analog Comparison Mode 6 FBD display Parameter display Enable Input...
  • Page 95: As (Add-Sub) Function Block

    AS (ADD-SUB) FUNCTION BLOCK FBD display Parameter display B 0 0 1 B001 AS01 Enable Input I 0 1 + – V1 = 00010 M 0 1 V2 = B003 P a r V2 = B003 Program display MD (MUL-DIV) FUNCTION BLOCK FBD display Parameter display B 0 0 1...
  • Page 96: Mx (Multiplexer) Function Block

    MX (MULTIPLEXER) FUNCTION BLOCK FBD display Parameter display Enable Input I 0 1 B 0 0 1 B001 MX01 Selection input 1 M 0 1 = – V1 = 00015 Selection input 2 M 0 2 N 0 1 V2 = 15163 Reference P a r SEL+ /...
  • Page 97: Function Summarization

    CHAPTER 6: MODBUS LRD20RD024P1 COMMUNICATION COMMUNICATION’S FUNCTION SUMMARIZATION Communication parameter Communication mode parameter and baud rate Remote IO function It can be used to communication between 2 LRD units I/O Link function Up to 8 LRD20RD024P1 units can be configured as I/O Link nodes. Each LRD can make used of the I/O information of other LRD for detail, please refer to section I/O Link function Modbus RTU master LRD can be used as master...
  • Page 98: Remote Io Function

    Content Data Meaning High bit 8/N/2 Data 8bit, No Parity, 2 Stop bit 8/E/1 Data 8bit, Even Parity, 1 Stop bit 8/0/1 Data 8bit, Odd Parity, 1 Stop bit 8/N/1 Data 8bit, No Parity, 1 Stop bit Low bit 4800 bps 9600 bps 19200 bps 38400 bps...
  • Page 99: I/O Link Function

    IO LINK FUNCTION Hardware Configuration: 1. Link LRD as show below. 2. Set the LRD in SET menu to No Remote IO. 3. Set those LRD’s ID continuously 00 ,01,02,… The max number of the ID is 07. Example: 1. Link 8 20 pointe V type LRD according to the steps as show above. 2.
  • Page 100 There are 5 parameters in MODBUS function as shown below. Symbol Description MODBUS mode (1~5) Communication address: slave ID, range: 0~127 Communication content: address and data length: address is constant, range: 0000~ffff; length must be 1 word DR code, get address and length from this DR and the next DR code, store sending/receiving data from this DR MODBUS code (MU01~MU0F) Examples:...
  • Page 101 Mode Display Address: 0003 Receive: Write coil data storage: 01 05 00 03 FF 00 CRC16 DRE0=65280(hex: FF00) Send: 01 05 00 03 FF 00 CRC16; Address: DR03=0001 Receive: data storage: 01 05 00 01 FF 00 CRC16; DRE0=65280(hex: FF00) Send: 01 05 00 01 FF 00 CRC16 SLAVER VIA MODBUS RTU PROTOCOL Function Description:...
  • Page 102: Chapter 7: Hardware Specification

    CHAPTER 7: HARDWARE SPECIFICATION PRODUCT SPECIFICATIONS Input power Input Output Analog Analog Expans. 1 kHz point point input output keypad High LINK TYPE 12VDC 100-240 24VDC 24VAC speed input LRD10R Relay A240 LRD12R Relay A024 LRD12R Relay D024 LRD12T Transistor D024 LRD20R Relay...
  • Page 103: Input Specifications

    INPUT SPECIFICATIONS LRD...A240 MODEL Characteristic LRD10RA240 LRD20RA240 Input circuitry Number 6 (digital input) 12 (digital input) Signal current input 120VAC 0.66mA 120VAC 0.55mA 240VAC 1.3mA 240VAC 1.2mA ON current input > 79 VAC /0.41 mA > 79 VAC /0.4 mA OFF current input <...
  • Page 104: Lrd12...D024 Model

    LRD12..D024 MODEL Characteristic LRD12RD024 - LRD12TD024 Normal digital input High speed input Analog input used as Analog input normal digital input LRD12: I7, I8 LRD12: A1, A2 LRD20: I9, IA, IB, IC LRD20: A1, A2, A3, A4 Input circuitry I03~I06 I01,I02 I07,I08 Number of inputs...
  • Page 105: Output Specifications

    OUTPUT SPECIFICATIONS Characteristic Relay Transistor Output circuitry External power Less than 265VAC; 30VDC 23.9~24.1V Circuitry isolation Mechanical Optoisolators Maximal Resistive 8 A point 0.3 A point Load Inductive 4A point –– Light 200 W 10 W/24 VDC Open drain current ––...
  • Page 106: Life Of Micro Plc

    LIFE OF MICRO PLC Contact current [A] – The data of graph is standard, but the life of relay is influenced by the ambient operating temperature. – The life is more than 100,000 cycles if the current is less than 2A. ACCESSORIES Order code Description...
  • Page 107: Chapter 8: Expansion Module

    CHAPTER 8: EXPANSION MODULE Digital Input/Output module: LRE08RD024, LRE08TD024, LRE08RA024, LRE08AA240 Analog module: LRE02AD024, LRE04AD024, LREO4PD024. Communication module: LREP00 All LRD can connect expansion modules. The sequence of these expansion modules to connect with LRD is: digital, analog and communication. Digital input modules are 2 types: version 1.2 and version ≥3.0.
  • Page 108 EXPANSION MODULE INSTALLATION – All the expansion modules' installation method is the same as shown below. 0.14...1.5 0.14...0.75 0.14...2.5 0.14...2.5 0.14...1.5 26...16 26...18 26...14 26...14 26...16 Ø3.5 (0.14in) lbin – Power down before equipment maintenance.
  • Page 109 LRD PROGRAMMING OF EXPANSION MODULES The LRD must set the number of expansion IO when connected together. The method of setting IO number is shown below. 1) By keypad 2) By LRXSW software EXPANSION DISPLAY STATE Digital IO module and Analog module both have indicator light. The state of indicator light is the same. The state of indicator light is shown below.
  • Page 110: Digital I/O Expansion Modules

    WIRING OF DIGITAL I/O EXPANSION MODULE The modules are LRE08RA024, LRE08D024, LRE08TD024. Maximum configuration: LRD + 3 modules LRE08… + 2 modules LRE02AD024 + 1 LRE04PD024 + 1 module LRE04AD024 + 1 module LREP00. 1) 24V DC power input - LRE08RD024 / LRE08TD024 2) 24VAC / 100~240VAC power input - LRE08RA024 / LRE08RA024 3) Relay output - LRE08R...
  • Page 111: Analog Expansion Modules

    WIRING OF ANALOG EXPANSION MODULE The modules are LRE02AD024, LRE04AD024, LRE4PD024. The maximum number of analog expansion modules to install on the LRD is: 1) 2 modules LRE02AD024 2) 1 module LRE04AD024 3) 1 module LRE04PD024. Maximum configuration: LRD + 3 modules LRE08… + 2 modules LRE02AD024 + 1 LRE04PD024 + 1 module LRE04AD024 + 1 module LREP00. ATTENTION: When more than one analog module is fitted, the LRE04AD024 type must be the last of the analog modules for correct operation.
  • Page 112 Wiring of LRE02AD024 module Voltage output Current output 1A fast acting fuse, circuit breaker and circuit protection. Transient voltage surge suppressor (43VDC cut-off voltage). External External External External equipment equipment equipment equipment The output mode can be set by LRD… base module with DR register values (current mode): Number Meaning Data definition...
  • Page 113: Communication Module

    Wiring of LRE04PD024 module External equipment PT100 24VDC 1A fast acting fuse, circuit breaker and circuit protection. Transient voltage surge suppressor (43VDC cut-off voltage). PT100 PT100 PT100 When the temperature is out of the -100°C…+600°C range limits, error output coils M34, M35, M36 and M37, which correspond to channel 1, channel 2, channel 3 and channel 4, will be activated (ON).
  • Page 114: Lrd Setting

    - 1A fast acting fuse, circuit breaker and circuit protection. - Transient voltage surge suppressor (43VDC cut-off voltage). Connection of LREP00 modules by RS485 interface COMMUNICATION SETTING The LREP00 communication baud rate and format can be set by 8-bit switch (DIP) SW1. Baud rate SW1-3~SW1-1 set communication baud rate is 57.6K, 38.4K, 19.2K, 9.6K, 4.8K as shown below.
  • Page 115: Appendix: Keypad Programming

    APPENDIX: KEYPAD PROGRAMMING APPENDIX A: KEYPAD PROGRAMMING IN LADDER MODE Operation Sample: Column > Line 1 Step 1: Column Press 'OK'. Line 1 Enter LADDER edit. Step 2 : Column When the cursor is located at the Line 1 character or digit press ‘SEL’ to show I01.
  • Page 116 Automatically Link Step 7 : Column Press 'OK'; the cursor moves to Line 1 –– character in column 3 automatically. Automatically Link Step 7 : Column Press ' '; the cursor moves to Line 1 –– the link location in column 2 automatically.
  • Page 117 Change Wire ' ' to ' I ' Step 13 : Column Press 'SEL' Line 1 –– –– (A vertical line emerges) Step 14 : Column Press 'OK'. Move the cursor to Line 1 –– –– character in column 3. Repeat the step 1~7 and move the cursor to 'r0 3' , ' _' at Line 2 and column 3~6.
  • Page 118 Step 19 : Column Press ' ' for 6 times Line 1 –– –– Digit 1 where the cursor is located will change to 7. Auto Enter Function Block Edition Step 20 : Column Press 'OK' Line 1 Automatic shift to FUNCTION BLOCK to permit setting of the counter input parameter.
  • Page 119 Step 24: Column Press 'SEL+DEL' (Simultaneously) Line 1 –– –– ('ESC' Cancel , 'OK' Execute) –– –– –– –– –– Insert a whole line. Column Line 1 –– –– –– –– –– –– –– Step 25: Column Press“SEL+OK” Line 1 ––...
  • Page 120: Appendix B: Keypad Programming In Ladder Function Block

    APPENDIX B: KEYPAD PROGRAMMING IN LADDER FUNCTION BLOCK Column Line 1 > Present action area The present value will appear when LRD is under 'RUN' mode. Step 1: Column Press 'OK' Line 1 (Enter FUNCTION BLOCK edition) Preset action value area Never press ' ' to move to the Column digital position.
  • Page 121 Step 2-5: Column Press ' ' Line 1 Repeat Step 2-2 ~ step 2-4 for 3 times, to enter the following screen: Step 2-6: Column Line 1 As the present value of the timer, counter, analog input (A01-A08) and analog gain value (V01-V08) is set as the preset value of them. Next to the Step 2-2, to execute the following operation: Step 2-3A: Column...
  • Page 122 Step 2-3G: Column Press 'SEL' Line 1 Step 2-3H: Column Press 'SEL' Line 1 Step 2-3I: Column Press 'SEL' Line 1 Step 2-3J: Column Press 'SEL' Line 1 Step 2-3K: Column Press 'SEL' Line 1 Step 2-3L: Column Press 'SEL' Line 1 Next to step 2-3B, the following screen will be shown.
  • Page 123 Step 2-7: Column Press ' ' Line 1 Step 2-8: Column Press 'SEL' Line 1 (begin to edit data). Step 2-9: Column Press ' ' Line 1 Press 'SEL' then ' ‘ or ‘ ' to change '1' to ' 2'. Step 2-10: Column Press 'OK'...
  • Page 124 Step 2-15: Column Press ' ' for 3 times Line 1 (this step leads to editing the reset input) Edit action program and set the reset input. Step 2-16: Column Press ' ' 2 times. Press 'SEL' Line 1 (Begin to modify ) Step 2-16A: Column Press 'SEL'...
  • Page 125 Step 2-19: Column Press ' ' for 3 times. Line 1 Press 'SEL' then ' ' to change '1' to '4'. Step 2-20: Column Press 'OK' to save the input data. Line 1 Step 2-21: Column Press ' ' then move the cursor Line 1 to preset action value area and repeat Step 2-1.
  • Page 126 Continue to input Function Block Column Line 1 Step 1: Column Press 'SEL’ and ‘ ' Line 1 (Simultaneously) Last Function Block Column Line 1 Step 1-2: Column Press 'SEL’ and ‘ ' Line 1 (Simultaneously) DELETE FUNCTION BLOCK Step 1-3: Column Press 'SEL’...
  • Page 127 Step 1: Column Press 'SEL' Line 1 Step 2: Column Press 'SEL' Line 1 –– Step 3: Column Press 'SEL' Line 1 Step 4: Column Press 'SEL' Line 1 Step 5: Column Press 'SEL' Line 1 –– –– Step 6: Column Press 'SEL' Line 1...
  • Page 128 Step 9: Column Press 'SEL' Line 1 Step 10A: Column Press 'SEL' Line 1 Step 10B: Column Press 'SEL and then ’ Line 1 Step 11: Column Press 'SEL' Line 1 Step 12A: Column Press 'SEL' Line 1 Step 12B: Column Press 'SEL and then ’...
