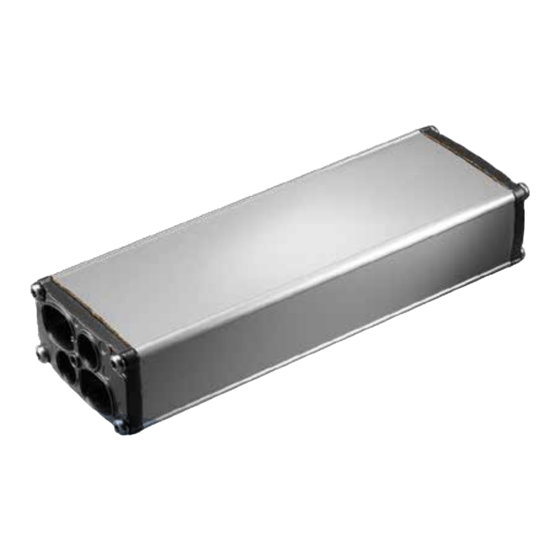

Summary of Contents for Linak SMPS-T160
- Page 1 SMPS-T160 User manual LINAK.COM/TECHLINE...
-
Page 2: Table Of Contents
Connection diagram - Single run, LA35 IC ....................15 Connection diagram - two actuators run individually ................16 Connection diagram - simultanious or parallel run................17 Cables ............................18-19 Dimensions ............................20-21 Label for SMPS-T160 ......................... 22 Key to symbols ............................22 Ordering example ..........................23 Chapter 5 Maintenance/cleaning .........................24 Repair ..............................24... -
Page 3: Preface
LINAK provides a warranty on all its products. This warranty, however, is subject to correct use in accordance with the specifications, maintenance being done correctly and any repairs being car- ried out at a service centre, which is authorised to repair LINAK products. -
Page 4: Linak Application Policy
LINAK shall be responsible solely that LINAK products comply with the specifications set out by LINAK and it shall be the responsibility of the LINAK customer to ensure that the specific LINAK product can be used for the application in question. -
Page 5: Safety Instructions
Immediately after the situation has been remediated the power output will be available again. Hot plugging: • It is not allowed to remove or to add the output cable as long as the SMPS-T160 is powered by mains. When the equipment is not in use •... -
Page 6: Important Information
Recommendations: • Only use the SMPS-T160 within specified working limits. • Do not place load on the SMPS-T160 housing and do prevent impact or blows, or any other form of stress to the housing. • Ensure that the cable cover is mounted correctly. Use 1.5Nm torque. -
Page 7: Mounting Guidelines
• When changing the cables on a LINAK SMPS-T160, it is important that this is done carefully, in order to protect the plugs and pins. Please be sure that the plug is in the right location and fully pressed in before the cable lid is mounted. -
Page 8: Electrical Installation
Electrical installation: I/O specifications - SMPS with standard output interface: Input/Output Specification Comments Description The actuator is powered by the SMPS and Power + signal Signal Signal Power + Signal the signals are transferred to a signal cable if attached to the SMPS AC Supply AC supply Extends the actuator... -
Page 9: Troubleshooting
Chapter 3 Troubleshooting: Symptom Possible cause Action No motor sound or No mains • Check the AC supply movement of the • Change cable piston rod Wrongly connected signal cables for • Check the signal wiring: moving in and out Outwards: Red wire +24VDC Inwards: Black wire +24VDC Actuator stops or no... -
Page 10: Specifications
• EMC Standards: EN 55014-1:2006+A1:2009+A2:2011 EN 55014-2:1997+A1:2001+A2:2008 EN 61000-3-2:2006+A1:2009+A2:2009 EN 61000-3-3:2013 • Safety Standards: EN 61558-1:2005+A1:2009 EN 61558-2-16:2009+A1:2013 * Please be aware that the SMPS-T160 has a lower duty cycle than the actuator. This must be respected! Page 10 of 28... -
Page 11: Output
Output: • Nominal output voltage 29 V DC (V • Ripple ≤500 mVp-p • Total Output current 5.5 A at a duty cycle of 10% Ton= 2 minutes • Please be aware if connecting an external control to an SMPS configured with an output interface: Hand control. -
Page 12: System Combination Possibilities
System combination possibilities: LA14 IC LA12 IC LA25 IC LA23 IC SMPS-T160 Bluetooth Signal cable RF receiver HB40 receiver Type: Article No. Bluetooth receiver TR-LMC2015* Compatible with iPhone 4S and up or Android EU Market (868.3MHz) US market (916 MHz) -
Page 13: System Combination Possibilities
System combination possibilities - LA35 IC: LA35 IC SMPS-T160 Signal cable Type: Article No. Standard TECHLINE signal cables See the table “TECHLINE signal cables” on page 20 Page 13 of 28... -
Page 14: Connection Diagram - Single Run
Connection diagram - Single run: Fig. 1 : SMPST160+6UX0X0 LA14 IC LA12 IC LA25 IC LA23 IC SMPS-T160 Bluetooth HB40 Signal cable RF receiver receiver For more information on the flying leads, please see the I/O specifications in the user manual for the... -
Page 15: Connection Diagram - Single Run, La35 Ic
LA35 IC Flying leads SMPS-T160 Please be aware that it is only possible to connect one actuator (LA35 IC) and flying leads to this system! For more information on the flying leads, please see the I/O specifications in the LA35 user manual... -
Page 16: Connection Diagram - Two Actuators Run Individually
Connection diagram - two actuators run individually: Fig. 3 : SMPST160+6UX0X0 LA14 IC LA12 IC LA25 IC LA23 IC SMPS-T160 Bluetooth RF receiver HB40 Signal cable receiver Please be aware • For this solution it is possible to connect either two identical IC actuators (e.g. LA14 IC and LA25 IC) in the two actuator sockets OR two different IC actuators. -
Page 17: Connection Diagram - Simultanious Or Parallel Run
Connection diagram - simultanious or parallel run: Fig. 4: Simultanious: SMPST160+6UX2X0 (BT,RF,HB,DP) / SMPST160+6UX4X0 (flying leads) Parallel: SMPST160+6UX4X0 (BT,RF,HB,DP) / SMPST160+6UX5X0 (flying leads) LA14 IC LA12 IC LA25 IC LA23 IC SMPS-T160 Bluetooth RF receiver HB40 Signal cable receiver Please be aware: •... -
Page 18: Cables
Cables: The SMPS-T160 is designed with exchangeable cables. Note: • The signal and power cables must be ordered either seperately or together with the actuator. Mains cables: Plug types Article No. Material # Wires Size Colour Length Cable type (mm) -
Page 19: Cables
TECHLINE signal cables: Plug types Article No. Material # Wires Size Colour Length (mm) Cable type Flying leads* 0367049-1500 20AWG Black 1500 Straight Flying leads* 0367049-5000 20AWG Black 5000 Straight * The cable comes with an AMP connector that can be removed for flying leads Page 19 of 28... -
Page 20: Dimensions
Dimensions: Without brackets: MPS-T160_LONG_BRACKETS MPS-T160_LONG_BRACKETS With short brackets: ( 250.6 ) ( 35 ) Page 20 of 28... - Page 21 With long brackets: ( 250.6 ) Page 21 of 28...
-
Page 22: Label For Smps-T160
It is important that the operator follows the instructions of the duty cycle; otherwise, a possible overload may result in reduced product life/errors 7. W/O: #1234567-0001 The LINAK work order followed by a unique sequential identification number Key to symbols: The following symbols are used on the SMPS-T160 label:... -
Page 23: Ordering Example
Ordering example: Gross price list Effective date 2012-10-30 SMPS T160 + 6 U 0 Not used Fixed mains cable 0 = None 1 = EU (3200mm) 2 = CH/Japan (3200mm) 3 = UK (3200mm) 4 = UL (3200mm) 5 = Australia (3200mm) Output interface 0 = Standard 1 = Hand control... -
Page 24: Maintenance/Cleaning
LINAK service centre. In order to avoid the risk of malfunction, all SMPS-T160 repairs must only be carried out by an authorised LINAK Service shop or repairer, as special tools and parts must be used. -
Page 25: Declaration Of Conformity
LINAK A/S Smedevænget 8 DK - 6430 Nordborg hereby declares that LINAK Switch Mode Power Supply, type SMPS-T160 complies with the EMC Directive: 2014/30/EU according to following standards: EN 61000-6-1:2007, EN 61000-6-3:2007 complies with Low Voltage Directive 2014/35/EU according to the standard:... -
Page 26: Declaration Of Incorporation Of Partly Completed Machinery
DECLARATION OF INCORPORATION OF PARTLY COMPLETED MACHINERY LINAK A/S Smedevænget 8 DK - 6430 Nordborg Herewith declares that LINAK TECHLINE ® products as characterized by the following models and types: Linear Actuators LA12, LA14, LA22, LA23, LA25, LA30, LA35, LA36, LA37... - Page 27 Page 27 of 28...
-
Page 28: Addresses
While LINAK uses its best efforts to fulfil orders, LINAK cannot, for the same reasons as mentioned above, guarantee the availability of any particular product. Therefore, LINAK reserves the right to discontinue the sale of any product displayed on its website or listed in its catalogues or other written material drawn up by LINAK.
