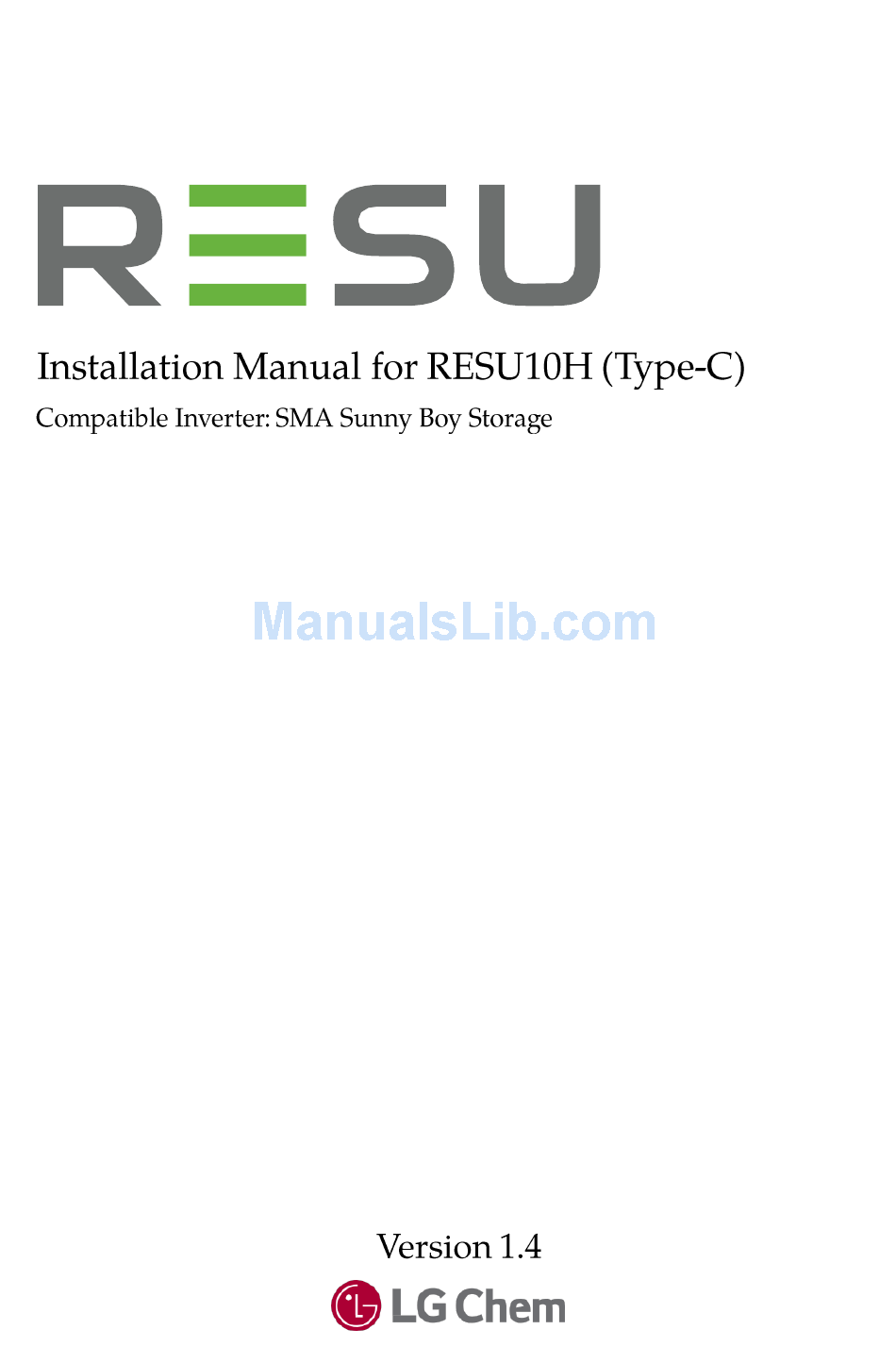

  • Page 2 The information included in this manual is accurate at the time of publication. However, this manual is subject to change without prior notice. In addition, the concepts and installation instructions. Please note the image shown is for illustration purposes only. May.2017...

  • Page 3: Table Of Contents

    Contents Safety Symbols ........................5 Safety instructions ....................6 1.2.1 General safety precautions ................ 6 1.2.2 Battery handling guide ................6 1.2.3 Response to emergency situations ............8 Warning label ......................9 Quali ed personnel ..................... 10 Product Introduction Technical data ....................... 11 2.1.1 Dimensions and weight ................
  • Page 4 Contents Commissioning LED indicators ..................... 27 Powering up the battery pack ................28 Shutting o the battery pack ................28 Troubleshooting Troubleshooting ....................29 5.1.1 Post-Installation Check List ..............30 5.1.2 Troubleshooting Guideline ..............30 Uninstallation & Return Return/replacement instructions ................32 6.1.1 Uninstallation from the wall ..............

  • Page 5: Safety

    1 Safety Symbols Caution, risk of electric shock Install the product out of reach of children. Read the instruction manual before starting installation and operation. Heavy weight may cause serious injury to the back. Do not dispose of the product with household wastes. Recyclable Disconnect the equipment before carrying out maintenance or repair.

  • Page 6: Safety Instructions

    Safety Safety instructions For safety reasons, installers are responsible for familiarizing themselves with the contents of this document and all warnings before performing installation. 1.2.1 General safety precautions Over-voltages or wrong wiring can damage the battery pack and cause de agration, which can be extremely dangerous.
  • Page 7 • The RESU battery pack has been cerified IP55 and can be installed indoors as well as outdoors. However, if installed outdoors, do not allow the battery pack to be exposed to direct sunlight and water source as it may cause :...

  • Page 8: Response To Emergency Situations

    Safety 1.2.3 Response to emergency situations The RESU10H battery pack comprises multiple batteries that are designed to prevent hazards resulting from failures. However, LG Chem cannot guarantee their absolute safety. • If a user happens to be exposed to internal materials of the battery cell due to damage on the outer casing, the following actions are recommended.

  • Page 9: Warning Label

    Safety Warning label Warning labels and other relevant labels are attached to the inside of the battery pack. 1. Warning label 2. Product label 3. Traceability label...

  • Page 10: Quali Ed Personnel

    Safety Qualified personnel This guide and the tasks and procedures described herein are intended for use by skilled workers only. A skilled worker is defined as a trained and qualified electrician or installer who has all of the following skills and experience: • Knowledge of the functional principles and operation of on-grid and off-grid (backup) systems.

  • Page 11: Product Introduction

    2 Product Introduction Technical data 2.1.1 Dimensions and weight RESU10H EVESPBO0100A0 Width 744 mm (29.3”) Height 907 mm (35.7”) Depth 206 mm (8.1”) 907 mm Weight 99.8 kg (220 lbs) (35.7”) 1) A battery pack’s weight varies slightly. 744 mm (29.3”)

  • Page 12: Performance

    Product Introduction 2.1.2 Performance RESU10H Electrical Characteristics Total Energy Capacity 9.8 kWh@25°C (77°F), 100% State of Energy Usable Energy Capacity 9.3 kWh Battery Capacity 63 Ah Charge 468 to 550 V Voltage Range Discharge 430 to 507 V Absolute Max. Voltage 570V Max.

  • Page 13: Feature

    Product Introduction Feature • Compact Energy storage unit for domestic photovoltaic system compatibility • Residential 400V DC battery pack system : Daily cycle residential battery system • No Additional Devices : Aux Power and Protection Devices* Included *Protection Devices - Inverter interface (between Battery Pack and Inverter) : Over Voltage, Over Current, External Short Circuit, Reverse Polarity, Inrush Current, Ground Fault , Over Temp.

  • Page 14: Installation

    3 Installation Mechanical requirements 3.1.1 Unboxing the package 1. Cut the packing tape and open the carton. 2. Pull out other items. Take them out and check if any item is missing. See Package items on section 3.1.2...

  • Page 15: Unboxing The Package

    Installation 3. Remove the wall bracket guide pad & cushioning pad. 4. Remove the side pad. 5. Pull out the battery pack using handles and stand it up. (Lift handles are sold separately for this product.) CAUTION According to regional regulations, several people may be required for moving equipment.

  • Page 16: Items In The Package

    Installation 3.1.2 Items in the package These items are included in the package. Battery pack Wall bracket M6 wall mount Manual bolts (2EA) 3.1.3 Installation locations Required : • There must be no highly ammable or explosive materials nearby. • The ambient temperature should be within the range of 14 ~ 113°F (-10 ~ 45°C).

  • Page 17: Clearance

    Installation 3.1.4 Clearance • Recommended clearances for the left, right, top and bottom of the product 300mm (12") is shown in the figure for the proper ventilation and installer convenience. 300mm 300mm (12") (12") 600mm (24") Floor 3.1.5 Tools & safety gears required •...
  • Page 18 Installation • Safety gears for personal protection It is recommended to wear the following safety gears when handling the battery pack. Insulated gloves Safety goggles Safety shoes NOTE RESU HV is heavy and challenging to lift. Lift handles are recommended.

  • Page 19: Mounting Bracket

    Installation 3.1.6 Mounting bracket When installing the battery pack on a wall, make sure that the wall is capable of supporting the weight of the battery pack. To mount the battery pack on a wall, take the following steps : 1.

  • Page 20: Appearance And Dimension

    Installation 3.1.7 Appearance and dimension • Appearance Proper handling and care is recommended as disassembly, change of color, battery pack. • Pack appearance and dimension 907mm (35.7") Color and Material 744mm - Front / Rear Cover : Silver or Gold, Aluminum (29.3") - Top / Bottom / LED Cover : Black, Plastic 206mm...

  • Page 21: Installing The Battery Pack

    Installation 3.1.9 Installing the battery pack CAUTION connecting the power cable to the battery pack. 1. Fix the lift handles to the hex-socket screws on the rear (marked position) of both left and right sides. 2. Mount the wall bracket to a wall. Tighten the screws, ensuring that they are horizontally driven into the wall.
  • Page 22 Installation 4. Tighten the two hex-socket screws enclosed and remove the lift handles. The nuts for these screws are welded to the battery pack chassis. Tighten to a torque of 5 N m using the M6 • torque wrench. 5. Press the two buttons and pull the two latches (marked position) on the rear side of the wiring box cover (hinged door).
  • Page 23 Installation 7. Loosen the screw (marked position), and remove the transparent protection cover. CAUTION If you lose or break a protection cover, that violates NEC Regulation. Transparent protection cover 8. Remove the cap on hole in the bottom side, and assemble the ¾" conduit plug.

  • Page 24: Cable Connection

    Installation 10. See 3.2.1. for Power Cable specications a) Connect the ground wire to terminal 1. b) Connect the negative line of the power cable to terminal 2. c) Connect the positive line of the power cable to terminal 3. 11.
  • Page 25 Installation CAUTION Please must do the switch on & o operation at the middle side of SHT31 and Ex9BP combined. It’s forbidden to do the operation at the left or right edge side of combined body. Any wrong operation cause the products break o . 13.

  • Page 26: Auxiliary Power Switch And Spring Terminal Blocks

    Installation Cable connection 3.2.1 Spring terminal blocks Power terminal block Communication terminal block 1. Power terminal block • Max. cable length: 10m (35ft) • Cable type : 4~10㎟ (10~12AWG) • DC 600V insulated • Pinning ( + ) • Phoenix contact ( - ) •...

  • Page 27: Commissioning

    4 Commissioning LED indicators The LED indicators on the front of the battery pack show its operational state as follows: LED Status Action Power on, Idle Charging Discharging Fault There are four LED indicators on the front of the battery packs to show its operating status.

  • Page 28: Powering Up The Battery Pack

    Commissioning Powering up the battery pack Put the battery pack in operation by taking the following steps : 1. Make sure that the circuit breaker switch is in the OFF position. 2. Move the circuit breaker switch to the ON position to turn on the main battery pack.

  • Page 29: Troubleshooting

    5 Troubleshooting Troubleshooting Check the indicators on the front to determine the state of the battery pack. A warning state is triggered when a condition, such as with voltage or temperature, is beyond design limitations. The battery pack’s BMS periodically reports its operating state to the inverter.

  • Page 30: Post-Installation Check List

    Troubleshooting 5.1.1 Post-Installation Check List 1. Visual check if the wiring matches with the installation manual. (3.2 Cable connection) 2. The Circuit Breaker is ON. 3. The battery "ON" LED is ON. The inverter power is ON. The inverter has the latest rmware. The inverter recognizes the battery.
  • Page 31 Troubleshooting If the battery LED is ON, but the battery is not charging or discharging 1. Update both the inverter and battery rmware version. Refer to the inverter's troubleshooting guide for instruction. 2. Check the inverter's setting for battery. Refer to the inverter's troubleshooting guide for the battery set-up instruction.

  • Page 32: Uninstallation & Return

    6 Uninstallation & Return Return/replacement instructions 6.1.1 Uninstallation from the wall 1. Switch OFF the Inverter before starting the uninstallation of the battery pack. 2. Press the two buttons and pull the two latches (marked position) on the rear. 3. Open the wiring box cover (about 2~10 degrees), and pull to remove it.
  • Page 33 Uninstallation & Return Check for voltage at power cable terminal. 7. Disconnect the communication cable from the communication port. 8. Disconnect the power cable from the terminal block. Disconnect the positive terminal (+) ① rst, and next the negative terminal (−) ②, and nally ground terminal ③.
