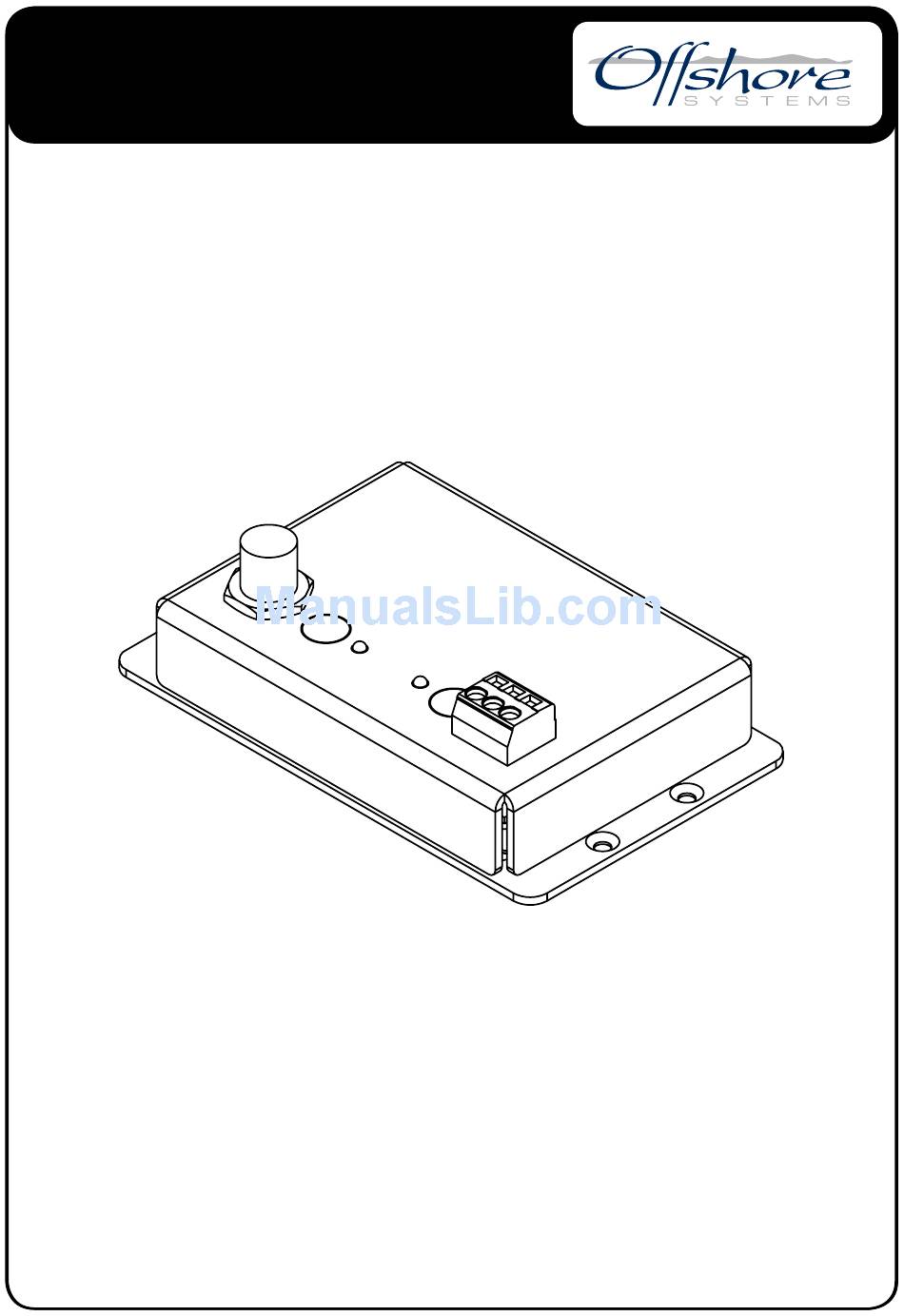

- Page 1 J1939 to NMEA2000® Adaptor Part Numbers: 3185 USER MANUAL Revision 1.01...
-
Page 3: Table Of Contents
1 Introduction ............2 1.1 Firmware Revision ..........2 1.2 Product Features ..........2 2 Installation ............3 2.1 Unpacking the box ..........3 2.2 Mounting the unit ..........3 2.3 Connecting the NMEA2000® Cable..............3 2.4 Connecting the J1939 cable to the WAGO socket..4 2.5 J1939 Connections..........4 3 Configuration............5 3.1 NMEA2000®... -
Page 4: Introduction
INTRODUCTION The Offshore System’s NMEA2000® 3185, J1939 to NMEA2000® Adaptor is designed to convert Engine, Transmission and Generator messages on the J1939 network onto the NMEA2000® network. This unit is designed to operate in a protected marine environment such as an engine room. It is very important that it is installed and set up correctly according to this manual. -
Page 5: Installation
INSTALLATION 2.1 Unpacking the box You should find the following items in the 3185 shipping box: 1 x 3185 J1939 to NMEA2000® Adaptor 1 x Din Rail mounting Kit with 2 rail mounts and 4 countersunk M3 screws for rails 1 x 3185 User Manual (This document) 2.2 Mounting the unit... -
Page 6: Connecting The J1939 Cable To The Wago Socket
2.4 Connecting the J1939 cable to the WAGO socket The cables from the power-source to the external sockets are connected using the WAGO Cage Clamp terminal block. The wire should be stripped for 8mm and then the cage clamp opened with a small screwdriver in the slot above the wire connection. -
Page 7: Configuration
CONFIGURATION The following two items can be configured directly on the 3185 using the two small rotary switches. There are no other menu setups to worry about. 3.1 J1939 Source The J1939 Source dial is now redundant to the design and does not require setting to a specific setting. - Page 8 PGN61445 Transmission Current Gear PGN65272 Transmission Oil Pressure Transmission Oil Temperature PGN65030 Generator Average Line to Line Voltage Generator Average Line to Neutral Voltage Generator Average Frequency Generator Average Current NMEA2000® Parameter Group Numbers (PGNs) Type PGN No Parameters Periodic Data PGNs PGN127488 Engine Parameters PGN127489...
- Page 9 Environmental Parameter Value IEC 60954 Classification Protected Degree of Protection IP40 Operating Temperature -25°C to 50°C Storage Temperature -40°C to 70°C Relative Humidity 93%RH @40° per IEC60945-8.2 Vibration 2-13.2Hz @ ±1mm, 13.2-100Hz @ 7m/s2 per IEC 60945-8.7 7 of 12...
-
Page 10: Warranty
Statements made by any person, including representatives of Offshore Systems, which are inconsistent or in conflict with the terms of this Limited Warranty, shall not be binding upon Offshore Systems unless reduced to writing and approved by an officer of Offshore Systems. -
Page 11: Technical Support
Email: mail@osukl.com Web: www.osukl.com Copyright © 2015 Offshore Systems (UK) Ltd. All rights reserved. Our policy is one of continuous product improvement so product specifications are subject to change without notice. Offshore Systems products are designed to be accurate and reliable. - Page 12 10 of 12...
