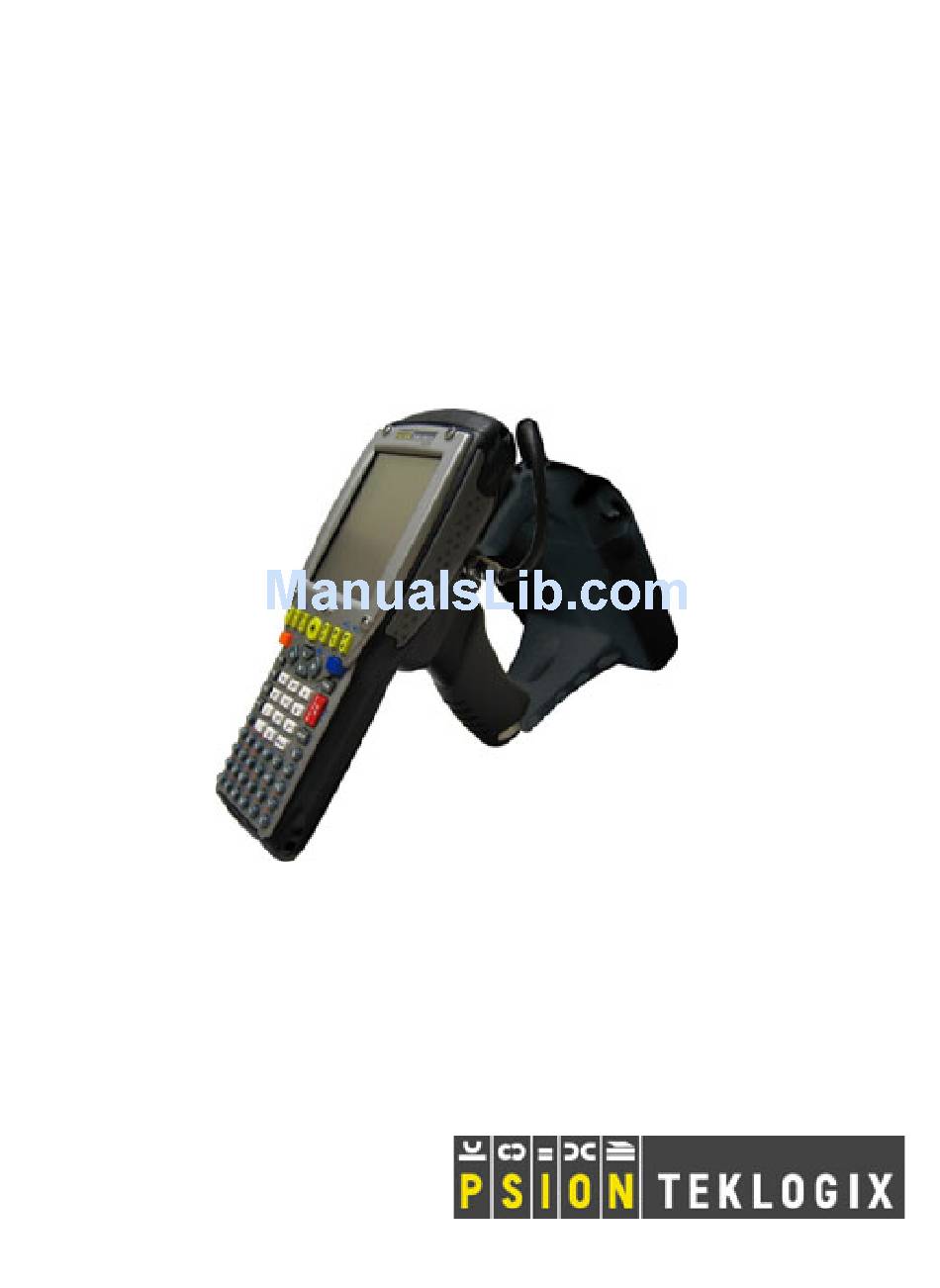

RD7950 Quick Start Guide
Integrated UHF RFID Reader
for the 7535 Hand-Held Computer
March 18, 2005
PN 8100056.A
ISO 9001 Certified
Quality Management System

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RD7950 and is the answer not in the manual?

Questions and answers

Summary of Contents for Psion Teklogix RD7950

  • Page 1 RD7950 Quick Start Guide Integrated UHF RFID Reader for the 7535 Hand-Held Computer March 18, 2005 PN 8100056.A ISO 9001 Certified Quality Management System...
  • Page 2 Psion Teklogix manufactured goods and services. Furthermore, this docu- ment is not to be used as a basis for design, manufacture, or sub-contract, or in any manner detrimental to the interests of Psion Teklogix Inc. All trademarks are the property of their respective holders.
  • Page 3 Return-To-Factory Warranty Psion Teklogix warrants a return-to-factory warranty for a period of one year. In some regions, the warranty exceeds this period. Please contact your local Psion Teklogix office for details. For a list of offices, refer to “Support Ser- vices &...

  • Page 5: Table Of Contents

    3. Installation........5 3.1 Enabling The RD7950 ......9 4.

  • Page 6: Fcc Interference Statement

    1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by Psion Teklogix, the party responsible for compliance, may void the user's authority to operate the equipment.

  • Page 7: Safety

    The antenna used for this transmitter must not be co-located in conjunction with any other antenna or transmitter. Safety The RD7950 Integrated UHF RFID Reader is intended for use with the Psion Teklogix 7535 Hand-Held Computer. Psion Teklogix RD7950 Quick Start Guide...

  • Page 8: Introduction

    IP54, protected against dust and water sprayed from all directions. Combined with a 1.22 m (4 ft.) drop rating to concrete, the RD7950 will keep working even when subjected to harsh impacts. Psion Teklogix RD7950 Quick Start Guide...

  • Page 9: Ergonomics

    Well balanced, lightweight, and with an easy-to-handle pistol grip, the RD7950 is easy to use for a full shift. 3. Installation To install the RD7950 Integrated UHF RFID Reader to the 7535 Hand-Held Computer, first attach the pistol grip. RD7950...
  • Page 10 Four black #4-40 Phillips head screws are provided with this acces- sory: two for insertion into the bottom holes, and two for insertion into the top holes through the RD7950 when attaching it to the 7535/ pistol grip assembly (see page 7).
  • Page 11 • Push the plug through the pistol grip, with the hole in the plug towards the front. Figure 3.3 • Attach the RD7950 to the 7535/pistol grip assembly by screw- ing it on with the top screws. Psion Teklogix RD7950 Quick Start Guide...
  • Page 12 • Screw the long screw through the pistol grip. Figure 3.4 • Plug the RD7950 into the tether port. Figure 3.5 Psion Teklogix RD7950 Quick Start Guide...

  • Page 13: Enabling The Rd7950

    • In the 7535 unit, when the trigger source is selected for RFID usage, pulling the trigger causes a Scanning icon to appear. While that icon is displayed, the RD7950 is powered on and actively probing for RFID tags. • When the trigger is released, the image will disappear, and the RD7950 is powered down.

  • Page 14: Product Specifications

    4.4 Technical Specifications Frequency Range: 902 to 928MHz Transmitter Power Output: 1Watt (30dBm) Channel Spacing: 500kHz Channel Bandwidth: Class 0: 205kHz Class 1: 300kHz ISO18000-6: 70kHz Number of Hops: Data Rate: 57600 Input Voltage: Psion Teklogix RD7950 Quick Start Guide...
  • Page 15 Write distance for Class 0+ and Class 1 tags is approximately 50% of the read distance referenced above. Weight Less than 1400g 7535 is approximately 775g (27oz.) with pistol grip. Integrated Reader is approximately 600g (21oz.). Psion Teklogix RD7950 Quick Start Guide...
  • Page 16 Cradle vibration: 1.5g RMS PSD (4 Hz - 500 Hz) Approvals Industry Canada RSS-210 FCC Part 15 Safety: UL 1950, CSA C22.2 No950, LVD EN60950 EMC: FCC Part 15 Class B, EMC Directive Class B Psion Teklogix RD7950 Quick Start Guide...

  • Page 17: Support Services & Worldwide Offices

    For technical support outside of Canada or the U.S.A., please contact your local Psion Teklogix office listed on our worldwide website: http://www.psionteklogix.com Click on the heading labelled “Contacts” to choose a Psion Teklogix technical support representative closest to you. Canada/U.S.A Canadian and U.S.

  • Page 18: Worldwide Offices

    Note: Customers calling the toll-free number should have their Psion Teklogix customer number or trouble ticket number available. Voice: 1 800 387-8898 (press option “2”) Fax: 1 905 812-6304 5.3 Worldwide Offices OMPANY EADQUARTERS ANADIAN ERVICE ENTRE Psion Teklogix Inc.
  • Page 19 SEE ALSO WWW PSIONTEKLOGIX Psion Teklogix S.A. La Duranne 135 Rue Rene Descartes BP 421000 13591 Aix-En-Provence Cedex 3; France Tel: +33 4 42 90 88 09 Fax: +33 4 42 90 88 88 E-mail: tekeuro@psion.com Psion Teklogix RD7950 Quick Start Guide...
