Explanation of Symbols ........21 Manufactured by: CooperSurgical, Inc. 95 Corporate Drive Trumbull, CT 06611 Phone 203-601-5200 Phone 800-243-2974 Fax 800-262-0105 ® LEEP System 1000 • Operating Manual... -
Page 3: Professional Use Guide
PROFESSIONAL USE GUIDE IMPORTANT The user of this equipment, LEEP System 1000 ® , should be thoroughly trained in the techniques of Loop Electrosurgical Excision Procedures. This equipment has been designed for use with LEEP Electrosurgical Accessories. DO NOT use this equipment for any purpose other than that for which it has been designed. - Page 4 LEEP procedure that address many of the questions and concerns that your patients may have regarding the procedure). D. SAFETY PRECAUTIONS 1. This equipment should only be used by a thoroughly trained physician in an adequately equipped medical facility. LEEP System 1000 ® • Operating Manual...
-
Page 5: I. Professional Use Guide
PROPER RF current through Active Electrode Generator patient to return pad Patient Patient return pad To conductor patient (Thigh) electrode continuity Grounded monitor Metal Case Patient may be grounded LEEP System 1000 ® • Operating Manual... - Page 6 8. The instructions for use described in this manual must be followed; other- wise, compromised safety, malfunction, injury to the operator and/or patient, or costly damage to the unit may occur. LEEP System 1000 ® • Operating Manual...
- Page 7 LEEP System 1000 ® • Operating Manual...
- Page 8 This may result in SIGNIFICANT changes in the electrosurgical effect at a given output power level setting. The use of CooperSurgical LEEP Electrodes is recommended. LEEP System 1000 ® • Operating Manual...
- Page 9 The following guidelines for power settings may vary due to the technique, clinical circumstances, accessory style, cutting wire diameter, size, configuration and user preference. Recommended Power Settings (Watts) for the CooperSurgical LEEP System 1000 ® Electrodes 34-46 REMEMBER, THIS IS NOT AN ATTEMPT TO TEACH ELECTROSURGICAL TECHNIQUE.
- Page 10 Therefore, the loop electrosurgical excision procedure (LEEP) may produce thermal effects at the periphery of the excised tissue and may make histopathologic interpretation difficult or impossible and not allow accurate diagnosis and need for further treatment. LEEP System 1000 ® • Operating Manual...
-
Page 11: System Features

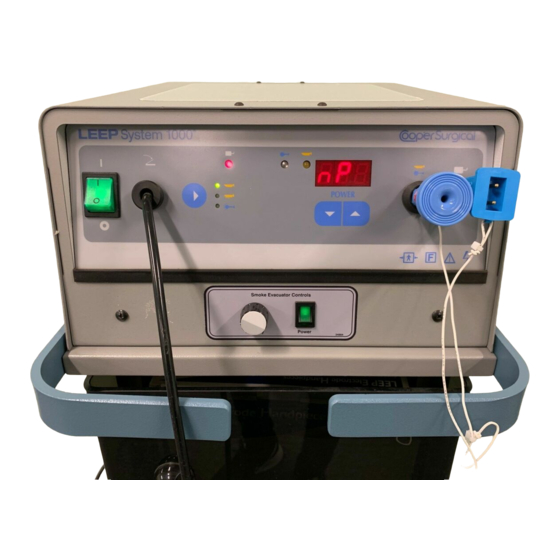

7. Pure cut and blend light (yellow) 3. Socket for active electrodes 8. Mode control: 4. Socket for neutral electrode Pure Cut Blend Cut 5. Warning light of neutral Coag electrode alarm (red) 9. Power control LEEP System 1000 ® • Operating Manual... - Page 12 COOLING ....Convection cooling without fan CONTROL ....Foot pedal operated (pneumatic) with audible signals and mode lights LEEP System 1000 ® • Operating Manual...
- Page 13 COAGULATION ..80 W RMS (open circuit 3800 Vp-p; crest factor 5.5) Waveform: sinusoidal at 450 KHz Duty cycle: 10% Output Power Diagrams according to PAR.6.8.3 (IEC 601-2-2) POWER (500 ohm) PURE CUT BLEND CUT Setting POWER (500 ohm) COAGULATION Setting LEEP System 1000 ® • Operating Manual...
- Page 14 Impedance 1.1K 1.2K 1.3K 1.4K 1.5K 1.6K 1.7K 1.8K 1.9K (ohm) Power 1 COAGULATION - POWER 100% 2 COAGULATION - POWER 50% Impedance 1.1K 1.2K 1.3K 1.4K 1.5K 1.6K 1.7K 1.8K 1.9K (ohm) LEEP System 1000 ® • Operating Manual...
- Page 15 • The fixed output power level should be adjusted to the lowest power setting that will successfully complete the procedure. Refer to the following recom- mended power settings for the CooperSurgical LEEP System 1000 ® Electrodes. LEEP System 1000 ®...
-
Page 16: Placement Of The Patient Plate
III. ELECTROSURGICAL PRECAUTIONS (cont.) Recommended Power Settings (Watts) for the CooperSurgical LEEP System 1000 ® Electrodes 34-46 The above power settings are for reference only and can be varied based on specific situations and the experience of the operator. NOTE: * If the cut mode is desired, use the recommended settings for the blend mode. -
Page 17: Foot Pedal Switch
When the unit passes SELF TEST the display will show current software revision i.e., r2A, r2B for several seconds then goes blank. LEEP System 1000 ® • Operating Manual... -
Page 18: Operation
At the end of the procedure turn the system OFF , and safely store the equipment and accessories. Power will reset to zero. VIII. SAFETY CIRCUITS The LEEP System 1000 ® is equipped with two (2) safety circuits. The first one checks the dispersive patient plate connection. -
Page 19: Periodic Safety Checks
The leakage current should never exceed the limit. The data should be recorded in an equipment log. If the device is not functioning properly or fails any of the above tests, the device has to be repaired. LEEP System 1000 ® • Operating Manual... -
Page 20: Troubleshooting
Er6 or Er7 the unit must be returned to your local Distributor for repair (see page 1). B. If upon completion of Self Test or if the unit stops functioning and the display LEEP System 1000 ® • Operating Manual... - Page 21 TROUBLESHOOTING reads nP and the red warning light is on, check the dispersive patient plate to insure that it is properly connected to the LEEP System 1000 ® C. If, following correct set-up of the system, it does not operate, works in an intermittent way, or stops working after a few seconds (without an audible signal), check for correct connection of pedal and its condition.
-
Page 22: Liability Statement
IEC requirements. XIV. WARRANTY CooperSurgical, Inc. warrants that the LEEP System 1000 ® (the "Product") will be free from defects in materials and workmanship for a period of one (1) year from the original date of purchase. -
Page 23: Explanation Of Symbols
Non-sterile Manufacturer Date of Manufacturer Caution: U.S. Federal law restricts this device to sale by or on the order of a physician. LEEP System 1000 ® is a registered trademark of CooperSurgical, Inc. © 2015 CooperSurgical, Inc. LEEP System 1000 ®... -
Page 24: Corporate Drive Trumbull, Ct
CooperSurgical, Inc. 95 Corporate Drive Trumbull, CT 06611 USA International 95 Corporate Drive Phone: (203) 601-9818 Trumbull, CT 06611 USA Fax: (203) 601-4747 Phone: (800) 243-2974 Fax: (800) 262-0105 www.coopersurgical.com 35387B • Rev. A • 11/15...
Need help?
Do you have a question about the LEEP System 1000 and is the answer not in the manual?
Questions and answers

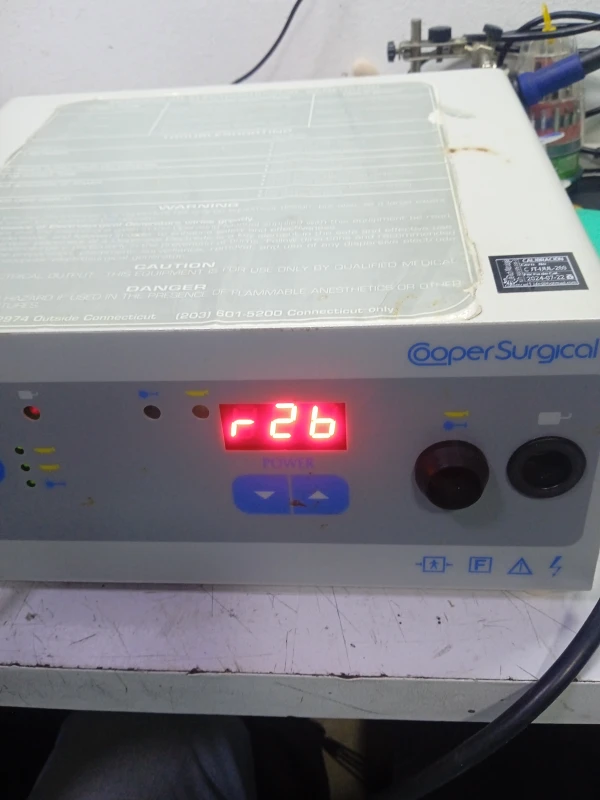

Tengo un error r 26 y luego aparece nP
