Ref.# NT_AND_RNS510
NaviTouch® Android for RNS-510

Advertisement

loading
Need help?

Need help?

Do you have a question about the NaviTouch Android and is the answer not in the manual?

Questions and answers

Related Manuals for VAG-Navisystems NaviTouch Android

Summary of Contents for VAG-Navisystems NaviTouch Android

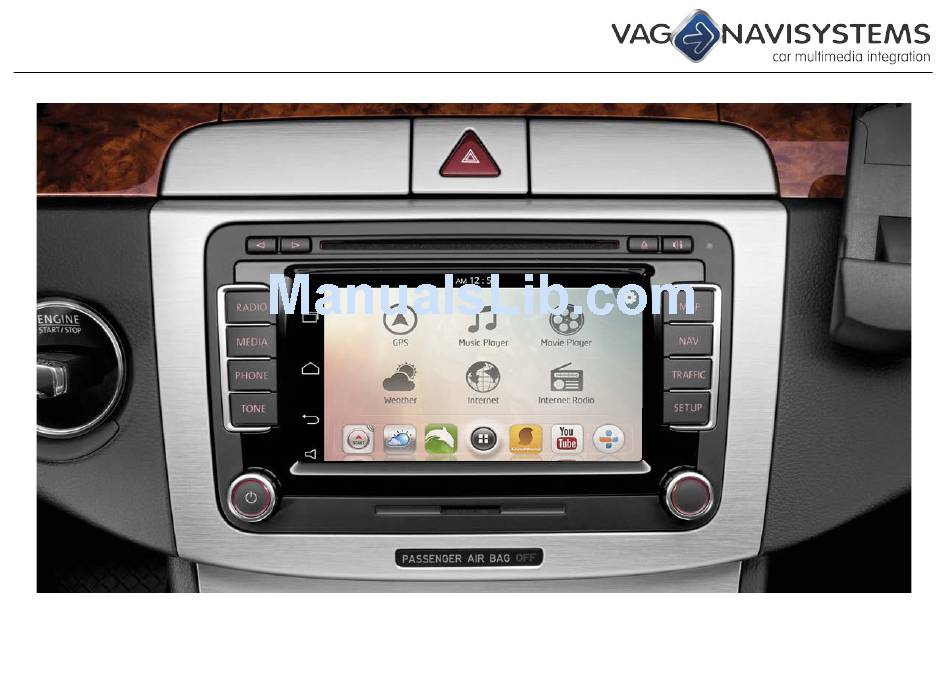

  • Page 1 Ref.# NT_AND_RNS510 NaviTouch® Android for RNS-510...

  • Page 2: Connections Diagram

    Connections diagram...
  • Page 3 Disassembling RNS-510 1. Unscrew the images red circled screws (you can find them on the top, bottom and at each side of the metal body of the RNS-510 unit). 2. Pull and extract carefully the head unit’s display (just some few centimeters, enough to disconnect the 3x LCD flexos), before proceeding to remove it totally and disattach the display from the metal body of the unit.
  • Page 4 Disassembling RNS-510 3. Insert a screwdriver into the red circled “holes” and leverage in order to disattach the front plastic cover form rear’s metal cover of the display block: 4. Remove from the display block the rear’s metal cover.
  • Page 5 Connecting the sub-board to the RNS-510 5. Remove the display’s image flexo by unattaching it from it’s blocking clamp (fig. 1) and save it in a secure place. This flexo won’t be used anymore. 6. Touch connections must be performed like this (fig. 2): Unattach from its “OEM touch connector” blocking clamp the “OEM Touch flexo”.
  • Page 6 Connecting the sub-board to the RNS-510 7. Connect the “Kit’s image flexo” to the image flexo connector that we have released at the beginning of the process. It’s important to make sure that flexo’s orientation position is the right shown on the image (fig.1).
  • Page 7 Connecting the sub-board to the RNS-510 8. Connecting the display’s touch flexos to the sub-board: First, connect the “wiring harness + kit’s flexo” (1) coming out from the display, to the sub-board’s touch out connector (1 “TS-OUT”). Connect the “additional flexo” (2) to the sub-board’s touch input (2 “TS-IN”). 9.
  • Page 8 Connecting the sub-board to the RNS-510 10. Next step will be to bend like image (fig. 1) shows, one of the unit’s metal body lateral tabs, in order to be able to take out of the unit some cables through it . 11.
  • Page 9 Connecting the sub-board to the RNS-510 12. Connect the kit’s “image flexo (FROM SYSTEM BD)” side, to the unit’s main board “image flexo” blocking clamp (fig. 1). (fig. 1) (fig. 2) 13. Connect the kit’s “image flexo (SUB B/D) ”central connector, to the sub-board’s central free blocking clamp (fig.
  • Page 10 Connecting the sub-board to the RNS-510 15. Before “closing” again the unit, extract the top cover and the CD/DVD unit. Protect with some foam the sub-board and its connections in order that it can remain inside the unit without being fixed with screws or anything else (fig.
  • Page 11 Configuring the multimedia interface 17. Using the keyboard plate, connected to the multimedia interface, press: “up”, “down”, “up” and “MENU” in order to be able to set the interface’s graphicel parameters (Menu of factory). It will appear a menu over the monitors image. 18.
