Summary of Contents for 2xWireless 2X
-

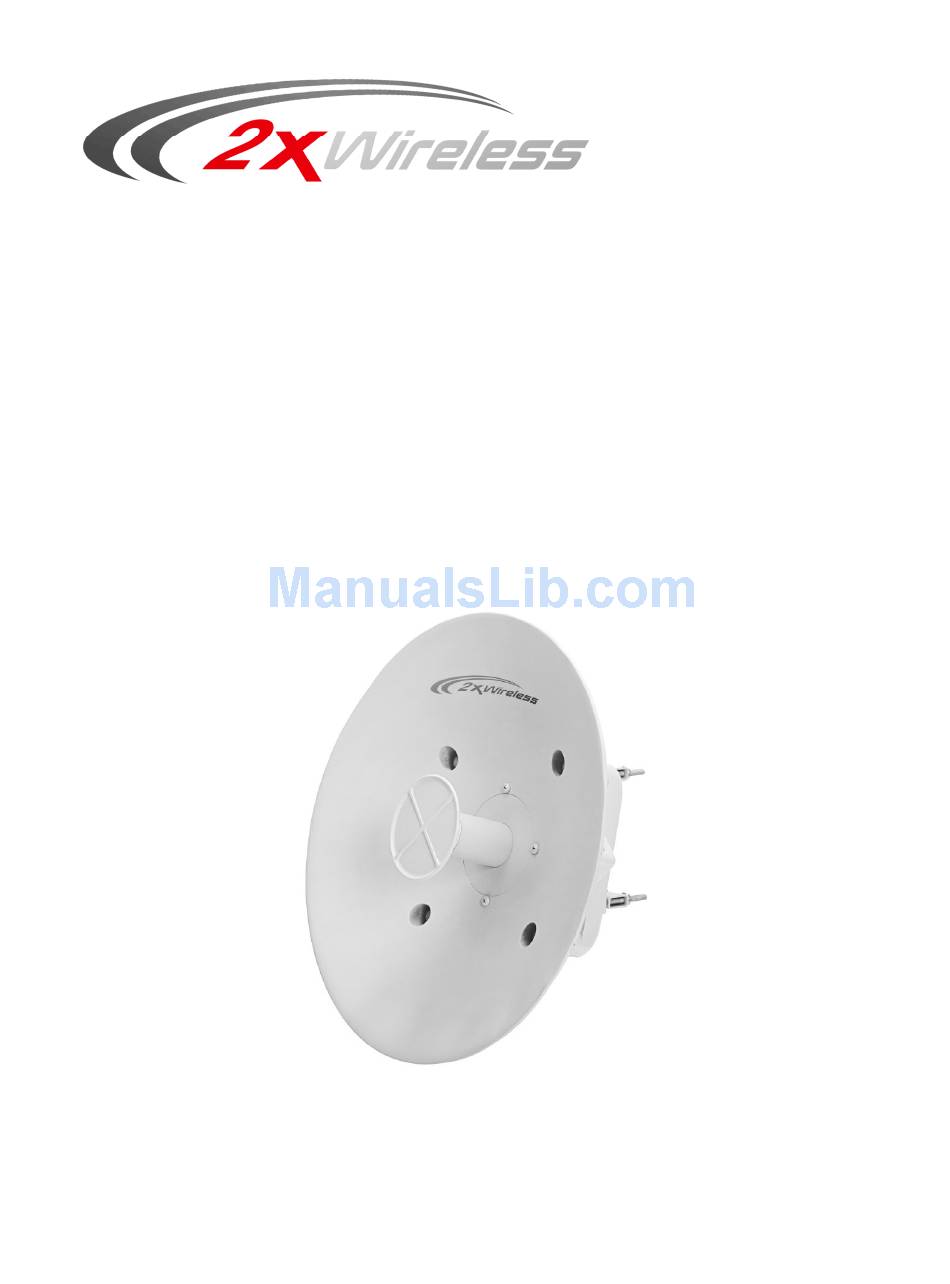

Page 1: User Guide
CPE INSTALLATION USER GUIDE Gen6 CPE – model 2X Version 3 Users and Installation Manual... - Page 2 The 2xWireless customer premise equipment (CPE) wireless device is a high performing, all outdoor device designed to provide high capacity data transfer, low latency and low jitter. The 2xWireless CPE provides a full duplex wireless connection utilizing a patent pending Frequency Division Duplex – Time Division Duplexing FDD-TDD 802.11 protocol capable of connection distances up to 25 miles.
- Page 3 Contents Each 2xWireless CPE kit comes with the following components. Shielded Ethernet cable and grounding cable are not included in the CPE package. Remove all parts from packaging and inspect for damage and missing parts before beginning assembly. Qty - Description Qty - Description A (1) 16”...
- Page 4 CPE Assembly Instructions Assembly of the mounting bracket 1. Insert both V-bolts through the inside of mounting bracket 1. The completed step should look like this. 2. Insert (4) of the 1” carriage bolts through the flat side of mounting bracket 2 as shown. Seat the base of the carriage bolt into the square hole in the bracket.
- Page 5 Assembly of the radio unit and reflector 3. Insert the feed horn of the radio unit through the hole of the reflector plate as shown. Orientation is not important at this time. 4. Attach the reflector to the radio unit with (4) 10-24 Phillips machine screws. Tighten the screws ¼...
- Page 6 Final assembly 5. Bolt the reflector and radio assembly to the mounting bracket assembly with the remaining four 1” long ¼”-20 carriage bolts and the four Serrated flange nuts. Tighten the nuts ¼ turn past snug. Note: The cable entry port must be facing down to prevent water from entering the device.
- Page 7 7. Insert the cable through rubber grommet and terminate the cable end. The cabling for installation is standard EIA/TIA 586B. For reference, the wiring diagram is included below the programming information. 8. Insert the cable end into the CPE. The tab on the end should click when properly seated in the radio unit.
- Page 8 6. Wireless setup screen.
- Page 9 Cable Pin outs An Industry Standard Ethernet pin-out is used in the installation of the CPE. Below is a picture depicting the cable pin-out for a straight-through cable. The image below conforms to the EIA/TIA industry standard for 568B. FCC Compliance & Installation Statement for FCC ID: RHK-G6CPE This is a Class B digital device.
- Page 10 FCC statement 15.27(b) This device should be professionally installed by a trained technician. The installer shall be responsible for ensuring that the proper antenna is employed to comply with FCC requirements. The equipment described herein may only be used in accordance with accessories listed in below for FCC ID numbers RHK-G6CPE.
-
Page 11: Warranty Information
2xWireless. 6. If it is necessary to return any defective device or part to 2xWireless, the product must be shipped in its original carton or equivalent packaging, fully insured with shipping charges prepaid. - Page 12 POSSIBILITY OF SUCH DAMAGES OR IF SUCH DAMAGE COULD HAVE BEEN REASONABLY FORESEEN. IN NO EVENT WILL 2XWIRELESS’ LIABILITY TO BUYER ARISING OUT OF OR RELATING TO THE PRODUCTS OR THESE TERMS EXCEED THE AMOUNT OF THE PURCHASE PRICE PAID TO 2XWIRELESS BY BUYER FOR THE PRODUCT THAT GIVES RISE TO THE CLAIM.
