INSTALLATION AND OPERATING INSTRUCTION

If you are unable to read or understand these instructions

INTRODUCTION

☆

The Avanti Z60 thermal remote control system was developed with the latest radio frequency (RF)

technology. The Avanti Z60 is easy to install. It allows the user to operate a gas appliance manually or

thermostatically with a user-friendly remote control system which does not require any household electric

current. The range of operation is approximately 20 feet (7 meters). The operating code of this remote

control system has been pre-programmed for instant operation after installation. However, its special

code-learning feature (on the receiver) allows the user to regulate the codes for operating with other

transmitters for a maximum flexibility. Note: installation in metal cabinets may limit the range of operation

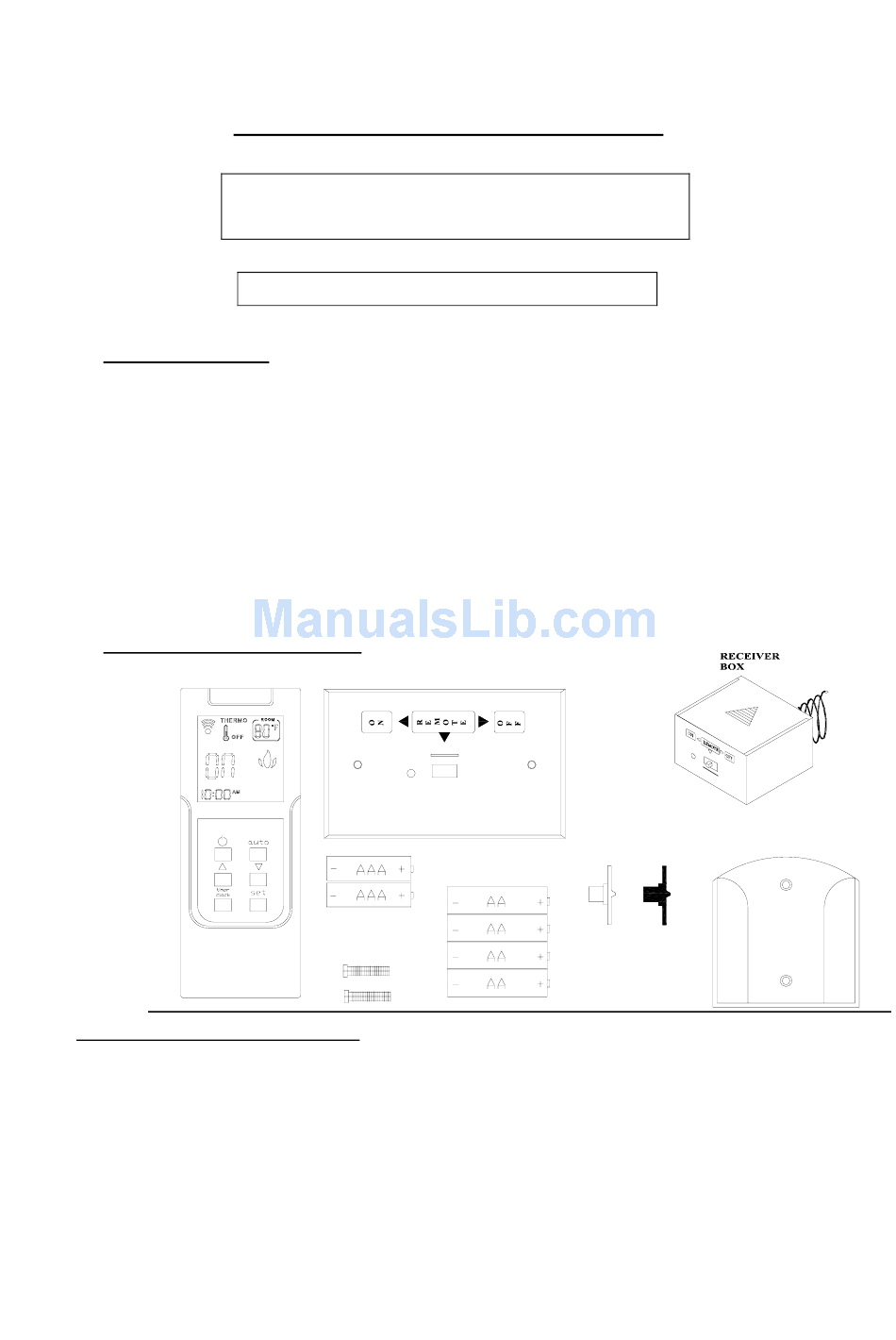

COMPONENTS INCLUDED

☆

TRANSMITTER

Description

Transmitter

"AAA" Batteries

Wall Mount Bracket (with Screws)

Receiver

"AA" Batteries

Wall Mount faceplate (with Screws)

Hearth Mount Slide knob (Black)

Avanti Hearth Products

Z60

do not attempt to install or operate

Please keep these Instructions for future reference.

WALL-MOUNT COVERPLATE

QTY

SLIDE BUTTONS

7) Velcro

at the bottom of the box

WALL MOUNT

BRACKET

Table of Contents

Need help?

Do you have a question about the Z60 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avanti Z60

Page 1 The Avanti Z60 thermal remote control system was developed with the latest radio frequency (RF) technology. The Avanti Z60 is easy to install. It allows the user to operate a gas appliance manually or thermostatically with a user-friendly remote control system which does not require any household electric current.
Page 2: Installing Batteries
Wall Mount Slide knob (White) Velcro INSTALLING Z60 REMOTE SYSTEM ☆ (A) Getting the Transmitter Ready: Installing Batteries The transmitter operates on 2 AAA-size 1.5V batteries. It is recommended that ALKALINE batteries always be used for longer battery life and maximum operational performance.
Page 3: Control Buttons

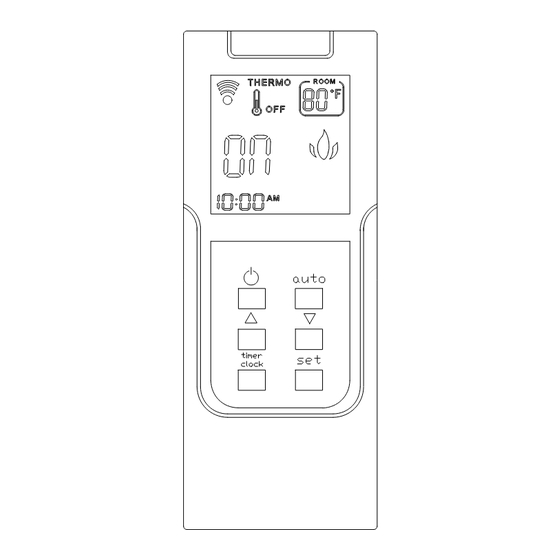

② Thermostat Indicator – Thermo Off appears when it’s manually on; Thermo On appears when thermostat is activated. ③ Manual On/ Temp Set – ON shows when it’s manually turned on; set temperature shows when thermostat is in operation ④ Clock – Indicates the current time in AM/PM ⑤...
Page 4: Operation Functions
(2) Adjust the temperature scale Dip Switch (on the left hand side, with ℉/℃ mark) with your fingernail or a ball pen point and move it to the ℃ scale on the right. To change from ℃ back to ℉, move the dip switch back to ℉ again. Operation Functions Note: The slide switch on the receiver must be placed in the REMOTE position for receiving commands from the transmitter.
Page 5: Setting The Countdown Timer
Setting the Countdown Timer The Avanti Z60 can be programmed to operate with a built-in countdown timer when the transmitter is in the ON or THERMO modes. ROOM THERMO To operate the timer, (1) Press the “Timer/Clock” button on the transmitter, “TIMER” icon will...
Page 6: Low Battery Indicator
(Fig-1) Communication Safety The Avanti Z60 has a communication-safety function built in its software. It provides an extra margin of safety when the transmitter is out of the normal 20-foot operating range of the receiver or has a power failure.
Page 7 The receiver operates on 4 AA-size 1.5V batteries. It is recommended that ALKALINE batteries always be used for longer battery life and maximum operational performance. Rechargeable batteries are not recommended. (1) Move the slide switch to the OFF position. (2) Slide-open the battery cover on the top of the receiver. (3) Insert 4 new or fully charged AA-size 1.5V batteries into the battery compartment.
Page 8: Control Panel
It may be necessary to program the remote receiver to LEARN the security code of the transmitter upon initial use, if batteries are replaced, if a replacement transmitter is purchased from your dealer or the factory, or any time the receiver does not respond to the transmitter due to the loss of codes.
Page 9: Installation
your home for an extended period of time. If the remote receiver is mounted out of children’s reach, placing the slide switch in the OFF position also functions as a safety “lock-out” by both turning the system off and rendering the remote receiver inoperative. If the transmitter is misplaced or damaged, the appliance can be operated in the ON or OFF position until the transmitter is replaced or located.
Page 10: Wiring Instructions
Make sure tab on slide button fits into groove on the receiver front panel. (4) Use the Velcro included in the package to adhere the receiver onto the hearth. Wall Mount ● ○ 1 Attach the wall cover plate to the receiver box: Position the receiver as shown in diagram with lower tab on wall cover plate into groove of...
Page 11 The remote receiver is connected to the millivolt valve using the TH (thermostat) terminals on ● the terminal block on the millivolt gas valve. Connect 18 gauge stranded or solid wires from the remote receiver to the gas valve. Operation of the remote receiver is similar to that of a thermostat in that both turn the gas ●...
Page 12: Troubleshooting
140 degree F. The Avanti Z60 has a THERMO- SAFETY feature that is built into the system’s RECEIVER. This feature is temperature- activated and provides an extra margin of safety when the receiver is operating where ambient temperatures exceed 140 F degrees inside the receiver case.
Page 13: Fcc Requirements
COULD VOID THE USER’S AUTHORITY TO OPERATE THE EQUIPMENT. Limited Lifetime Warranty Avanti Heart Products, LLC warrant the Avanti Remote Control system for a limited lifetime of the original owner of the remote system. This warranty is for the original purchaser of the product and is not transferable.
Page 14 Avanti will not be responsible for labor charges or damage incurred during installation of the product, replacement, repair or for any consequential or incidental damages.
Page 15 Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
