Congratulations on purchasing your very own UVI chair, which will make sure you are sitting correctly
and comfortably. Below you will find the guide for correct assembly and proper usage. For proper
assembly of the chair, please follow the instructions carefully.
The following assembly guides apply to the following models:
UVI Chair STYLER
UVI Chair DEVIL
UVI Chair Back in Black

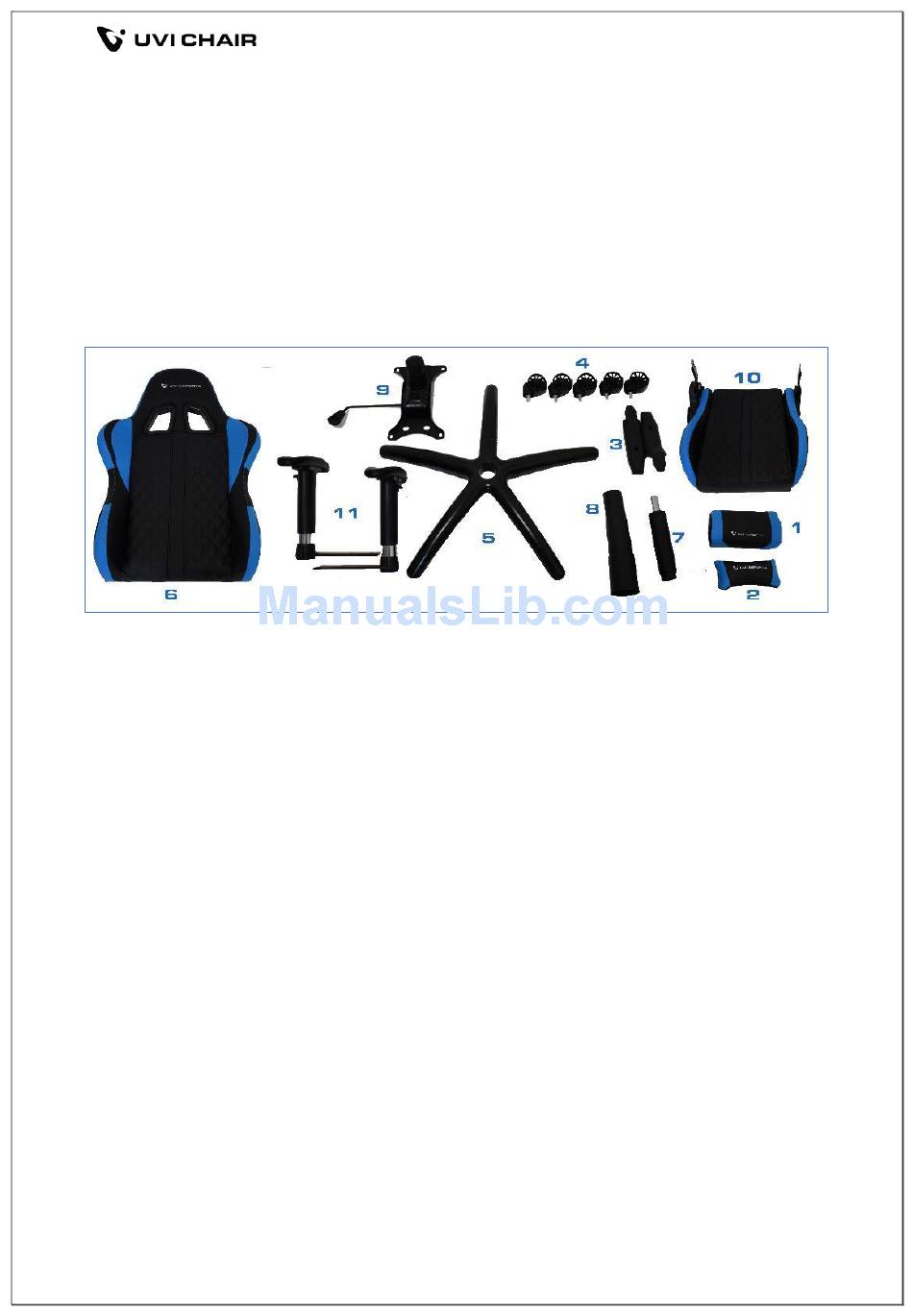

1. support pillow for your back
2. support pillow for your head
3. side caps
4. wheels
5. chair legs
6. back rest
7. gas spring
8. gas spring cover
9. gas spring control mechanism
10. bottom rest
11. arm rests
12. not pictured: screws, tool, hole covers...
Contents of the package
Assembly guide for UVI chair STYLER | DEVIL | BACK IN BLACK
1
Advertisement
Table of Contents
Related Manuals for UVI Chair STYLER
Summary of Contents for UVI Chair STYLER
- Page 1 Congratulations on purchasing your very own UVI chair, which will make sure you are sitting correctly and comfortably. Below you will find the guide for correct assembly and proper usage. For proper assembly of the chair, please follow the instructions carefully.
- Page 2 Assembly guide for UVI chair STYLER | DEVIL | BACK IN BLACK...
- Page 3 Do NOT hit the wheels! STEP 2 Insert the gas spring (7) into the chair legs (5) and cover the gas spring with the cover (8). Assembly guide for UVI chair STYLER | DEVIL | BACK IN BLACK...
- Page 4 FRONT and an arrow pointing forward. Turn the mechanism, so that the FRONT sign is facing the front part of the chair. Use the shorter screws M8x20mm (Shorter, C). Please, apply reasonable strength. Assembly guide for UVI chair STYLER | DEVIL | BACK IN BLACK...
- Page 5 Attach the arm rests (11) to the bottom plate (10). Use the longer screws M8x25mm (B). STEP 6 Place the bottom plate (10) on the gas spring (7). Please make sure that it fits together nicely. Assembly guide for UVI chair STYLER | DEVIL | BACK IN BLACK...
- Page 6 L (left side) and R (right side) are indicated and they mark the side where each of the two covers should be applied. At last, apply the hole covers. Assembly guide for UVI chair STYLER | DEVIL | BACK IN BLACK...
- Page 7 For easier installation, push the sitting foam downward and push the band through with the other hand. Congratulations, you have successfully assembled your own UVI chair. In case you need any additional information, please can contact us via email info@uvichair.com...
- Page 8 Jumping, hanging and similar activities are, of course, not advised. You can adjust the height, back rest and tilt of your UVI chair. Adjust the height by using the handle under the seat (on the right side).If you want your chair to go higher, please get off of the chair, and if you want to lower the position, simply sit on it.
