Summary of Contents for New Classic Home Furnishings 1415-9

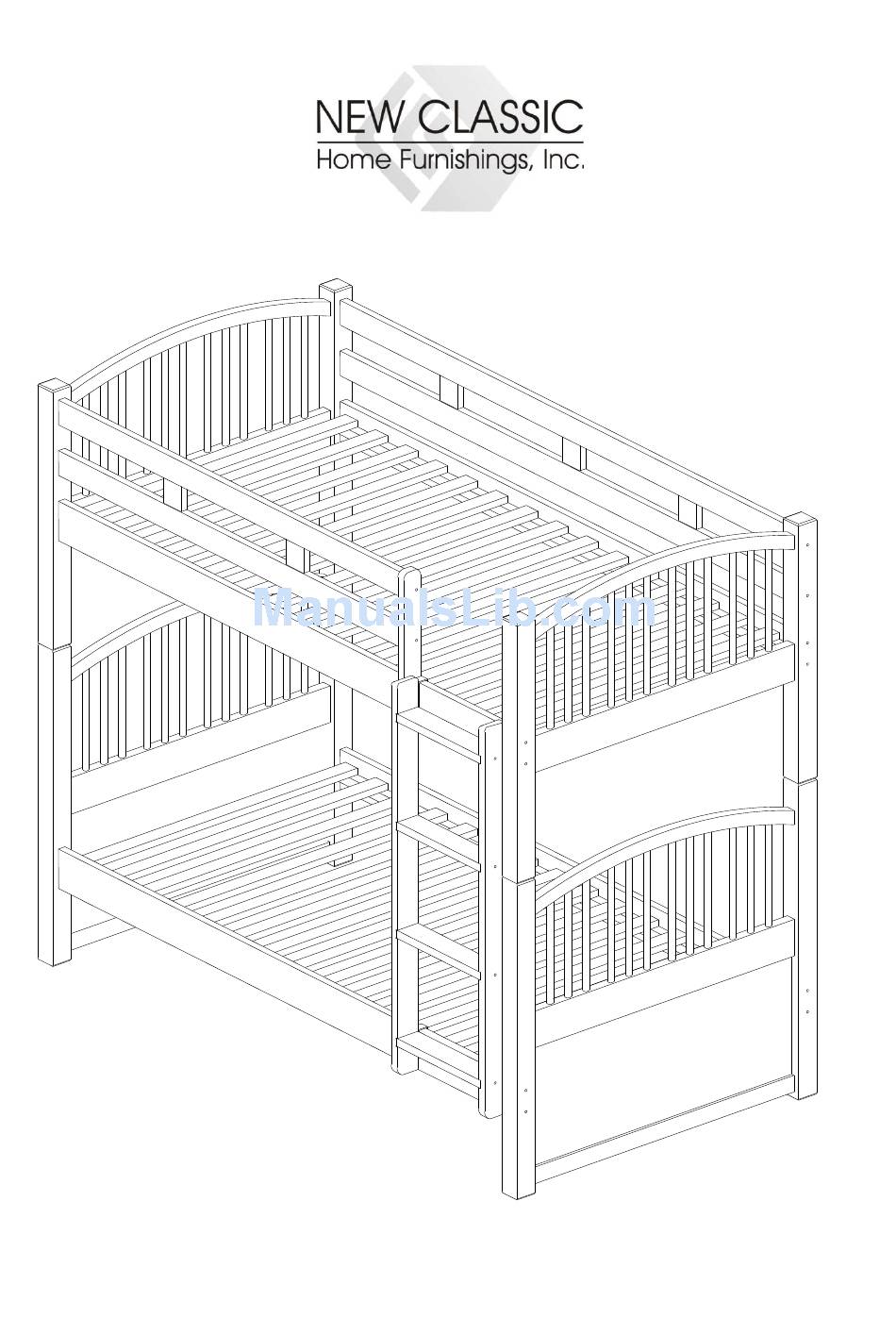

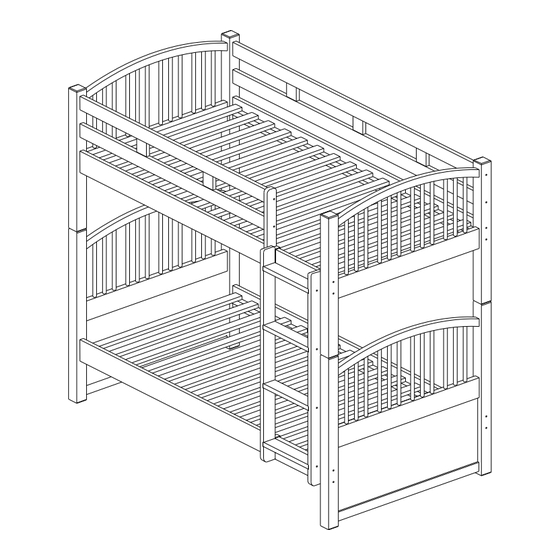

- Page 1 1415-9 Bunk Bed Assembly Instructions -Use Only standard Twin size mattress (75” long x 39” wide)- -Maximum mattress thickness must not exceed 8”- -Surface of mattress must be at least 5” below the upper edge guardrails- Top Bunk Weight Limit 200 Lbs...
- Page 2 1415-9 Bunk Bed Assembly lnstructions Please read the instructions and verify that all parts listed on the parts list are complete Parts List Part # Description Part # Description Lower Headboard J- L Vertical Ladder Support. (left) Lower Footboard Vertical Ladder Support. (right)
- Page 3 1415-9 Bunk Bed Assembly Instructions. Step 1 Assembling Lower Bunk Insert 2 Barrel Nuts (P) into each end of the Mattress Side Rails (E). Be sure the long slot on the Barrel Nut is facing out and towards the end of the side rail.
- Page 4 Please follow the Upper Bunk Assembly instructions carefully to insure a safe and sturdy bed. Step 3 Assembling Upper Bunk DO NOT FULLY TIGHTEN ANY BOLTS UNTIL ALL UPPER BUNK PIECES ARE CONNECTED The Upper Footboard should be positions so the Post with the two holes is facing towards the front. Back Side –...
- Page 5 Step 4. Connecting Bunk Beds Insert Steel Connector Pins (K) into holes on top of lower bunk posts. Pins should extend 1 1/4” above post. Place top bunk over pins and onto Lower bunk. Step 5. Assembling Ladder Attach left ladder support (J-L) to steps (part J-2) using Barrel Nuts (P). The top of the ladder supports have 2 predrilled holes for securing ladder hooks.
- Page 6 Bunk Bed Safety Warnings Follow the Information on the warnings appearing on the Upper bunk end structure and on the carton. Do Not remove warning label from bed. Always use the recommended size mattress or mattress support, or both, to help prevent the likelihood of entrapment or falls.
