O w n e r / O p e r a t o r M a n u a l
HG272E
I T ' S A D I R T Y W O R L D ... L E T ' S C L E A N I T U P !

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HG272E and is the answer not in the manual?

Questions and answers

Summary of Contents for Storm Jet HG272E

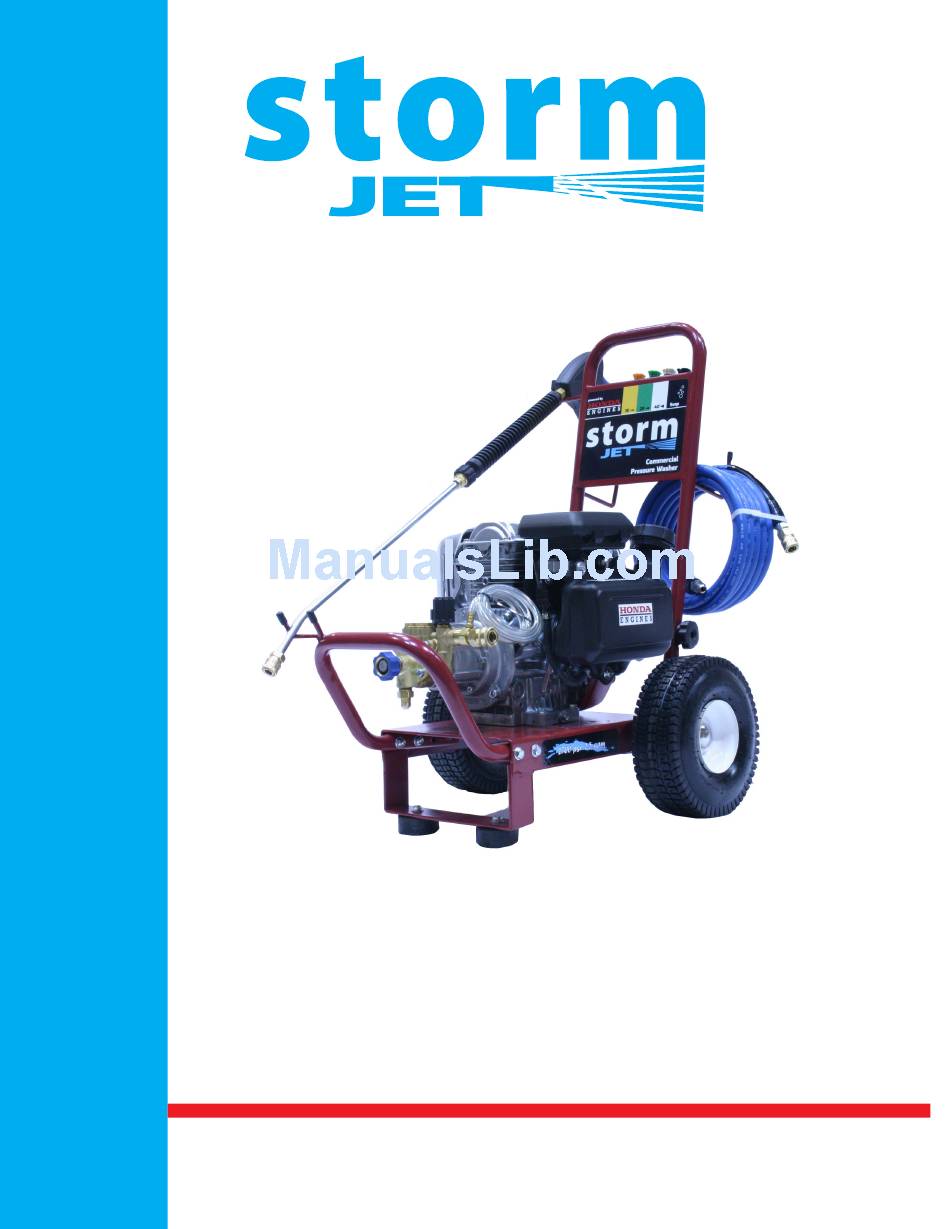

  • Page 1 O w n e r / O p e r a t o r M a n u a l HG272E I T ’ S A D I R T Y W O R L D … L E T ’ S C L E A N I T U P !

  • Page 2: Safety Warnings

    Owner/Operator Manual – HG272E Safety This machine is designed to produce very high pressure at the outlet nozzle. High pressure from spray or leaks can Warnings penetrate skin and cause serious injury or death. Never direct the spray towards any part of the body.

  • Page 3: Before You Start

    Owner/Operator Manual – HG272E Before You Engine Oil – Ensure oil level reads to top of dipstick. (Use10W-30 engine oil). Start Pump Oil –This pump comes pre-lubricated from facory. Oil level check not required. Consult factory if pump oil is leaking.

  • Page 4: Pressure Washer Components

    Owner/Operator Manual – HG272E Pressure Washer Components 9 10 11 14 Item Part # Description Item Part # Description HE-GC190-QHC HONDA 6HP 3/4" SHAFT RES. PP-403040 NOZ QD 3.0 ORIF 40 DEG SPRAY REC STRT PP-318605 FILTER PLASTCHEM INJ PA-24-GXH2525111H GXH2525 PUMP W/ 3/4"...
  • Page 5 Owner/Operator Manual – HG272E Gun and Wand Assembly PP-721363 Part # Description PP-721361 Gun W/Extention, 22mm Coupler PP-130201 0-Ring PP-721362 Lance Extension, 24” 22mm x 1/4 QC Gun and Wand Assembly PP-719360 Part # Description Part # Description PP-318520 Shut-Off Gun PP-318200 Coupler, 1/4”...
  • Page 6 Owner/Operator Manual – HG272E Pump GX2525 Part # Description Qty. Part # Description Qty. PP-24-07805 Radial Shaft Seal PP-24-06392 PP-24-06310 Adapting Flange PP-24-06412 Manifold PP-24-06294 O-Ring PP-24-06295 Discharge Valve Cone PP-24-06300 Rear Bearing PP-24-07910A Triangle O-Ring PP-24-06566 Wobble Plate (GXRH2424)

  • Page 7: Cylinder Barrel

    Owner/Operator Manual – HG272E CYLINDER BARREL Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 12000-Z0Y-405 BARREL ASSY., CYLINDER •••••• 2 12311-ZL8-D00 COVER, HEAD ••••••••••••••••• 3 12355-ZL8-000 COVER COMP., BREATHER ••••••• 4 90013-883-000 BOLT, FLANGE, 6X12(CT200) •••...
  • Page 8 Owner/Operator Manual – HG272E CYLINDER BARREL Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue cod 190A 1 12000-Z0Y-405 BARREL ASSY., CYLINDER •••••• 2 12311-ZL8-D00 COVER, HEAD ••••••••••••••••• 3 12355-ZL8-000 COVER COMP., BREATHER ••••••• 4 90013-883-000 BOLT, FLANGE, 6X12(CT200) •••...
  • Page 9 Owner/Operator Manual – HG272E CRANKSHAFT Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 13310-Z1A-000 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- SHE1,SHE6 2 13310-Z1A-600 CRANKSHAFT COMP. •••••••••••• 1 -------- -------- QFC,QHA,QHAF,QHA1,QHA2,QHC,QHE,QHE5,QHU 3 13310-Z1A-650 CRANKSHAFT COMP. ••••••••••••...

  • Page 10: Piston/Connecting Rod

    Owner/Operator Manual – HG272E PISTON/CONNECTING ROD Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 13010-Z0Y-004 RING SET, PISTON (TEIKOKU) •• 2 13101-Z0Y-000 PISTON •••••••••••••••••••••• 3 13111-Z0Y-000 PIN, PISTON ••••••••••••••••• 4 13200-Z0Y-000 ROD ASSY., CONNECTING •••••••...
  • Page 11 Owner/Operator Manual – HG272E CAMSHAFT Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue cod 190A 1 12209-ZM0-003 SEAL, VALVE STEM •••••••••••• 2 14320-Z0Y-000 PULLEY COMP., CAM ••••••••••• 3 14324-ZL8-000 SHAFT, CAM PULLEY ••••••••••• 4 14400-Z0J-014 BELT, TIMING (84HU7 G-200) ••...

  • Page 12: Recoil Starter

    Owner/Operator Manual – HG272E E-11 RECOIL STARTER Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue cod 190A 1 28400-Z1A-003ZA STARTER ASSY., RECOIL *NH1*....BLACK 28400-Z1A-003ZB *R280*....P0WER RED 2 28461-ZL8-003 GRIP, STARTER ••••••••••••••• 3 28462-ZL8-003 ROPE, RECOIL STARTER •••••••• I T ’ S A D I R T Y W O R L D … L E T ’ S C L E A N I T U P !

  • Page 13: Fan Cover

    Owner/Operator Manual – HG272E E-12 FAN COVER Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 19611-Z1A-000ZA COVER, FAN *NH1*....BLACK 19611-Z1A-000ZB *R280*....P0WER RED 2 90043-ZL8-000 BOLT, STUD •••••••••••••••••• 3 90201-ZM0-000 NUT, FLANGE, 6MM •••••••••••• I T ’ S A D I R T Y W O R L D … L E T ’ S C L E A N I T U P !
  • Page 14 Owner/Operator Manual – HG272E E-14 CARBURETOR Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue cod 190A 1 16010-883-015 PACKING SET ••••••••••••••••• 2 16013-ZL1-003 FLOAT SET ••••••••••••••••••• 3 16015-ZL8-003 CHAMBER SET, FLOAT •••••••••• 4 16016-Z1A-013 SCREW SET ••••••••••••••••••• 5 16024-124-760 SCREW SET, DRAIN ••••••••••••...

  • Page 15: Air Cleaner

    Owner/Operator Manual – HG272E E-15 AIR CLEANER Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 15721-ZL8-000 TUBE, BREATHER •••••••••••••• 2 17211-ZL8-003 ELEMENT, AIR CLEANER •••••••• 3 17220-ZL8-000 CASE COMP., AIR CLEANER ••••• 4 17228-ZL8-000 PACKING, AIR CLEANER ••••••••...
  • Page 16 Owner/Operator Manual – HG272E E-16 MUFFLER Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 18310-ZL8-010 MUFFLER COMP. ••••••••••••••• 2 18321-Z0L-000 PROTECTOR, MUFFLER •••••••••• 3 18348-ZL8-000 CAP, MUFFLER •••••••••••••••• 1 -------- -------- QHE5,SHE6 4 18381-ZL8-305 GASKET, MUFFLER •••••••••••••...

  • Page 17: Fuel Tank/Fuel Pump

    Owner/Operator Manual – HG272E E-17 FUEL TANK/FUEL PUMP Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 16700-ZL8-013 PUMP ASSY., FUEL •••••••••••• 2 16854-ZH8-000 RUBBER, SUPPORTER (107MM) ••• 1 -------- -------- MHA2,QHA2,QHE5,SHE6 3 16882-ZL8-000 TUBE, DIAPHRAGM •••••••••••••...
  • Page 18 Owner/Operator Manual – HG272E FUEL TANK/FUEL PUMP Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 25 93404-06025-00 BOLT-WASHER, 6X25 ••••••••••• 26 93894-05014-00 SCREW-WASHER, 5X14 •••••••••• 27 94050-06000 NUT, FLANGE, 6MM •••••••••••• 28 95001-55033-40 TUBE, FUEL, 5.3X33...
  • Page 19 Owner/Operator Manual – HG272E E-19 FLYWHEEL Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 13331-357-000 KEY, SPECIAL WOODRUFF, 25X18 2 30500-Z0J-003 COIL ASSY., IGNITION •••••••• 3 31110-Z0J-013 FLYWHEEL COMP. •••••••••••••• 4 32195-ZL8-840 CORD, STOP SWITCH •••••••••••...
  • Page 20 Owner/Operator Manual – HG272E E-19-10 OIL ALERT/OIL LEVEL SWITCH Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 30548-ZL8-000 CLAMPER, STOP SWITCH CORD ••• 1 -------- -------- VXU 2 30549-ZL8-000 CLAMPER, CORD ••••••••••••••• 1 -------- -------- VXU 3 32195-Z0J-810 CORD, STOP SWITCH •••••••••••...
  • Page 21 Owner/Operator Manual – HG272E E-22 CONTROL(1) Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 16500-ZL8-000 CONTROL ASSY. ••••••••••••••• 1 -------- -------- MHA2,QFC,QHA,QHA2,QHC,QHE,QHU 2 16551-ZL8-000 ARM, GOVERNOR ••••••••••••••• 1 -------- -------- MHA2,QFC,QHA,QHA2,QHC,QHE,QHU 3 16555-ZL8-000 ROD, GOVERNOR •••••••••••••••...
  • Page 22 Owner/Operator Manual – HG272E E-22-1 CONTROL(2) Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 16500-ZL8-800 CONTROL ASSY. ••••••••••••••• 1 -------- -------- QHA1,SHE1 2 16551-ZL8-000 ARM, GOVERNOR ••••••••••••••• 1 -------- -------- QHA1,SHE1 3 16555-ZL8-000 ROD, GOVERNOR •••••••••••••••...
  • Page 23 Owner/Operator Manual – HG272E E-22-2 CONTROL(3) Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue cod 190A 1 16500-ZL8-850 CONTROL ASSY. ••••••••••••••• 1 -------- -------- VXU 2 16551-ZL8-000 ARM, GOVERNOR ••••••••••••••• 1 -------- -------- VXU 3 16555-ZL8-000 ROD, GOVERNOR •••••••••••••••...
  • Page 24 Owner/Operator Manual – HG272E E-22-3 CONTROL(4) Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue co 190A 1 16500-ZL8-840 CONTROL ASSY. ••••••••••••••• 1 -------- -------- SHE6 2 16551-ZL8-000 ARM, GOVERNOR ••••••••••••••• 1 -------- -------- SHE6 3 16555-ZL8-000 ROD, GOVERNOR •••••••••••••••...
  • Page 25 Owner/Operator Manual – HG272E E-22-4 CONTROL(5) Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue cod 190A 1 16500-ZL8-V30 CONTROL ASSY. ••••••••••••••• 1 -------- -------- QHE5 2 16551-ZL8-000 ARM, GOVERNOR ••••••••••••••• 1 -------- -------- QHE5 3 16555-ZL8-000 ROD, GOVERNOR •••••••••••••••...
  • Page 26 Owner/Operator Manual – HG272E E-22-5 CONTROL(6) Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue co 190A 1 16551-ZL8-000 ARM, GOVERNOR ••••••••••••••• 1 -------- -------- DHAF,QHAF 2 16555-ZL8-000 ROD, GOVERNOR ••••••••••••••• 1 -------- -------- DHAF,QHAF 3 16561-ZL8-000 SPRING, GOVERNOR ••••••••••••...
  • Page 27 Owner/Operator Manual – HG272E E-28 LABEL Reqd. QTY Ref. Serial No. Part No. Description Parts catalogue code 190A 1 87101-Z1A-000 MARK, EMBLEM (6.0) •••••••••• 2 87135-ZE2-020 LABEL (E-SPEC) •••••••••••••• 1 -------- -------- QHE,QHE5,QHU,SHE1,SHE6,VXU 3 87501-ZL8-000 MARK, ENGINE SWITCH INDICATION 1 -------- -------- VXU 4 87528-ZL8-000 MARK, CHOKE •••••••••••••••••...
  • Page 28 1. Items not covered under warranty include normal wear & tear items such as O-rings, V-sleeves and packings, hose outer protective jacket and spray nozzles. 2. Storm Jet disclaims any responsibility for loss of time or use of the product, or any other indirect, incidental or consequential damage, inconvenience or commercial loss.
