Summary of Contents for Mdac MBOX DSD

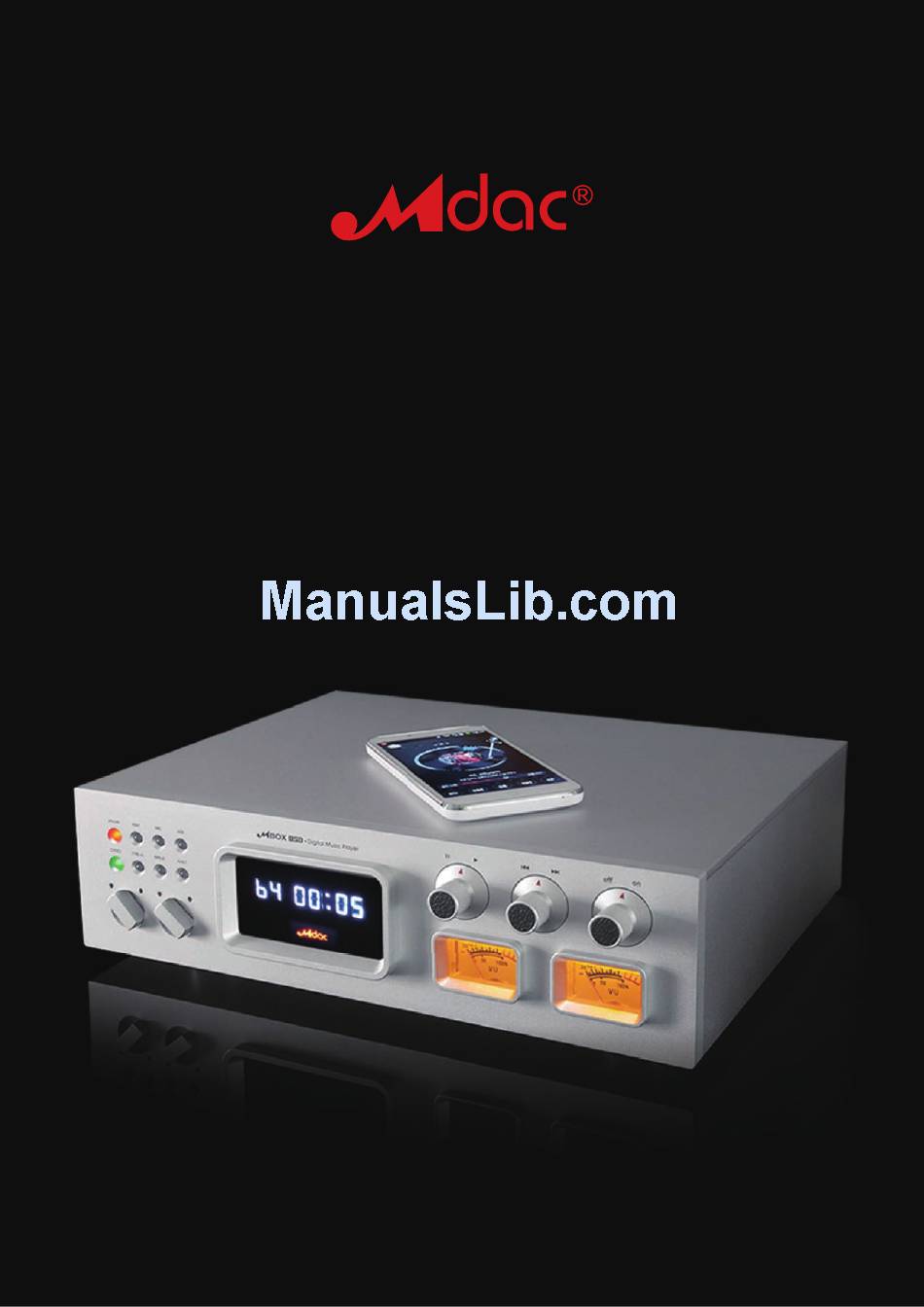

- Page 1 MBOX DSD HiFi Digital music player User’s Manual * Do read this manual before using the equipment!
- Page 2 MBOX Connection Power Sampling Rate Light Track/Time Pause/Play OFF/ON Pre /Next 03 02 58 Front: 100% 100% Indicator Level Meter Left and Light Level Meter Light Switch Switch WiFi Antenna Left Channel Out Interface Right Channel Out Coaxial Out AC IN 220V Back: Power Socket USB Port...
- Page 3 MBOX Remote Control Instructions 1. Start the MBOX 3. Wait till the four figure code is searched and click 2. Open the mobile APP and enter the following interface: to enter. 4. Click to enter the music playlist interface 5. Click to see the present playlist, or add and delete files.
- Page 4 MBOX的技术特色 Intel N2600 CPU MBOX uses new-generation Intel Cedarview-M 32nmAtom dual core processor N2600, which is recommended to be adopted in built-in industrial control computer. From this design original intention, it is easy to understand the MBOX pursuit of quality. Intel N2600 processor’...
- Page 5 MBOX Main Operation Check Before Start Check the following before turning on MBOX. 1. The device is connected to AC power. 2. External USB device is well connected and power on. 3. Network is on if the device will play sources online. Auto reset knob on the front panel, it returns to the central position automatically when releasing from left or right function.
- Page 6 MBOX Remote Control Instructions 6. Click to add a playlist. 7. Long press to a deletable mode, click to delete the playlist. 8. Click to return to previous menu. 9. Click to enter browse interface, could check which device is connected to this MBOX and where the music files are in, also to add music files to the certain playlist.
-
Page 7: Other Common Operations
Other Common Operations Play music from U disk ( portable hard disk the same ) How to copy music files into a U disk: File the music into differed sub-directories when storing the music into a U disk. For example, in the U disk root directory, a folder named “ female singers”... - Page 8 MBOX Remote Control Instructions 10. Click to enter the music file folder 11. Long press the folder column, click to add to playlist. Click the folder front icon to add multi music files. return to previous interface return to device connection interface To add to playlist Cancel operation return to previous folder...
- Page 9 Causes: The folder has too many files, or photo sizes too big. MBOX can’t shut down Solution: Stop the 220 V power supply for MBOX for 20 seconds and turn on the power again. Get more technical support and product information by: ADD to QQ group: 226192080 Call: 020-38807521 Website: www.mdac.com.cn...
- Page 10 MBOX Packing List Item Quantity MBOX Mobile Remote Controller USB cable Adapter WIFI Antenna Power supply cable Guangzhou ChenFang Electronics Co.Ltd. 7th Floor, Block No. 4, No.111 YingBin Road, Panyu District, Guangzhou City TEL：020-38807521 Website: www.mdac.com.cn...
