Address:
4th floor B Building Yuanye Industrial Park Baiyun New Village
Shanghenglang Longhua Bao'an District Shenzhen China
lanxiang reserves the right to modify the specification or
printing errors without prior notice.
A R/C model airplane is not a toy and is not suitable for flyer
under 14 years old.Read the instructions carefully before any use.
If you are a beginner, it is necessary to let an experienced airplane
pilot assist you.
Advertisement
Table of Contents
Related Manuals for SKY FLIGHT HOBBY F4FWILD CAT
Summary of Contents for SKY FLIGHT HOBBY F4FWILD CAT

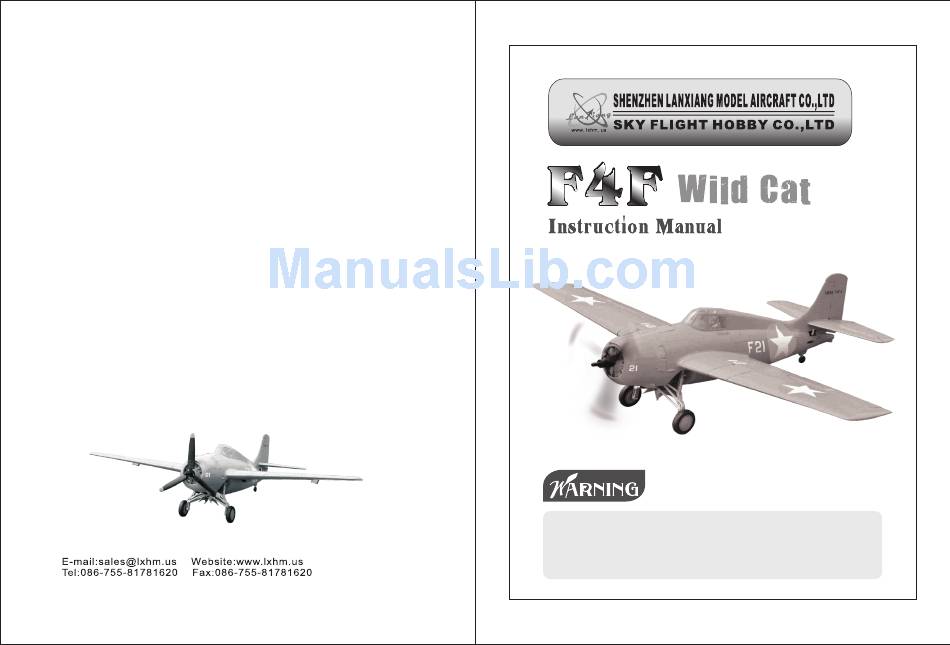

- Page 1 A R/C model airplane is not a toy and is not suitable for flyer under 14 years old.Read the instructions carefully before any use. Address: 4th floor B Building Yuanye Industrial Park Baiyun New Village Shanghenglang Longhua Bao'an District Shenzhen China If you are a beginner, it is necessary to let an experienced airplane pilot assist you.
-
Page 2: Meaning Of The Icons
Meaning of the icons. Only use genuine accessories as replacmente for damaged parts. WARNING!: this symbol indicates where caution is essential to avoid injury to yourself or others . 7.Do not attempt to catch the PROHIBITED: this symbol points out actions that you should not do to avoid possible damage or accidents. -
Page 4: Specification
SPECIFICATION: Length:903mm Wingspan:1200mm Propeller :12×6 inch 3 bladed Flying weight:1700g Thrust:≥ 2000g CONTENTS INCLUDE: 8CH RC 50A Brushless ESC 4×Digital metal servo 2×Screw servo 3748-700KV Out brushless motor 4S 25C 2200mAh battery General view schedule (1~2). Fuselage lnstallation (1) Motor cabinet installation(3~4). - Page 5 (6) The installation of pilot and canopy (15~19). (2) Front retract installation (5~7). (3) Rear retract installation (8~9). Motor lnstallation ESC Installation (4) The combination of left and right fuselage (10~11). 3×6mm (4) 3×8mm (4) (5) Battery cover installation (12~14).
- Page 6 (3) Cowling installation (36). Cowling lnstallation. (1) Engine installation (29~31). (4) Propeller installation (37~39). (2) The installation of permanent seat for cowling (32~35). (5) Receiver cover installation (40~42). 2×6mm (4)
- Page 7 Tail wing installation. (1) The installation of servo permanent seat in tail wing (43~46). (4) The installation of vertical fin (55~64). 1 Rudder push rod with 67mm length line, 1 rear wheel push rod with 80mm length, 2 pcs 1.7×18 coarse screws, 2 pcs 1.7×20 coarse screws (2) The installation of servos in elevator and rudder (47~49).
-
Page 8: Main Wing Installation
(2) The installation of aileron servo, the horn of aileron and push rod (69~77). 2 pcs servos with 50mm length line, 2 pcs 500mm Y line, 4 pcs self-tapping screw. Main wing Installation. (1) The installation of Folding wing (65~68). 2 pcs aileron push rod with 53mm length line, 4 pcs 1.7×12 Coarse screws 4 pcs 1.7×15 Coarse screws. - Page 9 (3) The installation of decorating parts in main wing (78~80). (6) The installation of receiver (90~103). (4) The Fixed for main wing and fuselage (81~83). It would not work if connecting the signal line of servo improperly , even burn it . (5) The installation of decorating parts (84~89).
-
Page 10: Channel Testing
(7) The installation of battery in remote control (104). Note: Only calibrate the throttle when operating the ESC for the first time or when operating with another transmitter and receiver system . The calibration way as follows : 1, Turn on the transmitter 2, Connect the battery 3, “Beep-beep”... - Page 11 (3) Battery (power) installation (107~112). (5) Rudder servos testing (115~116). (6) Aileron testing (117~118). (8) Retract testing (120~121). (7) Throttle testing (119). (4) Elevator servos testing (113~114).
- Page 12 (9) Folding wing testing (122~126). Beauty (127~139).
- Page 14 CG debugging. rotary.
