Summary of Contents for Genie CCTV Rapport mini

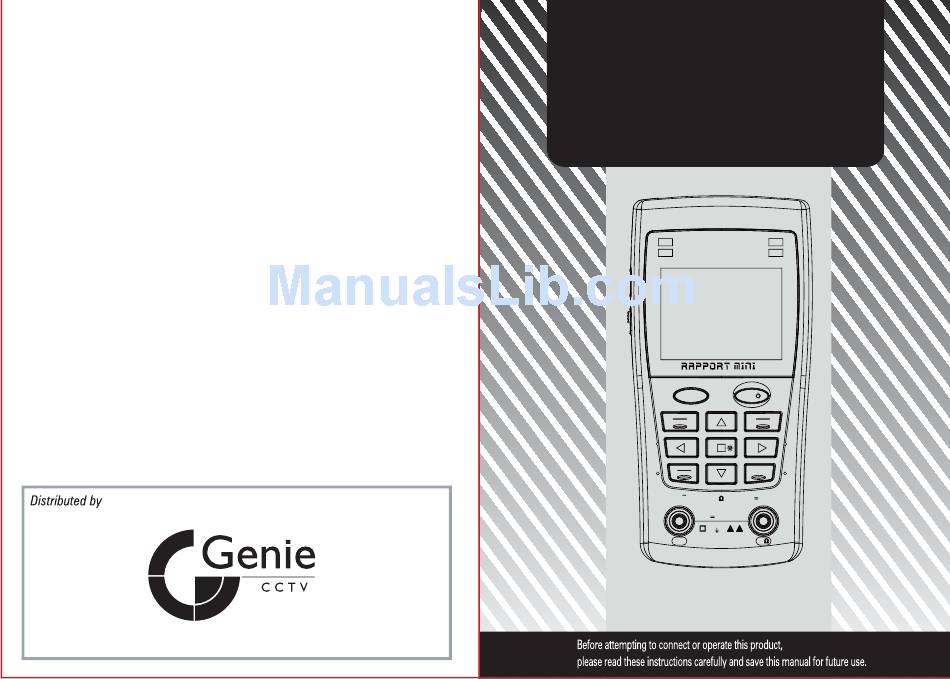

- Page 1 Rapport mini Multi Functional CCTV Tester MODE TELE OPEN P/N : 388087320 NEAR PRINTED IN KOREA WIDE CLOSE ~ ♬ 300V 300V~...
-
Page 2: Table Of Contents
TABLE OF CONTENTS TABLE OF CONTENTS Setup BEFORE USING RAPPORT mini USER NAME SAFETY INFORMATION SLEEP TIME PRODUCT INTRODUCTION PRODUCT SPECIFICATION BEEP Dimensions FLASH LED Indicator SYMBOLS FUNCTIONAL SPECIFICATION Mode Setup Video Tester Colour Bar Generator Mode Digital Multimeter Measuring AC & DC Voltage... -
Page 3: Before Using Rapport Mini
Pay attention to the following precautions when using the Rapport mini. This basic instruction manual is for users of the Rapport mini. Starting with an outline of this Rapport mini, the manual explains its operation,how it connects to other devices, how to use the menu buttons,and how it should be operated. - Page 4 Rapport mini has a built-in Lithium Polymer Battery. Designed, with portability and serious CCTV engineers in mind, the Rapport mini is an advanced piece of video test equipment consisting of many useful test functions It can be recharged using a DC12V power needed to professionally install a CCTV system;...
-
Page 5: Product Introduction
Green LED is on when PTZ data is received. ④ ① ② ⑤ 2.5” Colour TFT LCD Keypad Main keypad for Rapport mini operation ⑥ : Common Port, Lead for black colour ① MODE Button Mode Select: Video, MultiMeter, PTZ Control. MODE : Voltage &... - Page 6 PRODUCT INTRODUCTION PRODUCT INTRODUCTION ① ① CAUTION ② DO NOT shine the torch light directly into someone's eyes; it could cause damage to their eyes. ② ① Flash : White LED to light up in the dark area ② Internal Battery Cover ①...
-
Page 7: Product Specification
PRODUCT SPECIFICATION PRODUCT SPECIFICATION Electrical Specifications Multimeter Specifications Input Voltage DC 12V ± 10%, 1A Battery 7.4V (3.7x2)Li-Poly, 2000mAh Minimum Mode Range Accuracy Measuring Built-in charger Charging Time : 6 hour Electrical Operation Time : Up to 8 hours hour ±(2.5% +4dgts) 400mV 100uV... -
Page 8: Dimensions
PRODUCT SPECIFICATION PRODUCT SPECIFICATION Dimensions LED Indicator 79.1 Item RED LED GREEN LED Discharged Charging Fully charged Flicker(1 Hz) Low battery The LED turns Red or Green depending on the recharging status. On charging : RED LED ON Fully charged: GREEN LED ON Battery is consumable item with 6 months warranty after purchase. -
Page 9: Functional Specification
Approximately 2 seconds later the screen switches to the last OSD before power was turned off. The Rapport mini stores the last accessed OSD. The initial OSD message displays the Rapport mini's firmware information. Versions of the product change whenever new firmware is uploaded. -
Page 10: Video Tester
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION 제품소개 ※ If there is no video signal at the VIDEO IN port of the Rapport mini “LOSS” Video Tester will be displayed. Connect the output terminal of video output system to the video BNC port of ②... -
Page 11: Colour Bar Generator Mode
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION 제품소개 Colour Bar Generator Mode To enter the PATTERN GENERATION MODE press the SET key while in the Colour bar mode. Outputs Colour bars allowing technicians to configure monitors and troubleshot cameras by By default the Video will be displayed in the top portion of the screen. sending a known good video signal down a questionable coax run. -
Page 12: Digital Multimeter
MODE STORE ⑧ When using the meter function of the Rapport mini, make sure the unit is switched on and set to the appropriate test mode before connecting the test lead set to the circuit under test. ① METER : Indicates current mode. -
Page 13: Measuring Ac & Dc Voltage
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION 제품소개 Measuring Resistance Measuring AC & DC Voltage The unit of resistance is the Ω. The meter sends a low current into the circuit so that Voltage is the difference in electrical potential between two points. the resistance can be measured. -
Page 14: Ptz Controller
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION ② PTZ Controller ③ ① NTSC Connecting Camera and Monitor PTZ ADDR :001 PTZ Operation Test: Up, Down, Left, Right, Zoom and Manual focus control are PROTOCOL : (01)PELCO-D ④ BAUDRATE: 2 . 4Kbps possible. The tester can also be set to various protocols and transmission PARITY : NONE speeds (baud rates). -
Page 15: Spd(Speed)
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION - PTZ Control Setup Screen GPST (GO TO PRESET) : Moves the camera Press and hold the SET button for 2seconds until PTZ protocol menu activates. NTSC view to a designated preset location; Presets PTZ control (Up, Down, Left, Right), is performed using the arrow keys. PTZ ADDR :001 are numbered 000 to 255. -
Page 16: Data
When you want to know the input signal of an exterior controller, you can see the input system that allows Rapport mini to program various functions of the camera including data(HEX value) by connecting the communications cable to the RX terminal of the day/night mode, focus settings, and tours. -
Page 17: Setup
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION Setup ① ② DATA RCV F F 0 0 0 0 F F 0 1 0 0 0 0 SETUP SETUP F F 0 1 0 0 0 2 3 B 3 B 7 9 USER NAME : RAPPORT - MINI USER NAME : RAPPORT - MINI F F 0 1 0 0 0 2 3 B 3 B 7 9 SLEEP TIME : 30Min... -
Page 18: User Name
FUNCTIONAL SPECIFICATION FUNCTIONAL SPECIFICATION Selecting the USER NAME initiates an editing menu and shows the associated FLASH ON/OFF & Level Change key strokes. Select a menu item by pressing the & keys. Select a menu item by pressing the & keys. -
Page 19: Symbols
MEMO SYMBOLS Number Symbol Reference Description IRE 60417 - 5031 Direct current IRE 60417 - 5032 Alternating current IRE 60417 - 5033 Both direct and alternating current Three-phase alternating current IRE 60417 - 5017 Earth (ground) TERMINAL IRE 60417 - 5019 PROTECTIVE CONDUCTOR TERMINAL IRE 60417 - 5020 Frame or chassis TERMINAL...
