HARTE TECHNOLOGIES eZ80 Installation Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
eZ80 Single-Board Computer
Revision 0.7
Copyrighy © 2007 Harte Technologies, LLC.
Installation Guide
Revision 0.7
June 28, 2007
Howard M. Harte
Page 1 of 15
6/28/2007

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the eZ80 and is the answer not in the manual?

Questions and answers

Summary of Contents for HARTE TECHNOLOGIES eZ80

  • Page 1 Single-Board Computer Installation Guide Revision 0.7 June 28, 2007 Howard M. Harte Revision 0.7 Page 1 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.

  • Page 2: Revision 0.7

    This publication could include technical inaccuracies or typographical errors. Changes are periodically made to the information herein; these changes will be incorporated in new revisions of the publication. Harte Technologies, LLC may make improvements and/or changes in the products and/or the programs described in this publication at any time.

  • Page 3: Table Of Contents

    Program CP/M Into the eZ80F91 ..................10 Picture 3 – Connecting the ZDI CableProgram CP/M Into the eZ80F91 (Continued) ..10 Program CP/M Into the eZ80F91 (Continued) ..............11 USB Device Support......................12 Revision 0.7 Page 3 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.

  • Page 4: Revision History

    Revision Date Description 2007-01-14 HMH Initial Publicly Release 0.51 2007-01-14 HMH Added pictures. 2007-05-07 HMH Added USB Firmware Upgrade Procedure 2007-06-28 HMH Added USB Printing Support Instructions. Revision 0.7 Page 4 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.

  • Page 5: Initial Hardware Configuration

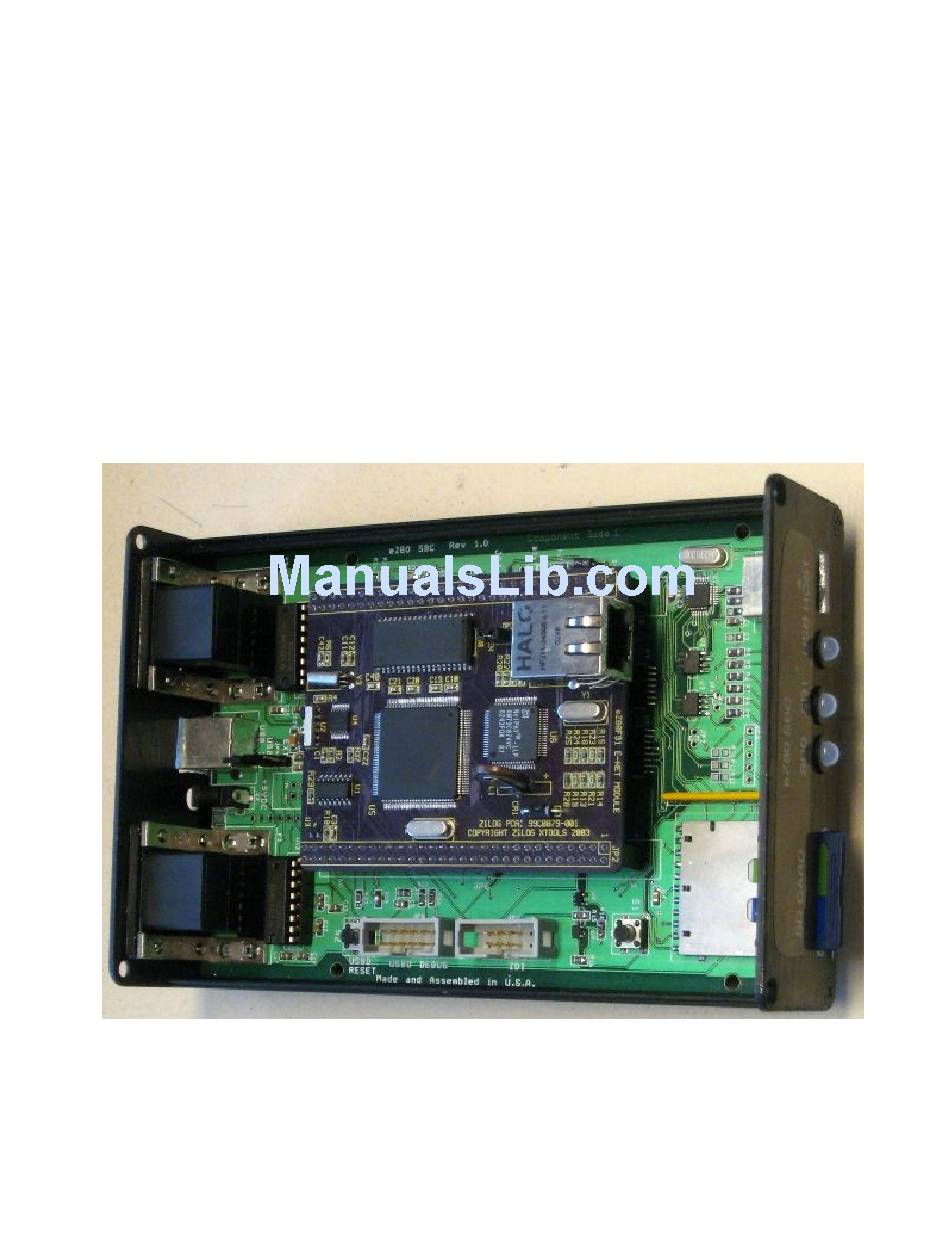

     No Flow Control (neither Hardware Flow Control nor XON/XOFF) Your eZ80SBC should look similar to this: Picture 1 – Ready for USB Device Controller Firmware Download Revision 0.7 Page 5 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.

  • Page 6: Install The Ez80Sbc Usb Device Controller Firmware

    Exit. 3. At this point, you should see a sign-on on in the serial communication program similar to the following: USB 2.0 eZ80 SBC Interface Debug Port $Revision: 1007 $ of $Date: 2006-11-16 10:33:09 -0800 (Thu, 16 Nov 2006) $...

  • Page 7: Upgrade The Ez80Sbc Usb Device Controller Firmware

    3. Select and open the file: ez80sbcfw.hex and click Open. 4. Press the FLASH button to upgrade the FLASH. 5. When the download is complete, click Exit. Revision 0.7 Page 7 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.

  • Page 8: Install The Zilog Ez80F91 Ethernet Module

    Module. When the module is installed correctly, the module’s Ethernet port will face the front (SD Card Slot end) of the eZ80SBC. See the following picture for details: Picture 2 – eZ80SBC with eZ80F91 Ethernet Module, ready for eZ80 CP/M Download Revision 0.7...

  • Page 9: Install The Zilog Ez80F91 Ethernet Module (Continued)

    Ethernet port will face the front (SD Card Slot end) of the eZ80SBC. See the following picture for details: Picture 3 – eZ80SBC with Mini Enet Moduel, ready for eZ80 CP/M Download Revision 0.7 Page 9 of 15 6/28/2007 Copyrighy ©...

  • Page 10: Program Cp/M Into The Ez80F91

    10. Click Program/Verify to program the eZ80F91’s FLASH. 11. When programming completes, disconnect the 6-pin ribbon cable from the eZ80SBC’s ZDI connector. Picture 3 – Connecting the ZDI Cable Revision 0.7 Page 10 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.

  • Page 11: Program Cp/M Into The Ez80F91 (Continued)

     8-data bits.  1-stop bit.  No Flow Control (neither Hardware Flow Control nor XON/XOFF) 13. Press the eZ80 Reset button (S1) on the eZ80SBC. 14. You should see a sign-on message in the serial communication program similar to the following: 64K CP/M V3.1 - eZ80F91 Rev 2 CBIOS v1.0.0.1450 of 2007-06-28 [PLT,...

  • Page 12: Usb Device Support

    Currently, USB Hubs and Parallel Port Adapters are supported. The interface to CP/M is rudimentary at present, and requires a NULL-modem serial cable to connect the USB Microcontroller to the eZ80. This NULL-modem cable must be connected between the TOP two Serial Ports at the rear of the eZ80SBC.

  • Page 13: Revision 0.7

    On the USB Microcontroller Console serial port: USB 2.0 eZ80 SBC Interface Debug Port Build 1.0.0.1450 of 2007-06-28 Reset Source: 01 USBH Interrupt enable Type 'h' for help. > b Enumerating X:0x0205, index 0 USBH: Device Address set to 1.

  • Page 14: Pause Between Pages (Y/N)? N

    Del erase char Number of copies? 1 Pause between pages (Y/N)? N Use form feeds (Y/N)? Y Starting page? 1 Ending page? Nondocument (Y/N)? N Name of printer? HPLJET Revision 0.7 Page 14 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.
  • Page 15 C:WSPRINT.TST Align P R I N T I N G P pause ^U cancel printing C continue after pausing Revision 0.7 Page 15 of 15 6/28/2007 Copyrighy © 2007 Harte Technologies, LLC.
