Summary of Contents for SWIT S-9104+

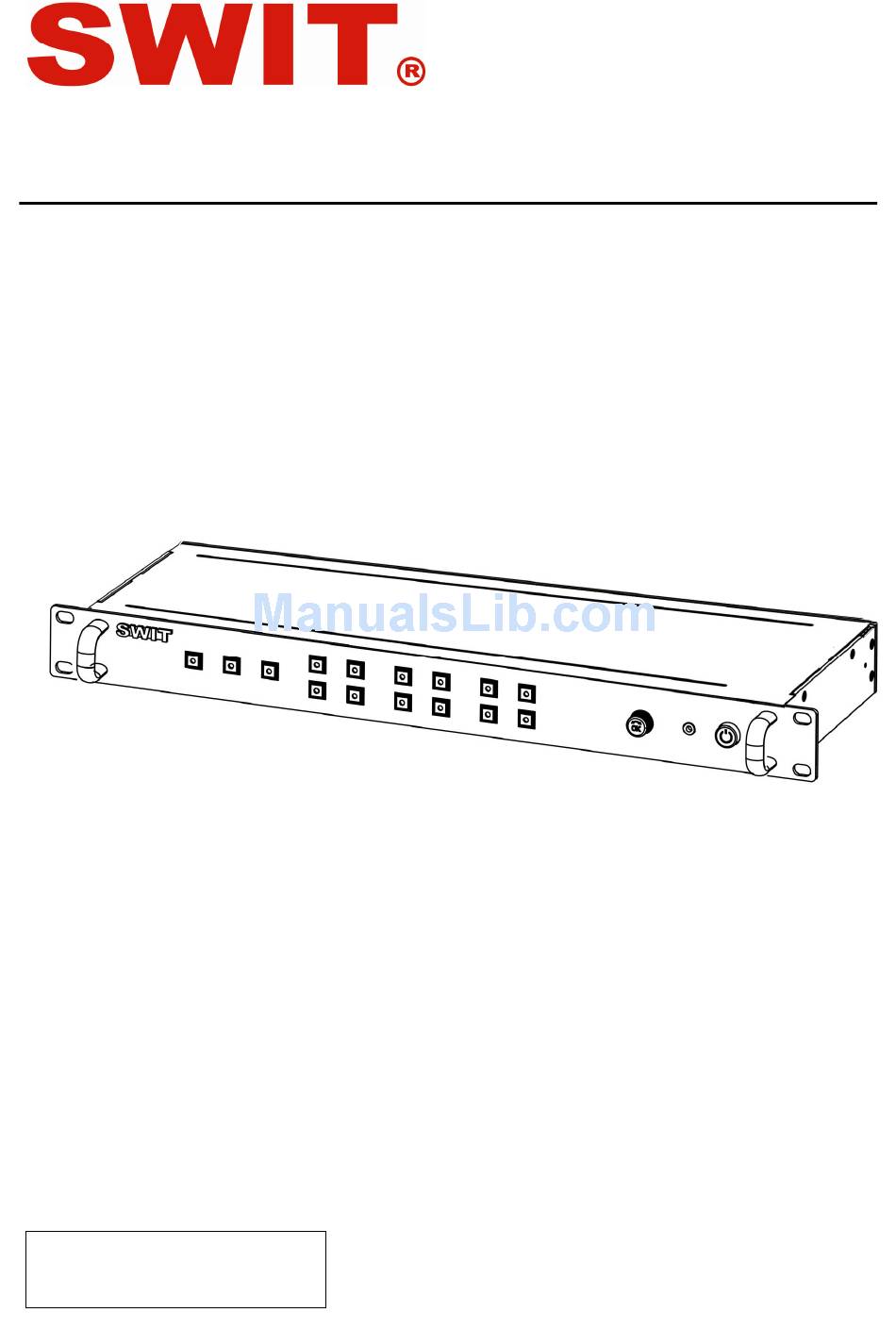

- Page 1 S-9104+ Model: Broadcast HD Quad Split Viewer USER MANUAL Ver: V1.0.0V00 Please read this User Manual throughout before using.
- Page 2 1. Introduction SDI input1 SDI quad split display SDI input2 SDI input3 HDMI quad split display SDI input4 S-9104+ is a solution of 4-ch HD/SD-SDI simultaneously displayed on a single HDMI or SDI monitor. It is pure hardware architecture design and 10 bit raw video data output to ensure the real color and clarity of the original video source.
- Page 3 3. Product view Front view ALARM: signal alarm function ⑴ Press “ALARM” to enable video/audio abnormal alarm, press again to switch off. Full screen display the current channel ⑵ Quad split display all the 4 channels ⑶ ⑷ ～ ⑺ Window select: WINDOW1 W INDOW4: Press to select the window1/2/3/4 as the current window.
- Page 4 4. TSL Connection 4.1 Protocol version S-9104+ supports TSL3.1 and TSL4.0 protocol 4.2 Terminal definition S-9104+ supports RS485 socket for the upstream equipments using TSL protocol, and terminal description is as follows: Terminal 485B 485A Description * 38400 baud rate, no parity bit, 1 stop bit and 8 data bits 4.3 TSL protocol address setting (1) Press the above mentioned six buttons from right to left in order (“TIME-CODE”...
- Page 5 (3) The user set address will be applied to WINDOW1 and WINDOW2. And WINDOW3 and WINDOW4 will be auto assigned address as “user set address +1”. User set address User set address+1 (4) The TSL address will automatically save when the power is shut down. 4.4 UMD and TEXT TALLY display When TSL successfully connected, S-9104+ can receive UMD and TALLY information, the window is as follows:...
- Page 6 5.Video/Audio Abnormal Alarm Press “Alarm” to switch on the signal alarm function. When signal is abnormal, alarm info will be displayed. 5.1 Video alarm It supports video “NO SIGNAL”, “BLACK FRAME” and “FROZEN FRAME” alarm and the corresponding alarm info will be displayed on the central of the screen. (1) NO SIGNAL: (2) BLACK FRAME: (3) FROZEN FRAME:...
- Page 7 6. Specification Input HD/SD-SDI ×4 HD/SD-SDI Loop×4 HDMI quad view ×1 Output SDI quad view ×1 Analog audio (3.5mm)×1 Remote RS 485 socket×1 SDI Input HDMI Output 1080p (30 / 29.97 / 25 / 24 / 23.98) The same as SDI input SMPTE-274M 1080i (60 / 59.94 / 50) The same as SDI input...
- Page 8 SWIT Electronics Co., Ltd Add: No 10, Hengtong Road, Nanjing, 210038, China. Tel:+86-25-85805753 Fax:+86-25-85805296 http://www.swit.cc E-mail: contact@swit.cc Product Registration Link...
