Assembly Instructions
Swing-Out Round Picnic Table
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 07GX1315 and is the answer not in the manual?

Questions and answers

Summary of Contents for Barco Products 07GX1315

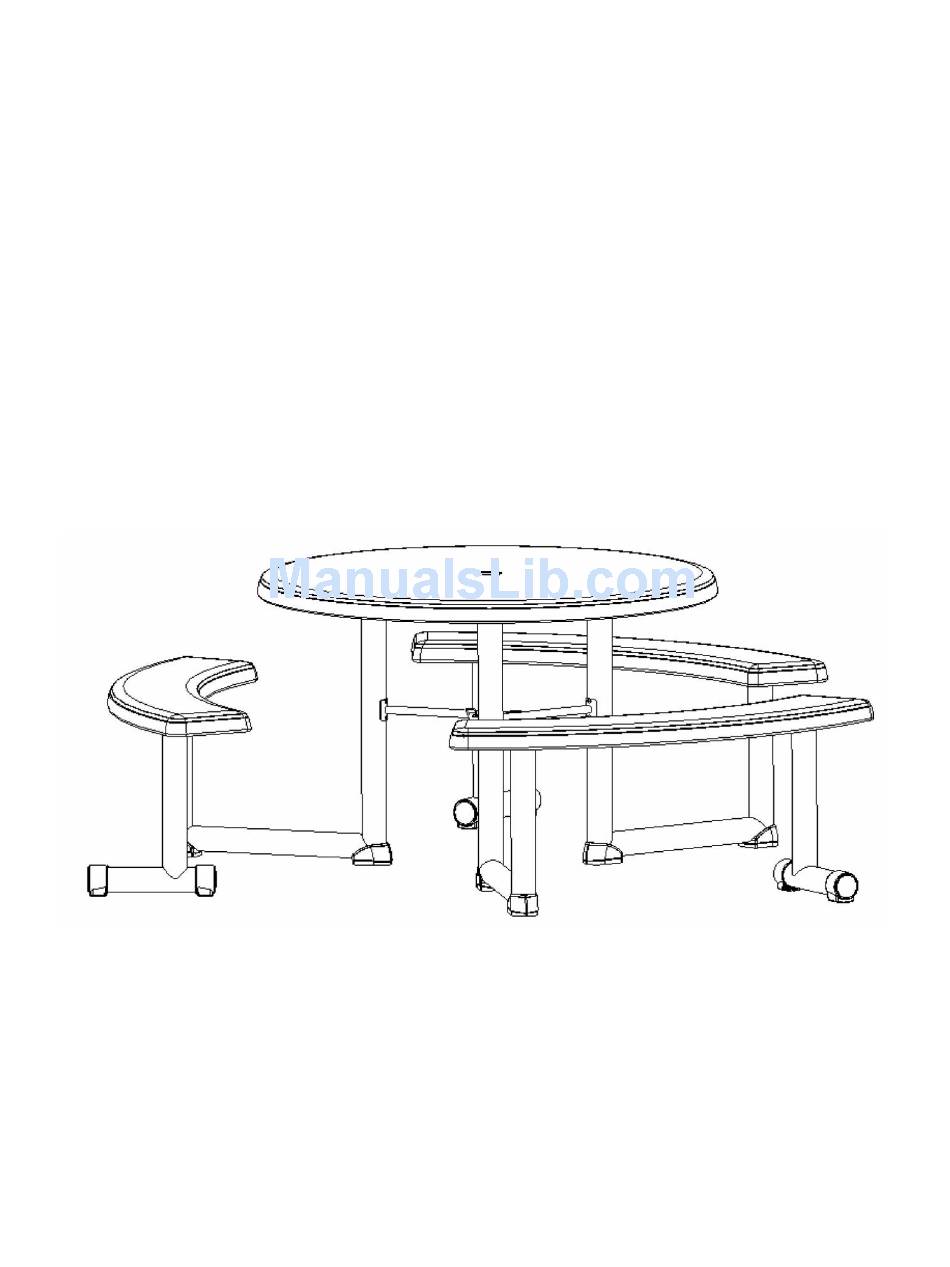

  • Page 1 Assembly Instructions Swing-Out Round Picnic Table...
  • Page 2 Before assembly, be sure that all components are included. underside of table – 1 table top – 3 bench seats – 3 table legs – center table leg brace – 3 bench legs...
  • Page 3 – 3 bench frames – 3 bench leg pivots – 6 foot caps – 1 umbrella hole plug – 6 bench leg caps – 3 support braces #1 – 3 support braces #2 – 24 - 5mm x12.5mm carriage bolts –...
  • Page 4 Step 1: Turn a table leg (AC) upside down. Place a foot cap (AH) on the bottom of each leg. Secure each foot cap with two #8 x 1/2” screws (RE). Repeat for the other two legs. Step 2: Turn table legs right side up. Attach a center leg brace (AD) to each table leg as shown.
  • Page 5 Step 3: Stand table leg assemblies in a circle with the braces pointing in towards the center. Step 4: While standing between the two legs, line up the end hole on the right brace with the middle hole on the left brace as shown. Secure with one #8 x 1/2” screw (RE). Note: The center leg braces are joined together always in a right over left format.
  • Page 6 Step 5: Move clockwise and stand between the next pair of legs. Line up the end hole on the right brace with the middle hole on the left brace as shown. Secure with one #8 x 1/2” screw (RE). Note: Do not completely tighten the screws. This will be done in a later step. Step 6: Move clockwise and stand between the last pair of legs.
  • Page 7 gold colored bolt Step 7: Two sets of 3 support braces (AK and AL) come with your picnic table. Set (AK) comes with 2 bolts next to each other (one of the bolts is gold colored). Set (AL) comes with 2 bolts about 12” from each other. pilot hole AA - underside of table top Step 8:...
  • Page 8 pilot hole AA - underside of table top Step 9: Place a support brace (AL) over the support brace (AK) and lightly secure the brace to the table top (AA) with one 1/4” x 1/2” screw (RA). Note: Do not completely tighten the screws. This will be done in a later step. pilot hole AA - underside of table top Step 10:...
  • Page 9 pilot hole AA - underside of table top Step 11: Continue on to the next support braces, repeating Step 9 instructions. Note: Do not completely tighten the screws. This will be done in a later step. pilot hole AA - underside of table top Step 12: Continue on to the next support braces, repeating Step 9 instructions.
  • Page 10 pilot hole pilot hole AA - underside of table top Step 13: Remove the first 1/4” x 1/2” (RA) screw and gently tilt the support brace (AK) and slide the last support brace (AL) into place. Replace the first 1/4” x 1/2” screw (RA) into the first support brace (AK).
  • Page 11 set of three bolts Step 15: With the table top facing down on the ground, align the leg support assembly over the three sets of bolts on the support brace assembly. Fasten the leg assembly to the support braces using nine 5mm cap nuts (RC). Note: Tighten all loose hardware including the center braces.
  • Page 12 Step 17: Lay a bench frame (AF) top-side down, with the curved edges pointing away from you. Step 18: Line up a bench leg (AE) with the right side of the bench frame (AF). Secure to frame with four 5mm x 12.5mm carriage bolts (BA) and four M5 center lock nuts (BB). Note: The tab on the frame must line up with the hole in the bench leg plate.
  • Page 13 Step 20: Lay a bench seat (AB) top-side down, with the curved side pointing away from you. Lay bench frame (AF) inside the bench seat and line up holes. Repeat for all three benches. Step 21: Fasten the bench frame to the bench seat with six 1/4” x 1/2” screws (RA). Note: Ensure that the holes line up with the pilot holes in the bench seat.
  • Page 14 Step 22: Insert a bench assembly into the table leg. Ensure the bench is fully inserted into the leg. Step 23: Insert a cotter key (BD) through the two holes in the leg of the bench to help prevent the bottom of the bench from pulling out of the table leg. Note: Repeat steps 22 and 23 for remaining two benches.
  • Page 15 Step 24: If you will not be using an umbrella with your table, install the umbrella hole plug (AI). If it is not already installed, snap it into the hole at the center of the table.
