Summary of Contents for Rowlinson GB7540S

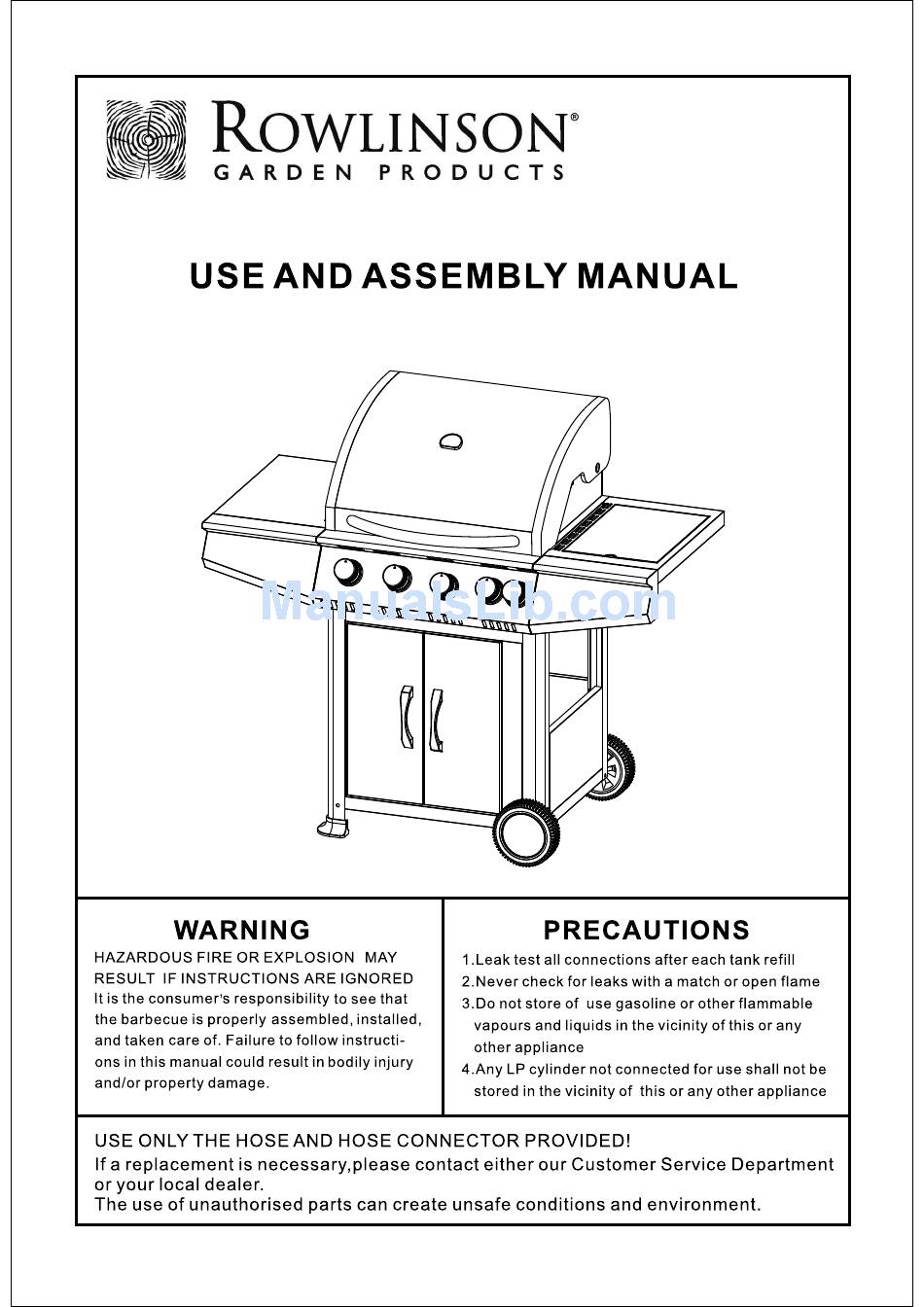

- Page 1 SS350 CALGARY BBQ MODEL#GB7540S EN-GB7540S-1401...
- Page 2 GB7540S...
- Page 3 B olt M6x10 B o l t M 6 x 1 N ut M8 N u t M B olt M4x20 B o l t M 4 x 2 N ut M6 N u t M B olt ST4.2x10 B o l t S T 4 . 2 x 1...
- Page 4 M4x20 2PCS M6x10 6PCS...
- Page 5 M8 2PCS M6x10 14PCS...
- Page 6 M6x10 3PCS M6x10 4PCS ST4 2X10 4PCS (E)
- Page 7 M6x10 4PCS Nut M6 2PCS (D) M6x15 3PCS M6x10 5PCS Nut M6 1PCS (D)
- Page 8 STEP 9 M6x15 3PCS M6x10 5PCS Nut M6 1PCS ( ) STEP 10 M6x10 8PCS...
-
Page 10: Technical Information
Technical Information: GB7540S GB7540S 20.8kW(1518g/h) 20.8kW(1518g/h) 17.6kW(1285g/h) 17.6kW(1285g/h) 3.2kW(233g/h) 3.2kW(233g/h) 1.00 1.00 1.00 1.00 1.00 1.00 0.94 0.94 0.87 0.87 0.86 0.86 0.86 0.86 0.86 0.86 0.75 0.75 0.81 0.81 IMPORTANT: Read the following instructions carefully and be sure your barbecue is properly installed, assembled and cared for. -
Page 11: Gas Cylinder
Gas Cylinder The gas cylinder should not be dropped or handled roughly! If the appliance is not in use, the cylinder must be disconnected. Replace the protective cap on the cylinder after disconnecting the cylinder from the appliance. Cylinders must be stored outdoors in an upright position an out of the reach of children. -
Page 12: To Check For Leaks
TO CHECK FOR LEAKS Make 2-3 fluid ounces of leak detecting solution by mixing one part washing up liquid with 3 parts water. Ensure the control valve is “OFF”. Connect the regulator to the cylinder and ON/OFF valve to the burner, ensure the connections are secure then turn ON the gas. -
Page 13: Cleaning And Care
To light burner, push down the right control knob and turn it anti- clockwise to “full rate” position, a click sound will be heard. Then remain for 2-3 seconds for ignition. WARNING! Ignition must only be made with the valve completely open. Once burner is lit, release and turn the knob to low flame position and carefully replace grease tray. - Page 14 Cleaning The Burner Assembly Turn the gas OFF at the control knob and disconnect the cylinder. Remove cooking grate. Clean the burner with a soft brush or blow clean with compressed air and wipe with a cloth. Clean any clogged ports with a pipe cleaner or stiff wire (such as an opened paper clip).
