Summary of Contents for LG HBM-560
- Page 2 FCC CONCERNS RF Exposure Statement: The antenna(s) used for this device must not be co-located or operating in conjunction with any other antenna or transmitter. Do not Any changes or modifications to the equipment not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment.

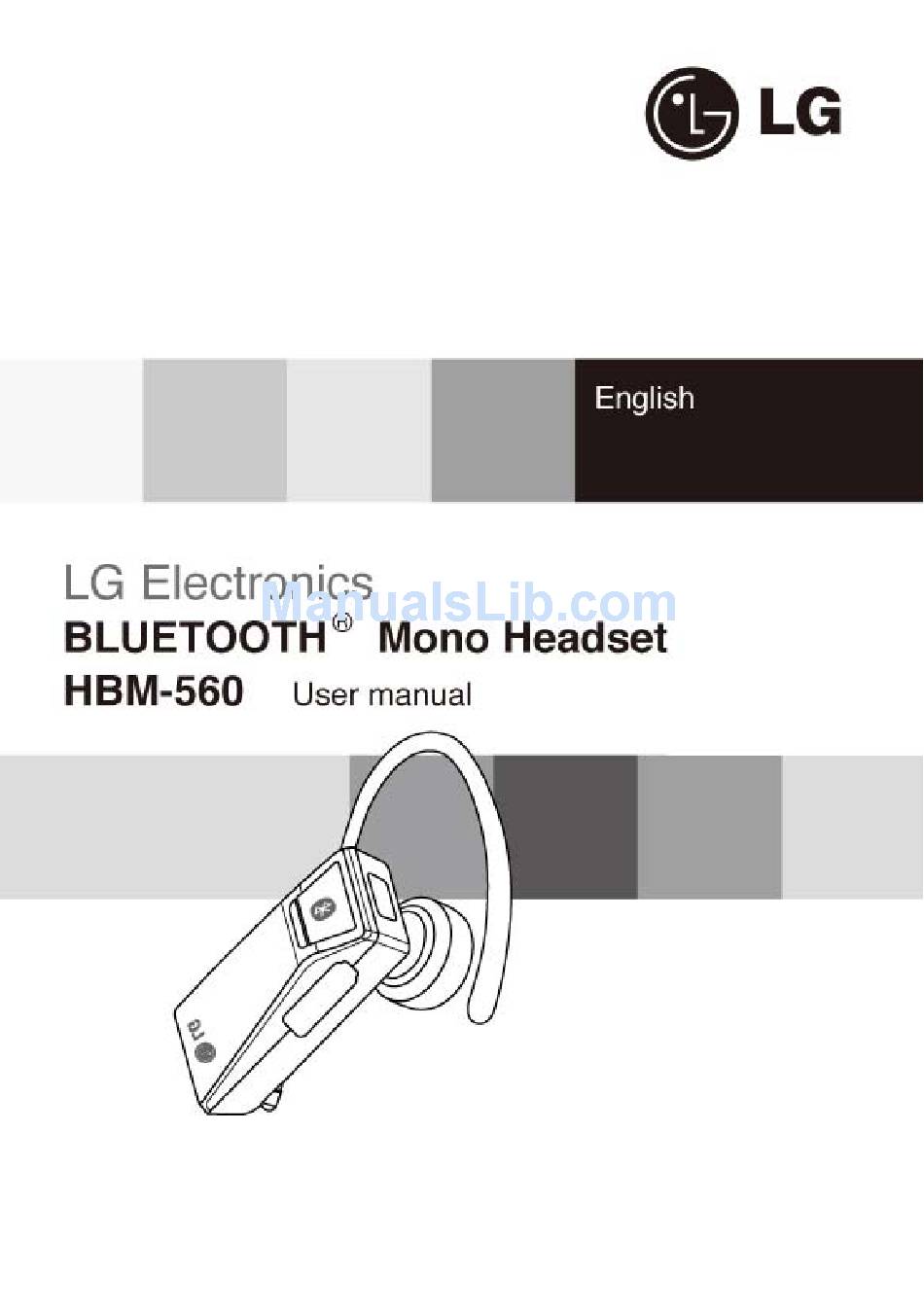

- Page 3 The LG Bluetooth® headset HBM-560 is a light weight wireless Headset utilizing Bluetooth® technology. This product can be used as an audio accessory for devices supporting either the Headset or Handsfree Bluetooth® Profiles. ■ Included in package...
- Page 4 Change direction ■...
-
Page 5: Low Battery
Charging ■ - Remove the cover on the charging port and connect the charger. - When the charger is connected, with power on or off, the headset will turn off. While charging, the LED indicator will show a solid blue light. - The buttons will not function while the device is charging. - Page 6 ● If you want to pair with other devices in the future, the headset must be placed in Pairing Mode. ● If the HBM-560 is in "Pairing Mode" for 3 minutes, without being paired to a device, the Headset will automatically turn off.
-
Page 7: Answering A Call
(Easy Pairing) [ Out of range ] - When the HBM-560 and your handset are separated by a distance of 33 feet (10meters) or more, the headset and handset will disconnect. When the handset and HBM-560 are brought back within the required distance, the HBM-560 will automatically reconnect with the handset. - Page 8 Headset. If not automatically transferred, you can transfer the call manually by briefly pressing the CALL button on the HBM-560 (headset and handset must be paired). Voice dialing* - Briefly press the CALL button. (You will get the best results if you record the voice dialing tag through your Headset.)
- Page 9 Call waiting* - Answer a second call without hanging up the first call by pressing the CALL button for 1seconds. Press the CALL button for 1seconds to return to the original call. - Briefly press the CALL button to terminate the active call. Call reject* Activate call reject by pressing the CALL button for 1 second when receiving a call.
- Page 10 Function Action HBM-560 Status Press the PWR/END button for at Power on Power off least 2 seconds Press the PWR/END button for at Power off Power on Briefly press the Volume Up Volume Up Talking button Briefly press the Volume Down...
- Page 11 Function LED Status HBM-560 Status The blue LED light Power on flickers fast 4 times The blue LED light Power off flickers fast 4 times The blue LED light turn Pairing mode The blue LED light Headset / Handsfree Operating...
- Page 12 Check whether the battery Charge the battery. of the HBM- 560 is low Unable to pair the Check and make sure the Press the HBM-560 with Headset is on. PWR/END button the Bluetooth® for at least 2 device seconds to turn on the Headset.
- Page 13 ITEM Description Bluetooth® Specification V2.0 (Handsfree / Headset profiles) + EDR Battery 3.7V, Li - Polymer Standby Time Up to 150Hrs Talk Time Up to 6Hrs Charging Time 2Hrs Operation Temperature -10 ℃ ~ 60℃ Dimension / Weight 18.4(W) x 43(L) x 25.6(H) / 11 g...
- Page 14 1. Do not drop the unit from high places. 2. Do not modify, repair, or take apart. 3. Do not expose directly to water, alcohol. Benzene, etc. for cleaning. 4. Do not expose directly to flammables. 5. Do not place or keep the unit near flammables. 6.
-
Page 15: Fcc Notice To Users
FCC NOTICE TO USERS : This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference and (2) This device must accept any interference received, including interference that may cause undesired operation. - Page 16 1. Radio frequency exposure This Bluetooth® Headset, HBM-560, is a radio transmitter and receiver. When in operation, it communicates with a Bluetooth® equipped mobile device by receiving and transmitting radio frequency (RF) electromagnetic fields (microwaves) in the frequency range 2.4 to 2.4835 GHz. The output power of the radio transmitter is low, 0.001 watt.
- Page 17 5. Recycling the battery in your Bluetooth® Headset The battery in your Bluetooth® Headset must be disposed of properly and should never be placed in municipal waste. The LG Electronics service partner removing battery will dispose of it according to local regulations.
- Page 18 - If LG Electronics repairs or replaces the product, the repaired or replaced product shall be warranted for the remaining time of the original warranty period or for ninety (90) days from the date of repair, whichever is longer.
- Page 19 DISCLAIMED BY LAW. �Some countries/states do not allow the exclusion or limitation of incidental or consequential damages, or limitation of the duration of implied warranties, so the preceding limitations or exclusions may not apply to you. The warranty provided does not affect the consumer's statutory rights under applicable national legislation in force, nor the consumer's rights against the dealer arising from their sales/purchase contract.
- Page 20 Subject to the conditions of this Limited Warranty, LG Electronics warrants this product to be free from defects in design, material and workmanship at the time of its original purchase by a consumer, and for a subsequent period of one (1) year. Should your product need warranty service, please return it to the dealer from whom it was purchased or contact your local LG Electronics contact center to get further information.
