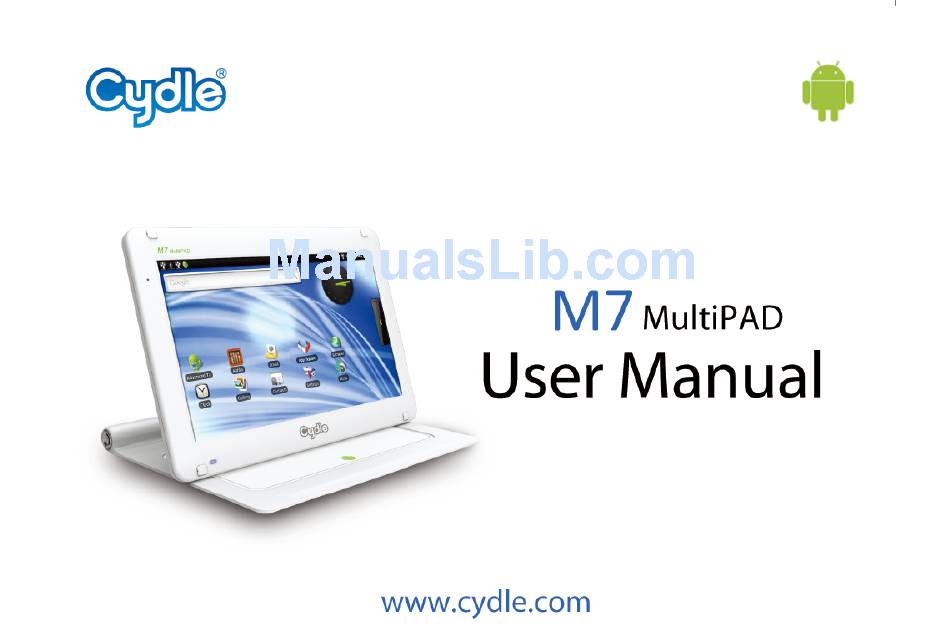

Summary of Contents for Cydle M7 MultiPAD
-
Page 2: Table Of Contents
Detachable Stand How to Use the Mini USB Port How to Use Your Micro SD Getting Started Pairing a Wireless Device Turning the M7 MultiPAD On/Off Home Screen and Applications Tab How to Manage Icons App Square Status Indicator on Device... -
Page 3: Introduction
Manual Web site Please visit our website or contact a Cydle representative if you have any inquires while using the Cydle M7 MultiPAD. Get the latest software update at the Cydle website at no cost. Register as a Cydle Member for the latest updates, promotions and new product information. -
Page 4: Safety And Handling Information
Never attempt to repair or modify the M7 MultiPAD yourself. If the M7 MultiPAD has been submerged in water, punctured, or subjected to a severe fall, do not use it until you take it to an Cydle Authorized Service Provider. The M7 MultiPAD doesn’t contain any user-serviceable parts. -
Page 5: Important Safety Information
Caution: Power Adapter Usage When using the Power Adapter to charge the M7 MultiPAD, make sure that the Power Adapter is plugged into the power outlet. Do not connect or disconnect the Power Adapter while hands are wet. Do not use any other Power Adapter other than the AC/DC Power Adapter certificated by Cydle to charge your M7 MultiPAD. -
Page 6: Before You Start
Before you start Before you start M7 MultiPAD at a Glance ⓚ ⓐ ⓕ Power Jack Microphone Back Button ⓛ ⓑ ⓖ External Speaker Power Button Microphone Jack ⓜ ⓒ ⓗ Hook for Detachable Stand ⓝ Volume Keys 3.5mm Earphone Jack ⓓ... -
Page 7: Battery
Use Battery The charge time can vary but when the M7 MultiPAD battery has completely depleted, expect about 5 hours to charge the M7 MultiPAD completely. The charging time can be different when using the M7 MultiPAD while charging. -
Page 8: Detachable Stand
Introduction Detachable Stand Use the M7 MultiPAD Detachable Stand to set on top of the desk for a hands free operation or use as a Screen Cover when collapsed, to protect the LCD screen when mobile. How to turn the stand... -
Page 9: Getting Started
Home Screen and Applications Tab The Home Screen is what you see when turning on the M7 MultiPAD. It gives you access to shortcuts, widgets and more. The Home Screen expands further by dragging the screen to the left or right. - Page 10 Getting Started Introduction How to manage Icons 4. To add Widgets, Folders and Wallpapers to the Home Screen: Press and hold the Home Screen (place finger on area with no Icons) for 3 seconds to open the Tools Window. Select the desired function. <Choose Widgets>...
-
Page 11: Status Indicator On Device
Getting Started Introduction Status Indicator on Device Current Status Indicators are shown on the Top Bar in the upper screen. Icons will appear to show SD Card in use, USB connection, Wi-Fi connection, Wireless Device connection, and more. Please see the corresponding icons for more details. Wireless Audio System Mode ON WiFi Connection Pairing Wireless Device... -
Page 12: Music Playback
Music Music Music Playback 1. Tap on ‘Music’ icon. 2. Choose a song or browse through categories located on the top of the Music Screen 3. Select desired Music from the list. - Page 13 Music Music Playback 4. Additional menu options will appear on the Play Screen 4. Playback options to Shuffle or Repeat music will be when the “Menu” button is selected. To add the current located on the screen. song to a new playlist, tap on “Add to playlist” icon. 1) Move Back to 3) Repeat Play List...
-
Page 14: Video Gallery
Gallery Gallery Video Gallery <Video Play Screen> <Gallery Setting Screen> <File Managing Screen>... -
Page 15: Photo Gallery
Gallery Gallery Photo Gallery 2) To share image with the other device 1) To set Main screen image 3) To delete the image 1) To rotate the image 2) To crop the image... -
Page 16: Hdmi
HDMI HDMI How to use HDMI The M7 MultiPAD fully supports 1080p HDMI. Connect to your television or monitor to enjoy your favorite movies on a bigger screen. 1. Tap on the ‘Settings’ icon from the Home Screen. 2. Go to Sound & Display > Output Select. -
Page 17: Web Browsing
7. Wifi Access Point can be lost due to status of the router. In the event this happens, restart your router or reconnect the Wifi on the M7 MultiPAD. Click on “Wi-Fi > Wi-Fi On/Off” to reconnect and reinstate connection to the Wi-Fi... -
Page 18: To Start Internet Browser
Internet Browsing To Start Internet Browser 3. When the keyboard pops up, input the URL of desired 1. Tap on the ‘Internet’ icon. website and tap on the “Go” or Enter button. 2. The Internet Browser will open. To browse other 4. -
Page 19: Bookmark
Internet Browsing Bookmark Tap on the “Bookmark” icon located on the top right of the address bar to display the web browsing History and Favorites. <Most Viewed> <History> To Create Bookmark 1. Select Bookmark 3. Input the name you would like displayed in the Bookmark List. -
Page 20: Syncing
Syncing How to use the Mini USB Port You can use the M7 MultiPAD as a ‘Mass Storage’ by connecting to the PC with the Mini USB Cable. The Micro USB Port supports USB 2.0. 3.A separate window will pop up and ask if you wish to “Mount”... -
Page 21: How To Use Your Micro Sd
2. The Memory Card icon will show up and disappear on the top left side of the Top Bar. ▶ How to enjoy the contents in Micro SD card inserted in M7 MultiPAD on your PC. 1. Insert your Micro SD Memory Card into the M7 MultiPAD and connect to the PC using the Mini USB Cable. -
Page 22: Pairing A Wireless Device
Syncing Pairing a Wireless Device 1. Make sure to set the Wireless Device is in “Pairing” 6. Choose the device you wish to pair with the Cydle 2. Tap on ‘Settings’. M7 MultiPAD. 3. Go to “Wireless & networks” 7. When paired successfully, “Connected to device and media audio”... -
Page 23: App Square
App square To Start App Square Before you use App Square, M7 has to be connected ▶ Registration with Wifi Network (Page 17) 1. Tap on ‘App Square’ icon on the Home Screen 4. Press the Menu button located on top of the M7 2. -
Page 24: Manage Account
1. Tap on ‘Delete Account’ icon on the “My Information” Screen 2. Modify your App Square Account. Tap “Done” to 2. Tap “Yes” and put your App Square pin number to complete. delete your account from both your device and the Cydle Server. -
Page 25: Application
App square Application ▶ How to use App Square Applications. 1. Tap on ‘App Square’ icon on the Home Screen 4. You can access the App Square Menu from the Menu button located on the top of the M7. 2. Select an App to download from the featured Apps, browse through the App Categories or search for Apps. - Page 26 App square Application ▶ How to use App Square Applications. 6. Select an App in the App Square. 7. Scroll down the App details page. 8. Click “Install” to download the App to the M7 MultiPAD 9. Press the Done icon to complete download. App Square is an Android based application market that will provide you with access to new, fun and cool apps.
-
Page 27: Specification
Internal memory and optional removable Micro SD card. Data storage USB 2.0 Computer interface Power Cydle M7 MultiPAD using the car battery adaptor or AC power Power input using an optional accessory. (5V,2A) 4500mA, Un-swappable rechargeable Lithium polymer battery Battery... - Page 28 FCC Notice THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS: (1) THIS DEVICE MAY NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDERSIRED OPERATION. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
-
Page 29: Copyright
No part of this manual can be copied, reproduced, transmitted without the prior written consent of Cydle Corporation. Cydle grants permission to download a copy of this manual into a hard drive or other electronic storage to be viewed and to be printed on copy, which must contain this copyright notice. - Page 30 FROM THE USE, MISUSE, OR INABILITY TO USE THIS PRODUCT OR FROM DEFECTS IN THE PRODUCT. Cydle Corp. retains the exclusive right to repair or replace the unit or software or full refund of the purchase price at its sole discretion. Such remedy shall be your sole and exclusive remedy for any breach of warranty.
