Summary of Contents for TransPro Select MP882
- Page 1 TransPro Select Cap Auto Heat Press Model No.: MP882 - 1 -...

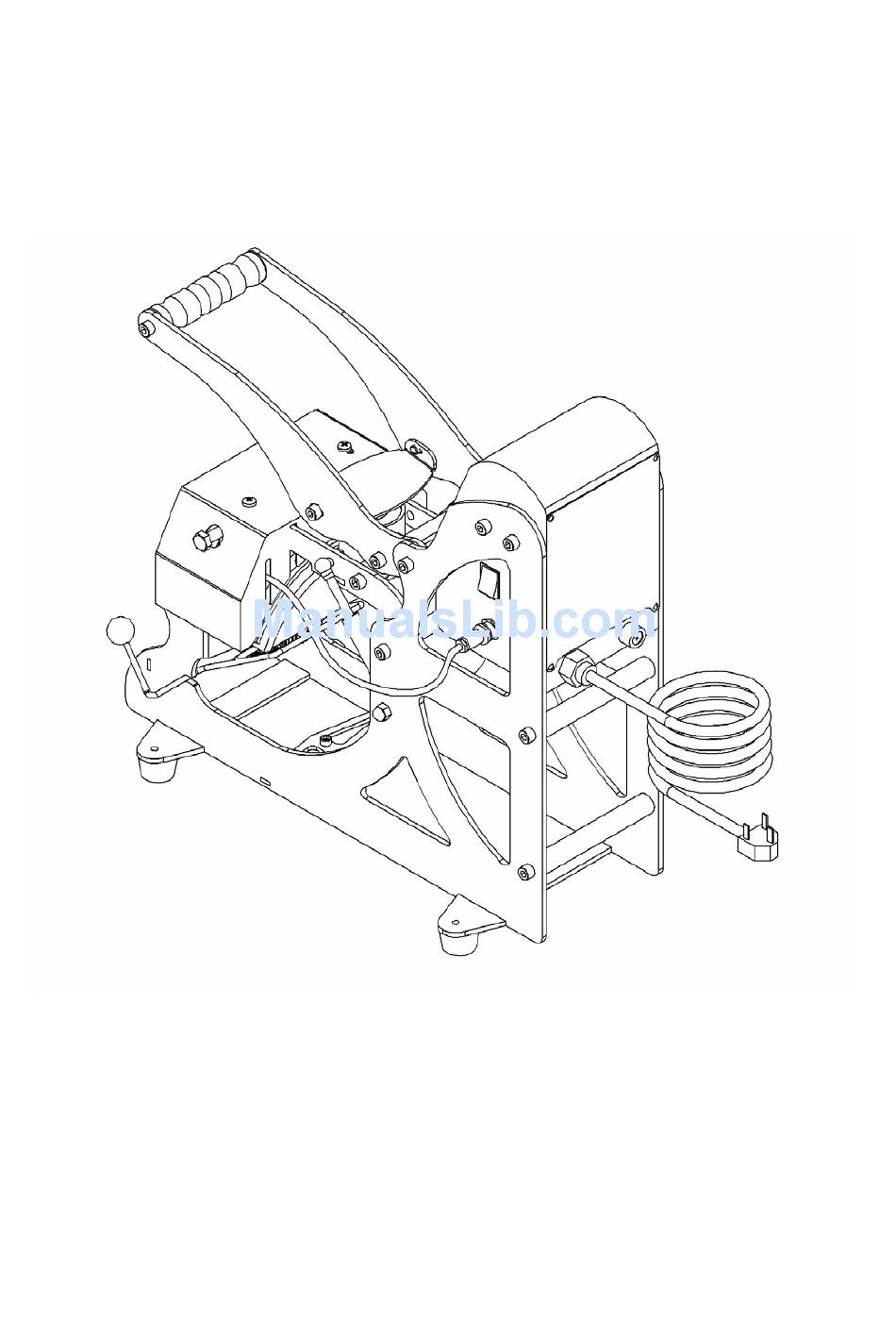

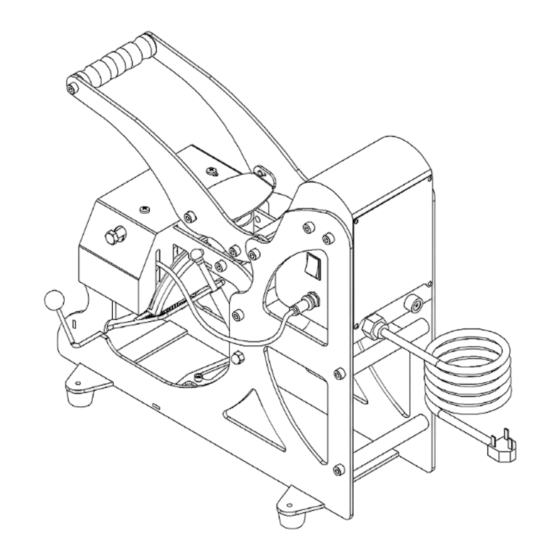

- Page 2 I. ASSEMBLY DRAWING ○ Digital Controller ○ Electric Case ○ Power Cord Power Switch Heater Socket Connecting Screws ○ ○ ○ Hat Rack Electromagnet Limit Switch ○ ○ ○ II. Technical Parameters 1．Model No.: MP882 2．Machine Size: 20.7 x 19.6 x 9.8 Inches 3．Printable Articles Max Size: 3.14 x 5.11 x 0.39 Inches 4．Voltage: 110V 5．Power: 600W...
- Page 3 III. Operation Process 1. Set Temperature Required Turn on power switch, temperature Press button, the light is Press button, the temp light light is ON. The digital display shows on (C denotes Celsius). Press is on. Select the temperature using arrows “△”...
- Page 4 IV. Circuit Diagram - 4 -...
- Page 5 Exploded View Part Name Davit Arm Machine Frame Electromagnet Electric Case Flat Heat Platen Cover Power Cord Cap Heater Cover Fuse Holder Flat Heat Platen Heating Plate Socket Cap Heater Electrical Parts Bracket Electromagnet Power Switch Hat Rack Limit Switch Pressure Adjust Gear Connecting Piece Gas Spring...
