Air 802 AP-G200 User Manual

Wireless lan device series high power multi-mode ap
Hide thumbs

Advertisement

Quick Links

Download this manual

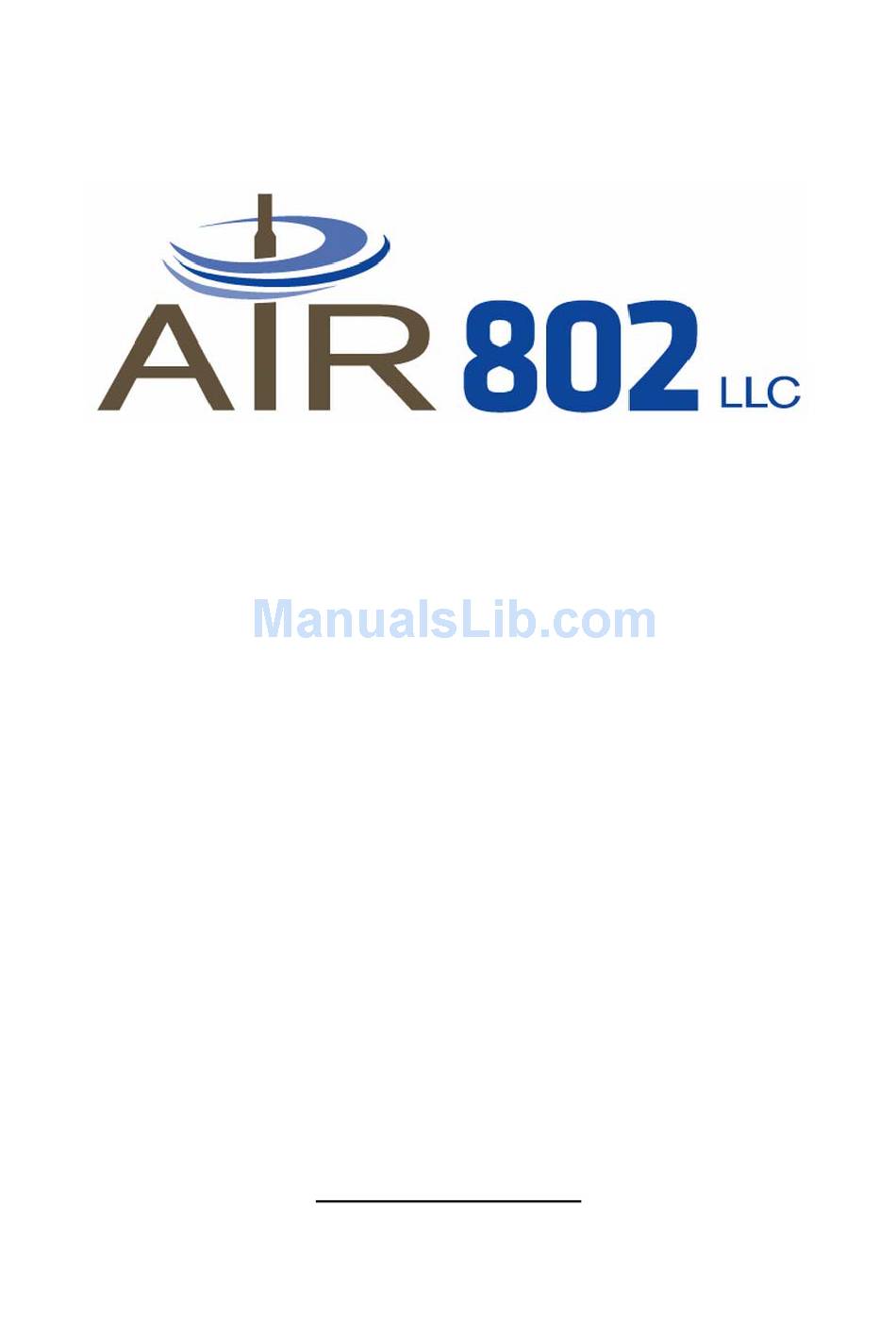

Wireless LAN Device Series
High Power Multi-Mode AP
AP-G200 User Manual
Version. 1.2.2 (24.02.2006)

Advertisement

loading
Need help?

Need help?

Do you have a question about the AP-G200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Air 802 AP-G200

  • Page 1 Wireless LAN Device Series High Power Multi-Mode AP AP-G200 User Manual Version. 1.2.2 (24.02.2006)
  • Page 2 TABLE OF CONTENTS PREFACE CH 1. AP-G200 INSTALLATION ......................2 ............................2 ACKING ........................2 ARDWARE NSTALLATION CH 2. FIRST TIME CONFIGURATION .................... 3 ......................3 EFORE TART TO ONFIGURE ....................3 NOWING THE ETWORK PPLICATION ......................... 27 DVANCED ETTINGS ....................
  • Page 3 CLI M ..........................60 SING ......................63 YSTEM ANAGEMENT SNMP A ............................ 63 GENT ......................... 66 IRMWARE PGRADE & R ..................67 ONFIGURATION ACKUP ESTORE ........................68 ISCOVERY APPENDIX A. BRIDGED NETWORK CONFIGURATION (WITH LINKSYS, ETC.) ..... 42...
  • Page 4 Preface This guide is for the networking professional who installs and manages the AIR802 AP-G200 High Power Multi-Mode Indoor AP, hereafter referred to as the “device”. To use this guide, you should have experience working with the TCP/IP configuration and be familiar with the concepts...

  • Page 5: Ch 1. Ap-G200 Installation

    The administrator can refer to the figure below while constructing your WLAN environment. Connect Two Ethernet Patch Cables As Follows: Data In: connects to your router or other network uplink P+Data Out: connects to AP-G200 (this provides both the Ethernet + 48VDC power to the unit)

  • Page 6: Ch 2. First Time Configuration

    IP of the device even your PC is not in the same subnet as the device is. Knowing the Network Application AP-G200 can act as the following roles, and it supports WDS (Wireless Distribution System) function. Access Point...
  • Page 7 The wired Ethernet (WAN) port is used to connect with ADSL/Cable modem and the wireless NIC is used for your private WLAN. The NAT is existed between the 2 NIC and all the wireless clients share the same public IP address through the WAN port to ISP. The default IP configuration for WAN port is static IP.
  • Page 8 Client AP+WDS Hereafter are some topologies of network application for your reference. Internet Broadband Modem Router Mode With WDS + AP Bridge Mode Bridge Mode WISP Mode With With WDS + AP Bridge Mode...
  • Page 9 Examples of Configuration This example demonstrates how to set up a network with different device configurations. There are 2 DHCP servers (DEV1/DEV4) in the network to control the IP configuration of 2 domains (192.168.2.x/192.168.3.x). Once the setting is done, all the PCs can visit Internet through DEV1.

  • Page 10: Pppoe"

    Press “Next>>” button then set the “Operation Mode” to “Router” mode. Press “Next>>” button then disable “Time Zone” function. Press “Next>>” button then set the IP address of LAN interface. Press “Next>>” button then select the “PPPoE” for “WAN Access Type” and fill in the “User Name”...

  • Page 11: C Onfigure

    Press “Next>>” button then select the “AP+WDS” for “mode” and change the SSID to “DEV1”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. 10. Wait for refreshing web page. 11. Use “WDS Settings” page to configure WDS.
  • Page 12 12. Enable WDS function and add the BSSID of DEV2 to “Current WDS AP List”. 13. Since we access the device by wireless connection, it may temporarily disconnect when applying the WDS setting. After re-connecting to the device, use the “Status” page to check the settings.

  • Page 14: Nterface

    Configure DEV2: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you not able to access the web server of device. If the situation happens, please try to clean the ARP table of your PC by DOS command “arp –d”...
  • Page 15 Press “Next>>” button then select the “AP+WDS” for “mode” and change the SSID to “DEV2”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. Wait for refreshing web page.

  • Page 16: Erver

    Access the web server by new IP address “192.168.2.202” then use “LAN Interface” page to disable DHCP Server. 10. Wait for refreshing web page. 11. Use “WDS Settings” page to configure WDS.
  • Page 17 12. Enable WDS function and add the BSSID of DEV1 to “Current WDS AP List”. 13. Use the “Status” page to check the settings.
  • Page 18 Configure DEV3: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you not able to access the web server of device.
  • Page 19 Access the web server by new IP address “192.168.2.203” then use “Basic Settings” page to change SSID and CHANNEL. Use the “Status” page to check the settings.
  • Page 20 Configure DEV4: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you unable to access the web server of device.
  • Page 21 Press “Next>>” button then select the “DHCP Client” for “WAN Access Type”. Press “Next>>” button then select the “Client” for “mode” and change the SSID to “DEV4”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. Wait for refreshing web page.
  • Page 22 10. Change the IP address of your PC to 192.168.3.x then access the web server by the new IP address “192.168.3.1” and use “Status” page check the setting. 11. If the “State” of “Wireless Configuration” is not “Connected” or you want to refresh the “RSSI “, please use “Site Survey”...
  • Page 23 Configure DEV5: Access the web server (http://192.168.2.254) of device from the Ethernet port. Caution If you configure multiple devices in the same PC, since the devices have the same default IP address but different MAC addresses, it may cause you unable to access the web server of device.
  • Page 24 Press “Next>>” button then select the “Client” for “mode” and change the SSID to “DEV5”. Press “Next>>” button then select “None” for “Encryption” then press “Finished” button. Wait for refreshing web page. Access the web server by the new IP address “192.168.2.205” and use “LAN Interface” page to disable DHCP Server.
  • Page 25 10. Wait for refreshing webpage. 11. Use “State” page to check setting. 12. If the “State” of “Wireless Configuration” is not “Connected” or you want to refresh the...
