Summary of Contents for ISEEKA WT10

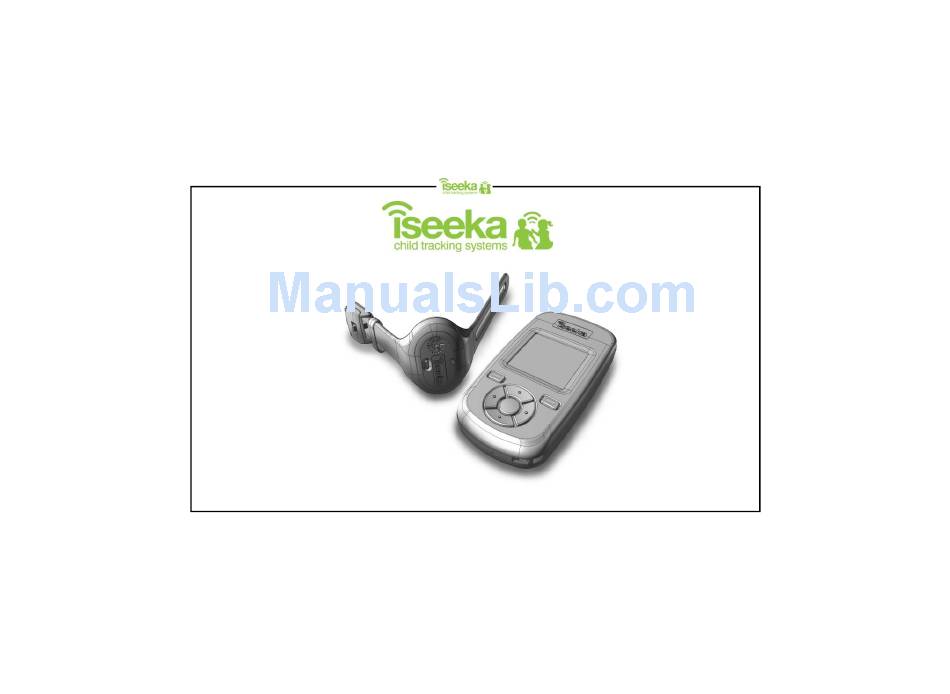

- Page 1 Base Unit - BU10 Wrist Tag - WT10...
-
Page 2: Table Of Contents
Table of Contents 1: General Information……………………………………………… 1 4: Understanding the Monitoring Mode…………………………. 15 1.1 Standard Package Contents…………………………………….. 1 4.1 Main Screen (Monitoring Mode)………………………………… 15 1.2 Display Indicators and Icons…………………………………….. 1 1.3 Summary of Tag and Base LED and Alert …………………….. 2 5: Understanding the Find Mode…………………………………. -
Page 3: 1: General Information
1.1 Standard Package Contents Welcome Package Contents: Welcome to Iseeka, a simple and innovative way to monitor your children. 1: W rist Tag with W rist Strap X 1 Please take a few minutes to familiarise yourself with the system. You will 2: Base Unit x 1 find all of the components to be extremely easy to operate. -
Page 4: Summary Of Tag And Base Led And Alert
1.3 Summary of Tag and Base LED and Alert Base Alert Normal Silent Normal Silent Association Mode Blinks once every 15 sec 2 chirps 2 chirps No alert No alert Monitoring Mode No alert No alert No alert No alert 1 chirp 1 chirp every Outside Comfort Zone... -
Page 5: Wrist Tag Features
1.5 Base Features 1.4 Wrist Tag Features Logo Strap Lock 1.5” LCD Alert LED (red) 2 x Soft Keys Logo Speaker Hole Press to activate panic mode Multi-directional keypad. Rubber Strap On the bottom right: Lanyard Loop On the bottom left: Latch Key Page 3... -
Page 6: 2: Getting Started
2: Getting Started 2.1 Installing and Removing the Battery on the Wrist Tag (battery’s positive polarity faces upwards) To remove the battery Step 1: Step 2: Step 3: Step 4: Stretch and pull the rubber strap apart With a coin, slot it in between the Use the pointed edge of the latch key... -
Page 7: Attaching And Detaching The Wrist Tag
2.2 Attaching and Detaching the Wrist Tag Step 1: With the latch key (located on the bottom left of the handheld unit), insert the key into the latch as shown, using Step 2: the forked edge push the metal pin Slide the other end of the rubber strap forward and lift the door open. -
Page 8: Installing And Removing The Batteries On The Base Unit
2.3 Installing and Removing the Batteries on the Base Unit Step 1: Step 2: Push the battery door down where the Following the directions on the casing arrow indicator is then slide outwards to firmly insert 2 X AAA batteries. remove the battery door. -
Page 9: Switching On/Off
2.4 Switching On/Off The Base will turn on when new batteries are inserted. To turn off the Base: The base will stop communicating to the Tag/Tags and display the power down screen before it turns off. Power Down Screen Press and hold the key for 2 seconds in the main screen (Monitoring Mode). -
Page 10: Register Tag To Base (Association Mode)
2.5 Register Tag to Base (Association Mode) First Screen Step 1: Insert battery into the Base. First Screen (without association) If the Base has not been associated with any Tag, it will display the following screen for 5 seconds after it is powered up. Step 2: Select Yes to enter association mode to register Tags. -
Page 11: 3: General Functions
3: General Functions 3.1 Keypad Lock You can lock or unlock the keypad. The Base will unlock the keypad automatically in the event of panic alert, comfort zone alert and out of range alert. To Lock the Keypad: Press and hold the key for 1 second in the main screen (Monitoring Mode). -
Page 12: Main Menu
3.2 Main Menu You can access following sections from the main menu: • View Tag • Find Tag • Rename Tag • Register Tag • Unregister Tag • Comfort Zone • Return to Base • Tag Power Saver • Advance Settings Main Menu Screen The user has the option to select any of the menu items. -
Page 13: Finding The Tag
3.4 Finding the Tag You will be able to select a single Tag and locate it. Step 1: From the Main Menu > Select Find Tag Step 2: Select the Tag which you would like to locate and enter find mode (Go to Find Mode Screen). Select Back to return to the main menu without making any changes. -
Page 14: Unregistering The Tag
3.6 Unregistering the Tag You can disassociate / unregister all Tags from the Base. Step 1: From the Main Menu > select Unregister Tag. Step 2: Select Yes to confirm your option to unregister all the Tags. Select No to return to the previous screen. Unregister All Tags Screen Display shows the name of Tag/Tags found that can be unregistered. -
Page 15: Tag Power Saver
3.8 Tag Power Saver You can place all Tags into sleep mode to conserve the Tag battery life when they are not in-use for a period of time. Step 1: From the Main Menu > Select Tag Power Saver. Step 2: Select Yes to confirm to proceed to place all tags into sleep mode. -
Page 16: Setting Comfort Zone
3.9 Setting Comfort Zone You will be able to set a level that represents a comfort zone (in distance) for all Tags or individual Tags. The Base will monitor the comfort zone for the Tags in monitoring mode. From the Main Menu > select Comfort Zone. The following option for comfort zone settings are supported: All Tags: To set a comfort zone for all Tags. -
Page 17: 4: Understanding The Monitoring Mode
4: Understanding the Monitoring Mode When the Base is turned on, it will automatically enter monitoring mode (Maximum 16 Tags). During monitoring mode, the Base will search for all associated Tags, and indicate their approximate distance on the screen. Main Screen (No Association) This is the main screen in which the Base is not associated with any Tag. -
Page 18: 5: Understanding The Find Mode
5: Understanding the Find Mode When using the find mode, the base will only search for one Tag and stop monitoring the rest of the associated Tags. The Tag name will be shown at the bottom of the screen. The screen shows how close the Base is to the Tag with audible beeps. When the Base is getting nearer to the Tag, it will indicate a stronger signal level and generate faster audible beeps. -
Page 19: 6: Alerts
6: Alerts 6.1 Panic Alert When the panic button of any Tag is pressed, the Tag and the Base will send out panic alert. The Base will also display a message to indicate which Tag activated the alert. Any key pressed on the Base will stop the panic alert in the Tag. -
Page 20: Outside Comfort Zone Alert
6.2 Outside Comfort Zone Alert The Base will sound an alarm when Tag/Tags out of the predetermined comfort zone. The Tag comfort zone alert is: • 1 chirp every second under normal mode. • No alert under silent mode. The Base comfort zone alert is: •... -
Page 21: Out Of Range (Oor) Alert
6.3 Out of Range (OOR) Alert When the Tag is out of range, it will send out an alert. The Tag out of range alert is: • 1 chirp every 2 seconds for 5 minutes under normal mode. • No alert under silent mode. The Tag out of range alert on the Base is: •... -
Page 22: Tag Low Battery Alert
6.4 Tag Low Battery Alert When the Tag’s battery goes too low, it will sound Low Battery Alert. The Base will display a message to indicate which Tag‘s battery is low. The Tag low battery alert is: • 3 chirps under normal mode •... -
Page 23: Base Low Battery Alert
6.5 Base Low Battery Alert When the Base battery level falls too low, the Base will sound low battery alert and turn on a low battery indicator message to indicate that the battery is low. The Base will now operate with only audio for normal alert and without audible beeps in find mode to locate the Tag, and turn off the backlight on the Base. -
Page 24: 7: Advance Settings For Base
7: Advance Settings for Base From the Main Menu > select Advance Settings Advance Settings Menu The user can edit Tag alert, Base alert and RF Channel (Operating channel) via this menu. Select Back to return to the main menu. 7.1 Tag Alert The following alerts settings for the Tag are supported: Silent Mode: Tag never beeps. -
Page 25: Base Alert
7.2 Base Alert User can specify how the Base generates an alert. The following alert settings for the Base are supported: Silent Mode: Vibrate Only. Normal Mode: Audible and Vibrate. Step 1: From Advance Settings Menu > select Base Alert. Select Back to return to previous screen. -
Page 26: Rf Channel
7.3 RF Channel Occasionally, due to external interference, it may be necessary to switch the channel of operation for the Tag(s) and the Base. Step 1: From Advance Settings Menu > Select RF Channel. Step 2: Select Yes to proceed to change the channel. Select No to return to previous screen without any changes made. -
Page 27: 8: Trouble Shooting Guide
8 Trouble Shooting Guide Q1: My Wrist Tag does not appear on the register tag menu. A1: Press the panic button on the Tag when the Base is in the register tag menu. Q2: My Wrist Tag does not appear on my monitoring screen but I have successfully registered it on the register tag menu. A2: Press the panic button on the Tag when the Base is in the main screen (monitoring mode). -
Page 28: Support Information
Iseeka can operate up to a distance of a quarter mile range based on a clear line of sight. The Tag is designed to be waterproof of up to 1 m for a duration of 30 minutes based on the Ingress Protection rating 7(standard). -
Page 29: Product Guarantee
Note: Nothing in this express warranty affects the statutory right available to the consumer. Iseeka (the Company) WARRANTS to the user that if the Base unit or Wrist-Tag are or become defective and the defect results from faulty materials and or workmanship and not in any way from accident,... -
Page 30: Fcc Statement
FCC Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
