X8
Ｍｅｄｉａ BOX — X8
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Media BOX X8 and is the answer not in the manual?

Questions and answers

Summary of Contents for PiPO Media BOX X8

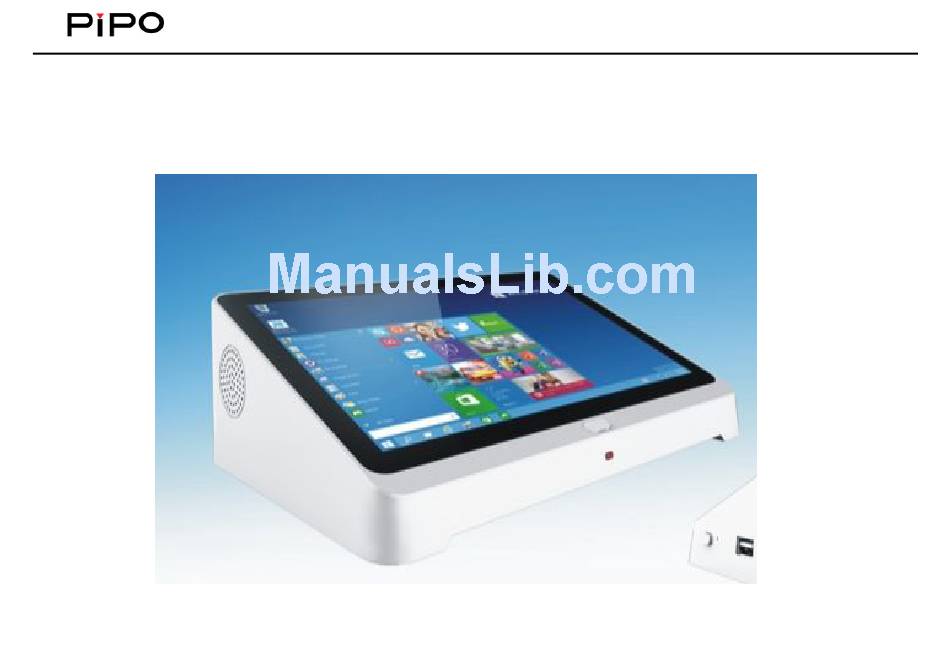

  • Page 1 Ｍｅｄｉａ BOX — X8 USER MANUAL...
  • Page 2 Before beginning, please refer to this user manual carefully. In case of any doubts regarding PIPO X8, you are welcomed to visit the PIPO official Facebook website: www.facebook.com/pipocn, for raising your questions and sharing your experience。Thank you！...
  • Page 3 A Glance on X8 HAPTER ONE 一、 X8 Appearance...

  • Page 4: Product Specifications

    KEYS 1：Power Switch key, 2：　USB port, for connecting peripherals 3： Earphone jack 4： Micro USB for connecting to PC, when X8 is running Android OS 5: TF card slot: for TF card , maximum to 64GB 7: HDMI port 8: Lan RJ45 for internet cable 9: DC 12V power supply jack 二、Product Specifications...
  • Page 5 Items Function description Processor Baytrail 3736F ，frequency is 1.83GHz,up to 2.16 7”1280*800 Storage 32GB OR 64GB Windows 8.1 with Bing + Android 4.4 WiFi 2.4GHz , WiFi signal； Connection HDMI 1.4； MicroUSB for power supply and upgrading, ports and USB2.0 for peripherals； Switch key Mode switching、reset 、upgrading key；...
  • Page 6 Power charger User manual CHAPTER TWO Operations 一、OS operation 1. Connect 12V 2.4A Charger to the X8 DC jack for power supplying； 2. press power button for a few seconds to turn it on;...
  • Page 7 3. Select Android or Windows, press Android icon to go to regular Android OS , and press Windows icon to go to Windows system 4.OS Switch When you are in Windows system press the Win to And Icon for switching into Android...
  • Page 10 When you are in Android system, slide the top right corner, and press the OS switch icon to set up into Windows...
  • Page 11 5.HDMI output Go to “Device”-“project”, and connect X8 to TV set (any display ) via HDMI cable...
  • Page 12 5.1 PC screen only Images could be shown only in TV BOX X8, HDMI output will be cut off 5.2 Duplicate The HDMI output on the TV set may be not by full screen, This is because of the X8 LCD solution is 1280*800, so the HDMI output on the TV set is also shown by 1280*800...
  • Page 14 5.3 Extend When you set up Project mode into Extend, then the X8 rotation may Be locked, you can not rotate the X8 LCD. Press the desktop for a few seconds, go to the setting like this in the picture. ”graphics options ”—“rotation”—“built-in display”...
  • Page 15 The X8 LCD is the first screen, and the TV set display is the second screen, move the mouse pointer outside of first screen, it will jump into second screen and if you move the mouse pointer outside of screen screen, the mouse pointer will jump into first screen.
  • Page 18 5.4 Second screen only In this mode, the images could only be shown on the TV set display, And the X8 LCD will be light off. And the second screen image may be upside down. Then please rotate the X8, place the X8 to be landscape mode or portrait mode, the second screen could be adjusted to normal displaying.
  • Page 19  Reset reset recover “setting”--”change setting”—“update and recovery”  System upgrading and software fixing Please download the WINPE-TOOLS and X8 Images from PIPO official website: www.pipo.cn/en service section Procedure： WINPE_TOOLS COPY THE FILE TO THE STORAGE PLACE THIS FILE TO THE...
  • Page 20 2. C "I " WIMPE_TOOLS, " OPY THE MAGES INTO MAGE FOR EXAMPLE COPY THE " & " " INSTALL WINRE FOLDER INTO THE IMAGES FOLDER OF WINPE_TOOLS F INSTALL ENTER INTO SCRIPT CHANGE THE MAIN CMD INTO DELETE ANOTHER MAIN CMD OR RENAME IT AFTER ALL OF THE ABOVE STEPS START THE TABLETS WITH THE...
  • Page 21 ECLARATION Poisonous substances as shown bellow： Dangerous substance parts （Cr6+） （PBB） （PBDE） （Pb） （Hg） （Cd） Case ○ ○ ○ × × ○ × ○ ○ ○ × × Battery × ○ ○ × ○ ○ ○ ○ ○ ○ ○ ○...
  • Page 22 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference,and(2)This device must accept any interference received, including interference that may cause undesired operation. 2.
  • Page 23 —Reorient or relocate the receiving antenna. —Increase the separation between the equipment and receiver. —Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. —Consult the dealer or an experienced radio/ TV technician for help. FCC Radiation Exposure Statement: The device has been evaluated to meet general RF exposure requirement.
  • Page 24 Avis d’Industrie Canada Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
