Summary of Contents for Dynaset HHK 200-12

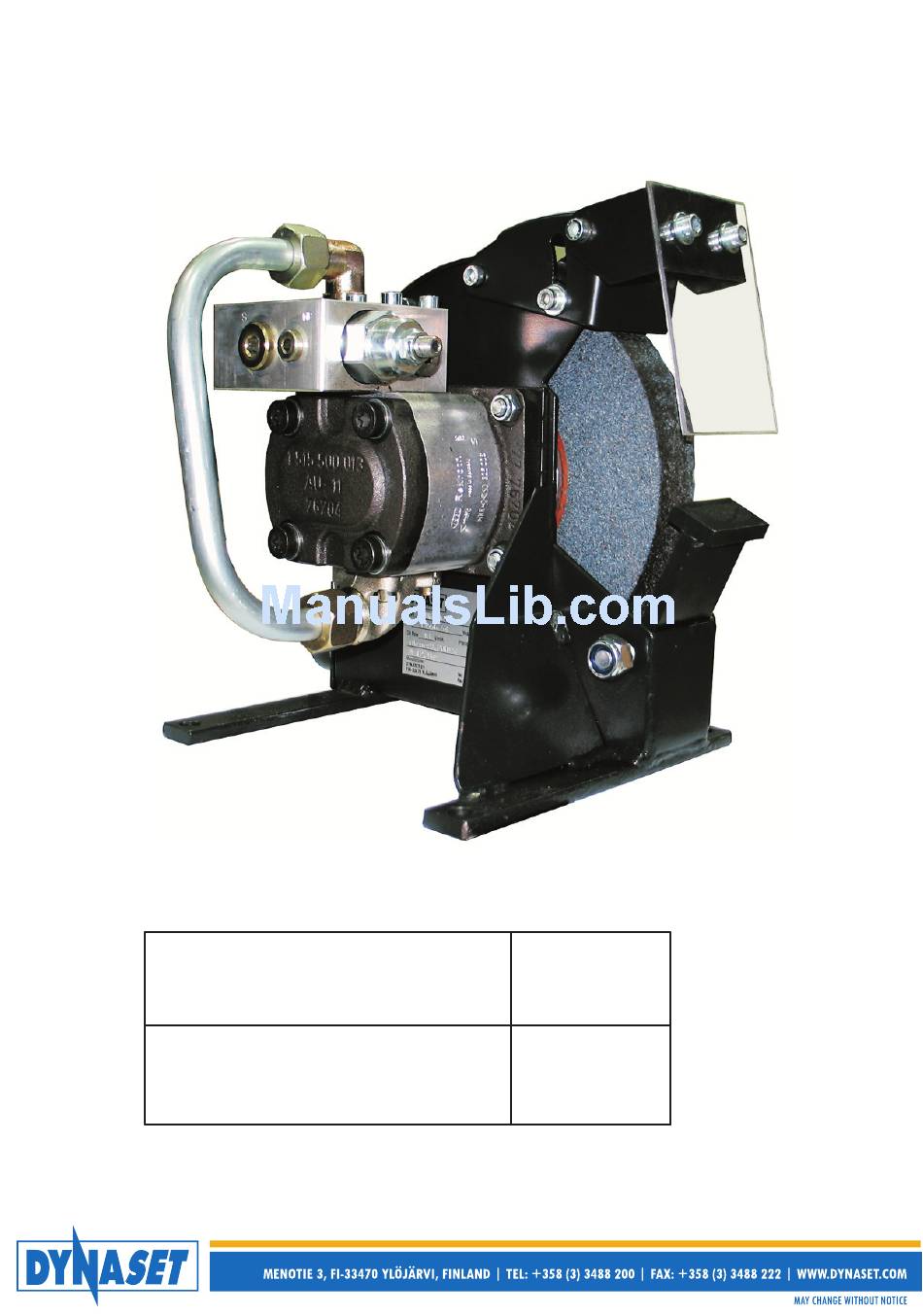

- Page 1 2008 HYDRAULIC BENCH GRINDER HYDRAULIC BENCH GRINDER INSTRUCTIONS HHK 200-12 HHK 200-17...
-
Page 2: Installation
To ensure DYNASET’s proper operation, the hydraulic pressure must be set at least to the level, at which the nominal power output is achieved (ref. to PARAMETERS). Lower pressure reduces output power. Maximum hydraulic pressure is 210 bar (ref. - Page 3 INSTALLATION OPEN CENTRE HYDRAULIC SYSTEM WITH VARIABLE DIPLACEMENT PUMP The demanded hydraulic flow is to be ensured and controlled with a DYNASET PRESSURE COMPENSATED PRIORITY VALVE. DYNASET PV SAE 3/4 - 1 1/4 -XX lpm - 12/24 V priority valve includes...
- Page 4 CONTROL VALVE ensured with the proper choice of a hydraulic pump. In systems with redundant hydraulic flow an installation with DYNASET PRIORITY VALVE is recommended. Installation with a standard pressure compensated 3-way valve should be avoided in order to close off potential waving in hydraulic system.
-
Page 5: Operation
2008 HYDRAULIC BENCH GRINDER PRIOR TO STARTING THE GRINDER Replace and fix the protective cover. Adjust the position of a spark screen. Adjust and tighten the grinding support. Grinder's protective cover has a junction pipe (OD 51) for an exhaust blower. If an exhauster is available, grinder can be connected to the ventilation system in order to keep the working area clean from grinding dust. - Page 6 2008 HYDRAULIC BENCH GRINDER ASSEMBLY 12 13 12 13 51.2 STOCK DESIGNATION DETAILS QUANTITY NUMBER HHK...-12 HHK...-17 07051713 FRAME 07051708 GRINDSTONE’S COVER 07051712 ARCHED GUARD 07051733 SCREEN HOLDER 07051724 SPARK SCREEN 07051711 GRINDING SUPPORT 07051710 SPACER PLATE 07051705 SHAFT M20x1,5-45 07051704 SUPPORT FLANGE 07051703...
-
Page 7: Hydraulic Fluids
Automatic transmission fluids and even engine oils can be used, provided that they are allowed to be used in hydraulic system of your carrier machine. Prior to use special hydraulic fluids a with DYNASET equipment, please be kindly requested to contact nearest DYNASET representative for an advice. - Page 8 Exclusions shipped, at the purchaser’s cost, adequately from warranty are explained in item 8. packed for shipment, to the DYNASET OY or to other location authored by DYNASET OY. Beginning of warranty period Shipment documents must contain: Warranty period begins from the delivery date of Purchaser’s name and contact information...
-
Page 9: Ec Declaration Of Conformity
If device has changed by someone other than at the hands of manufacturer or his permission, this declaration is not valid. HYDRAULIC BENCH GRINDER PRODUCT: ALL TYPE NUMBERS: HHKxxxxxxx-xxxxxxxx-xxxxxx-xxxxxx-xxxx YLÖJÄRVI 15.10.2012 DYNASET Oy Timo Nieminen R&D Manager...
