VNS G-303 Quick User Manual

Active/passive 3d processor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

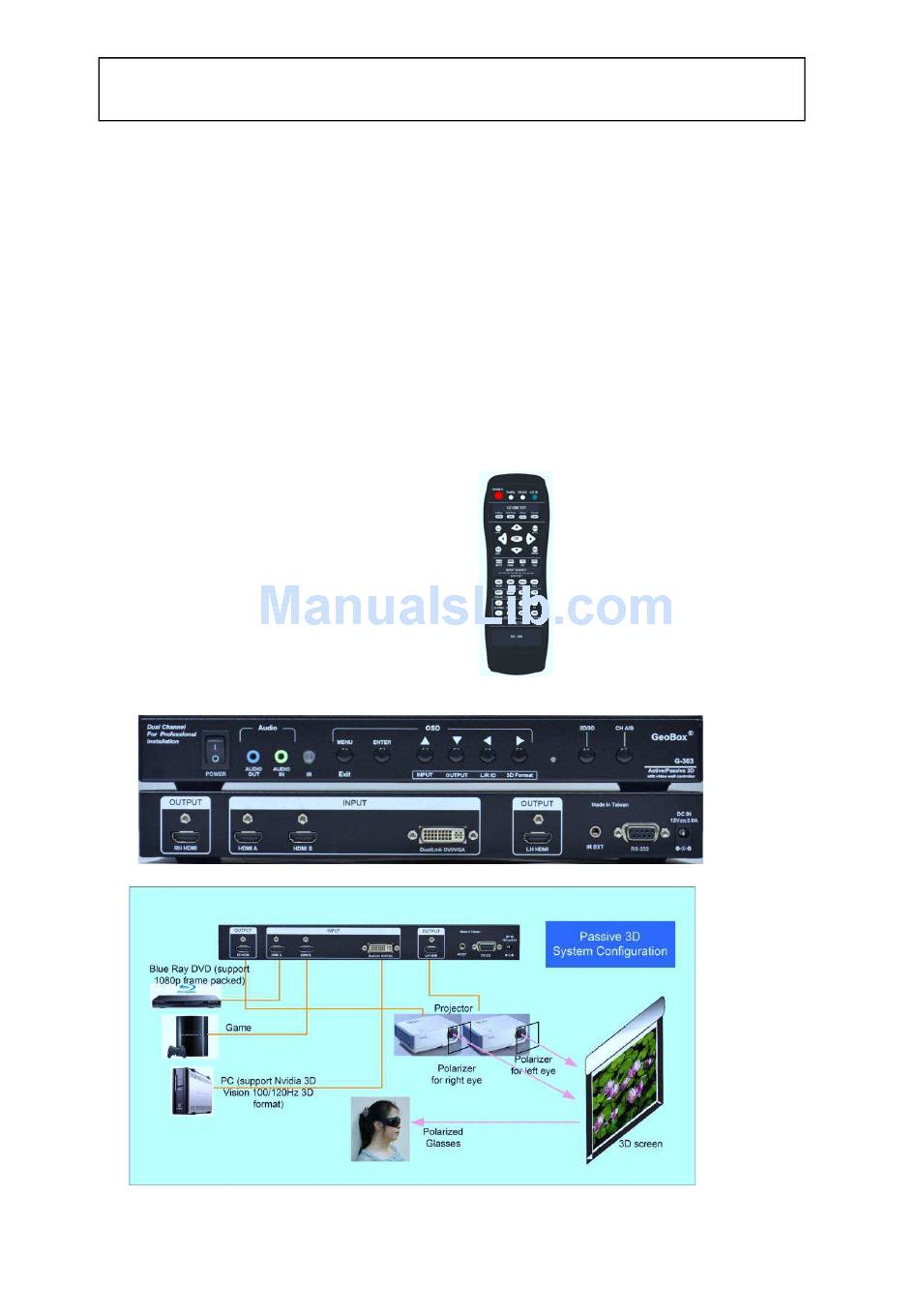

G-303 Quick User Manual
------------------------------------------------------------------------------------------------------------------------------------------------
G-303 Active/Passive 3D Processor Quick User Manual
G-303 is dual channel high end 10-bit processor with 3D motion adaptive de-interlace, low angle smooth
algorithm and 3:2/2:2 film mode processing with 3D decoding for active/passive 3D display and image split,
cropping and location assignment video wall functions. It is allowed 3x HDMI or 2x HDMI & 1x DVI/VGA inputs up
to WQXGA and 3840*1080 input signals without compression. Support HDMI 1.4 and PC frame sequential 3D up
to 1080p 120Hz and output with dual HDMI for dual projector passive 3D or 720P/XGA 100/120Hz for active 3D
display. Zero Latency "Perfect Sync" algorithm provides the most comfortable passive 3D display. 2.35:1 movie
format can be stretch to fit 16:9 screen without black borders. Pure hardware video wall provides low cost video
wall system up to 15x15 matrix display. Two 3840 x 1080 input signals with two sets of G-303 will provide true
4kx2k display with 4 full HD TV. User needs to align projector images through lens shift or keystone function
inside projector for passive 3D. It is an ideal solution for e-cinema and professional installation.
Minimum Equipment required for polarized 3D display
1
Document: G-30301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the G-303 and is the answer not in the manual?

Questions and answers

Summary of Contents for VNS G-303

  • Page 1 16:9 screen without black borders. Pure hardware video wall provides low cost video wall system up to 15x15 matrix display. Two 3840 x 1080 input signals with two sets of G-303 will provide true 4kx2k display with 4 full HD TV.
  • Page 2 G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ 1. 1x G-303 5. 3D glasses (Paired with polarizer) 2. 2x Projectors (Native resolution above XGA 6. 3x HDMI cables with DVI/HDMI input connector) 7. Video source with 3D content 3. 2x polarizers (For RH & LH eyes)

  • Page 3: Specifications

    3840x1080 for super wide dual monitor full HD display Video Wall Using low cost display card to provide dual 3840x1080 outputs for 4kx2k display via two G-303 and 4 full HD TV Pixel based overlap adjustment in all edges Automatically 3D formats detection...
  • Page 4 G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ Support Blue Ray 1080P @24Hz frame packed 3D for 120Hz active 3D display Active 3D display Convert 1080p 120Hz into XGA/720P 120Hz output for active 3D display 10 bits 3D de-interlace, smooth edge algorithm and 3:2/2:2...

  • Page 5: Helpful Tips

    G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ Outlook and Functions Helpful tips 1. Toggle on CH A/B keypad will circulate the OSD control between CH-A & CH-B. 2. Toggle on 2D/3D keypad will circulate between 2D and auto 3D mode.
  • Page 6 3D settings. 2. RH eye should see only “R” and LH eye should see only “L”. If the projector can accept 1080P@24Hz timing, please enable [1080P 24Hz output] to get better video image, otherwise G-303 will output 1080P 60Hz signal.
  • Page 7 Projector installation and setting guide for passive 3D display 1. G-303 doesn’t have geometry adjustment function, user needs to use keystone correction or lens shift function in the projector to align the images. If the projectors don’t have lens shift or the lens shift range is not enough, then the two projectors should be installed at top-bottom position for easy alignment.
  • Page 8 G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ and the distance should be larger. The polarizer can only tolerate up to about 60~70℃. 7. Pay attention to the HDMI compatibility due to different cables, equipment and connection distance. If the distance is too long, HDMI extender shall be considered. It may extend the distance up to 50m to 100m.
  • Page 9 G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ 1. It is necessary to select projectors with lens shift or keystone correction function for the image alignment unless you can use G-501 model. 2. A normal projector can be chosen for 3D display (no need to have 3D ready). Usually, XGA resolution will create acceptable 3D video quality.

  • Page 10: System Connection

    Active 3D application G-303 is also a powerful active 3D controller. It can support Blue Ray 1080p 24Hz frame packed and PC Nvidia 1080p 120Hz 3D signal and convert it to 720p/XGA 120Hz output signal for DLP-Link 3D Ready or Nvidia 3D Vision active 3D display.
  • Page 11 G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ PC hardware and software installation using Nvidia display card 1. Nvidia display card with [3D Vision] support is required for high performance 1080p @120Hz active 3D display. 2. Insert Nvidia IR emitter to the PC and make sure the green light on emitter is on.

  • Page 12: Video Wall

    3840x1080. It is a perfect solution to provide dual monitor wide screen full HD display for game or video wall. Using dual G-303 with dual 3840*1080 outputs from video source or PC can provide true 4kx2k display using 4 full HD TV. The maximum video wall can be up to 15x15 matrix display.
  • Page 13 G-303 Quick User Manual Document: G-30301 ------------------------------------------------------------------------------------------------------------------------------------------------ Press Menu Keypad on Front Panel or remote controller to enter Video Wall OSD menu Use [Zoom] to split the display in horizontal and vertical directions. GeoBox will cut the image into different sections. Maximum split image is 15 in both horizontal and vertical directions.

  • Page 14: Technical Support

    Example for video wall with G-303 in 5x5 LCD displays: Each G-303 can control two video wall displays. With 3 inputs in each G-303, user can have flexible display as showed in the left figure.
