TM
AUTOMATIC FERTILIZING SYSTEM
GARDEN HOSE AND DRIP CONNECTION
INSTALLATION AND OPERATING GUIDE

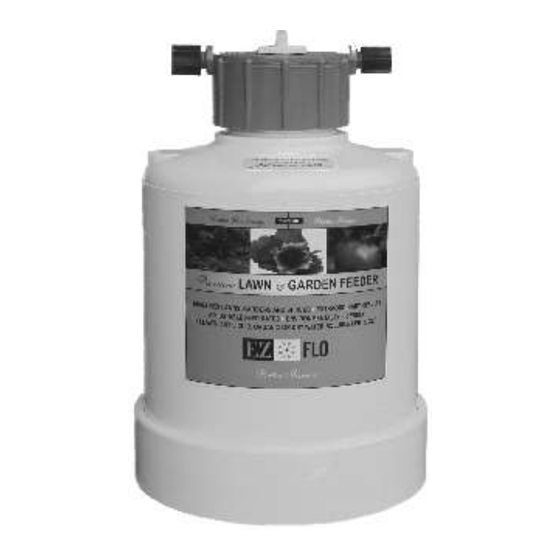

Model: EZ 1010-HB
High Pressure Garden Hose & Drip Feeder
1 Gallon Liquid / 8LB Dry Capacity
CAUTION: Installing your system improperly can cause risk of water contamination
and pose health risks. Do not attach your feeder to a hose bib or sprinkler line that
does not have a hose vacuum breaker (pictured), anti-siphon device, or back flow
preventer. Back flow preventer is not included with system.
Do not install system in an irrigation mainline before a zone valve. Do not use if
pressure exceeds 100 PSI. Flush hose after each use to vent chemicals and
pressure. Empty tank when freezing conditions are present.
For additional information or to contact EZ-FLO go to our website
www.ezflofertilizing.com
or call 866-393-5601
www.ezflofertilizing.com
© 2013, EZ-FLO Fertilizing Systems
Advertisement
Summary of Contents for EZ FLO EZ 1010-HB

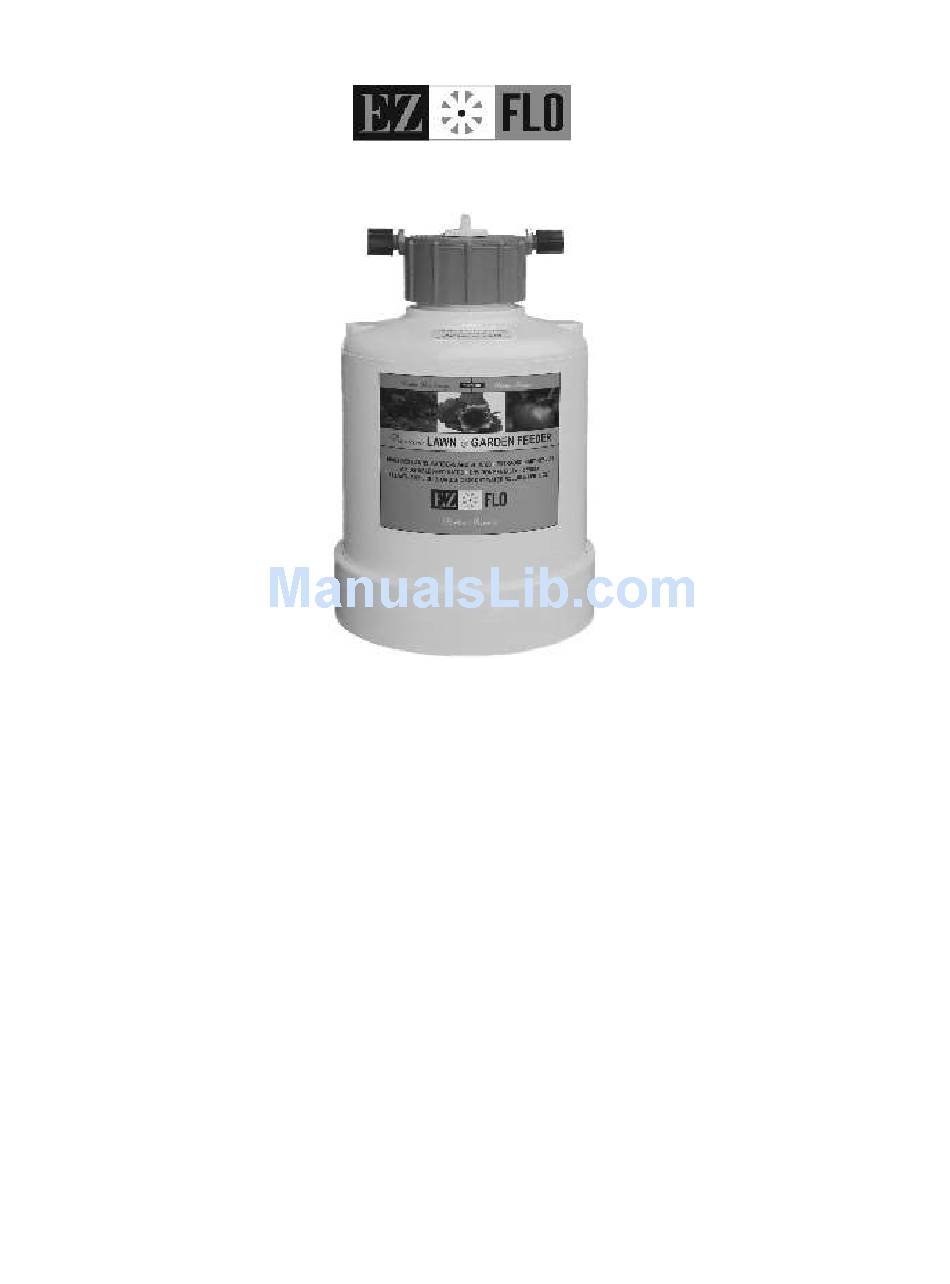

- Page 1 AUTOMATIC FERTILIZING SYSTEM GARDEN HOSE AND DRIP CONNECTION INSTALLATION AND OPERATING GUIDE Model: EZ 1010-HB High Pressure Garden Hose & Drip Feeder 1 Gallon Liquid / 8LB Dry Capacity CAUTION: Installing your system improperly can cause risk of water contamination and pose health risks.
- Page 2 Installing your EZ-FLO: Garden Hose & Drip Systems Step 1: Determine the type of installation that is correct for your system (hose or drip) and insert the Note: A Timer May Be correct FLO disc if necessary (see “Flow Installed Before Or After Requirements Section”) The Ez-flo Hose Bib Connector...
- Page 3 Flow Requirements: Low Flow Hose & Drip Systems Drip systems with less than 120 gallons per hour (GPH) water flow may require an EZ-FLO Flo-Disc in order to inject solution into the drip system. There are three discs provided for these conditions. Important: You must have colored fertilizer in the EZ-FLO tank or food dye to adjust the system.
- Page 4 Adding Fertilizer & Feeding Settings APACITY 10 Lb Dry Powder 1 Gallon Liquid Step 1. Add the fully concentrated product and select the appropriate cap setting based on the manufacturers recommended coverage Fertilizer rate. Products do not require dilution or premixing unless using a Flo-Disc or the manufacturer’s recommendation EZ-FLO does not provide application...
- Page 5 TANK CAP # CAP-LP GREEN Fert l zer Water BLUE # C G # CNB O-RING Cap Fitting # APF # LOR Dip Tubes Tank Only # DT-SET # TNK-1PVC Agitation Fi ti g # AGT Sc e r en F ittin FLOW 2 - Tubing Valves...
- Page 6 EZ F - LO REQ E TL Y ASKED QUESTION WHAT PRODUCTS CAN I USE WITH THE SYSTEM? Any liquid or water soluble powder may be used in the system. Water soluble powders do not need to be dissolved to work in the system. The EZ-FLO process dissolves, mixes, and measures for you. If your product is clear you must add food coloring or dye so the product will be visible in the clear output tube.
